Manual Curtain Tracks
Our range of manual curtain tracks features four unique slimline ACT track variations, each thoughtfully designed to complement voiles and mid-weight curtain styles, while blending effortlessly into a wide range of window settings.
Single or paired curtains
Ideal for light and mid-weight curtains
All profiles compatible with wave gliders
ACT41
ACT43
ACT50
ACT60

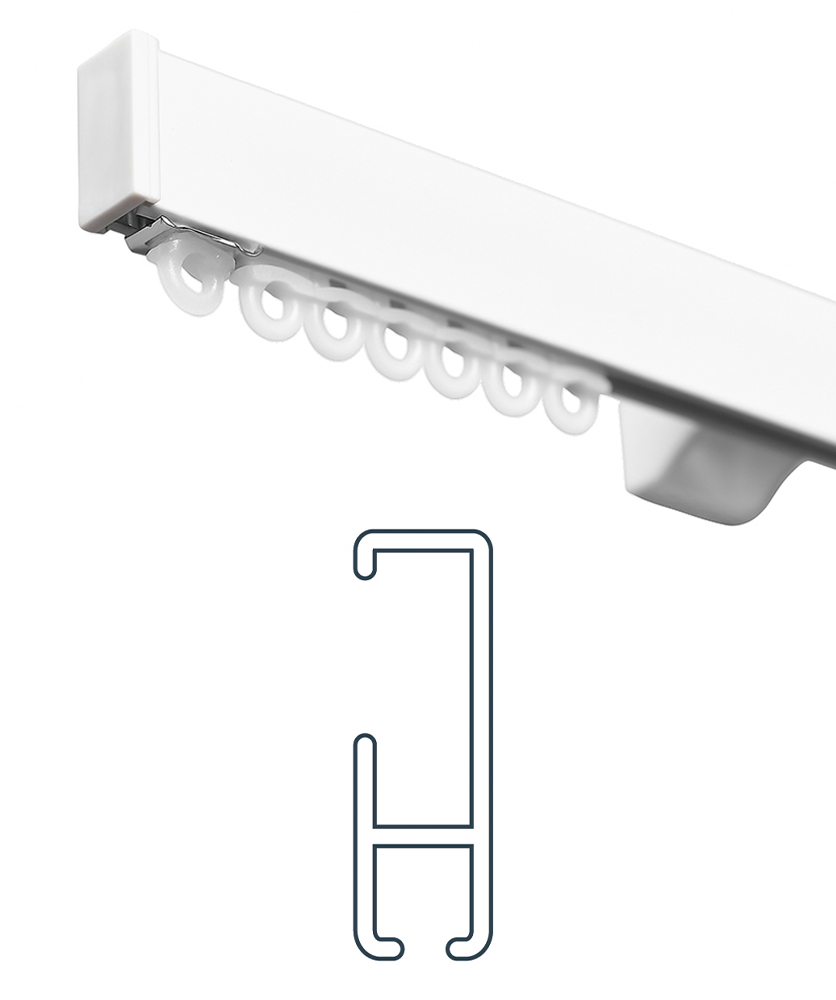

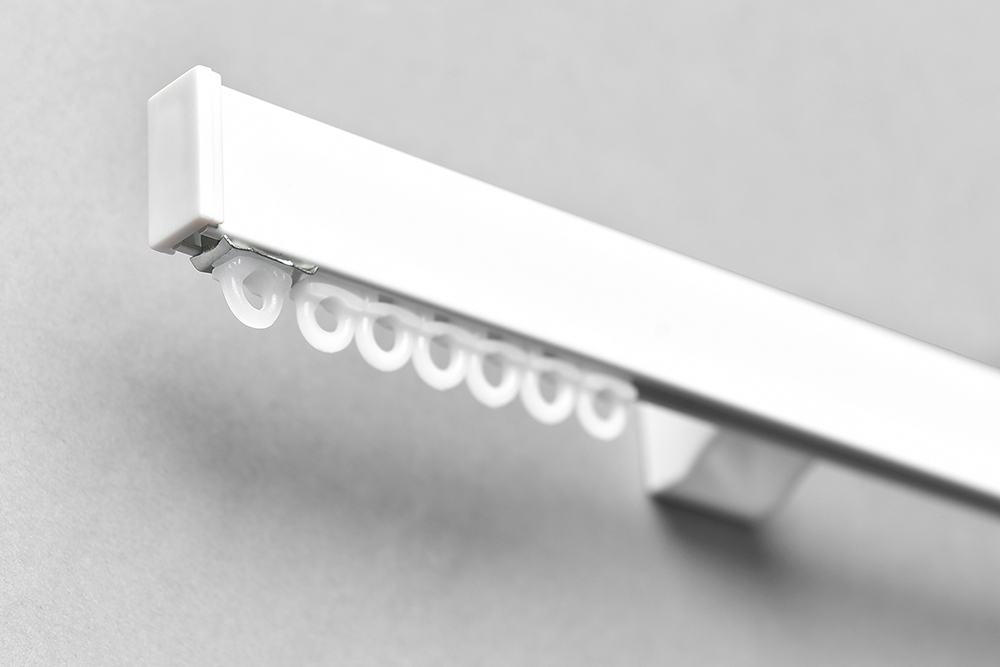

ACT41
A versatile and robust hand-operated system perfect for both domestic and contract applications. Designed for medium-weight curtains and ideal for deep curtain headings, providing durability and functionality in one sleek track. Available with ceiling or universal brackets with a convenient push-fit/clip-off feature, and L Bracket & Cover Sets for a stylish wall installation.

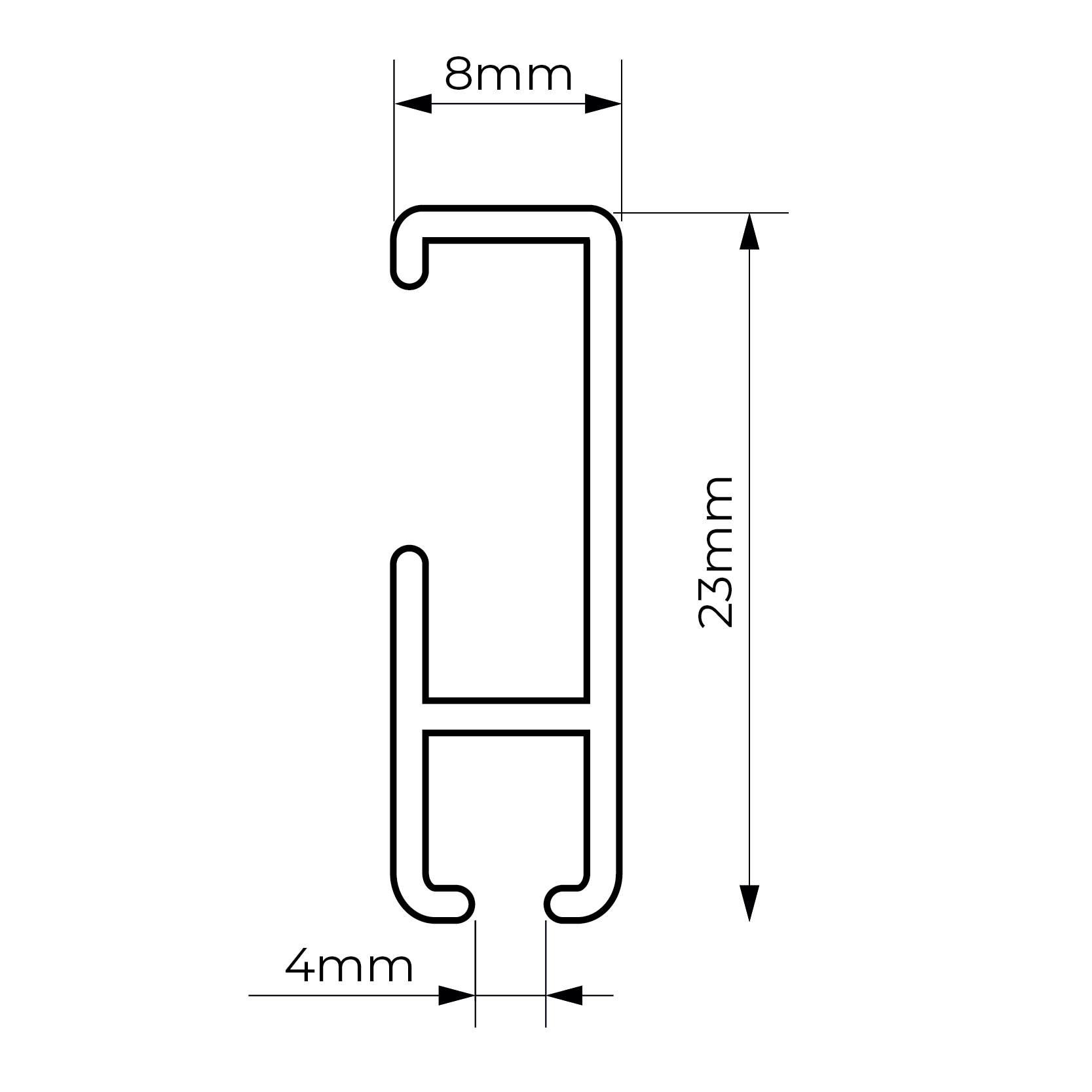

ACT41 Track Dimensions (cross section)
 | Available in white or black |
| Max. weight 6kg/m |
| Max. width 10m |
| Compatible with wave gliders |
| Single or split stacking |
| Perfect for mid-weight curtains |

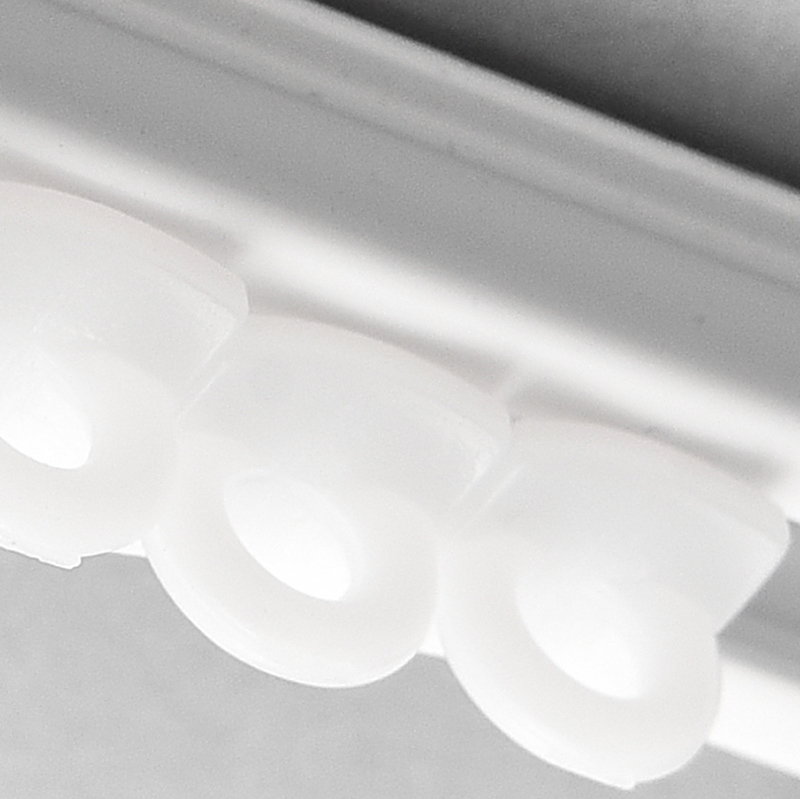

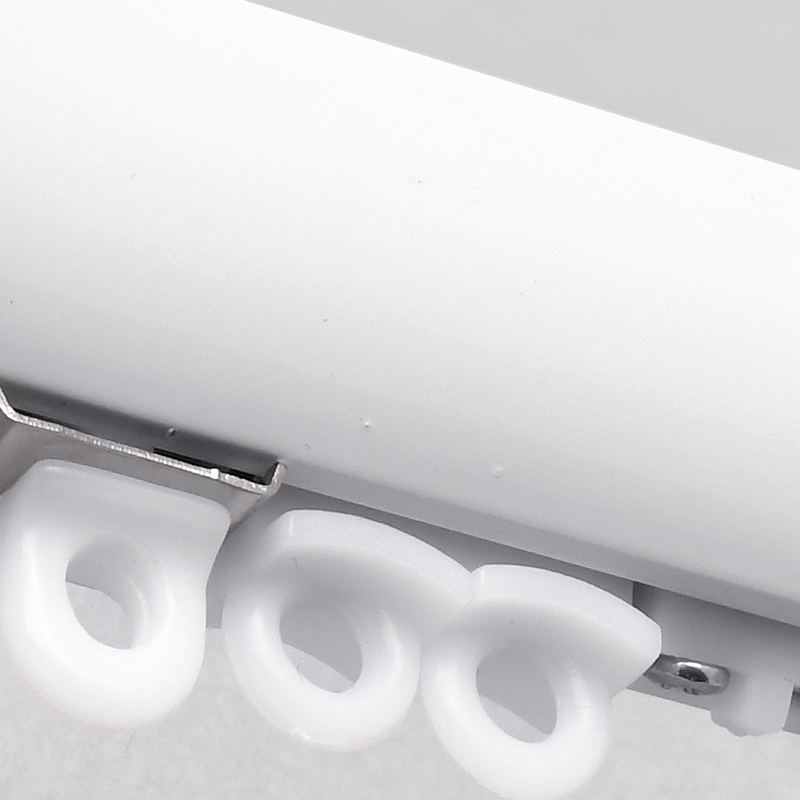

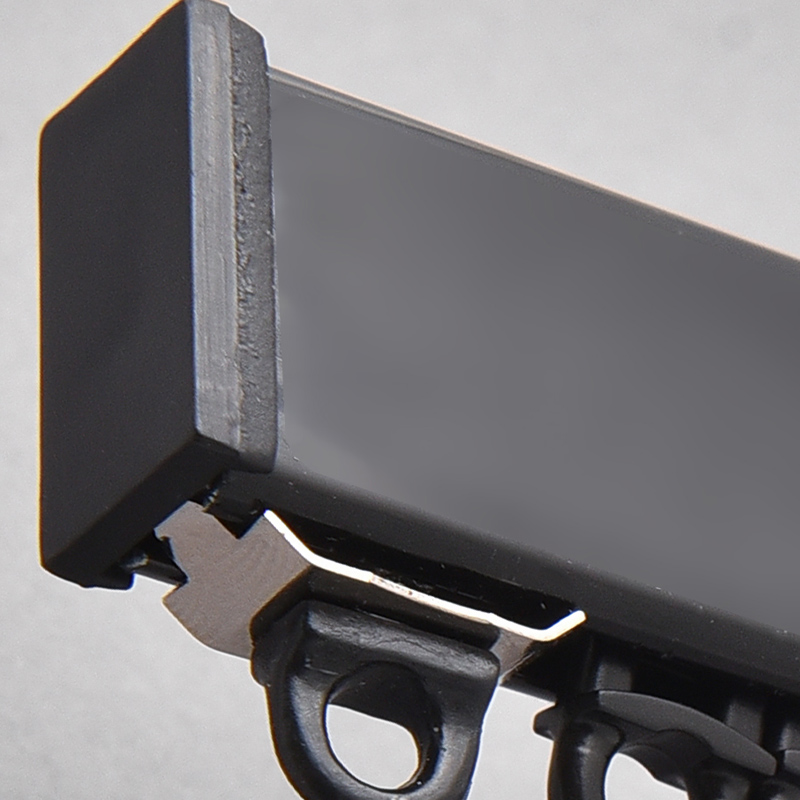

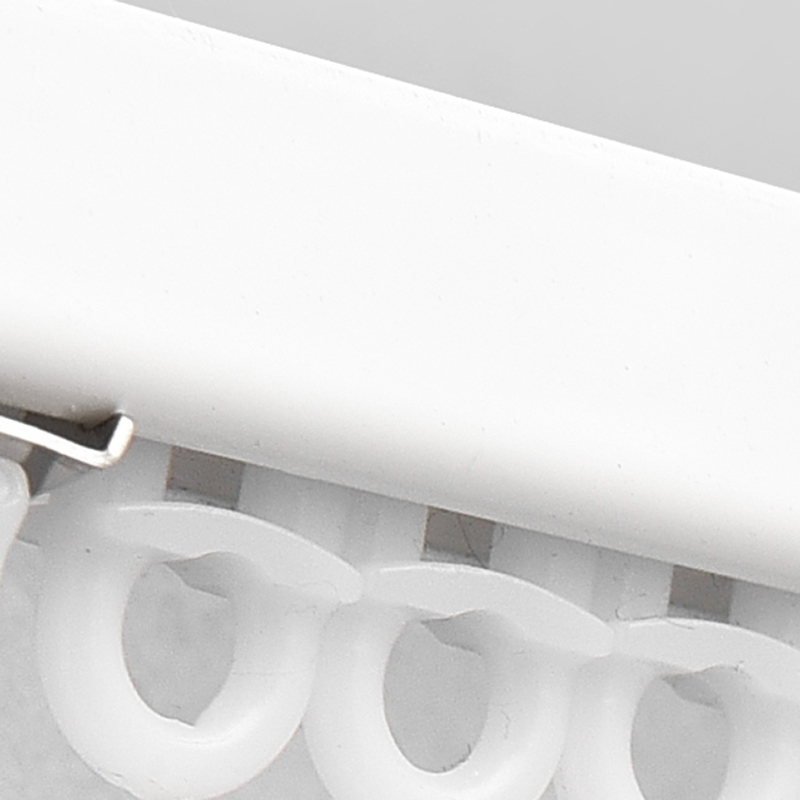

Hardware Colours
White

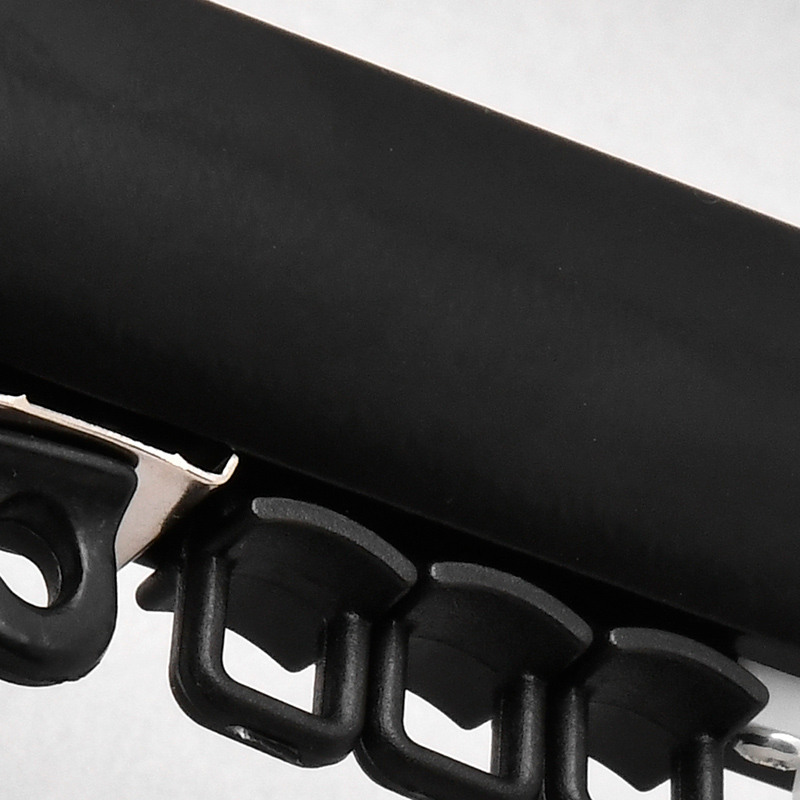

Black
Heading Options
The ACT41 system is compatible with standard gliders or wave gliders, available with both 60mm or 80mm pitch to suit a variety of design preferences. Wave hangers are available on request to ensure your leading edge stays straight.

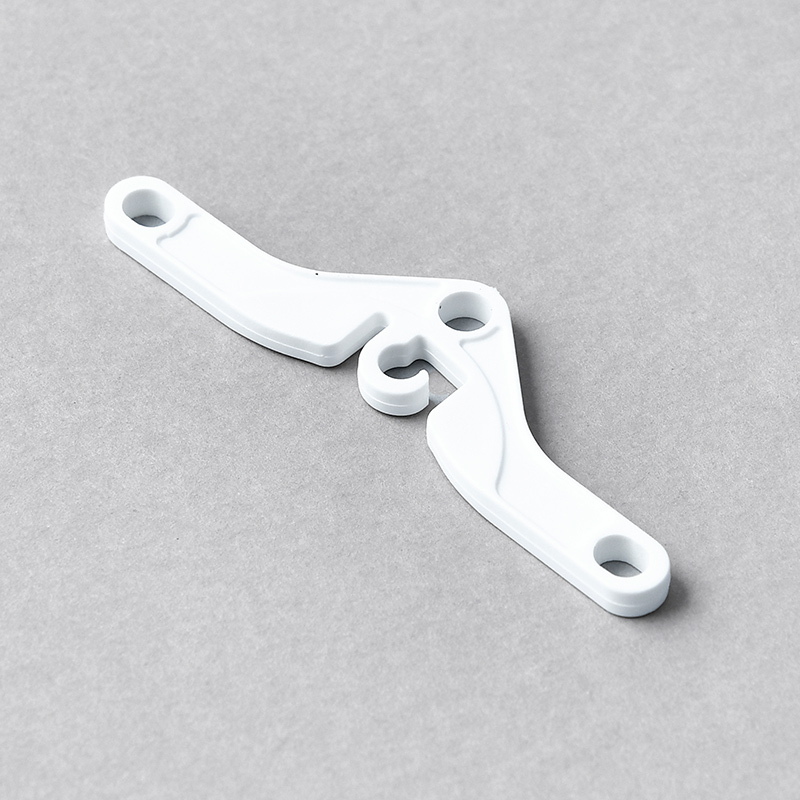

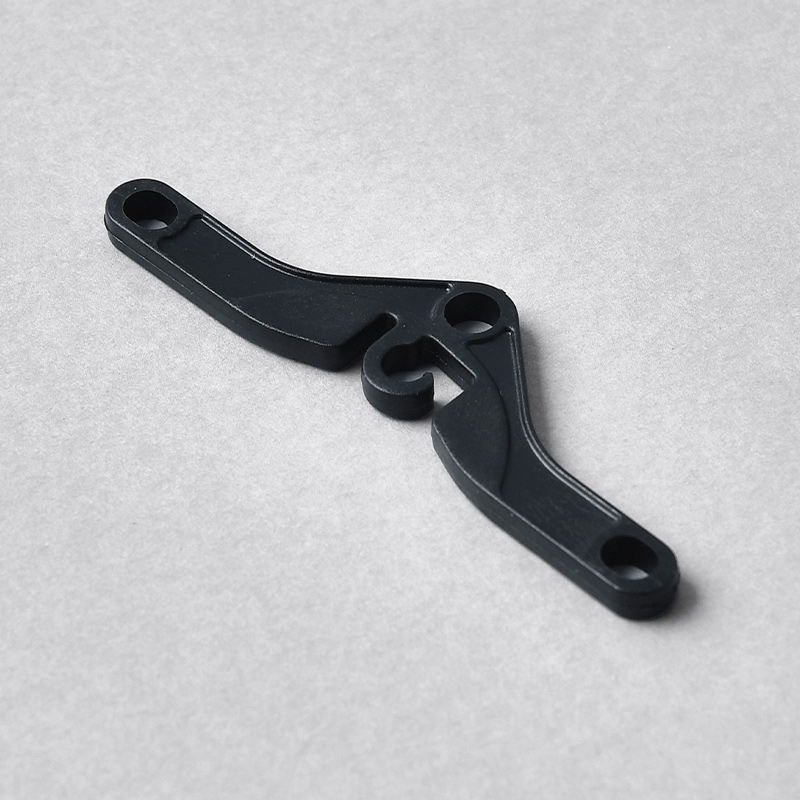

Wave Hanger - White
Ensure the leading edge stays straight
Wave Hanger - Black
Ensure the leading edge stays straight
Brackets | Ceiling and Wall Installation

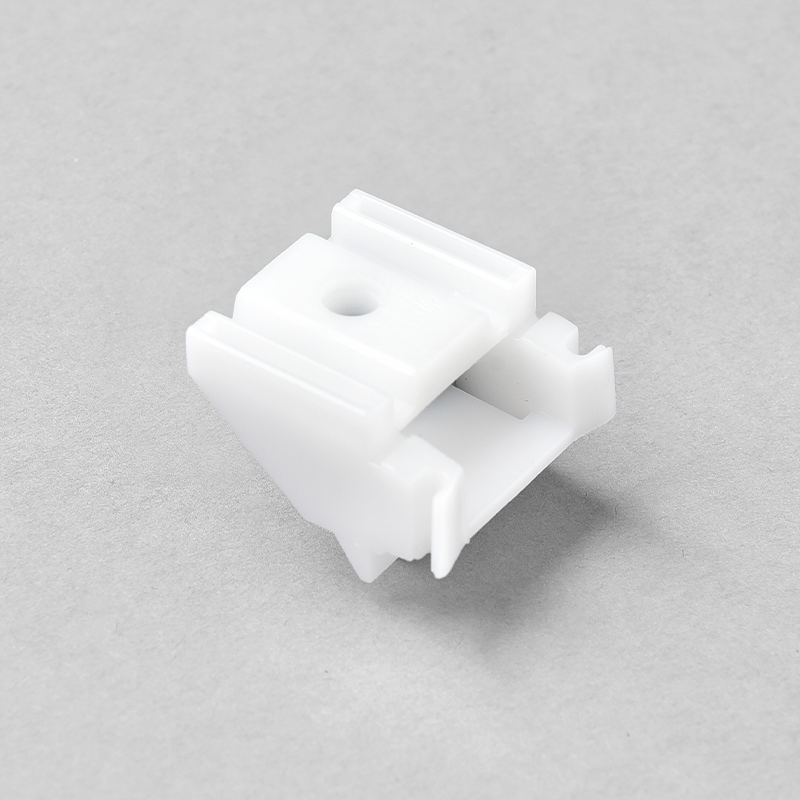

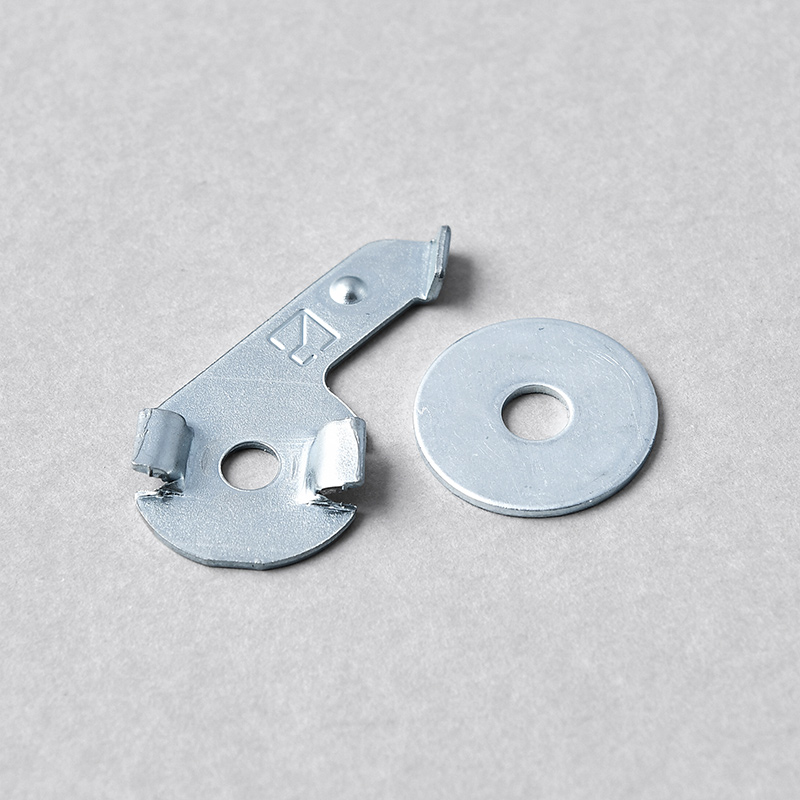

ACT41 Ceiling Bracket
Ceiling Installation

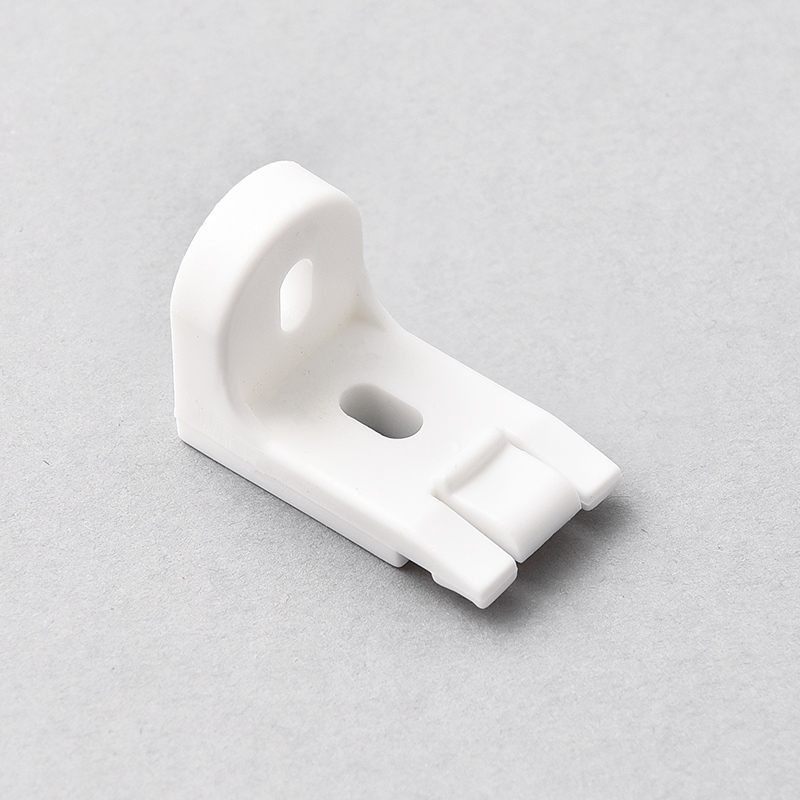

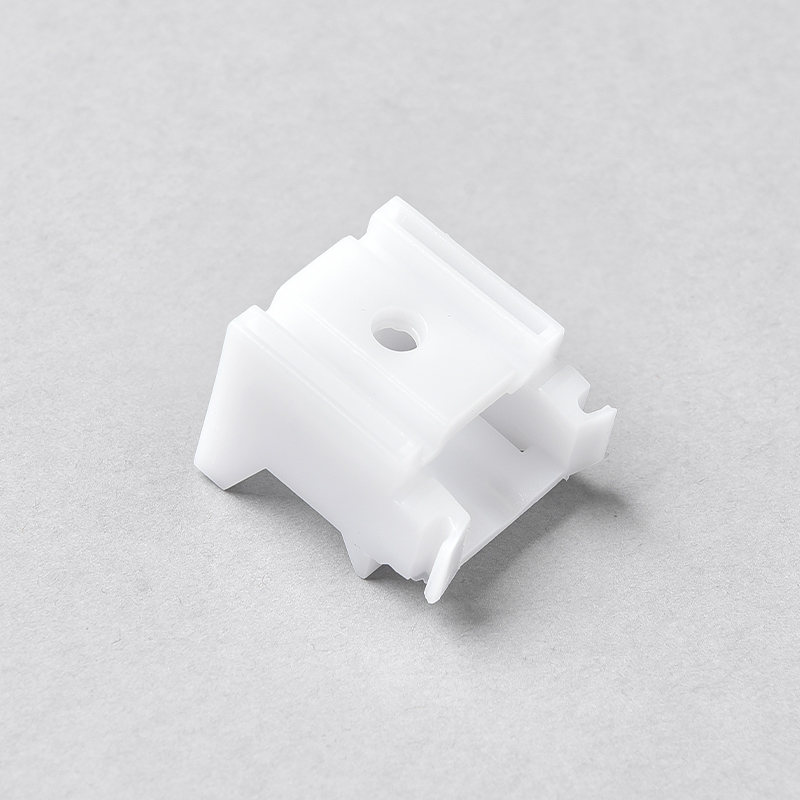

ACT41 Universal Bracket 2cm
Ceiling/Wall Installation

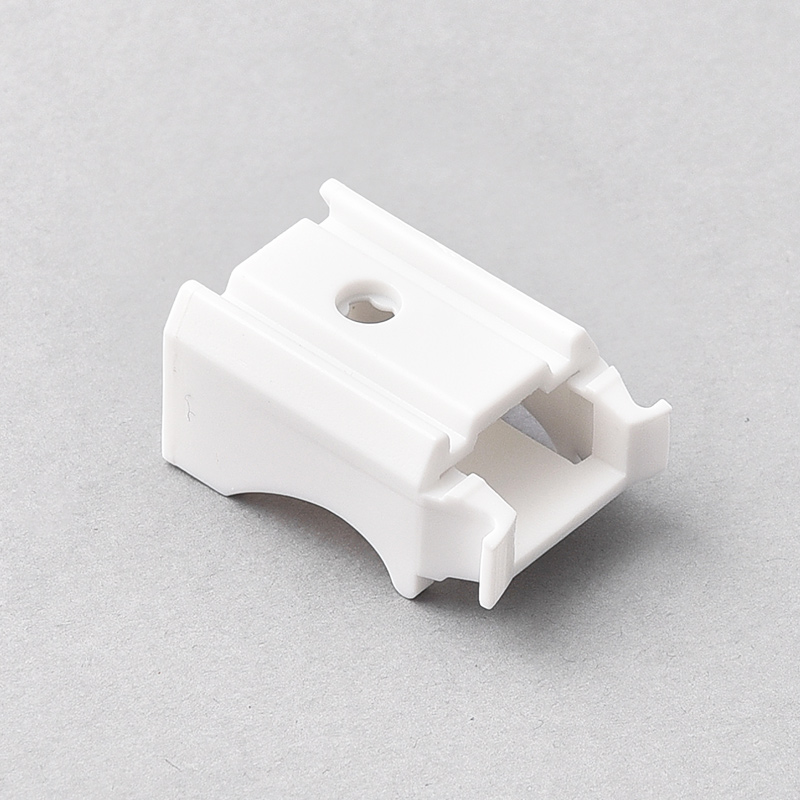

ACT41 Universal Bracket 3cm
Ceiling/Wall Installation

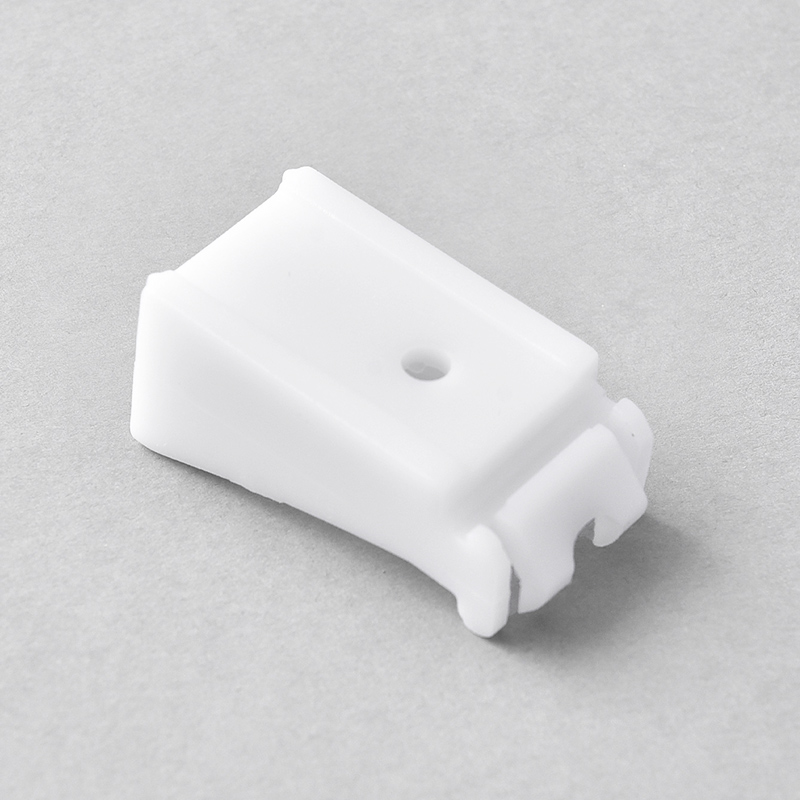

ACT41 Universal Bracket 5cm
Ceiling/Wall Installation

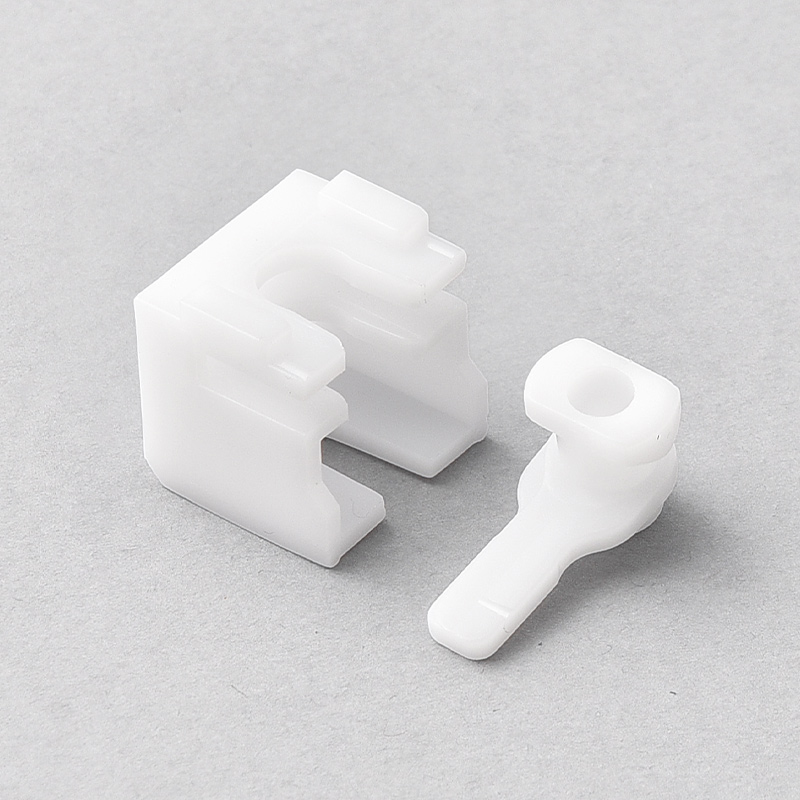

ACT41 Universal Bracket 2cm with Lever
Ceiling/Wall Installation

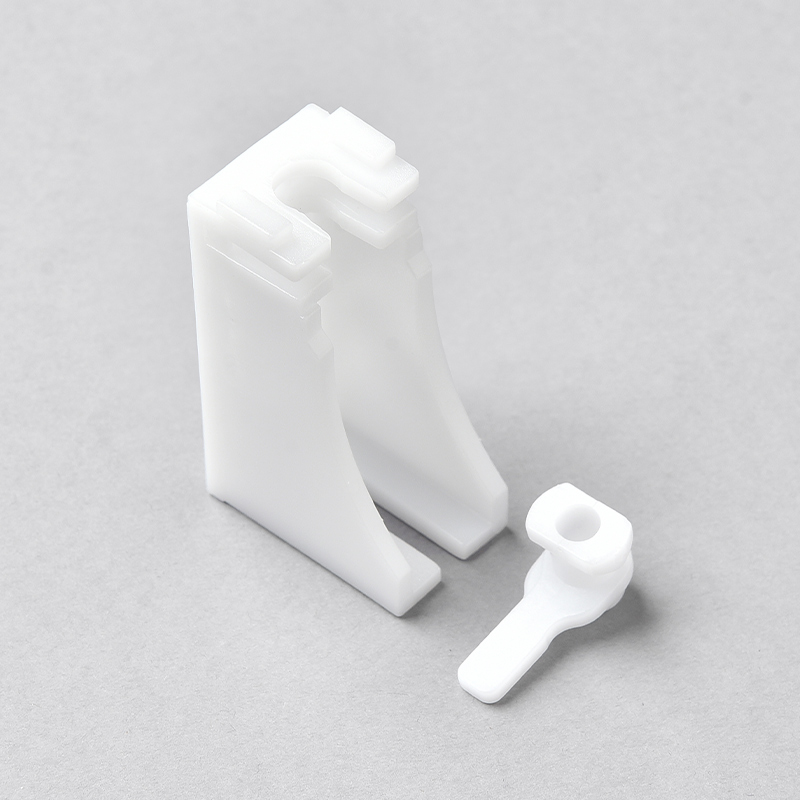

ACT41 Universal Bracket 5cm with Lever
Ceiling/Wall Installation

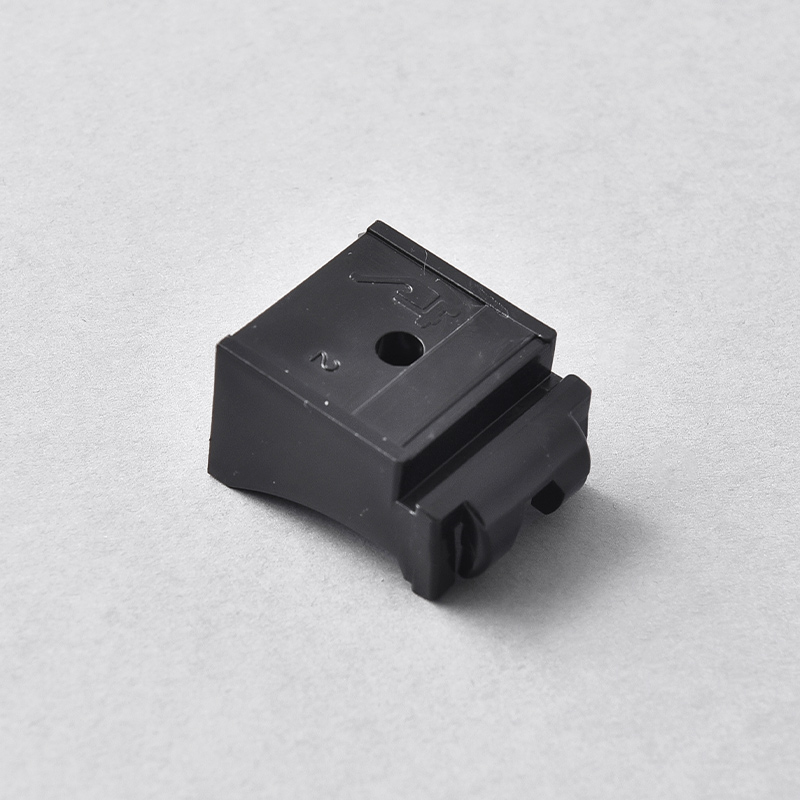

ACT41 Universal Bracket 2cm - Black
Ceiling/Wall Installation

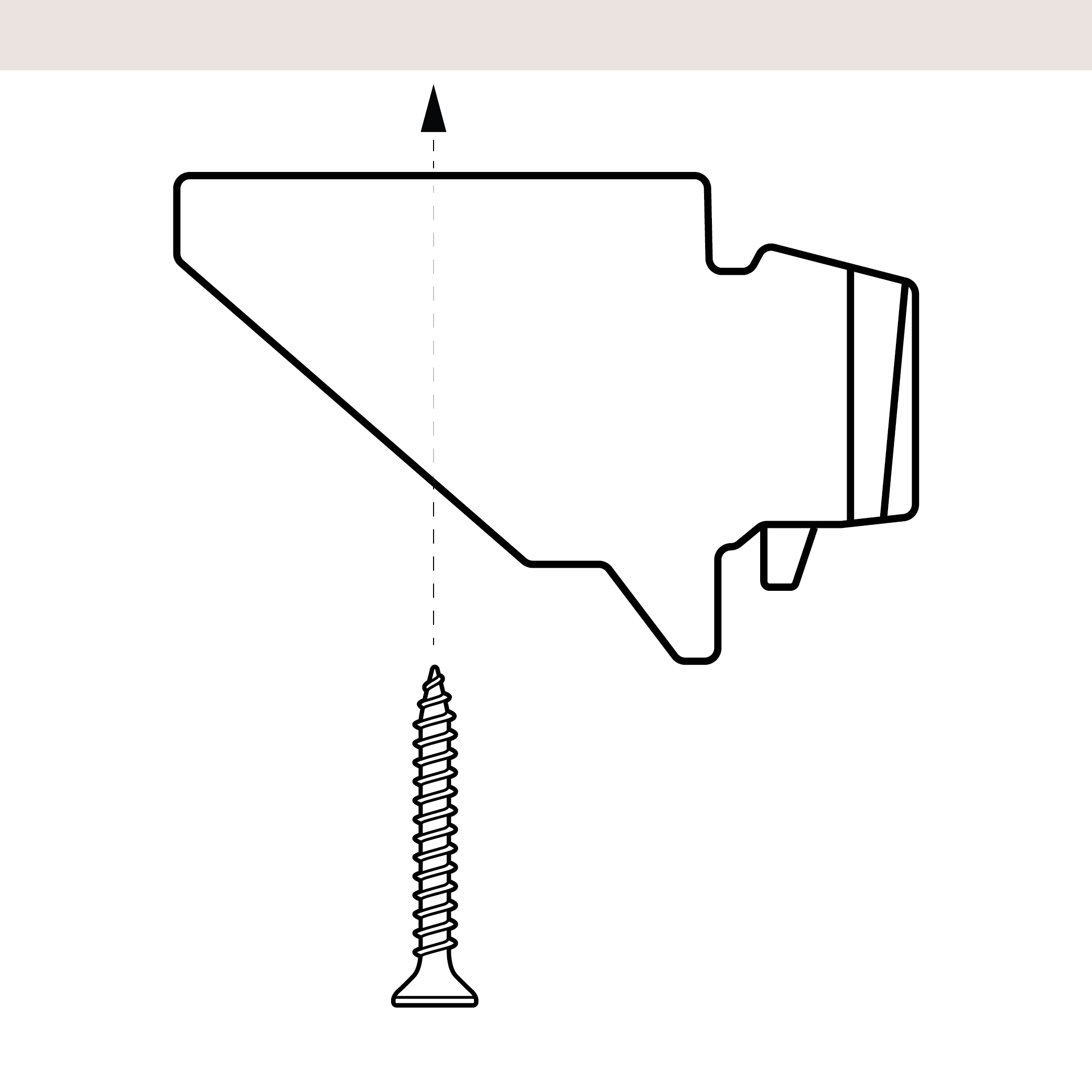

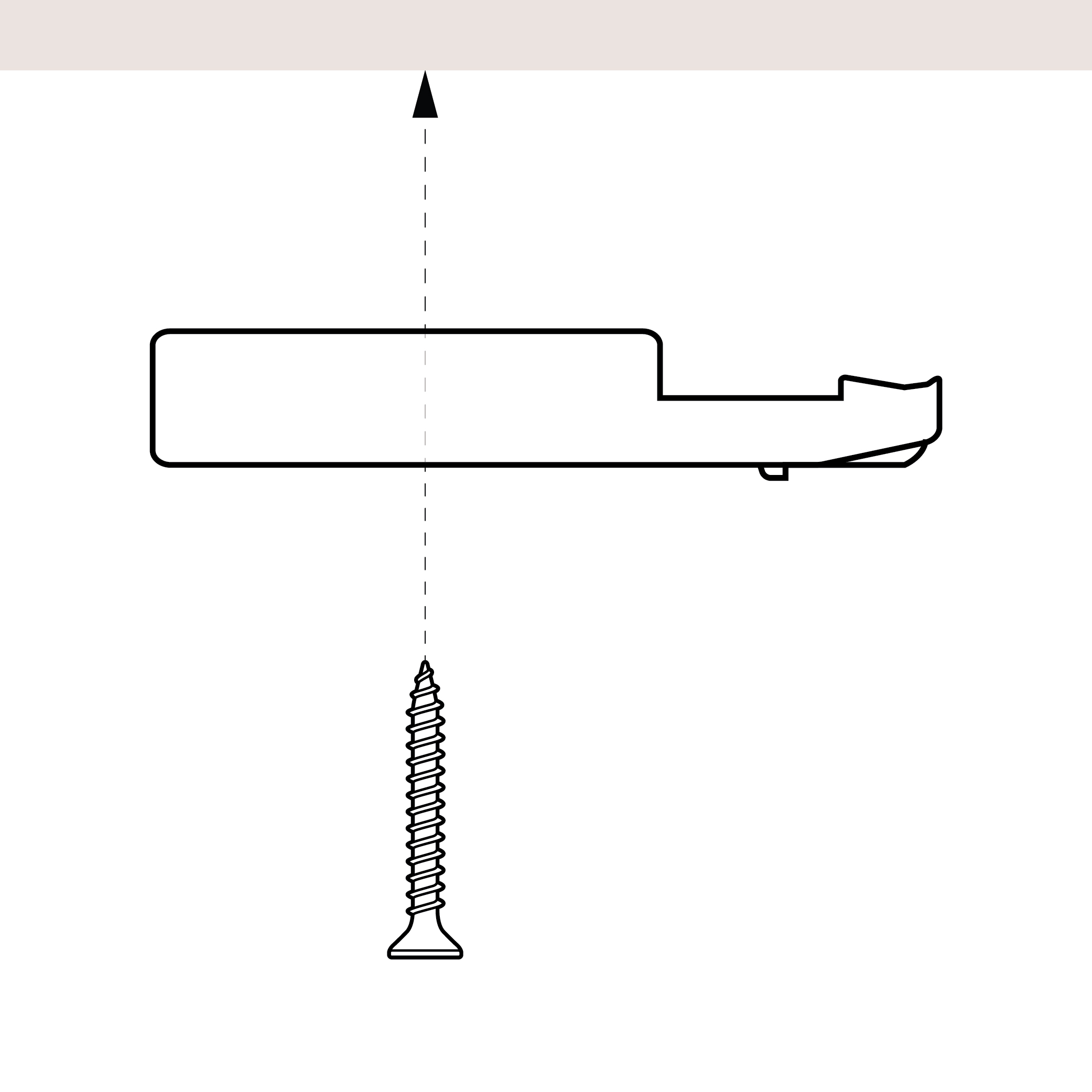

Ceiling Installation | ACT41 Ceiling Bracket
Fix the ACT41 Ceiling Bracket onto the ceiling with a screw.

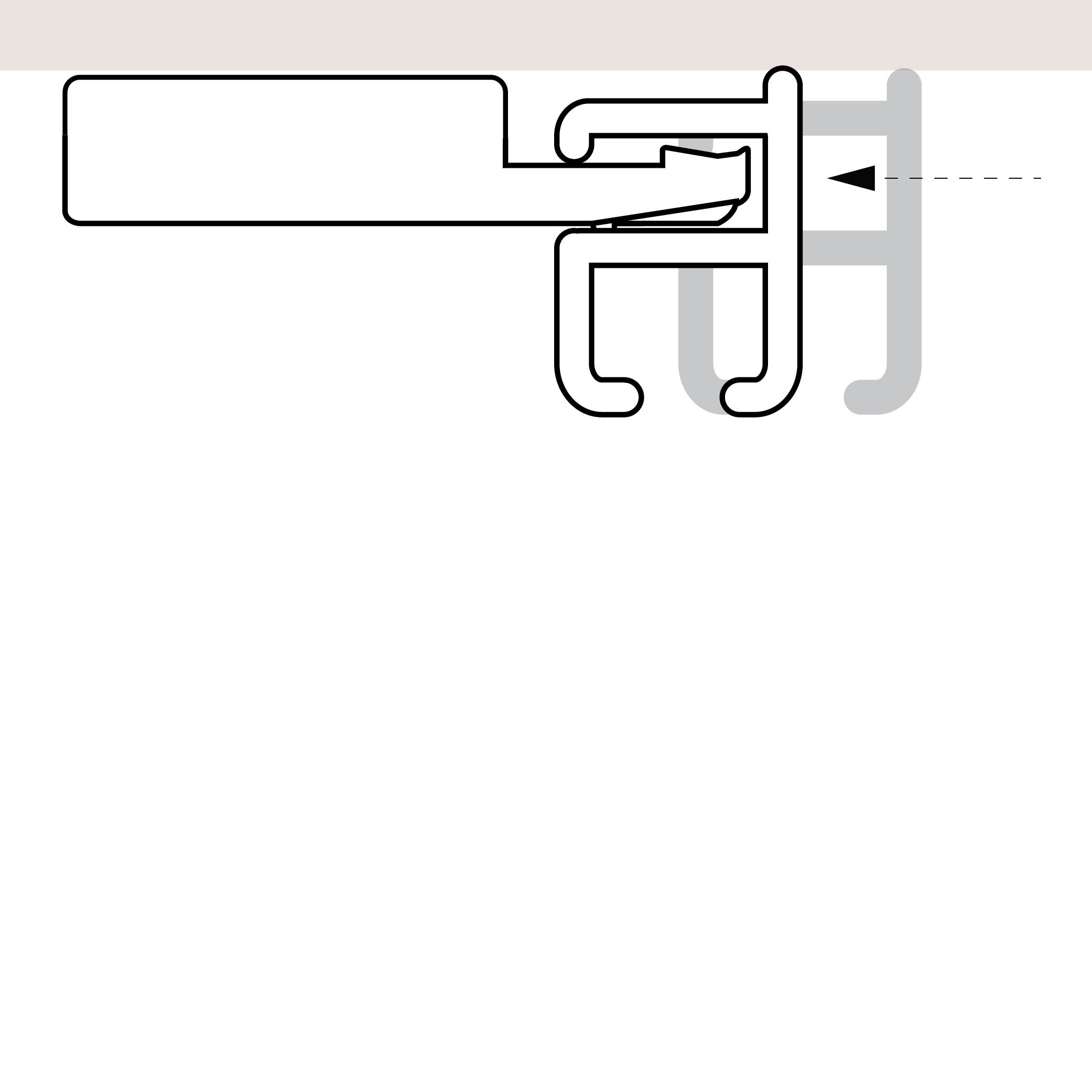

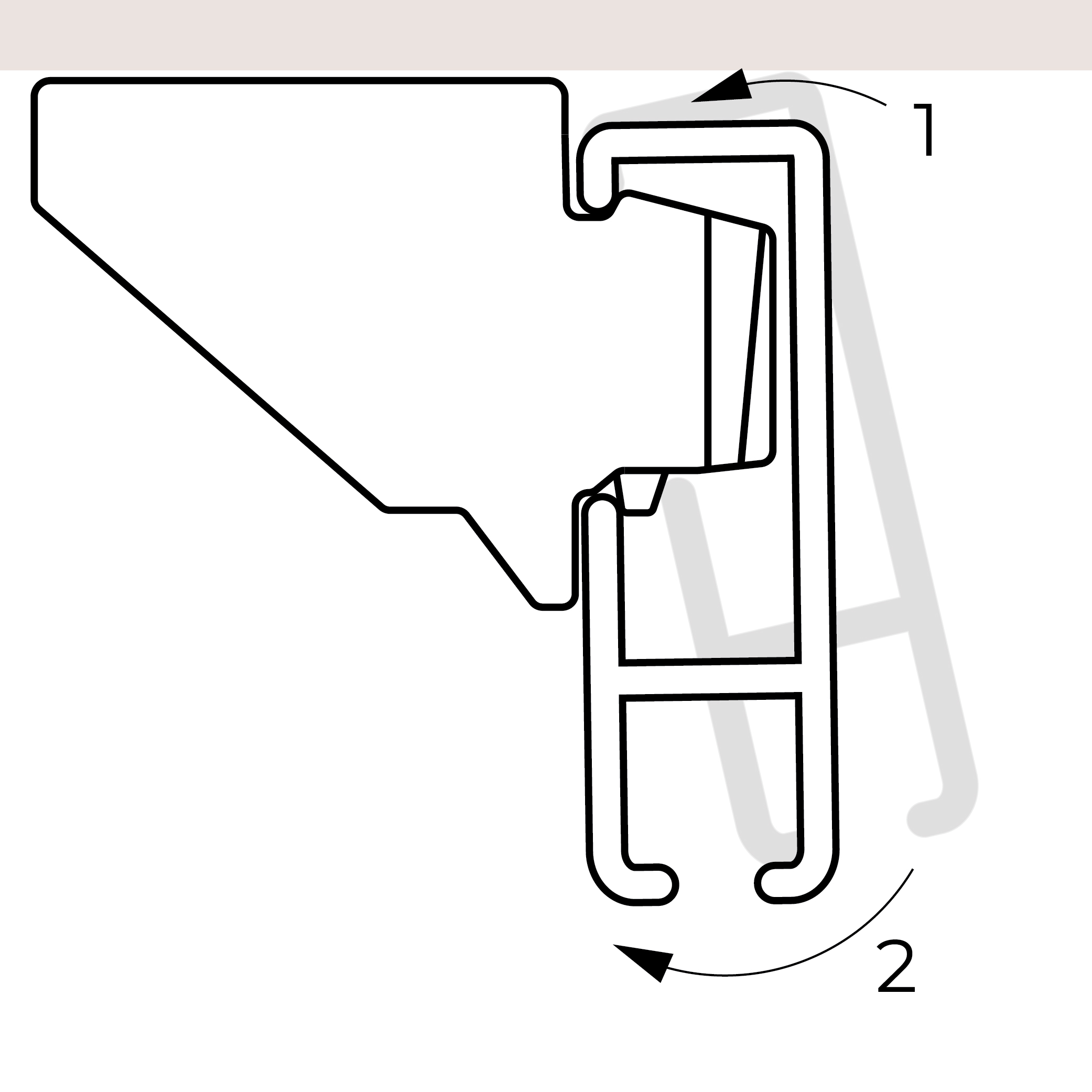

ACT41 Track Installation

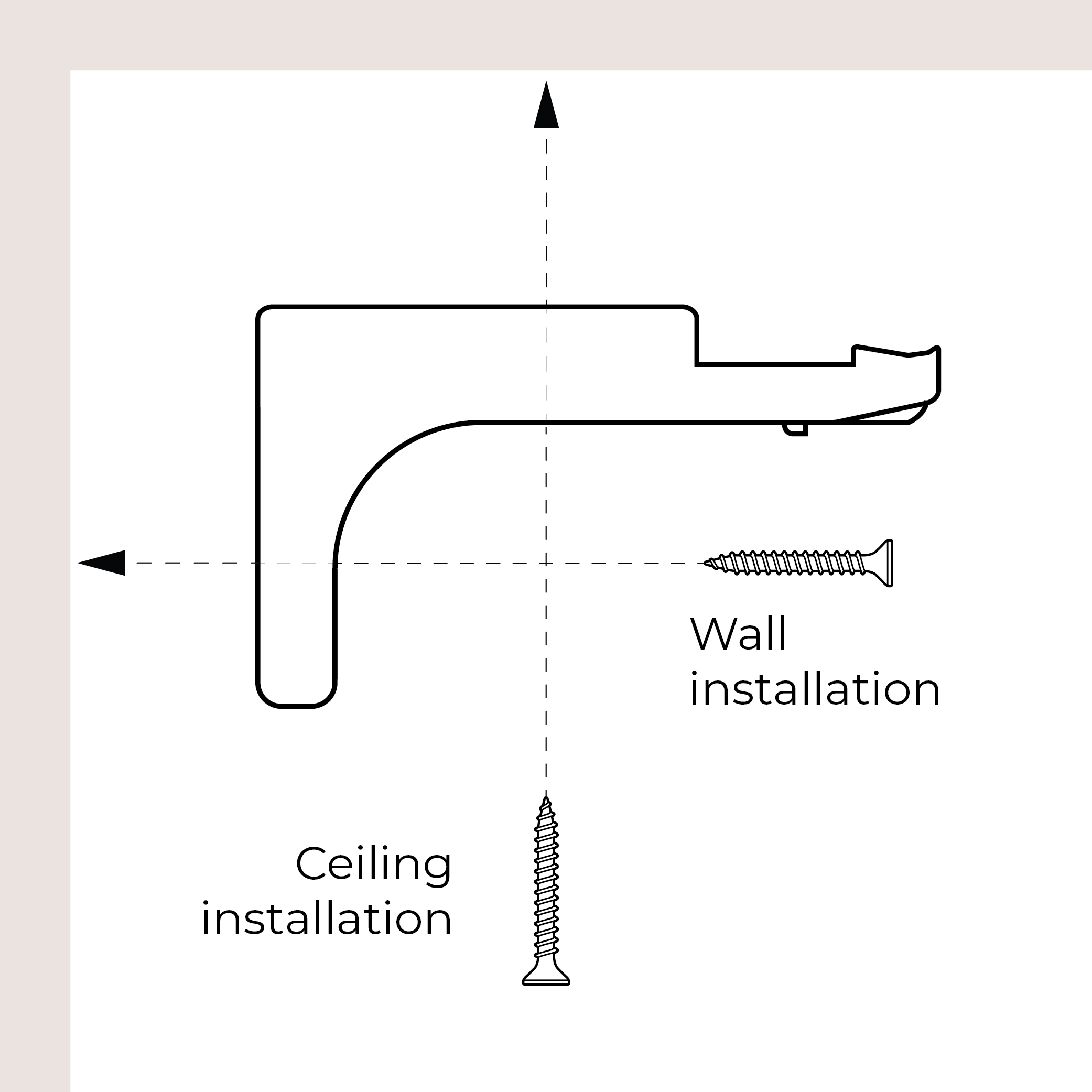

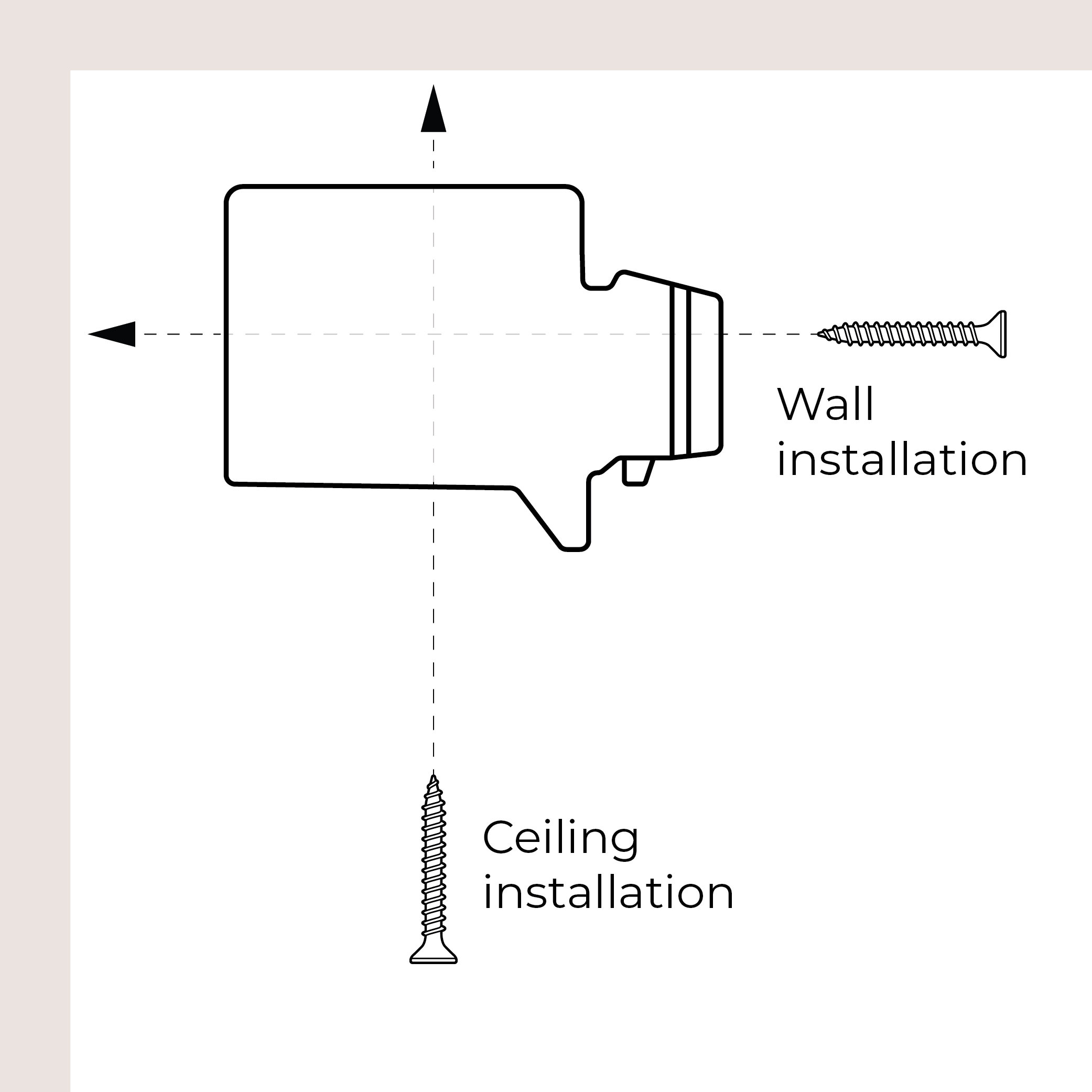

Ceiling/Wall Installation | All ACT41 Universal Brackets
Fix the bracket onto the ceiling or wall with a screw.

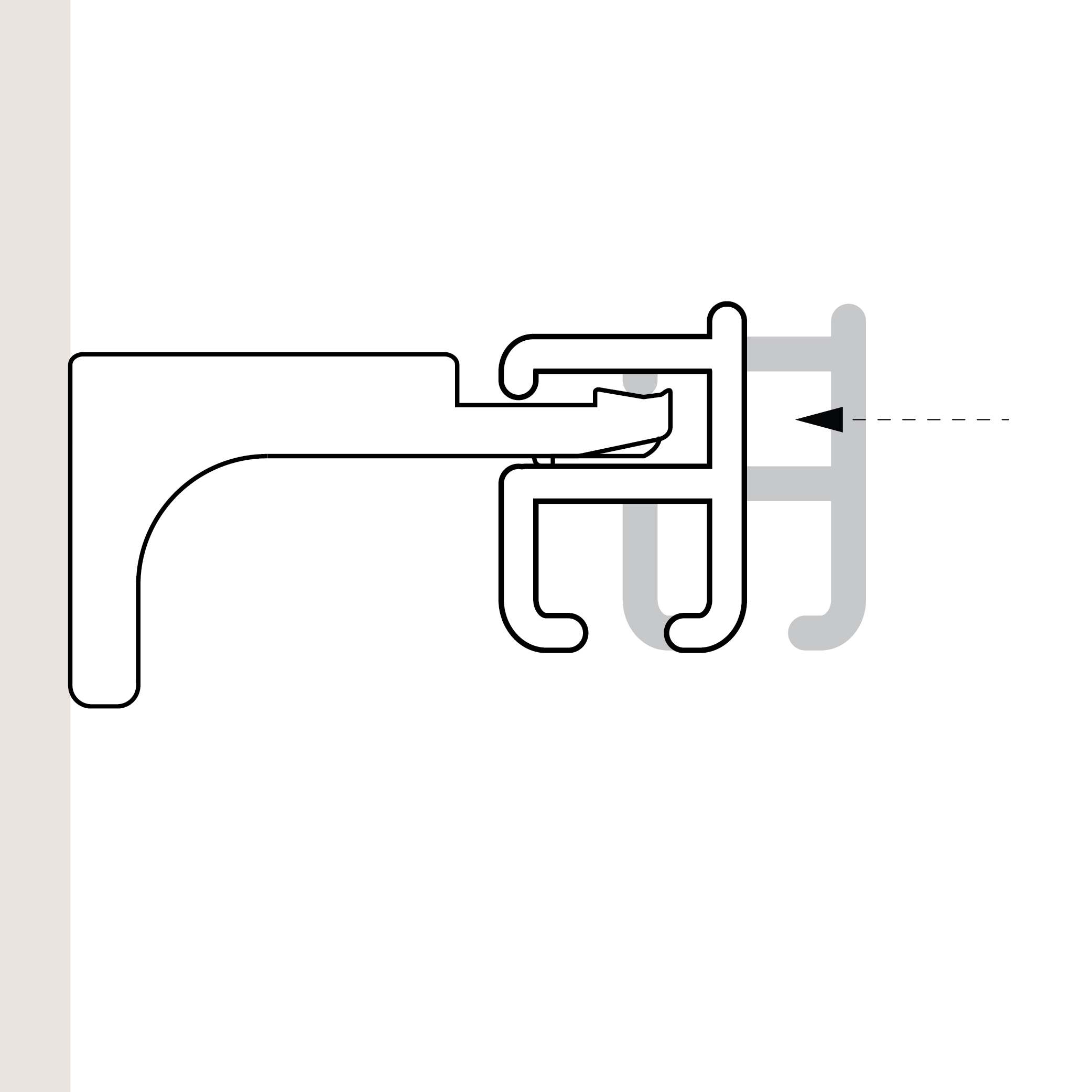

ACT41 Track Installation
ACT41 Track Installation
Only for ACT41 Universal Bracket 2mm - Black and ACT41 Universal Bracket 5cm

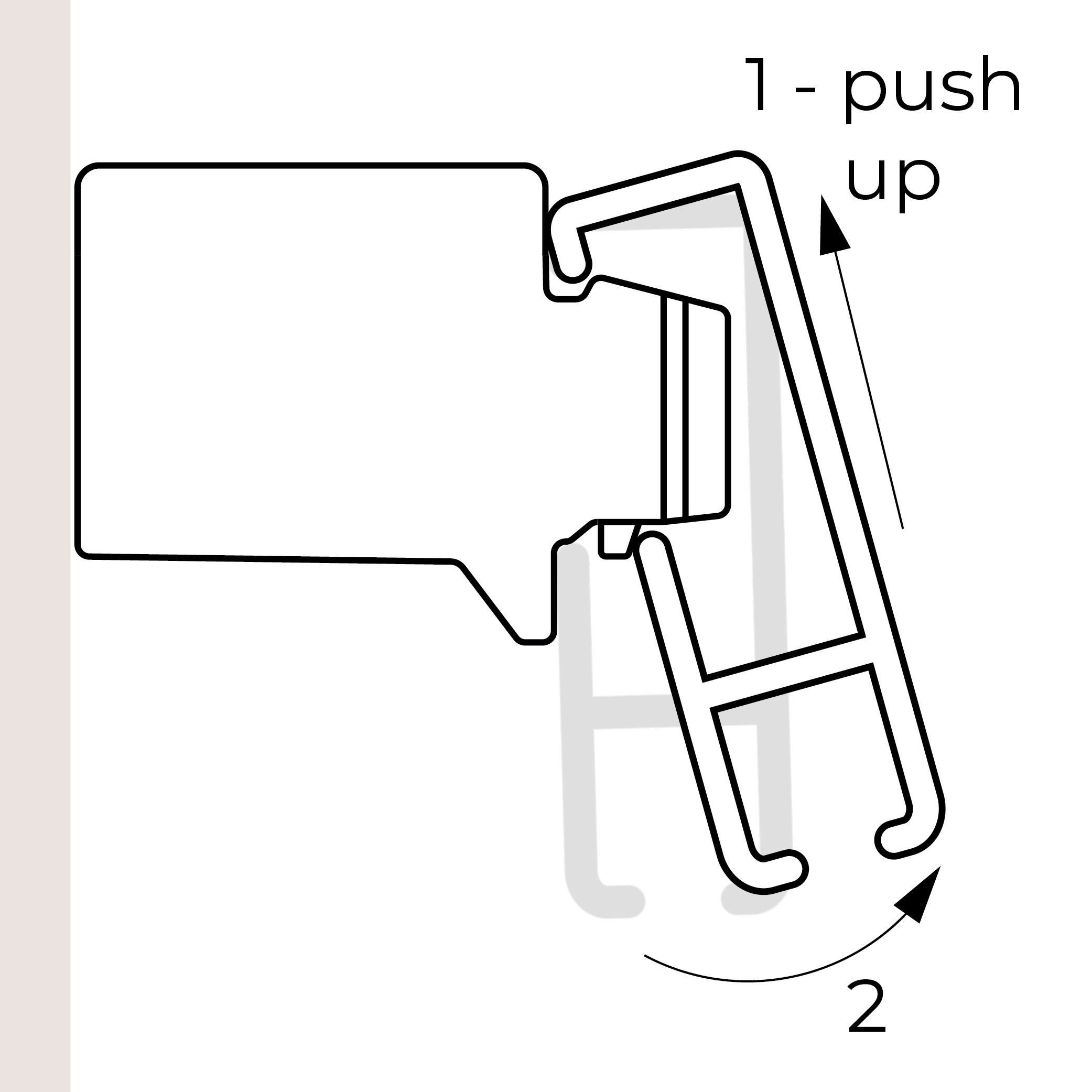

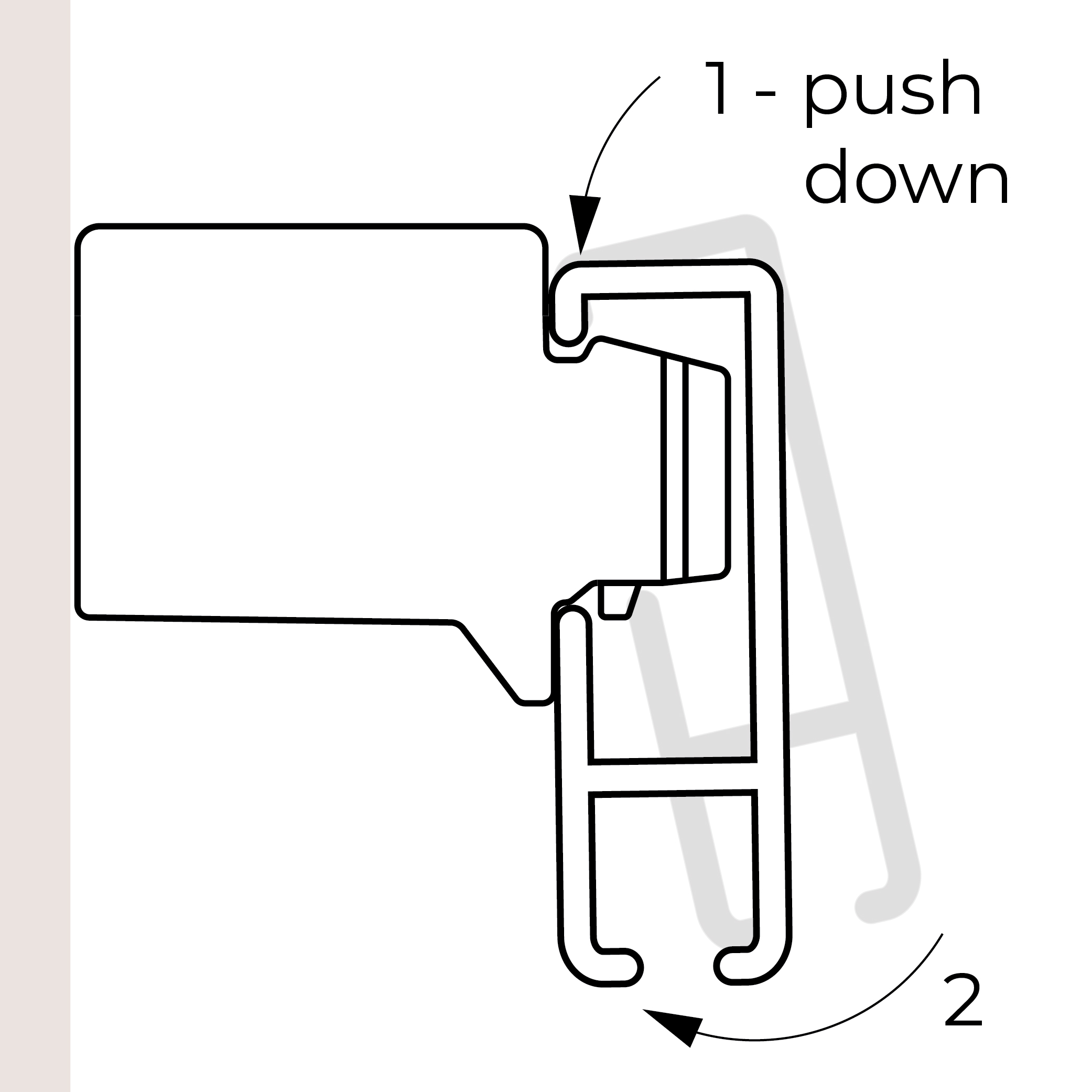

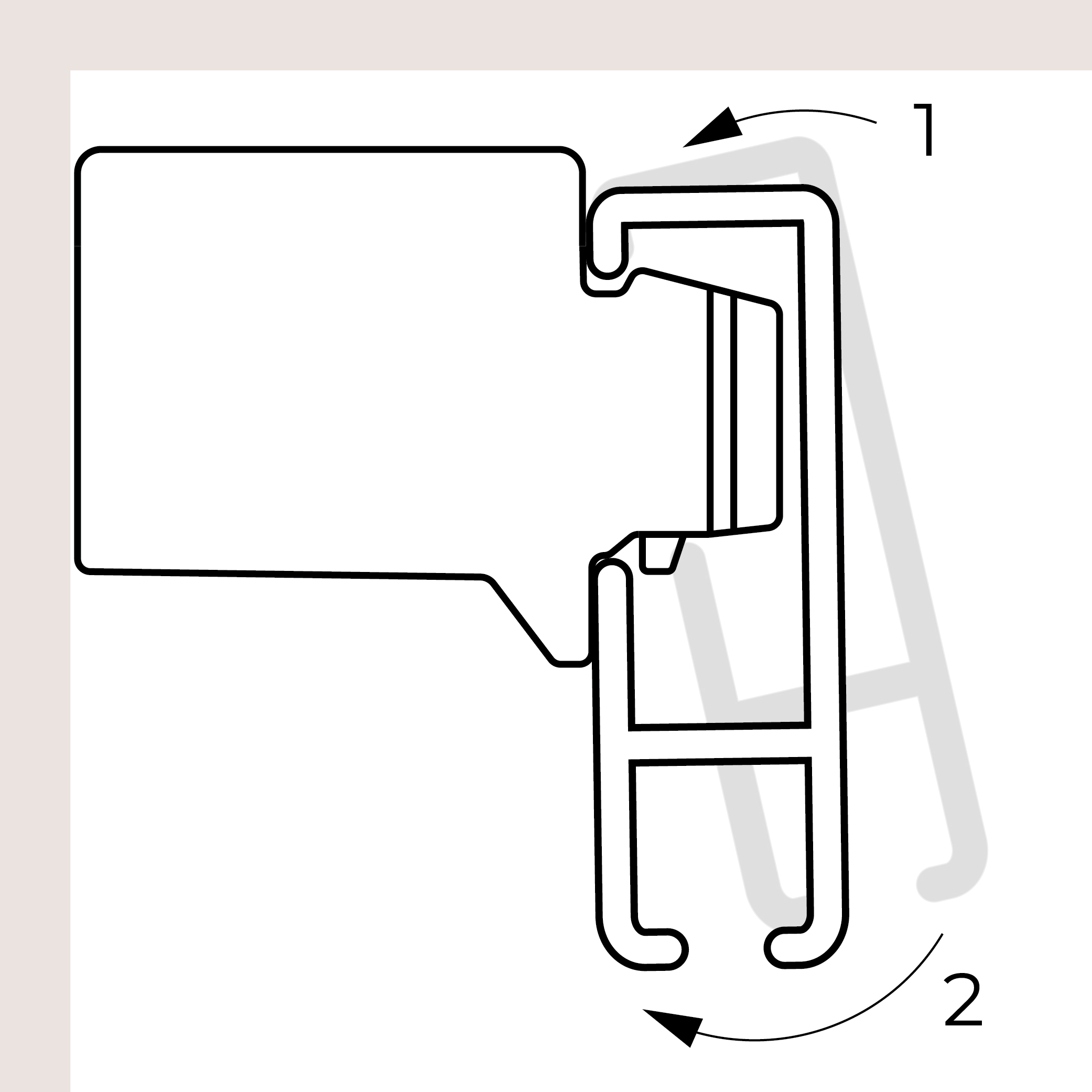

ACT41 Track Removal
Only for ACT41 Universal Bracket 2mm - Black and ACT41 Universal Bracket 5cm
L Bracket & Cover Sets | Wall Installation
L Bracket & Cover Sets offer a stylish and practical solution for installing ACT systems in spaces that require additional clearance or multi-track configurations. Available in three sizes, each set includes snap-off covers for a clean, streamlined finish. Designed for versatility, L Brackets are suitable for a wide range of window setups and must be used in conjunction with Ceiling Bracket and Universal Bracket 2cm.

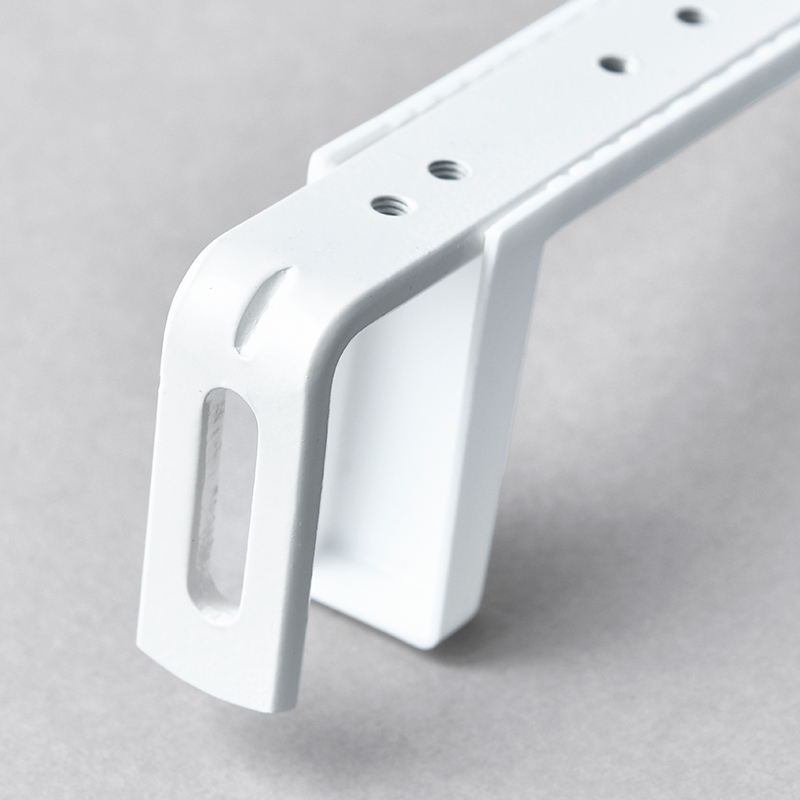

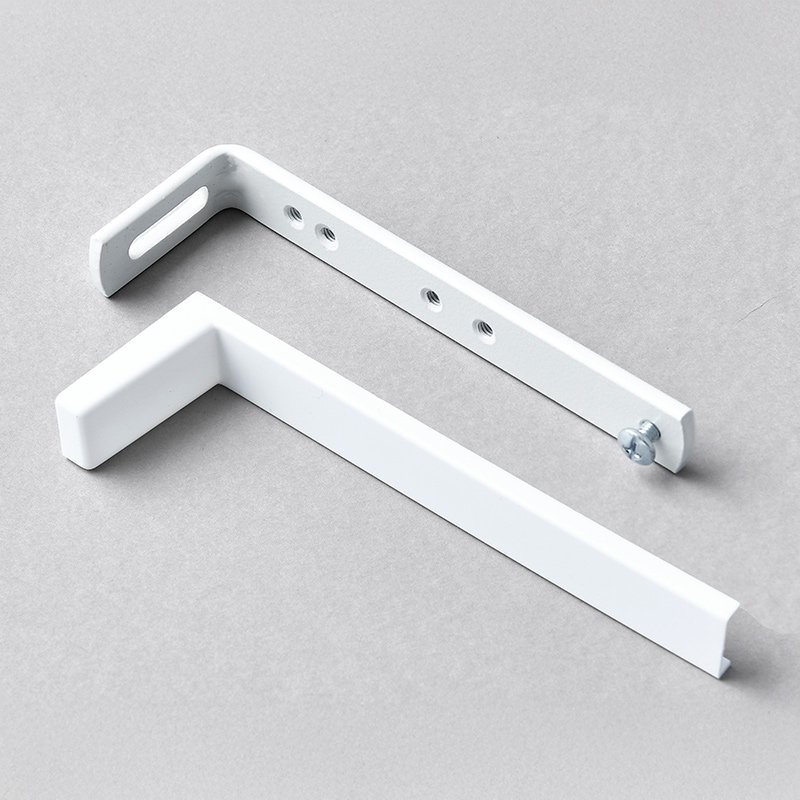

L Bracket & Cover - White
30mm | 70mm
90mm | 120mm

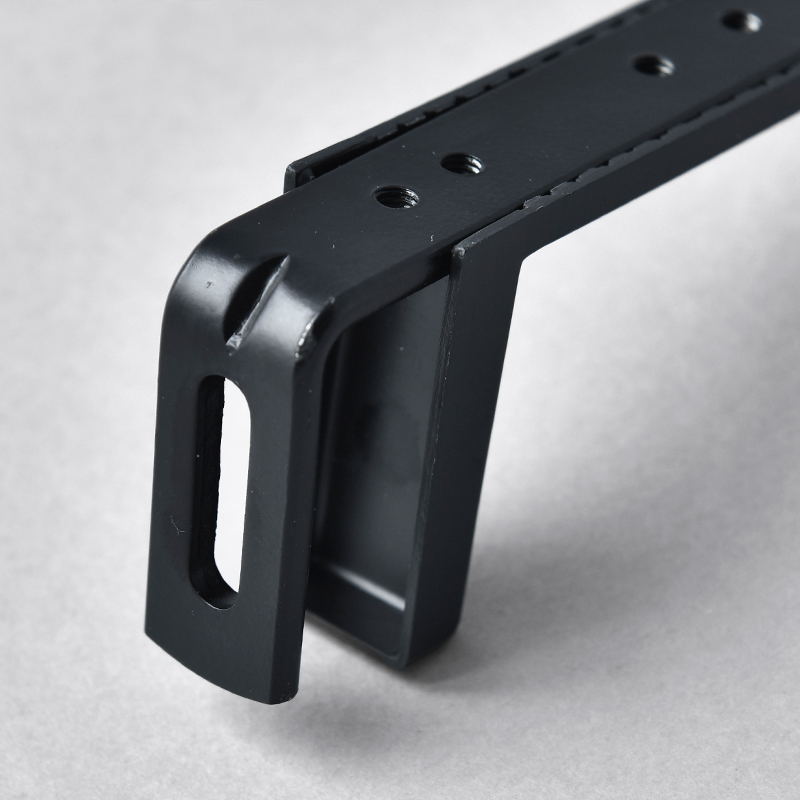

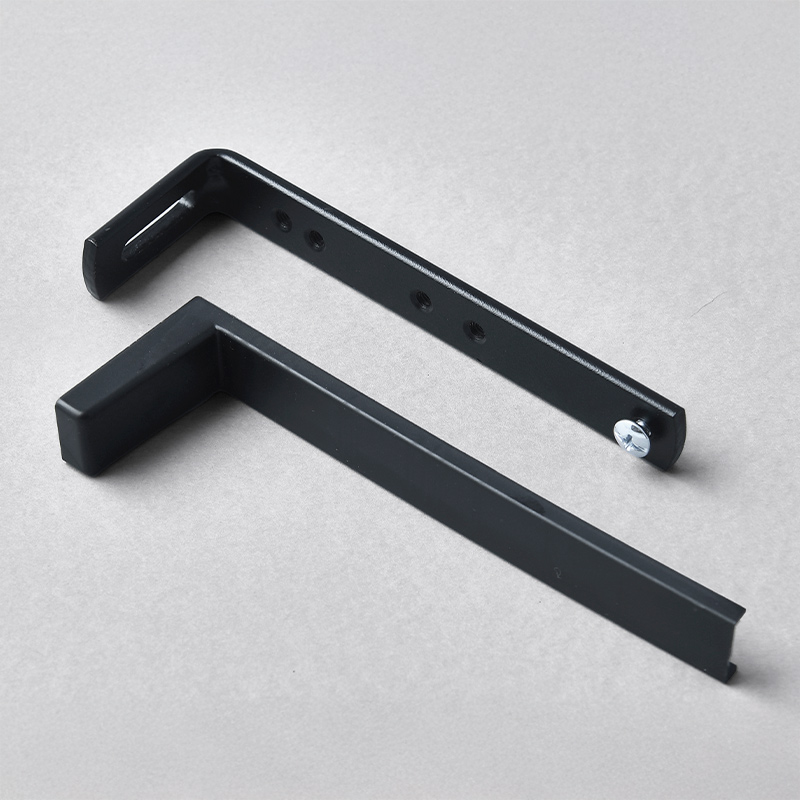

L Bracket & Cover - Black
70mm | 90mm
120mm

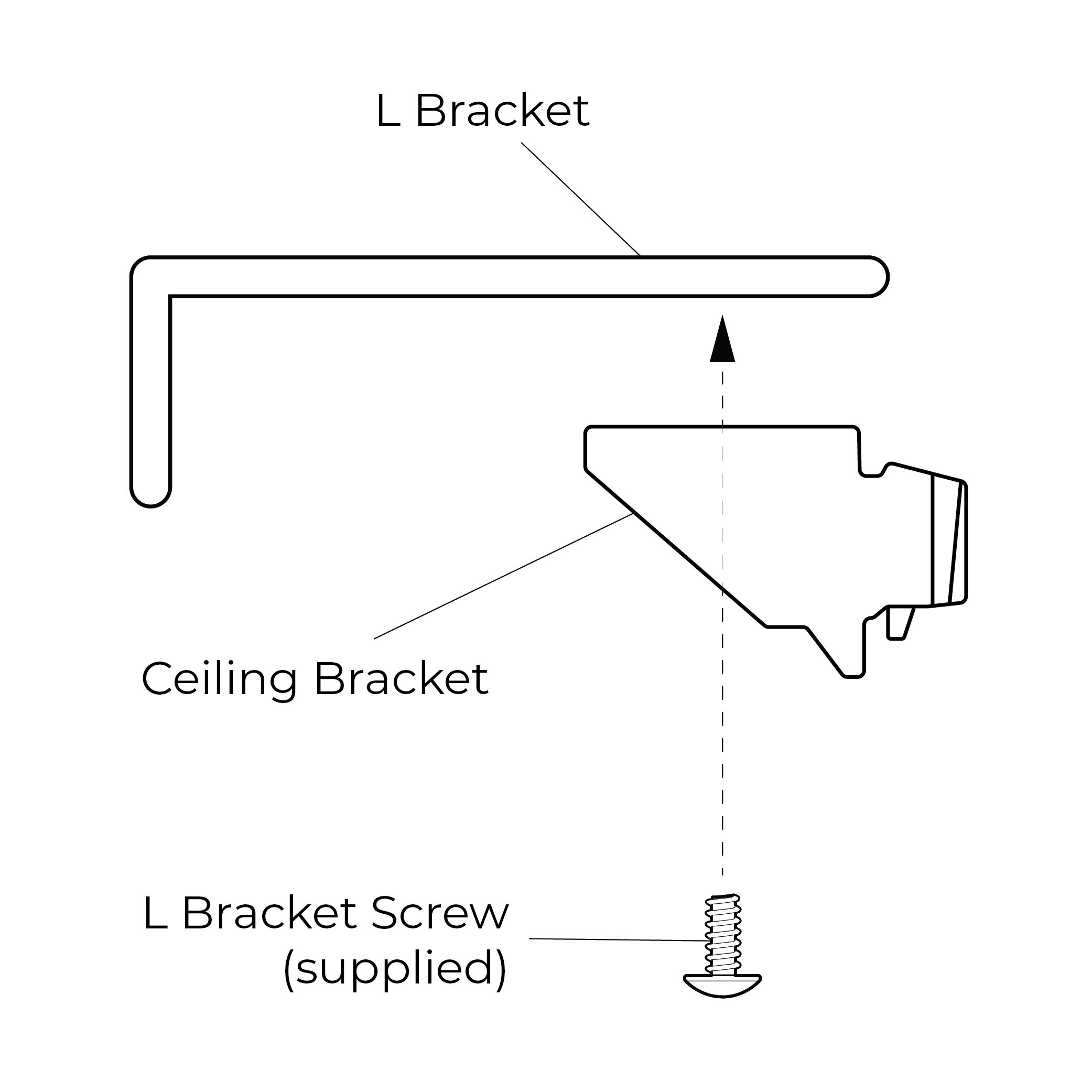

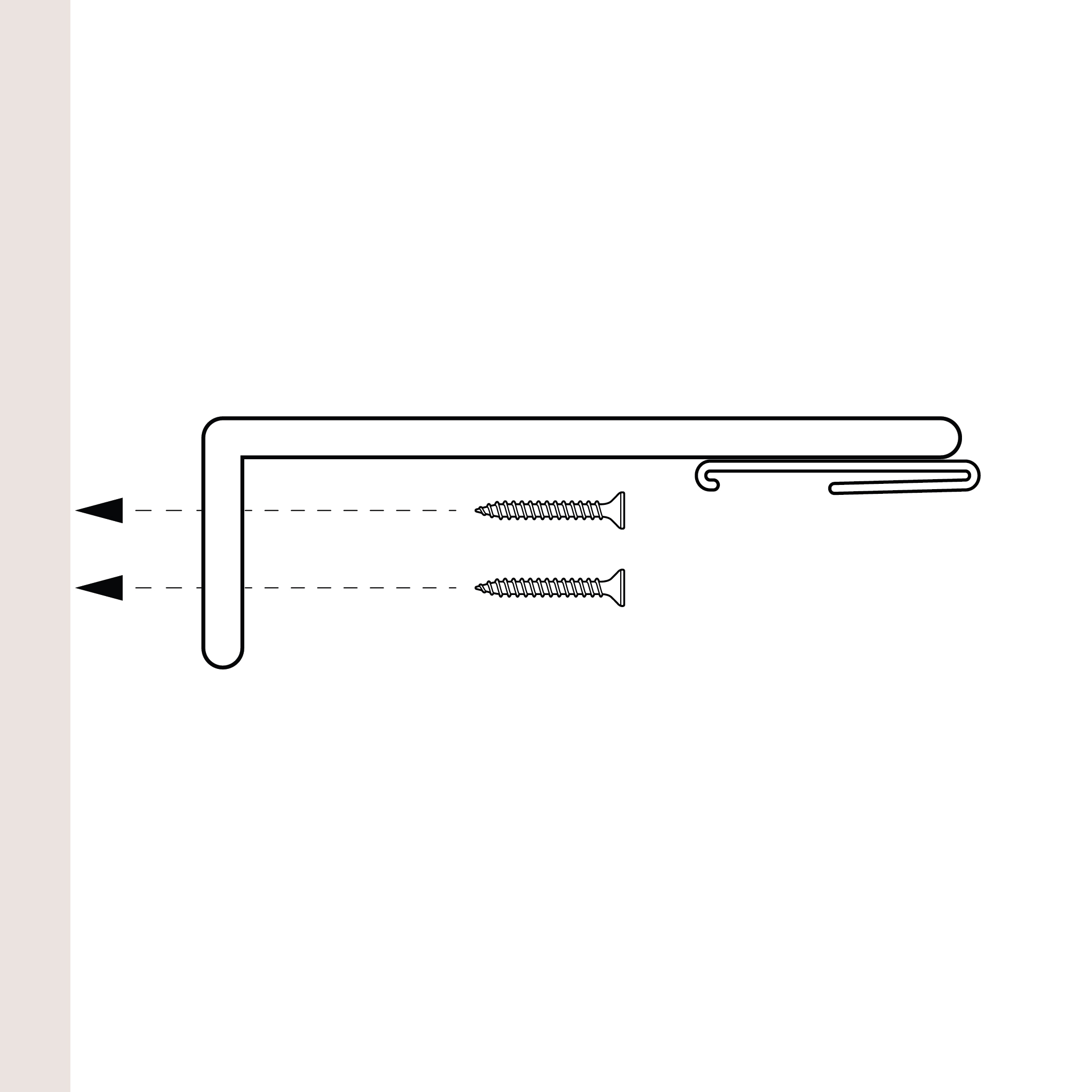

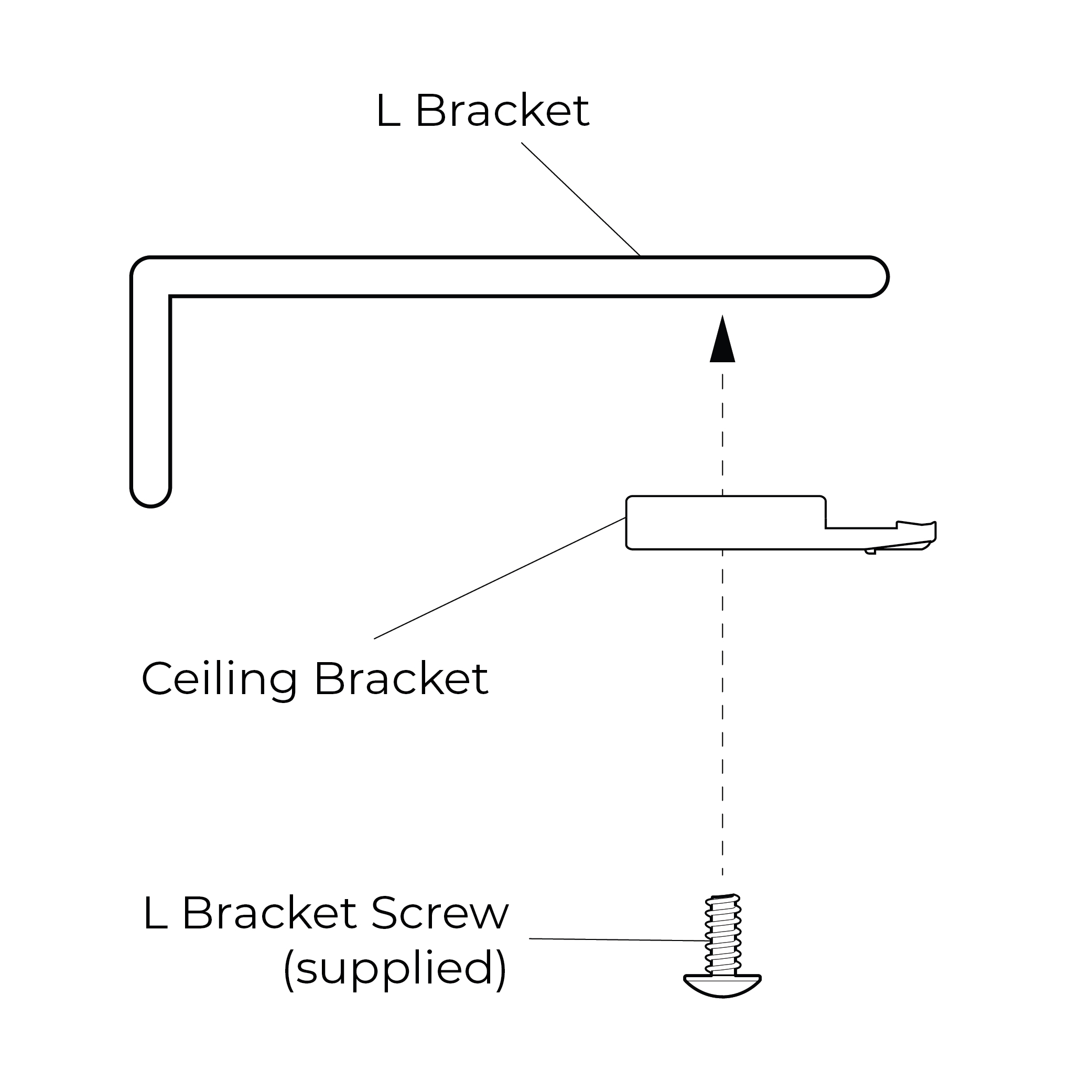

L Bracket Assembly and Installation | ACT41 Ceiling Bracket
Secure the ACT41 Ceiling Bracket to the L bracket using the supplied screw

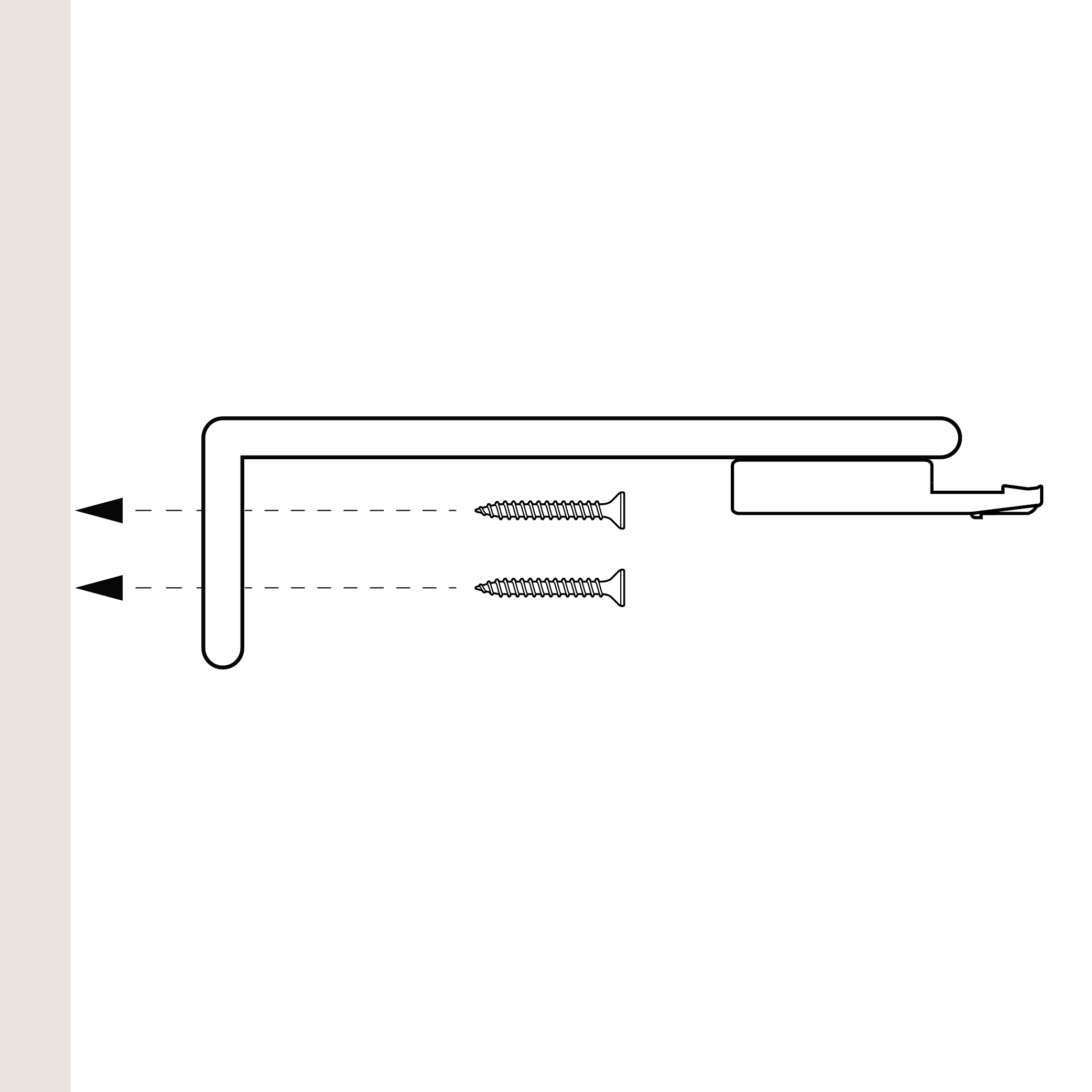

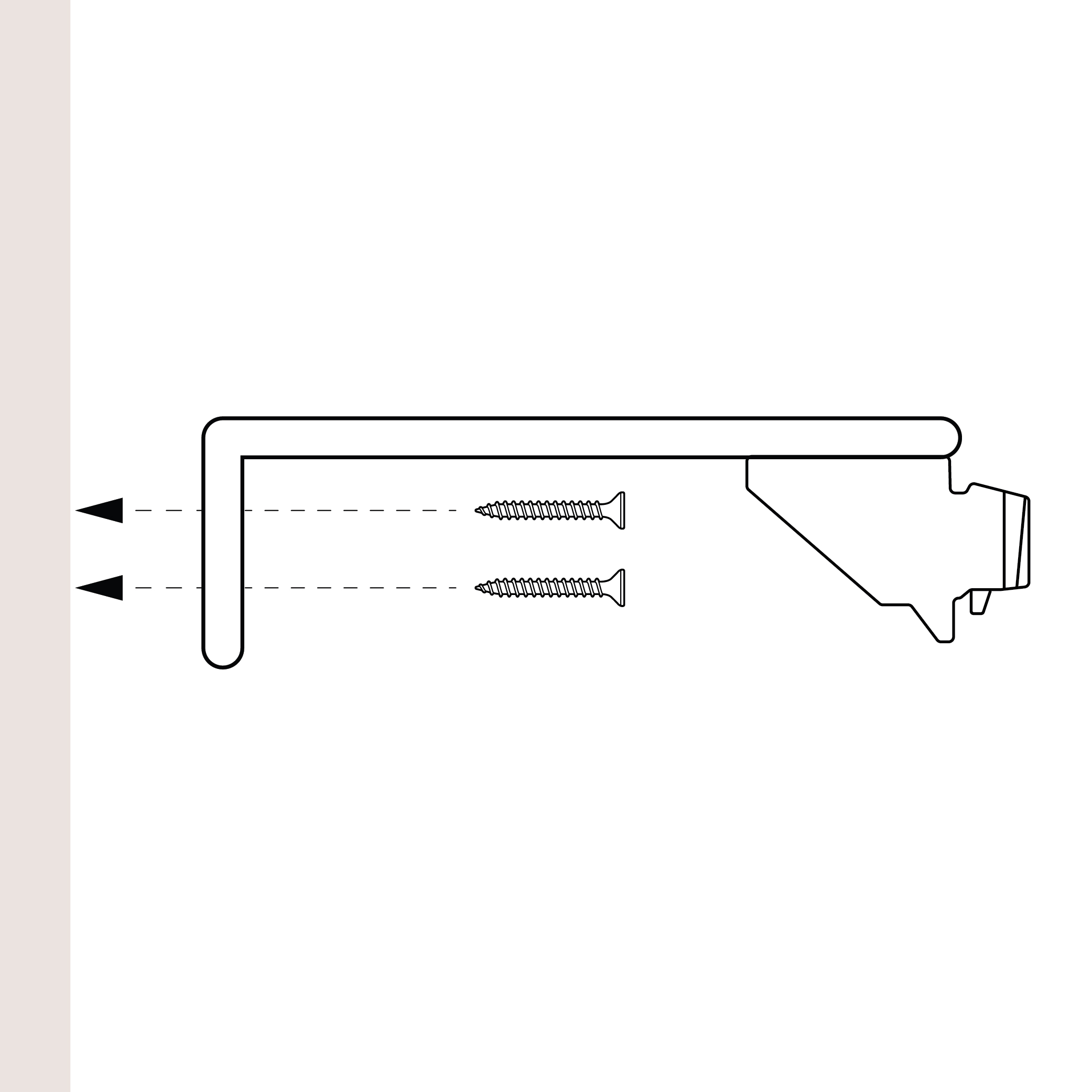

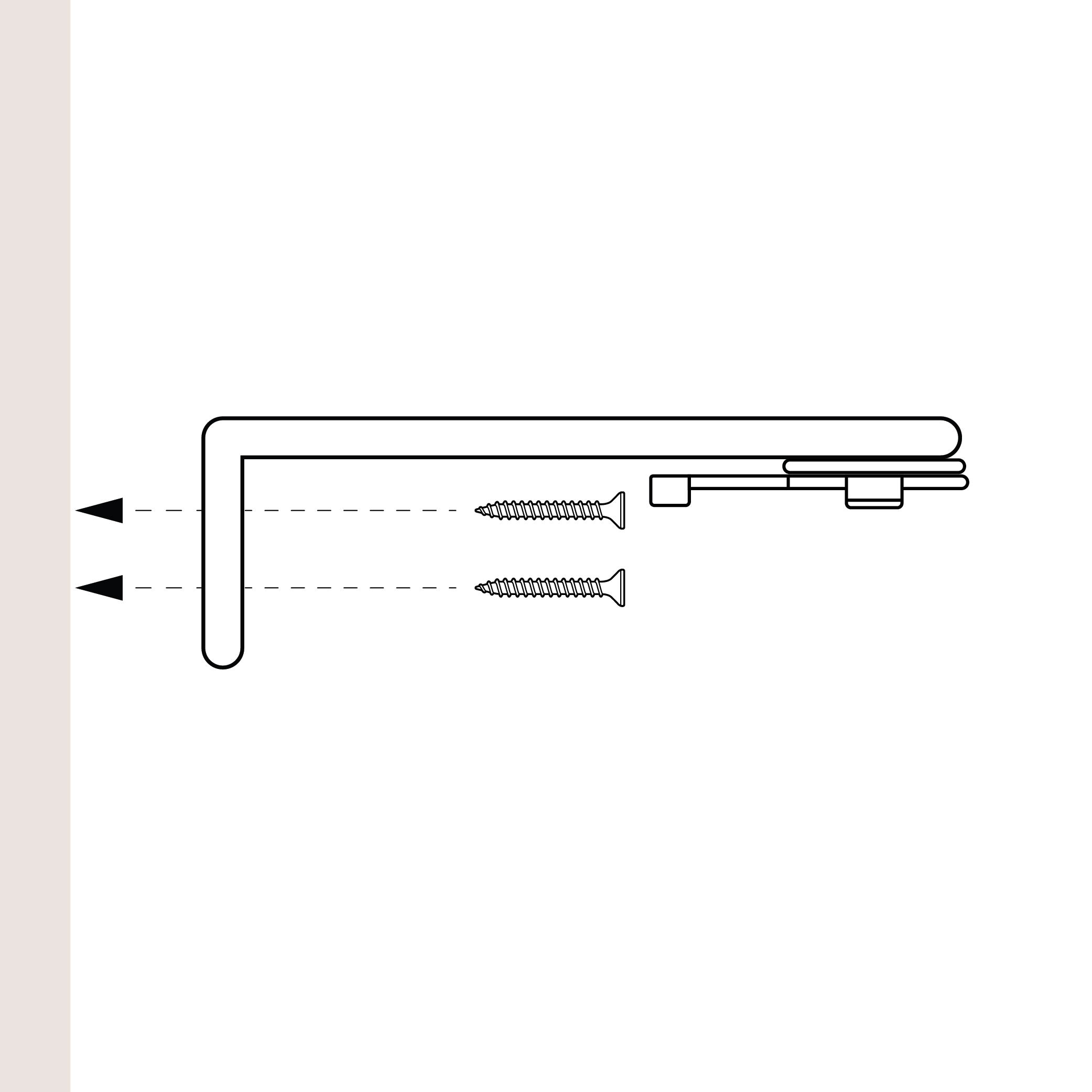

Fix the L Bracket onto the wall

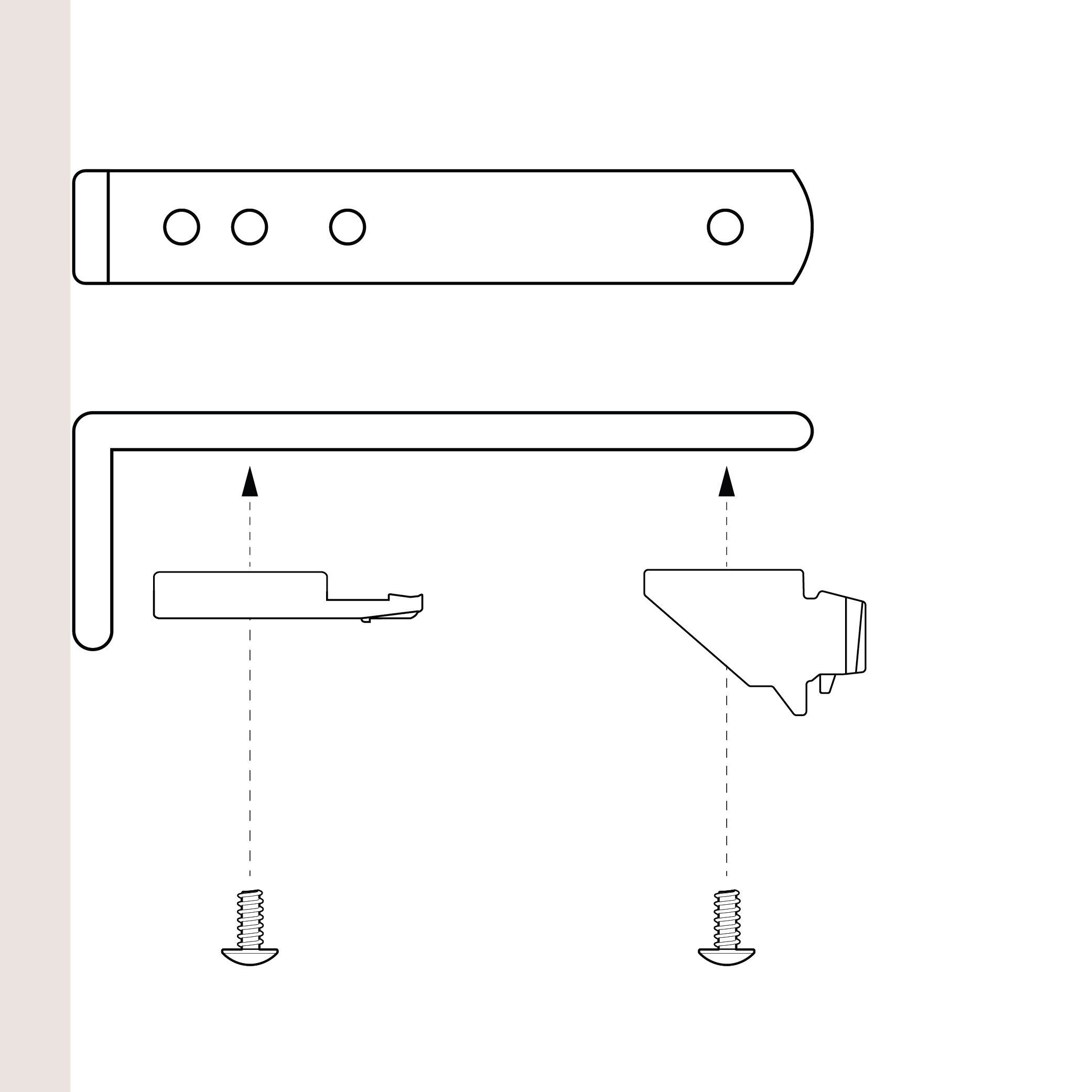

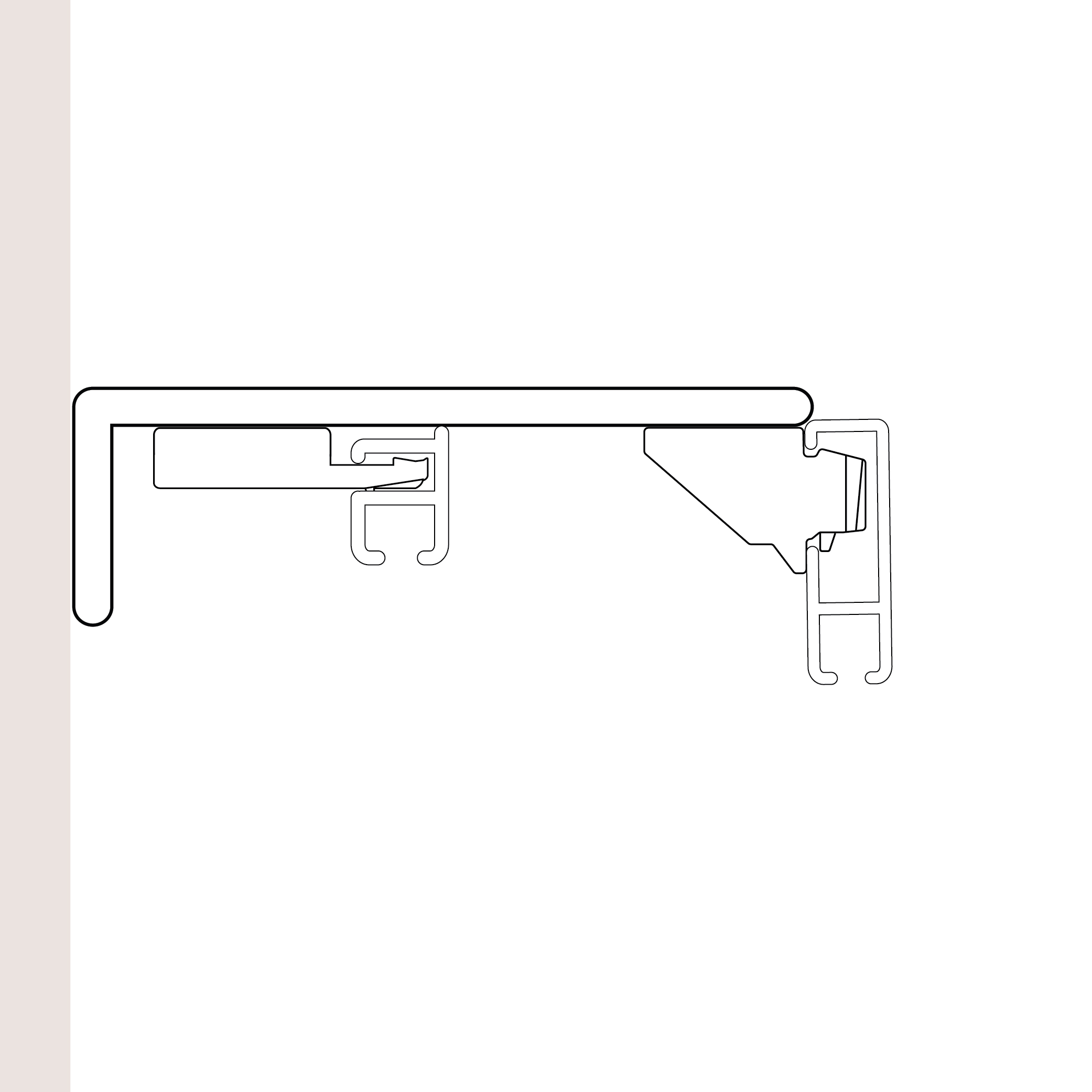

L Bracket Assembly for Double-track Installations
For double-track installations, two brackets can be mounted onto a single L bracket. As every hole in the L bracket is threaded, the bracket positions can be adjusted for the best fit. Any type of bracket can be attached to the L bracket, allowing different brackets to be combined to suit various track configurations.

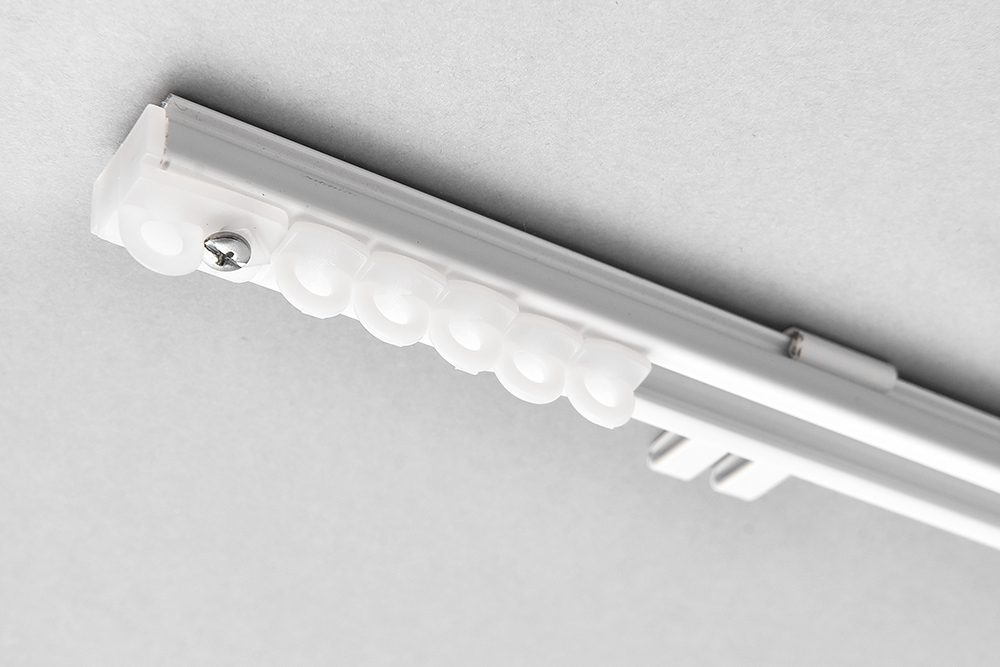

ACT43
Simple, discreet, and robust, ACT43 hand-drawn system is the epitome of functionality. Designed for medium-weight curtains, it offers versatility in installation, whether top-fixed through the pre-punched profile, using the ceiling bracket or L Brackets for wall installation. Ideal for effortless curtain solutions in any space.

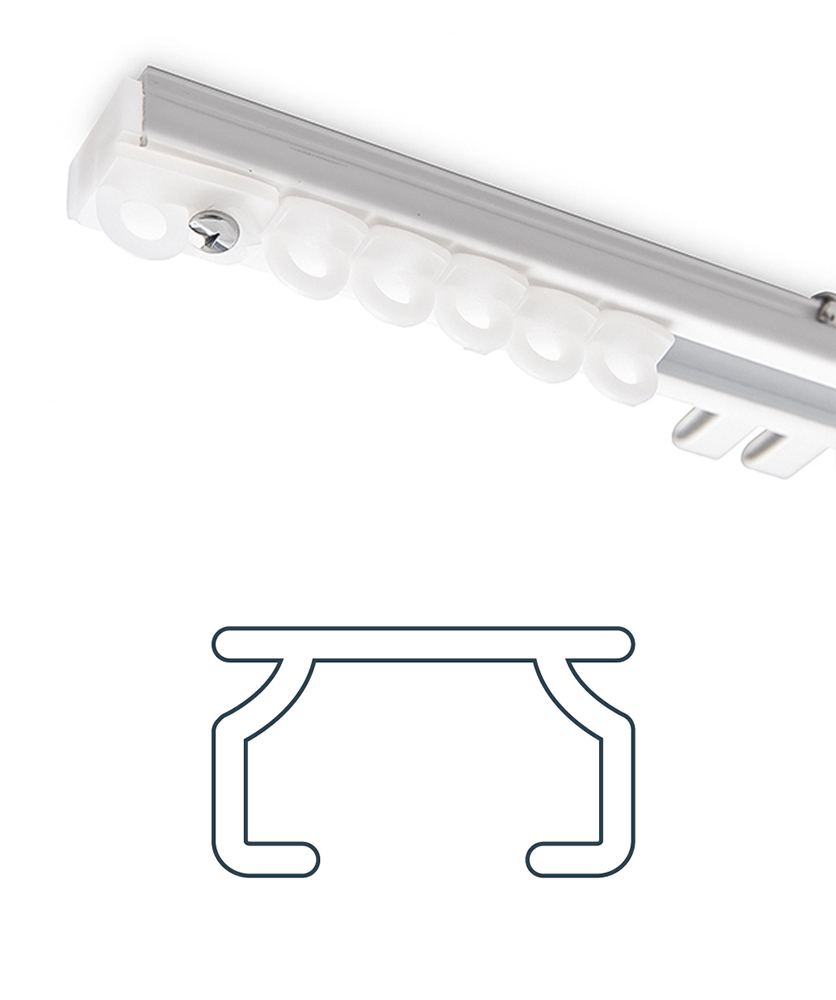

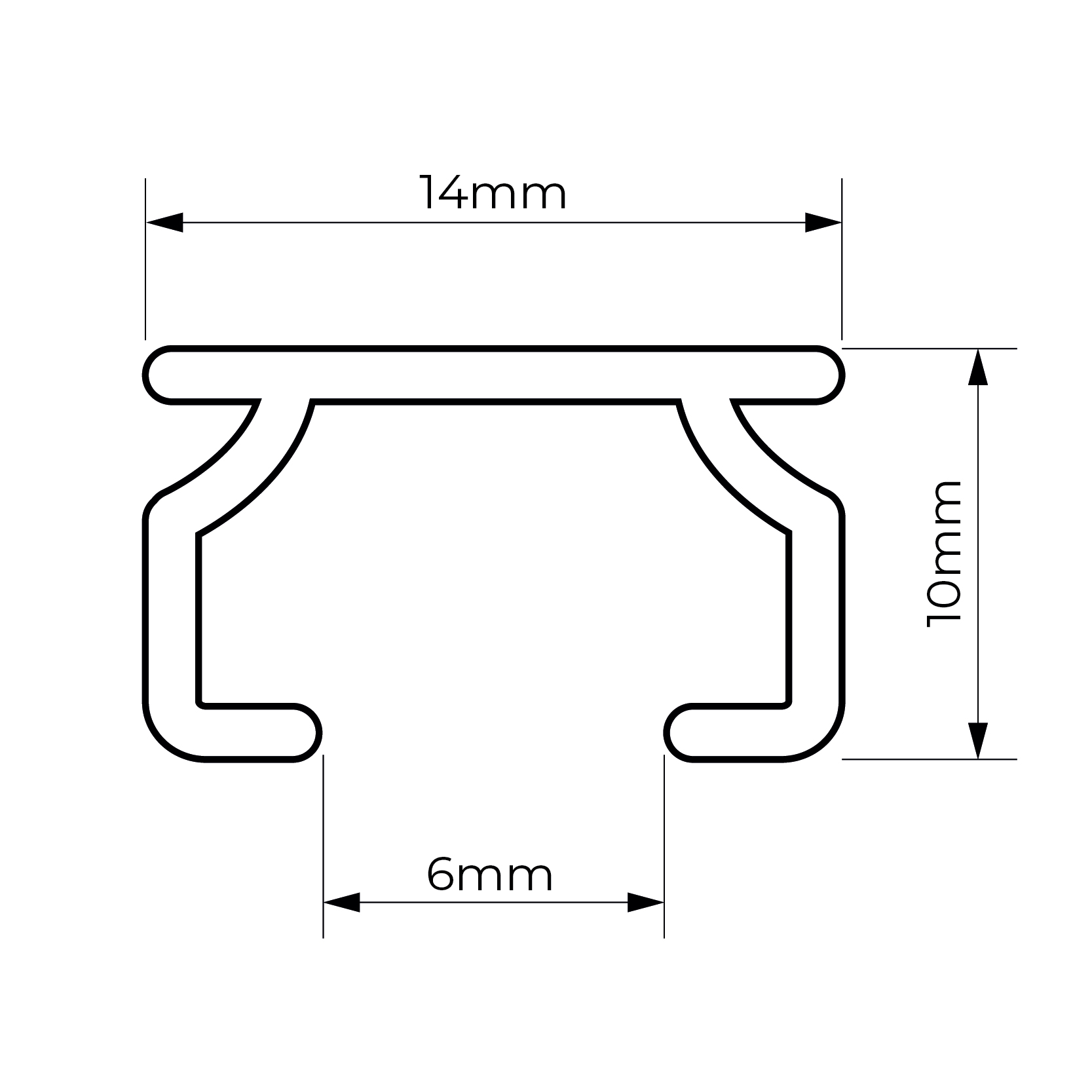

ACT43 Track Dimensions (cross section)
| Max. weight 8kg/m |
| Max. width 10m |
| Compatible with wave gliders |
| Single or split stacking |
| Perfect for mid-weight curtains |

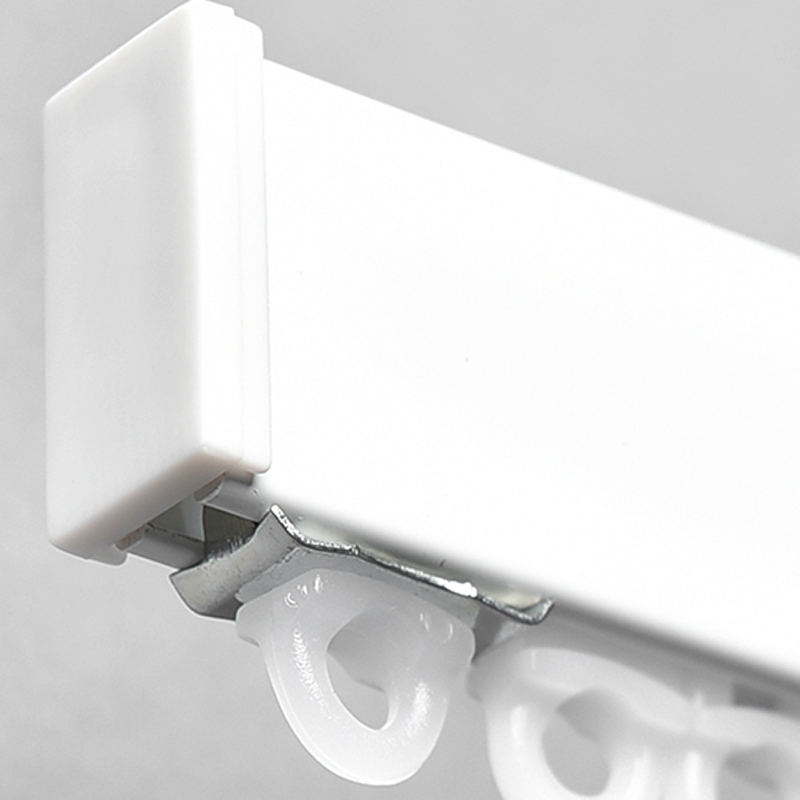

Hardware Colours
White
Heading Options
The ACT43 system is compatible with standard gliders or wave gliders, available with both 60mm or 80mm pitch to suit a variety of design preferences. Wave hangers are available on request to ensure your leading edge stays straight.
Wave Hanger - White
Ensure the leading edge stays straight
Brackets | Ceiling Installation
The ACT43 system offers flexible installation options, including top-fixing through the pre-punched profile or ceiling mounting using Ceiling Bracket/Clip.

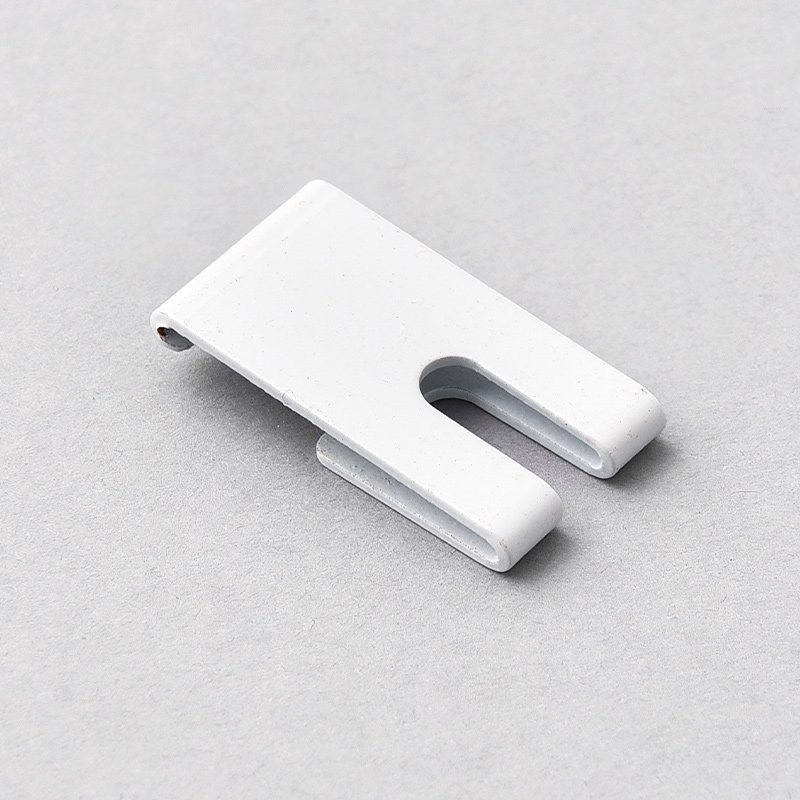

ACT43 Ceiling Bracket/Clip

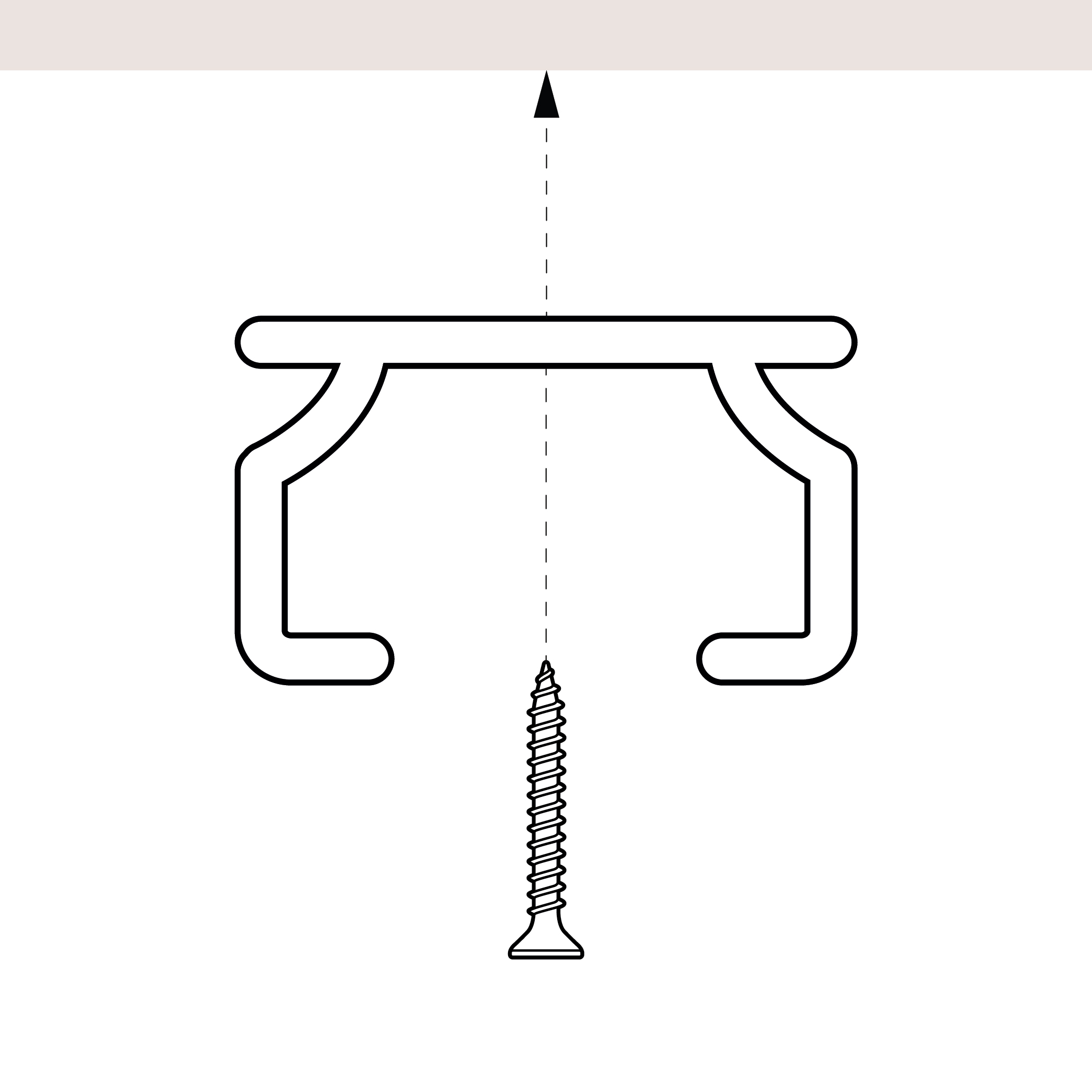

Ceiling Installation | Using pre-punched profile - Distance between holes 500mm

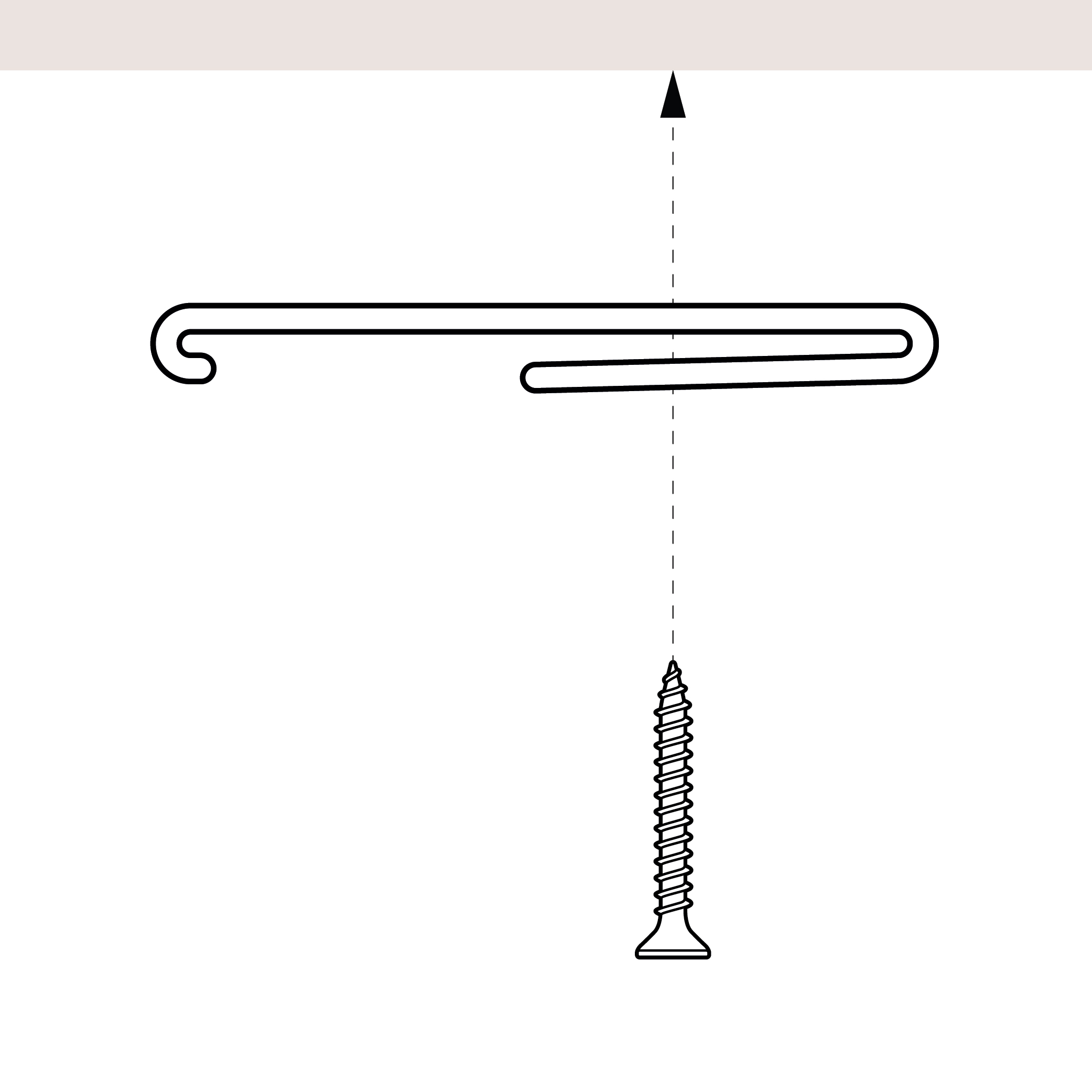

Ceiling Installation | ACT43 Ceiling Bracket/Clip
Fix the Ceiling Bracket/Clip to the ceiling by partially tightening the screw.

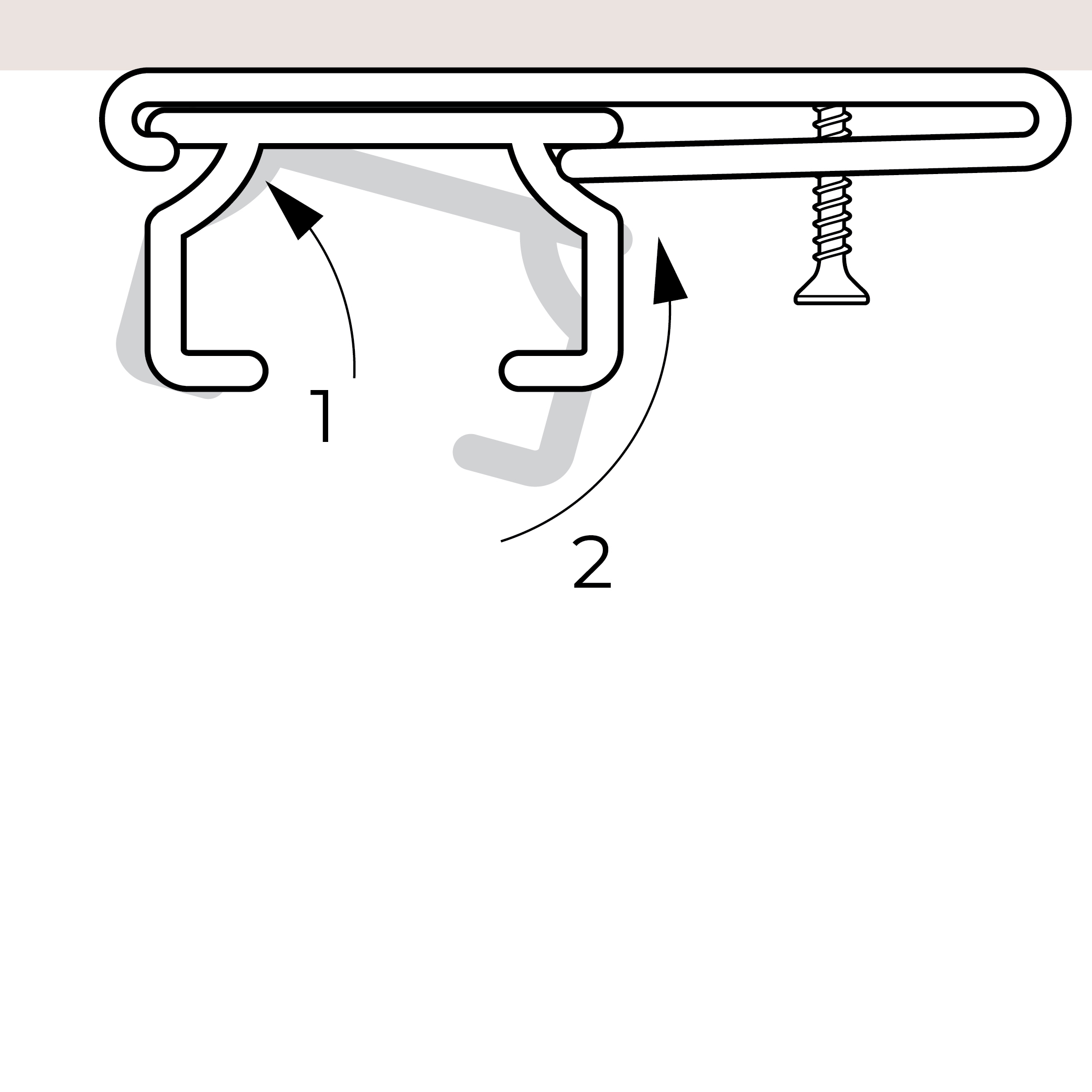

ACT43 Track Installation

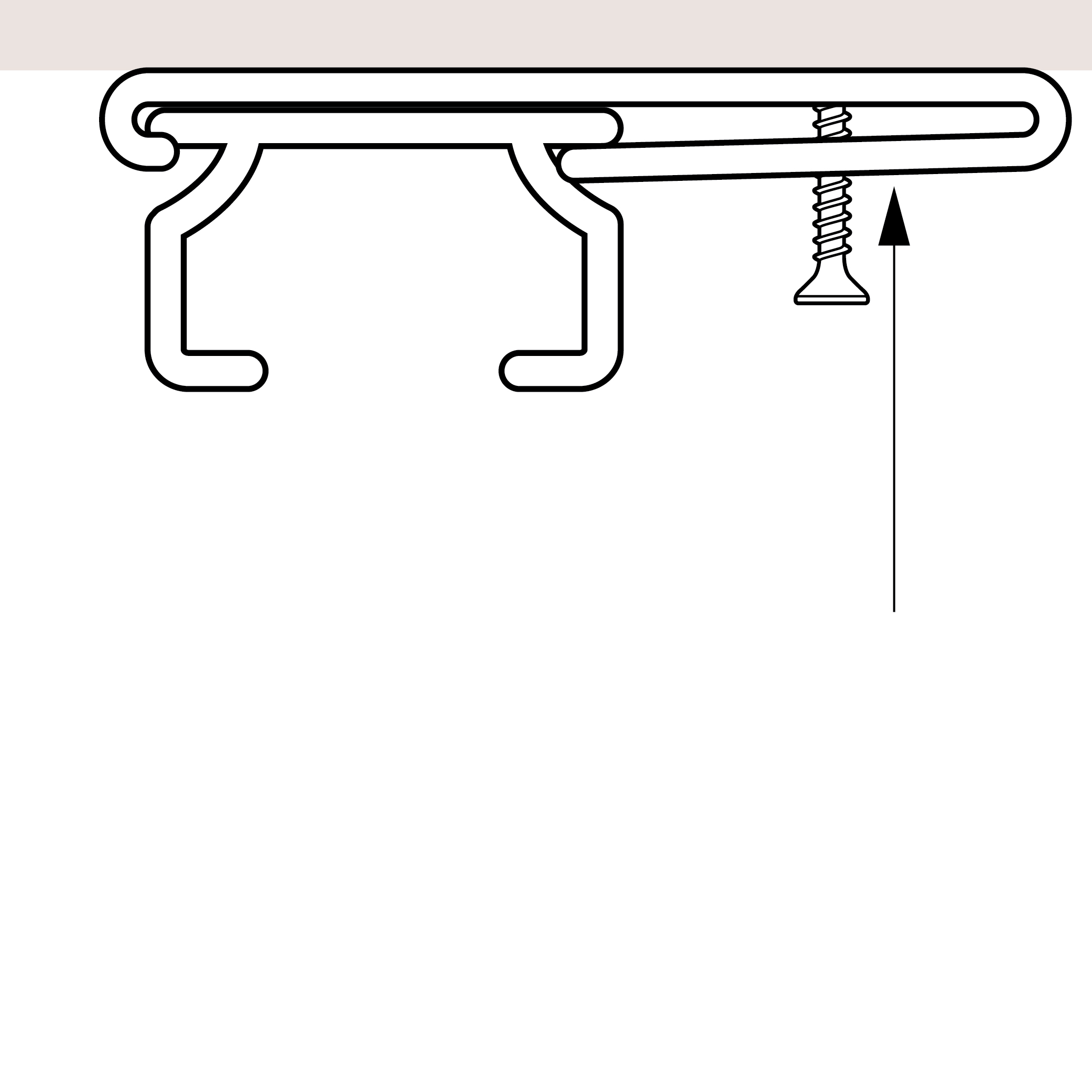

Tighten the screw on the Ceiling Bracket/Clip
L Bracket & Cover Sets | Wall Installation
L Bracket & Cover Sets offer a stylish and practical solution for installing ACT systems in spaces that require additional clearance or multi-track configurations. Available in three sizes, each set includes snap-off covers for a clean, streamlined finish. Designed for versatility, L Brackets are suitable for a wide range of window setups and must be used in conjunction with Ceiling Bracket and Universal Bracket 2cm.
L Bracket & Cover - White
30mm | 70mm
90mm | 120mm

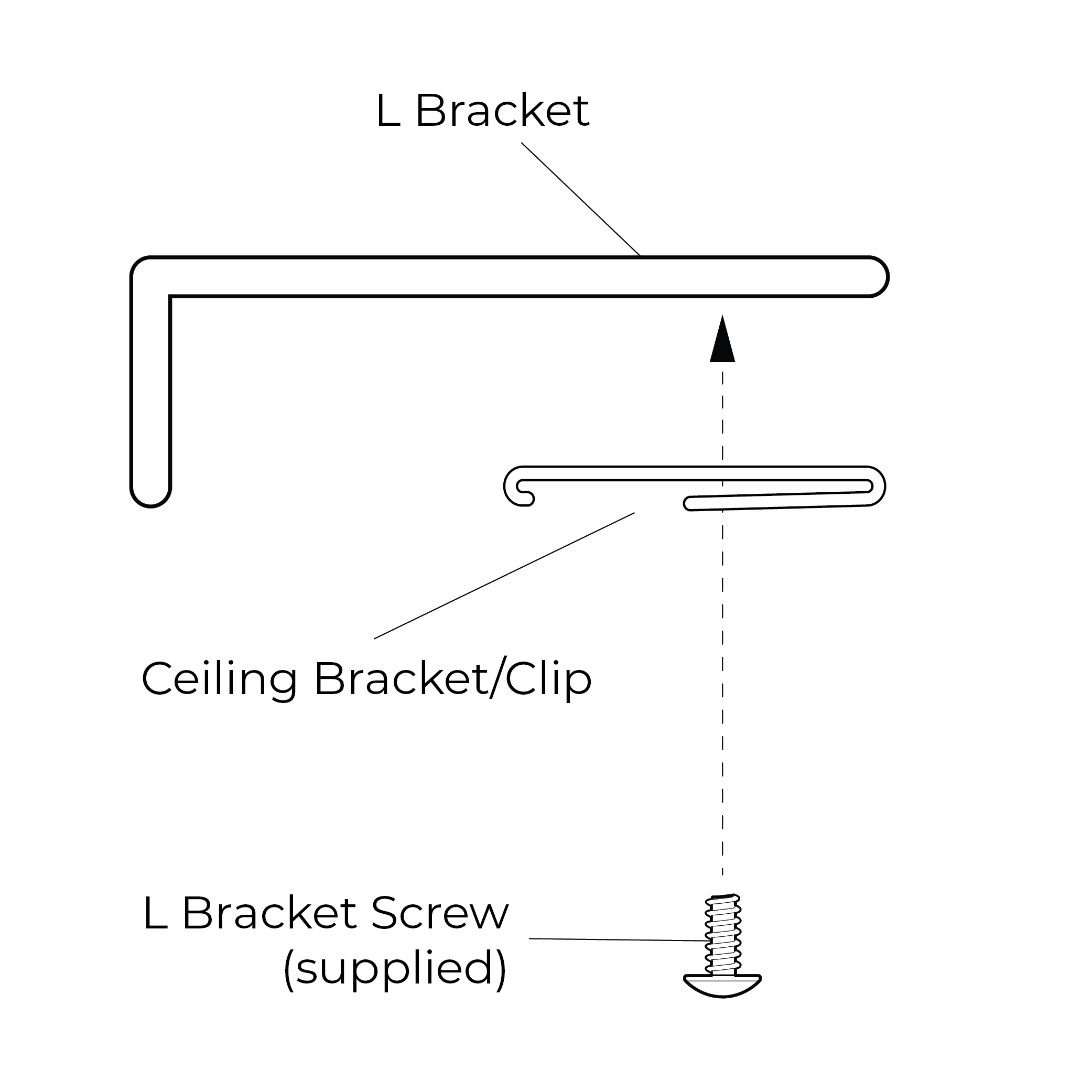

L Bracket Assembly and Installation | Ceiling Bracket/Clip
Secure the ACT43 Ceiling Bracket/Clip to the L bracket using the supplied screw
Fix the L Bracket onto the wall
L Bracket Assembly for Double-track Installations
For double-track installations, two brackets can be mounted onto a single L bracket. As every hole in the L bracket is threaded, the bracket positions can be adjusted for the best fit. Any type of bracket can be attached to the L bracket, allowing different brackets to be combined to suit various track configurations.

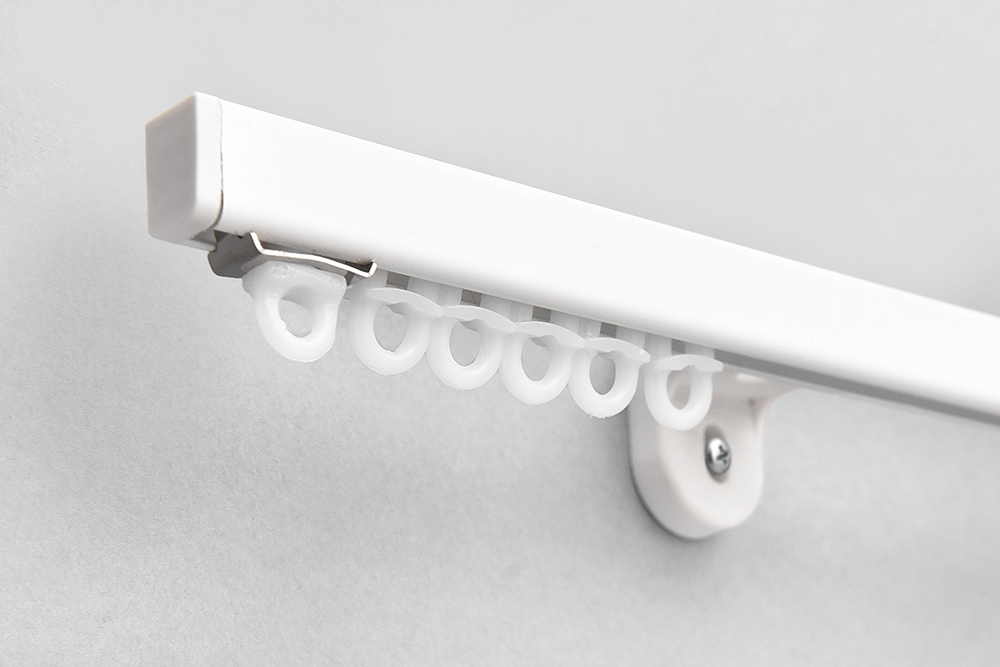

ACT50
act50 Track Dimensions (cross section)
| Max. weight 5kg/m |
| Max. width 10m |
| Compatible with wave gliders |
| Single or split stacking |
| Perfect for light and mid-weight curtains |
Hardware Colours
White
Heading Options
The ACT50 system is compatible with standard gliders or wave gliders, available with both 60mm or 80mm pitch to suit a variety of design preferences. Wave hangers are available on request to ensure your leading edge stays straight.
Wave Hanger - White
Ensure the leading edge stays straight
Brackets | Ceiling and Wall Installation

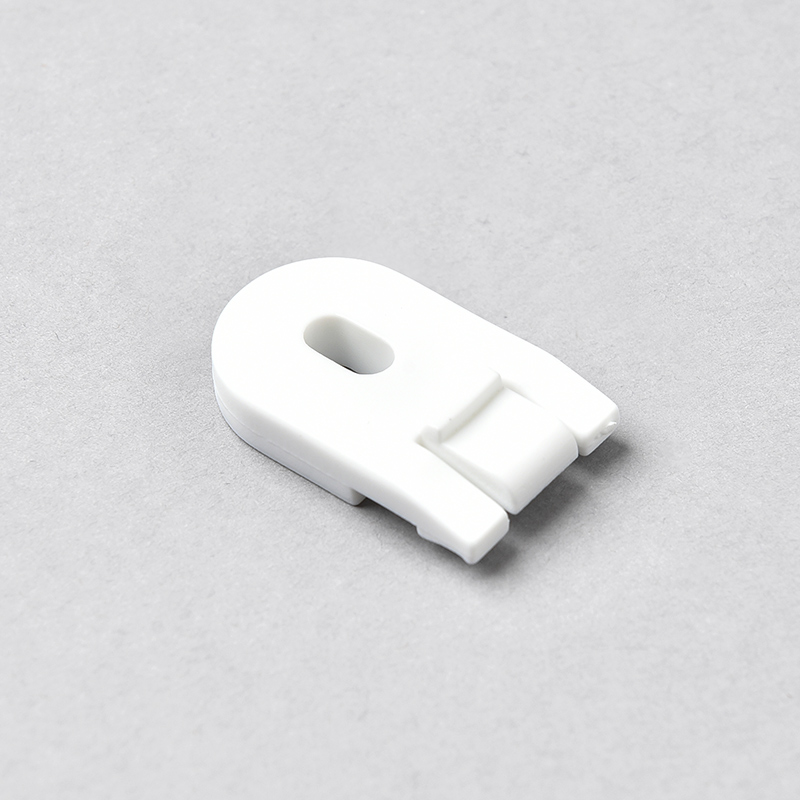

ACT50 Ceiling Bracket
Ceiling Installation
ACT50 Univesal Bracket
Ceiling/Wall Installation
Ceiling Installation | ACT50 Ceiling Bracket
Fix the ACT50 Ceiling Bracket onto the ceiling with a screw
ACT50 Track Installation
Ceiling/Wall Installation | ACT50 Universal Bracket
Fix the ACT50 Universal Bracket onto the ceiling or wall with a screw
ACT50 Track Installation
L Bracket & Cover Sets | Wall Installation
L Bracket & Cover Sets offer a stylish and practical solution for installing ACT systems in spaces that require additional clearance or multi-track configurations. Available in three sizes, each set includes snap-off covers for a clean, streamlined finish. Designed for versatility, L Brackets are suitable for a wide range of window setups and must be used in conjunction with all Ceiling or Universal Brackets.
L Bracket & Cover - White
30mm | 70mm
90mm | 120mm
L Bracket Assembly and Installation | ACT50 Ceiling Bracket
Secure the ACT50 Ceiling Bracket/Clip to the L bracket using the supplied screw
Fix the L Bracket onto the wall
L Bracket Assembly for Double-track Installations
For double-track installations, two brackets can be mounted onto a single L bracket. As every hole in the L bracket is threaded, the bracket positions can be adjusted for the best fit. Any type of bracket can be attached to the L bracket, allowing different brackets to be combined to suit various track configurations.

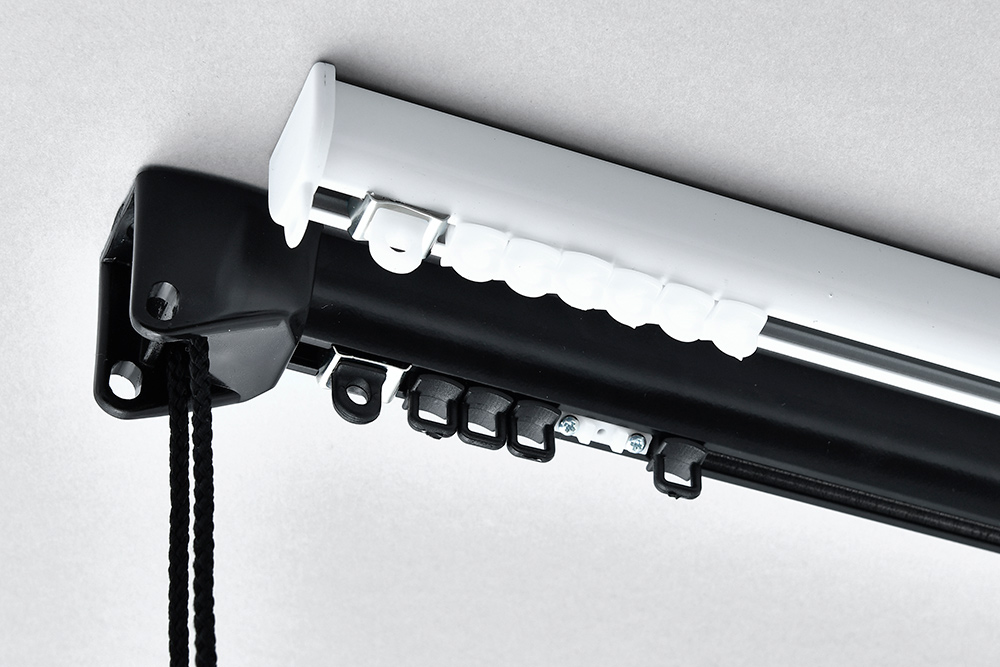

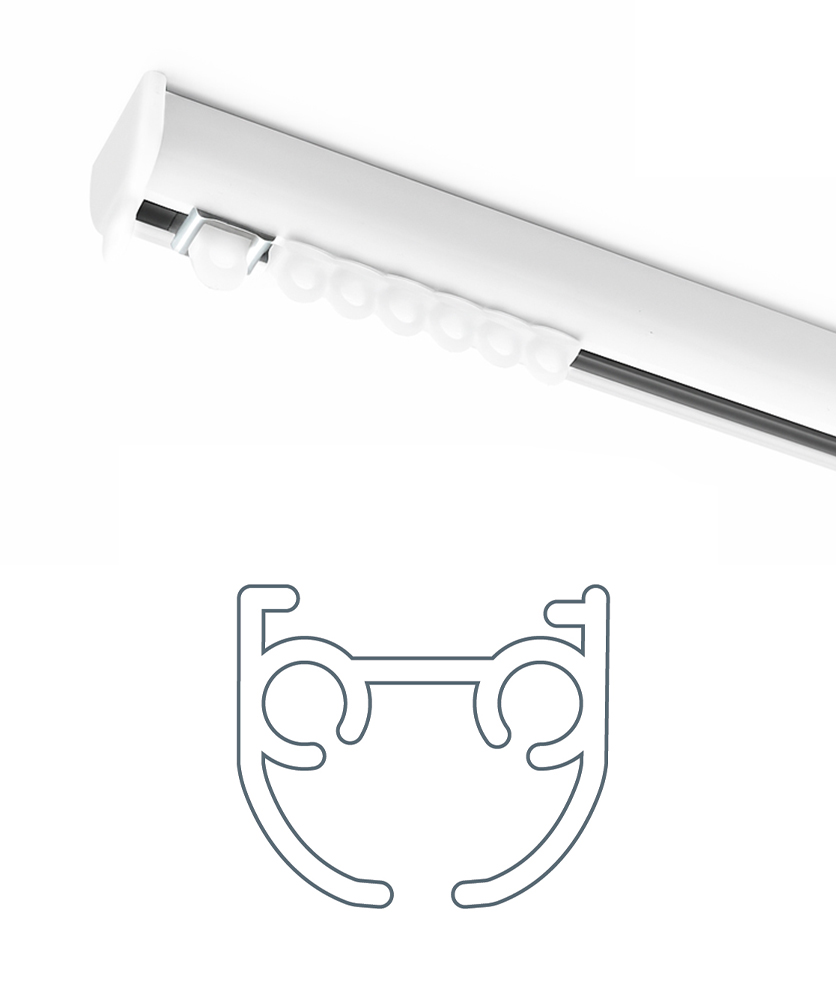

ACT60
Available in white or black and in corded or uncorded options, the ACT60 Curtain Track suits voiles or medium-weight curtains. Its sleek, rounded profile and wall or ceiling fixing deliver a clean, modern look for various interior styles.

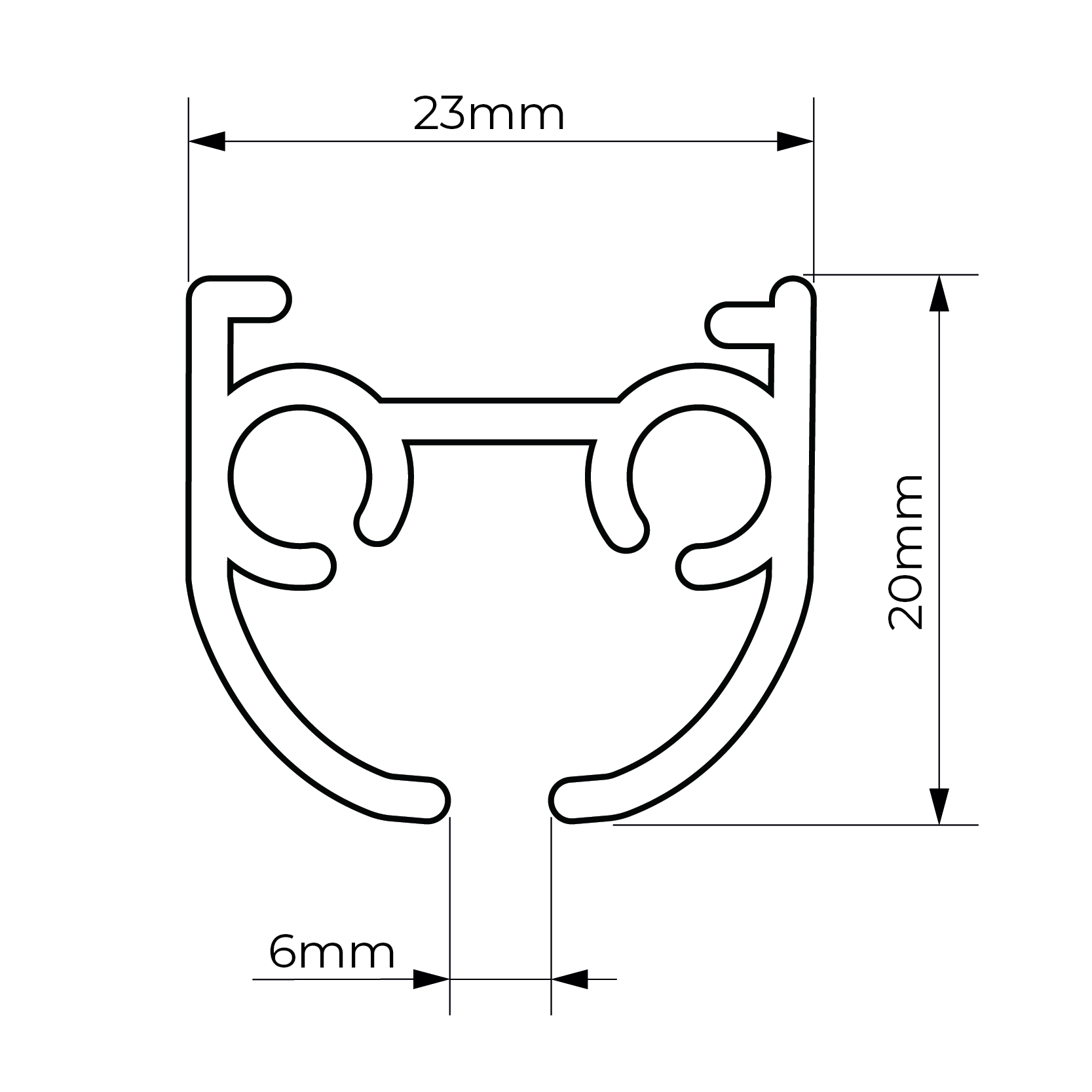

ACT60 Track Dimensions (cross section)
| Available in white or black |
| Corded or uncorded |
| Max. weight 8kg/m |
| Max. width 10m |
| Compatible with wave gliders |
| Single or split stacking |
| Perfect for mid-weight curtains |
Control Options

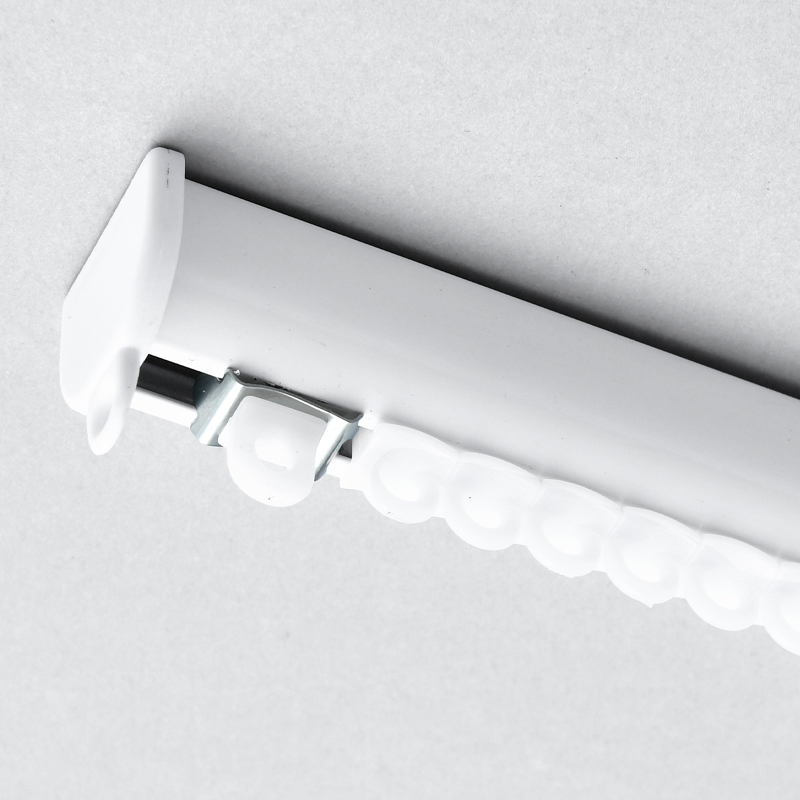

Uncorded Hand-drawn

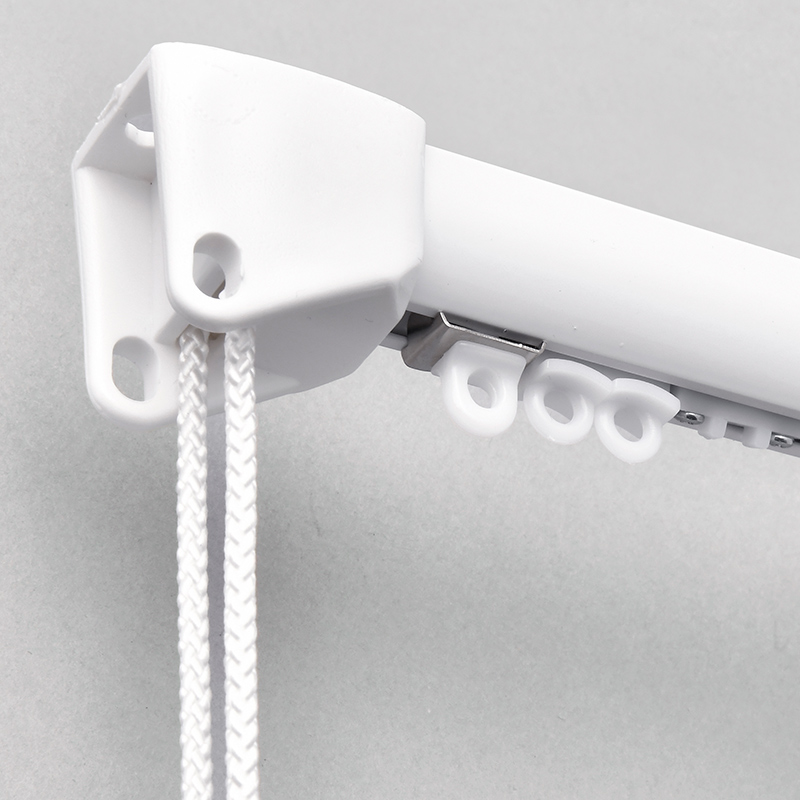

Corded
Hardware Colours
White
Black
Heading Options
The ACT60 system is compatible with standard gliders or wave gliders, available with both 60mm or 80mm pitch to suit a variety of design preferences. Wave hangers are available on request to ensure your leading edge stays straight.
Wave Hanger - White
Ensure the leading edge stays straight
Wave Hanger - Black
Ensure the leading edge stays straight
Brackets | Ceiling Installation
ACT60 Ceiling Swivel Bracket

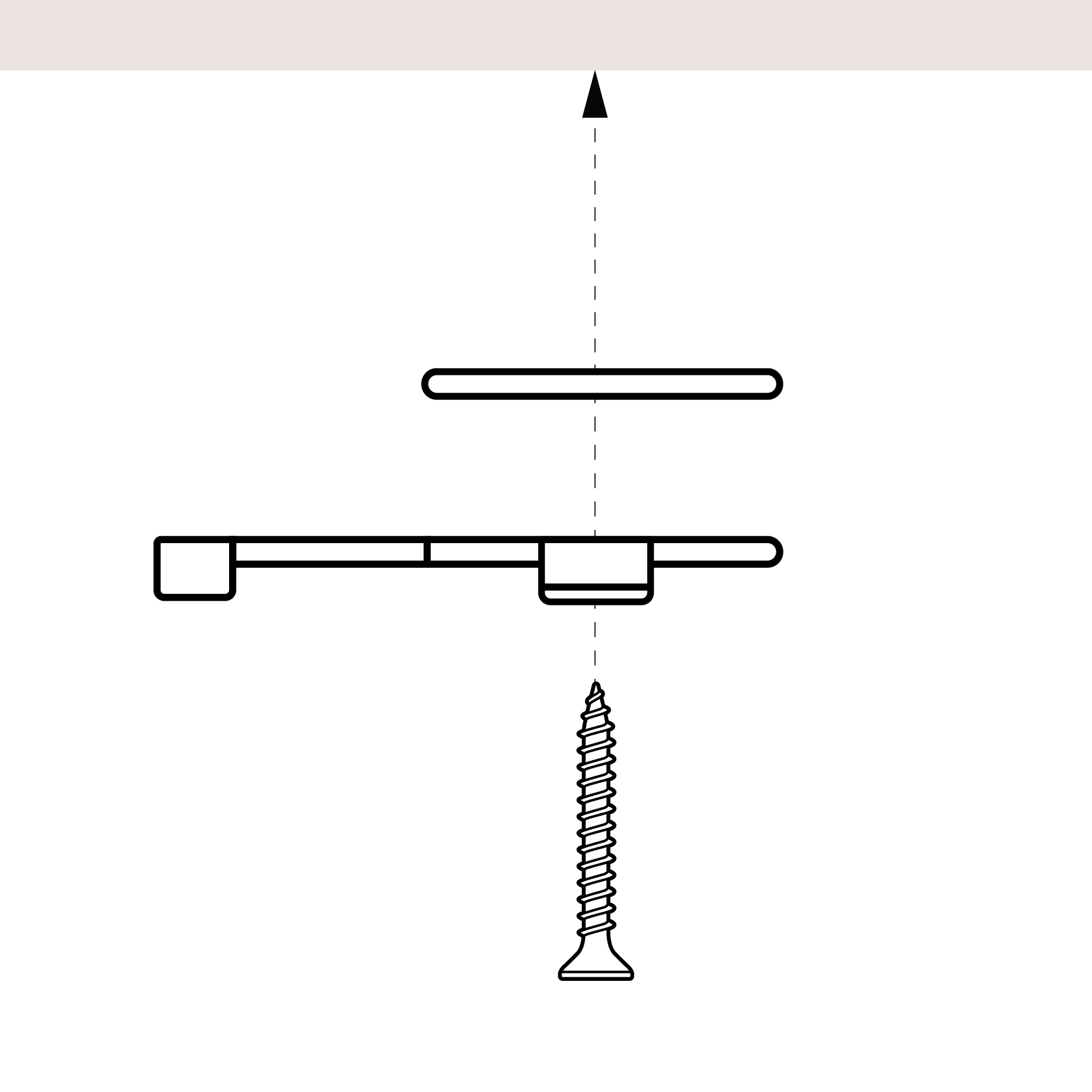

Ceiling Installation | ACT60 Ceiling Swivel Bracket
Fix the ACT60 Celiling Swivel bracket onto the ceiling or wall with a screw

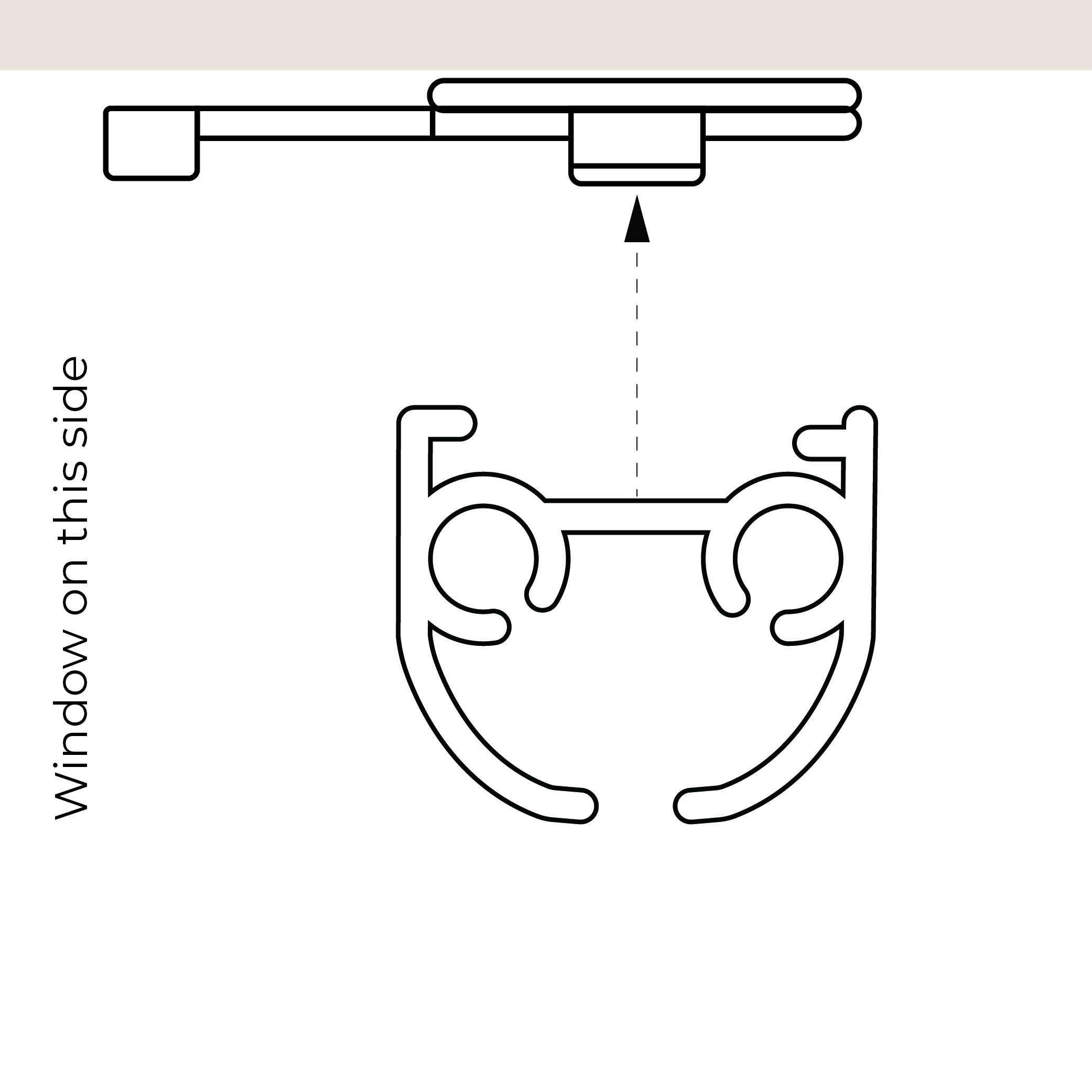

ACT60 Track Installation

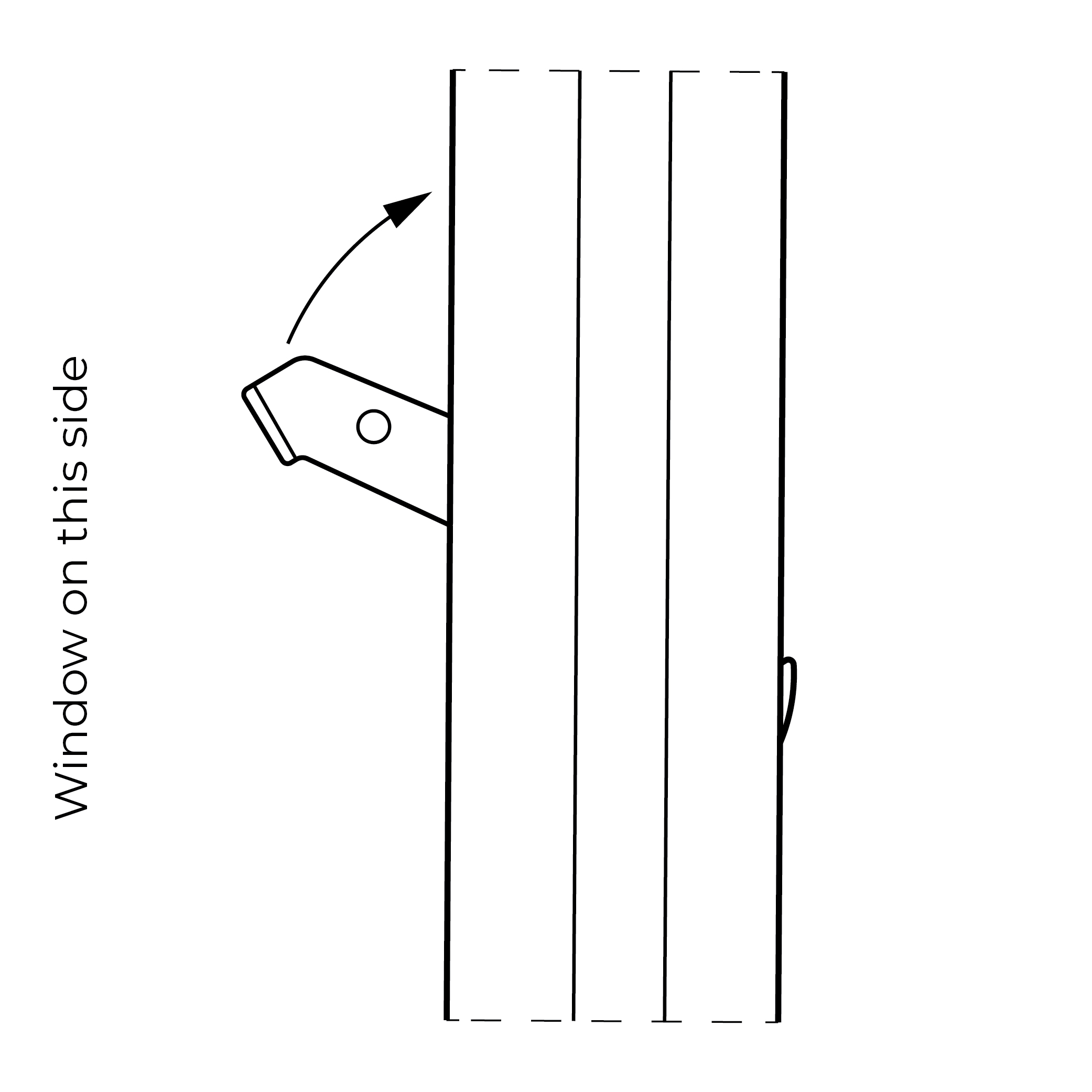

Close the bracket lever to lock the track in place securely. (bottom view)
L Bracket & Cover Sets | Wall Installation
L Bracket & Cover Sets offer a stylish and practical solution for installing ACT systems in spaces that require additional clearance or multi-track configurations. Available in three sizes, each set includes snap-off covers for a clean, streamlined finish. Designed for versatility, L Brackets are suitable for a wide range of window setups and must be used in conjunction with Ceiling Swivel Brackets.
L Bracket & Cover - White
70mm | 90mm
120mm
L Bracket & Cover - Black
70mm | 90mm
120mm

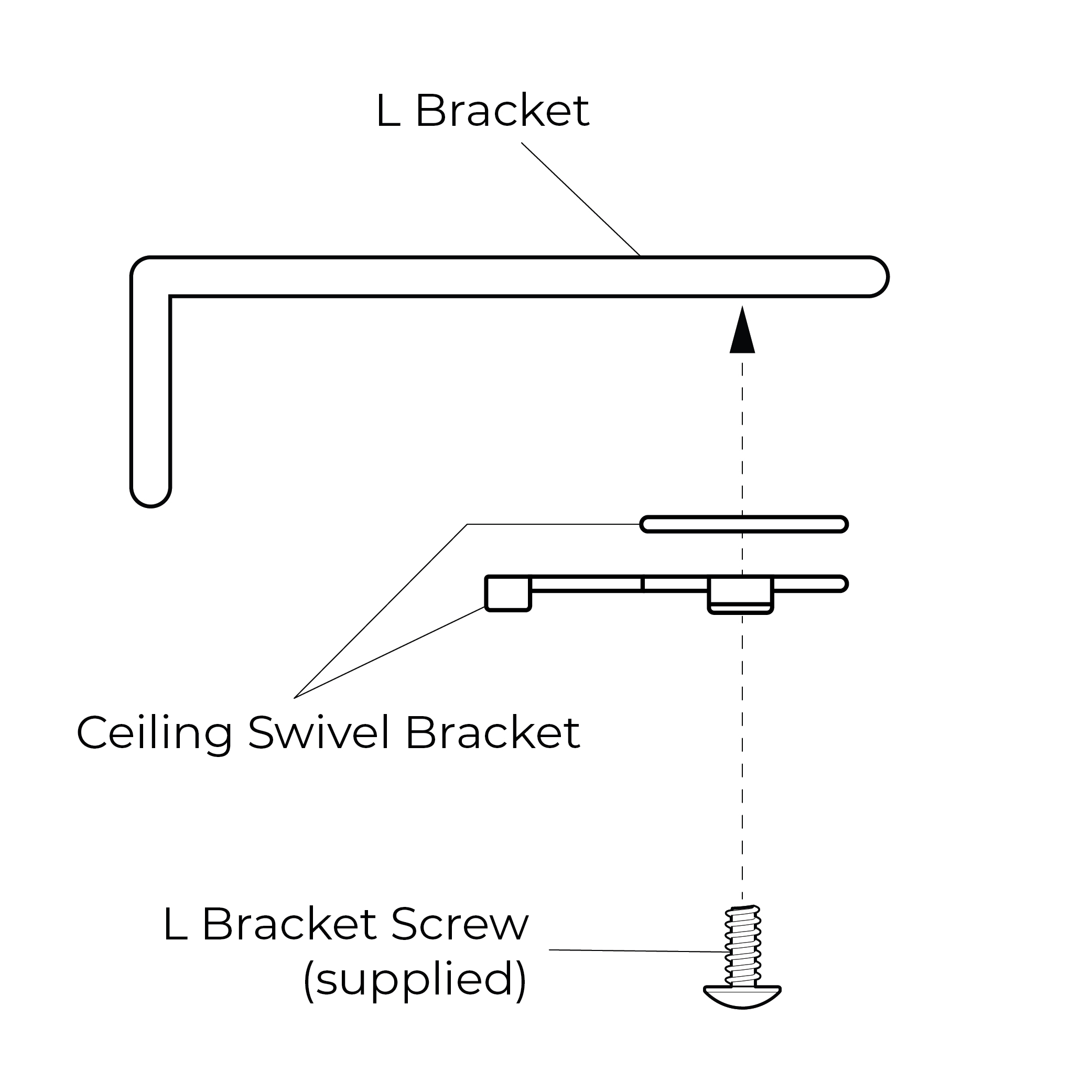

L Bracket Assembly and Installation | ACT60 Ceiling Swivel Bracket
Secure the ACT60 Ceiling Swivel Bracket to the L bracket using the supplied screw
Fix the L Bracket onto the wall
L Bracket Assembly for Double-track Installations
For double-track installations, two brackets can be mounted onto a single L bracket. As every hole in the L bracket is threaded, the bracket positions can be adjusted for the best fit. Any type of bracket can be attached to the L bracket, allowing different brackets to be combined to suit various track configurations.
