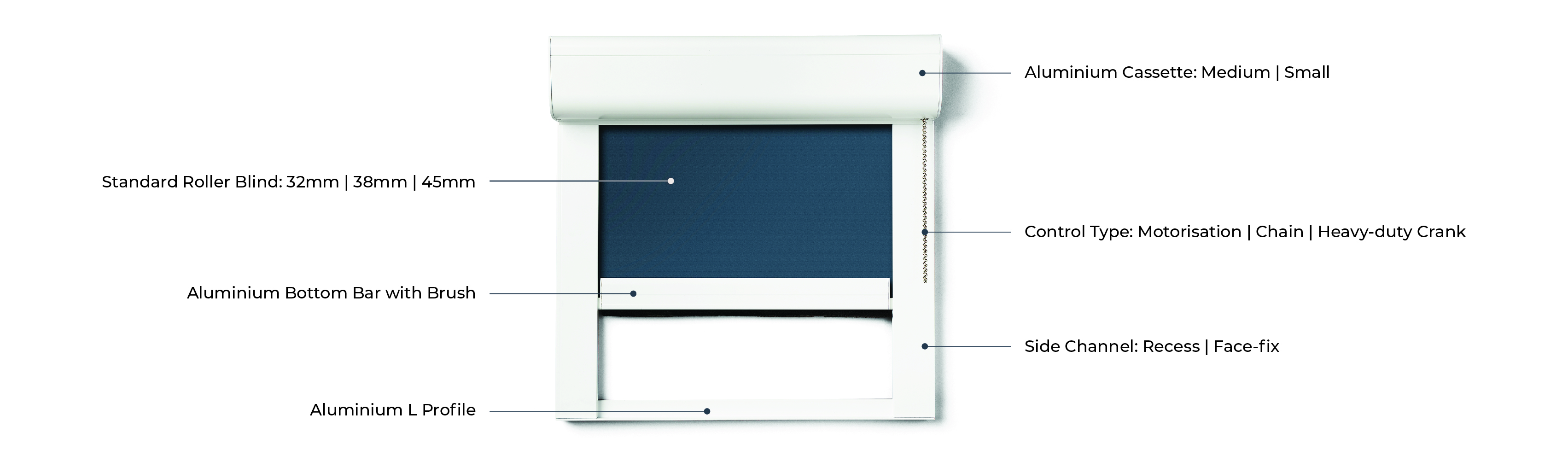

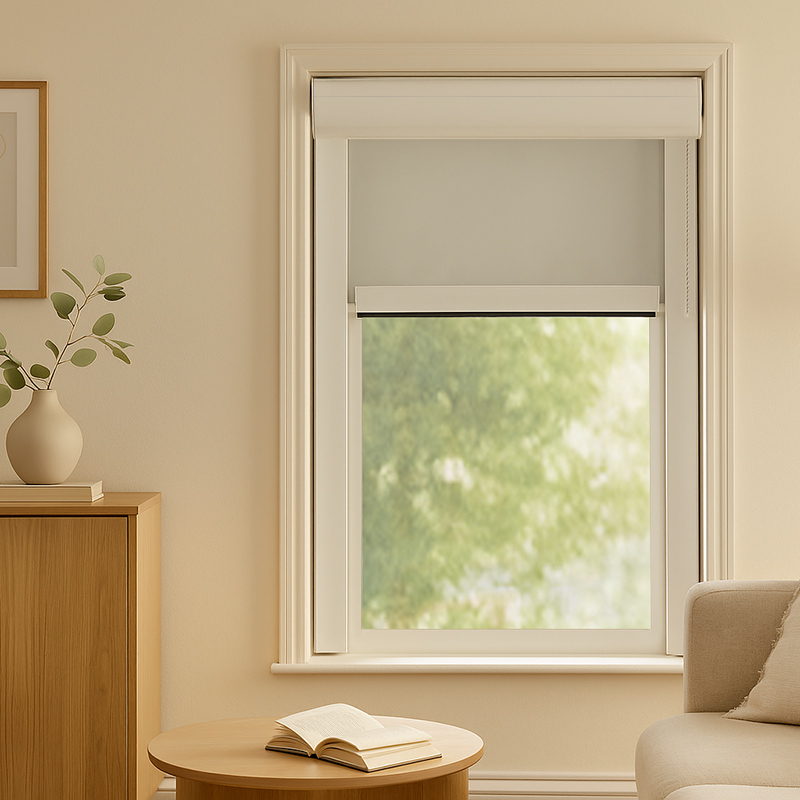

Cassetted Roller Blinds
Our cassetted roller blinds come in crisp white or sleek black, with two cassette sizes to suit both recess and face-fix installations. Designed for a clean, seamless look, they’re a top choice for effective blackout performance in any setting.
Manual or motorised control
Available in two sizes and colours
Premium fabrics from Capital Collection
Control Options
Motorisation
From classic remotes to smartphones and full home automation, our motorisation options make it easy to offer convenient, modern control for your Cassetted Roller Blinds - providing reliable solutions to suit every budget and level of smart integration.
Dream 15 Channel Remote
DreamHub Pro

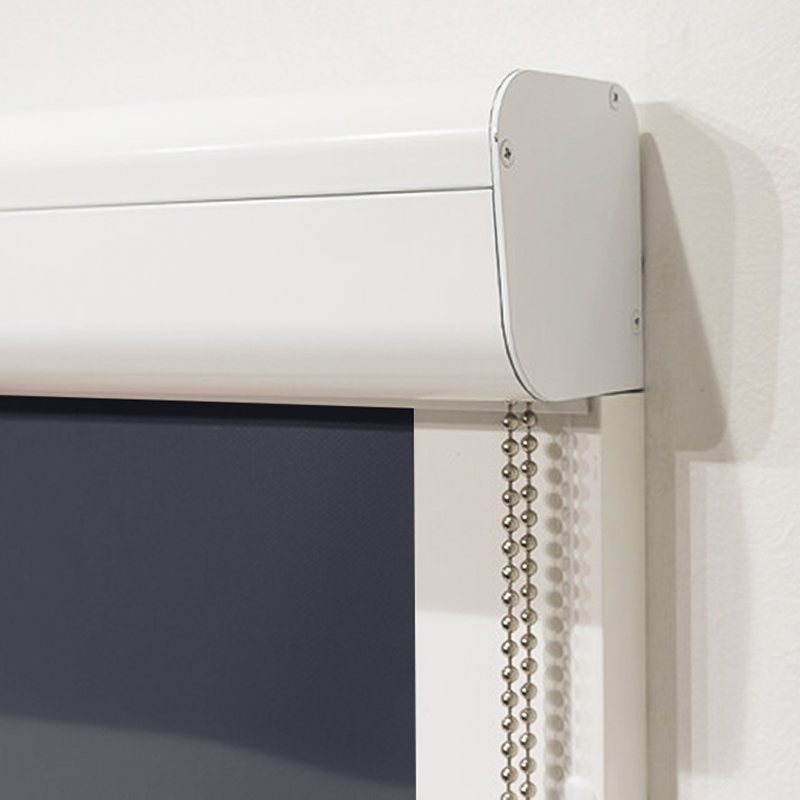

Chain Control
Our chain-controlled Cassetted Roller Blinds come with durable, metal (nickel-plated mild steel) chains as standard. A P-clip safety device is included for secure installation, with other safety options available.
White Plastic
Nickel Plated Mild Steel - supplied as standard
Antimicrobial Copper Silver
Antimicrobial Copper Gold
Grey Nickel
Nickel Plated Brass
Nickel Plated Stainless Steel.
Black Nckel
Brass
Antique Brass
Copper
Crank Control

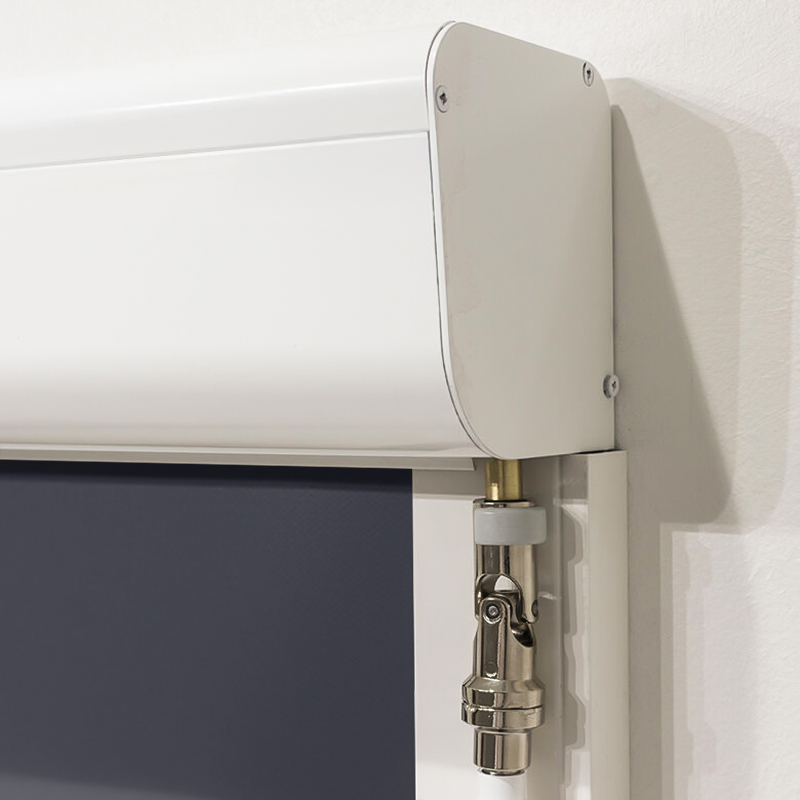

Crank-controlled Cassetted Roller Blinds come with a heavy-duty crank mechanism featuring a magnetic attachment. Crank handles are available in three lengths.
Heavy Duty Crank Handle
1000mm | 1500mm
2000mm
Hardware Colours

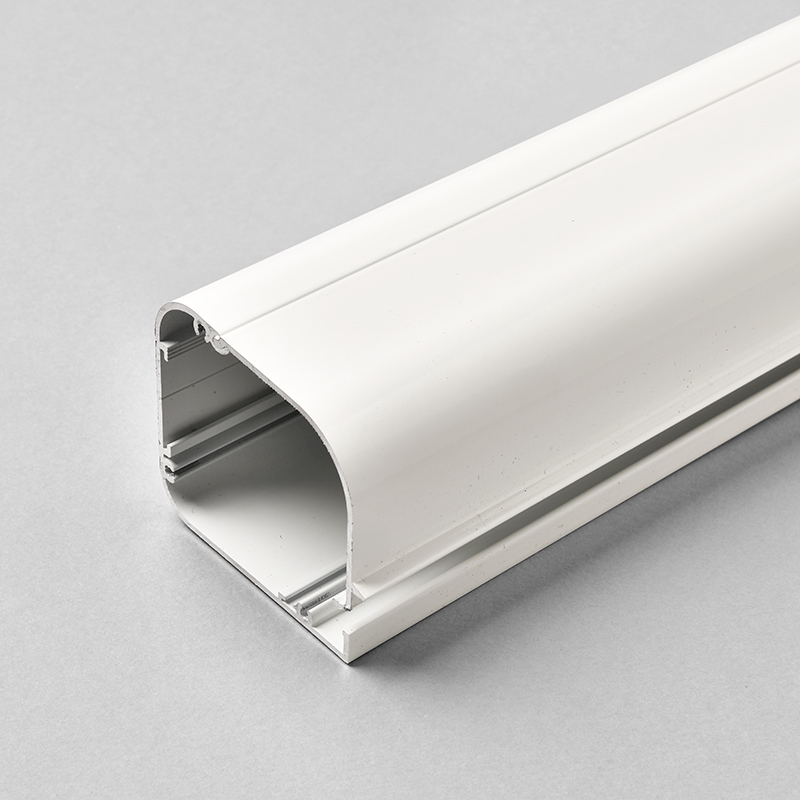

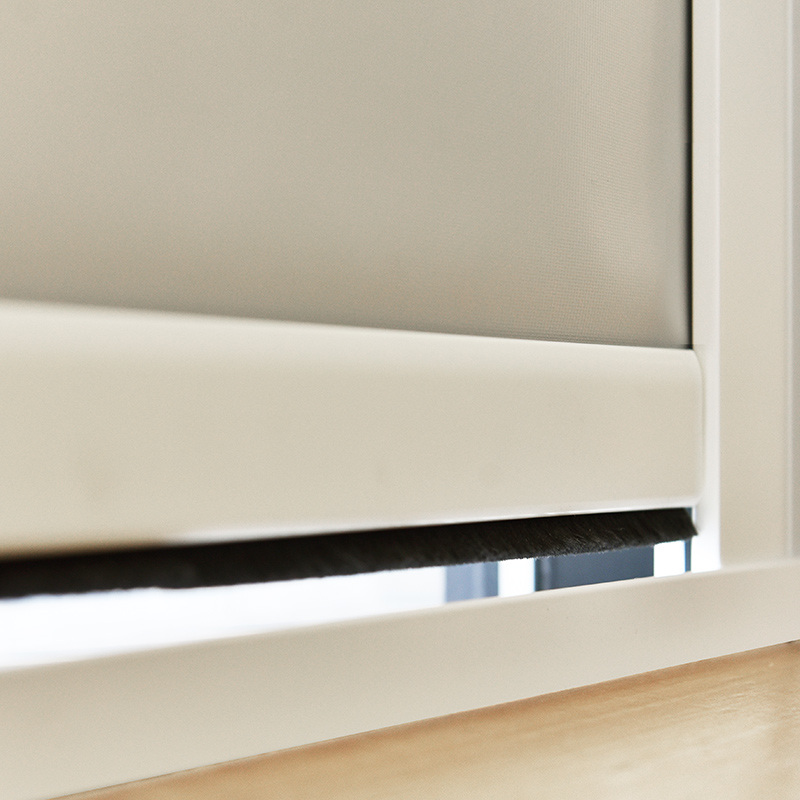

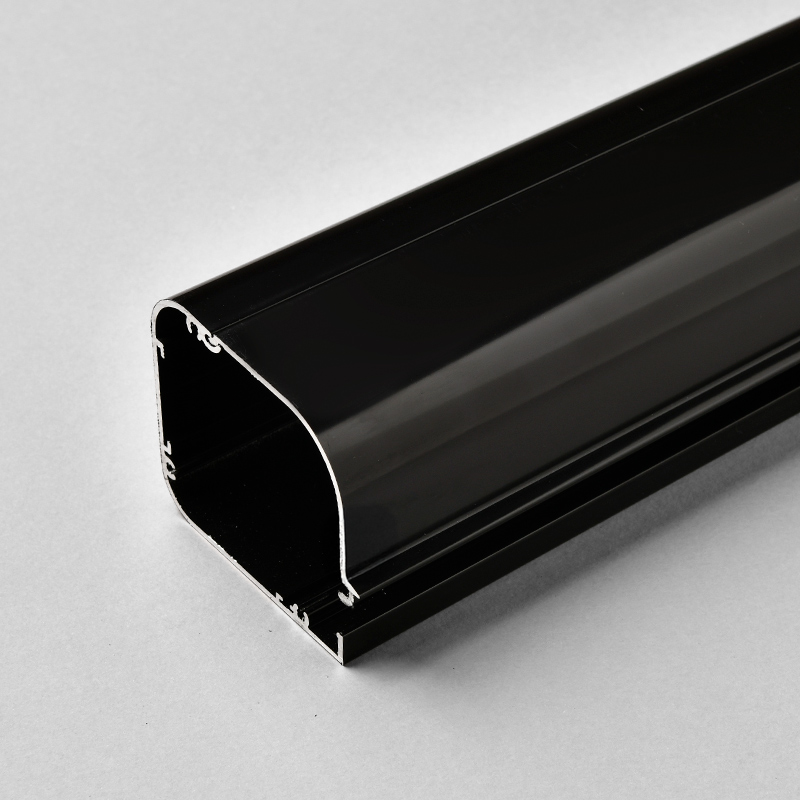

All hardware components - cassette, bottom bar, side channels, and end caps - are available in matching white or black finishes.
White
Black
Fabrics
Our roller blind fabrics combine style and performance, perfect for everything from cosy homes to large commercial projects. Choose from our Classic Collection, trusted supplier ranges like Decora, Louvolite, and New House, or explore the exclusive Capital Collection - our premium, signature fabric collection the includes 26 beautiful ranges available only from Decorquip.
Technical Specifications
Motorised Cassetted Roller Blinds - Min & Max Sizes
| Control Type | Min. width | Max. width | Max. drop |
|---|---|---|---|
| ROLLER 38mm BATTERY MOTOR | 545mm | 2100mm | 2100mm |
| ROLLER 38mm MAINS MOTOR | 550mm | 2100mm | 3100mm |
| ROLLER 45mm BATTERY MOTOR | 755mm | 3450mm | 3450mm |
| ROLLER 45mm MAINS MOTOR | RJ12 | 645mm | 3450mm | 3450mm |
| ROLLER 45mm WIRED MOTOR | 575mm | 2345mm | 3450mm |
Chain Operated Cassetted Roller Blinds - Min & Max Sizes
| Product | Min. width | Max. width | Max. drop |
|---|---|---|---|
| Chain Operated Cassetted Roller Blind | 300mm | 3450mm | 3900mm |
Heavy-duty Crank Controlled Cassetted Roller Blinds - Min & Max Sizes
| Product | Min. width | Max. width | Max. drop |
|---|---|---|---|
| HD Crank Operated Cassetted Roller Blind | 300mm | 3450mm | 3450mm |
Cassette Dimensions (side view)

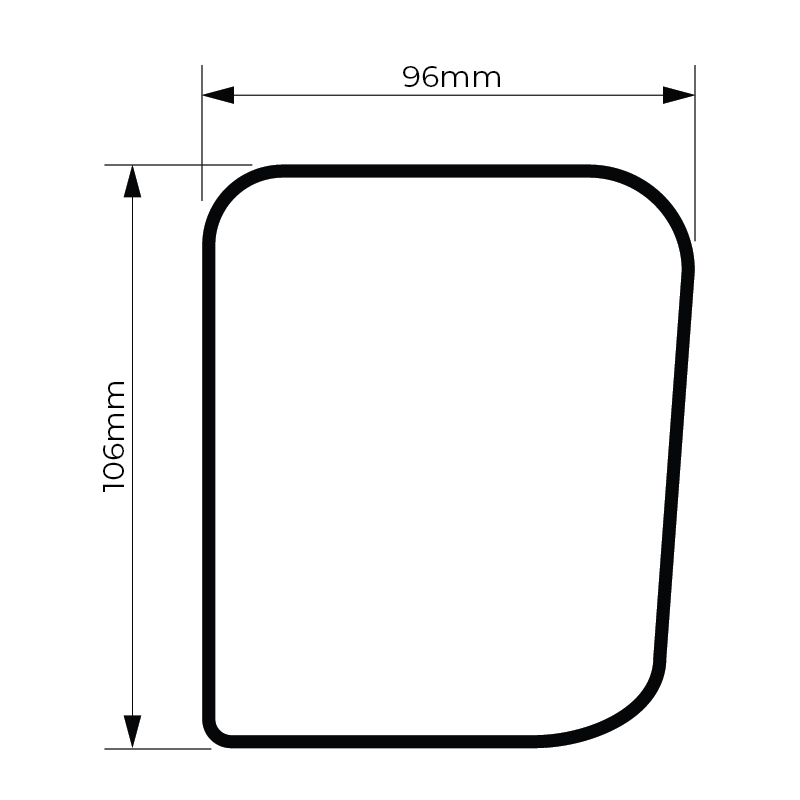

Medium

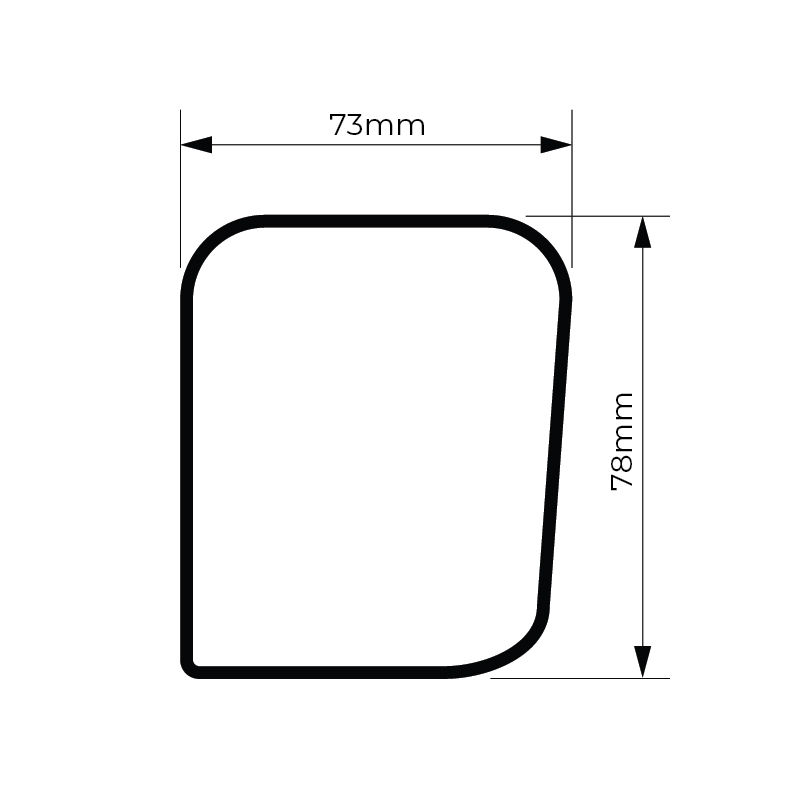

Small
Side Channel Dimensions (cross section)

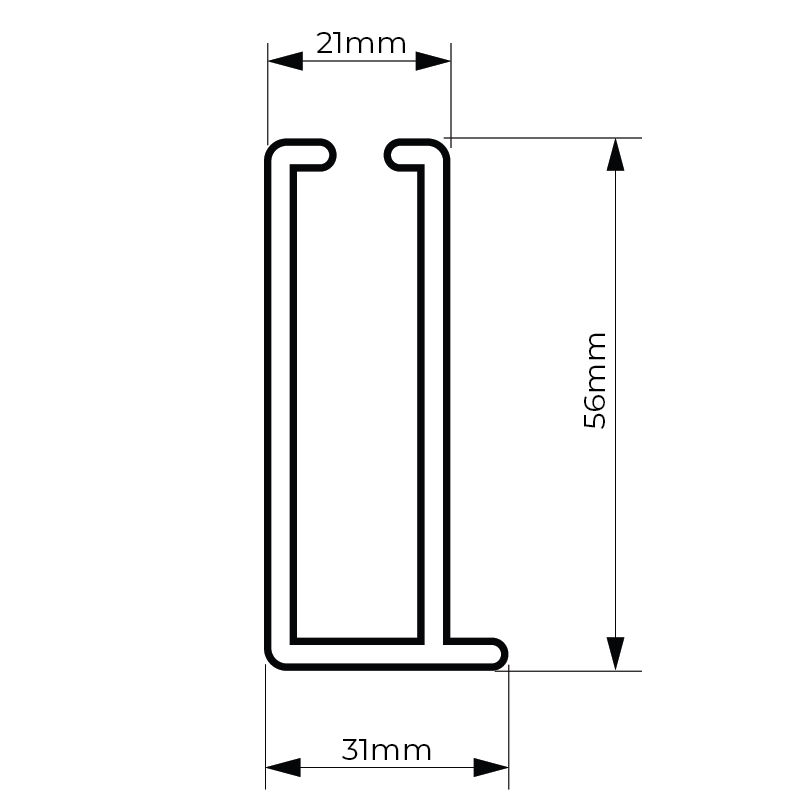

Recess-fix Side Channels

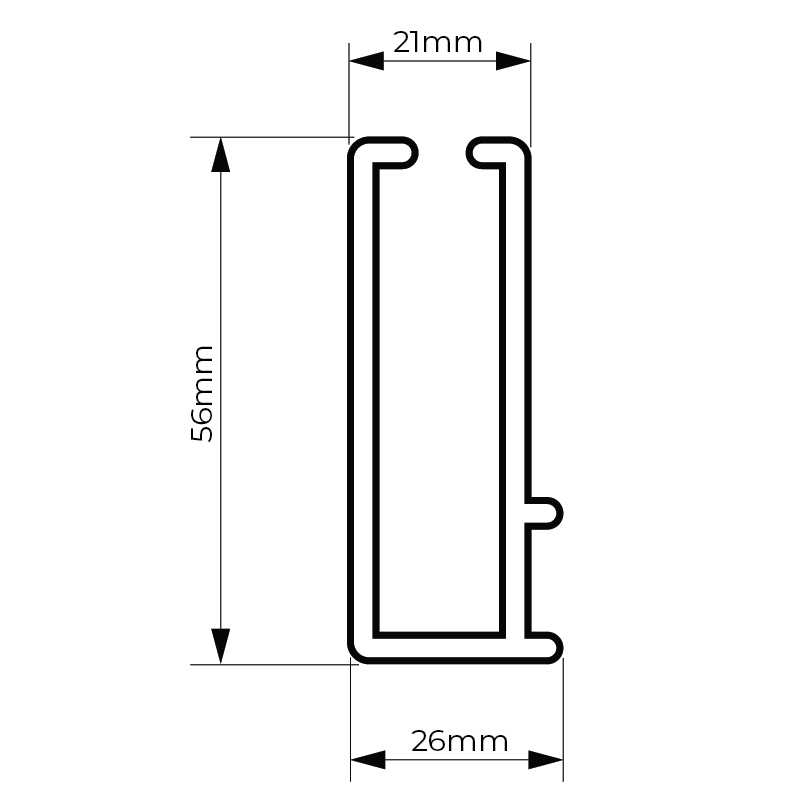

Face-fix Side Channel
Measuring Guide
Inside Recess Installation
1. Measure the width of the recess at the top, middle, and bottom. Use the smallest measurement.
2. Measure the height of the recess from the top to the windowsill in three places. Use the smallest measurement.
Outside Recess Installation
1. Measure the width of the area you want the blind to cover, adding at least 50mm on each side.
2. Measure the height from where the blind will be mounted to the desired length, adding at least 50mm below the windowsill for proper coverage.
