Motorisation Made Easy
The Dream range offers a comprehensive selection of motorisation solutions, simplifying the process of selecting the ideal motors, controls, and accessories for any project. With exceptional versatility and compatibility across nearly all blind types, it ensures a seamless and fully customised experience.

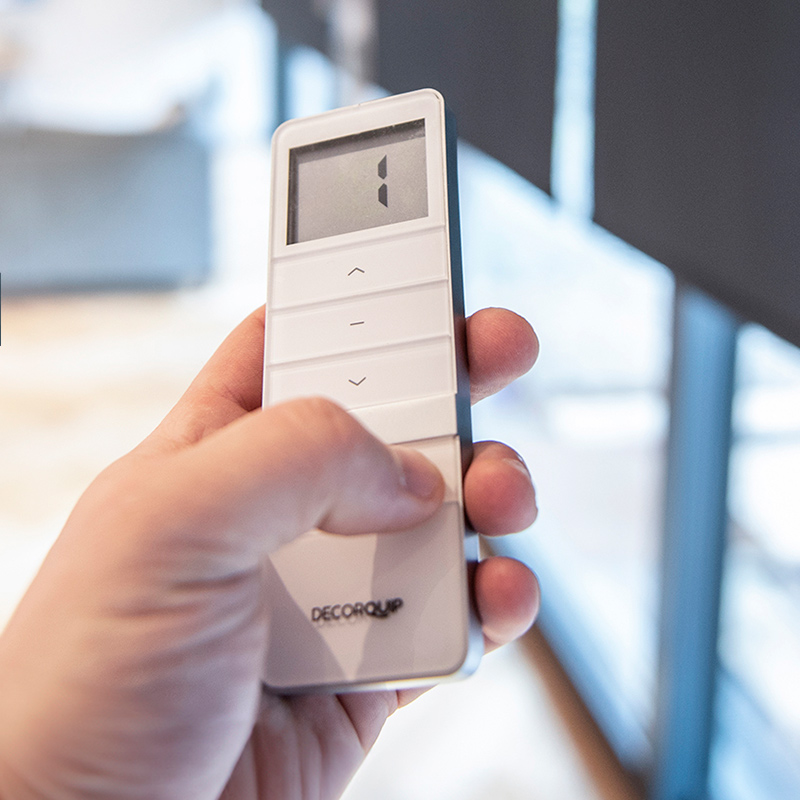

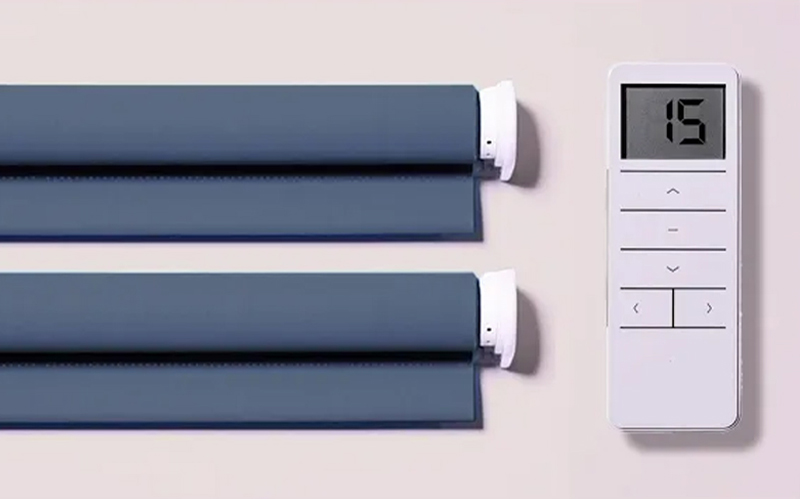

Handheld remote, smartphone, and voice control
Smart home integration
Works with most blind types

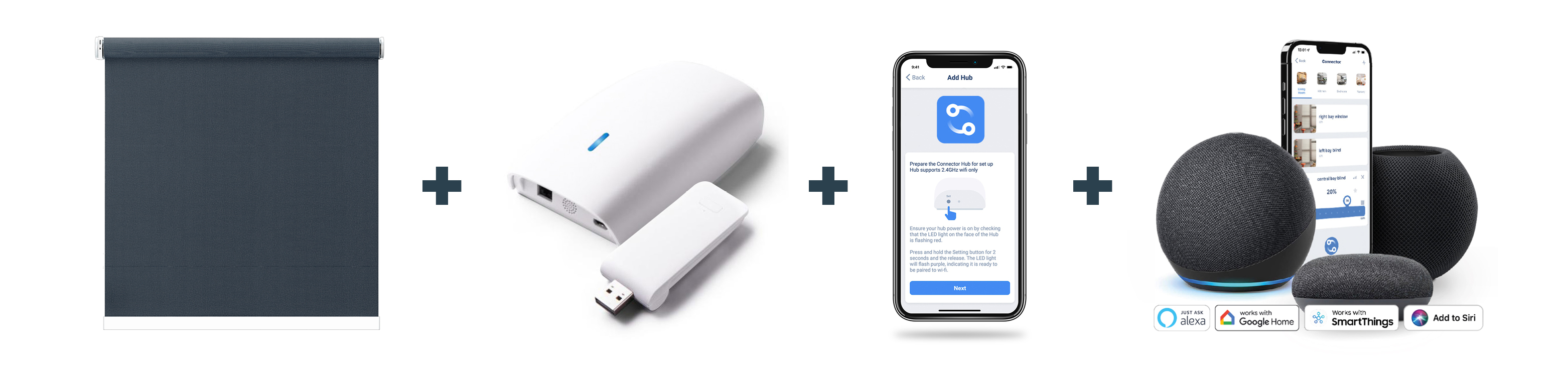

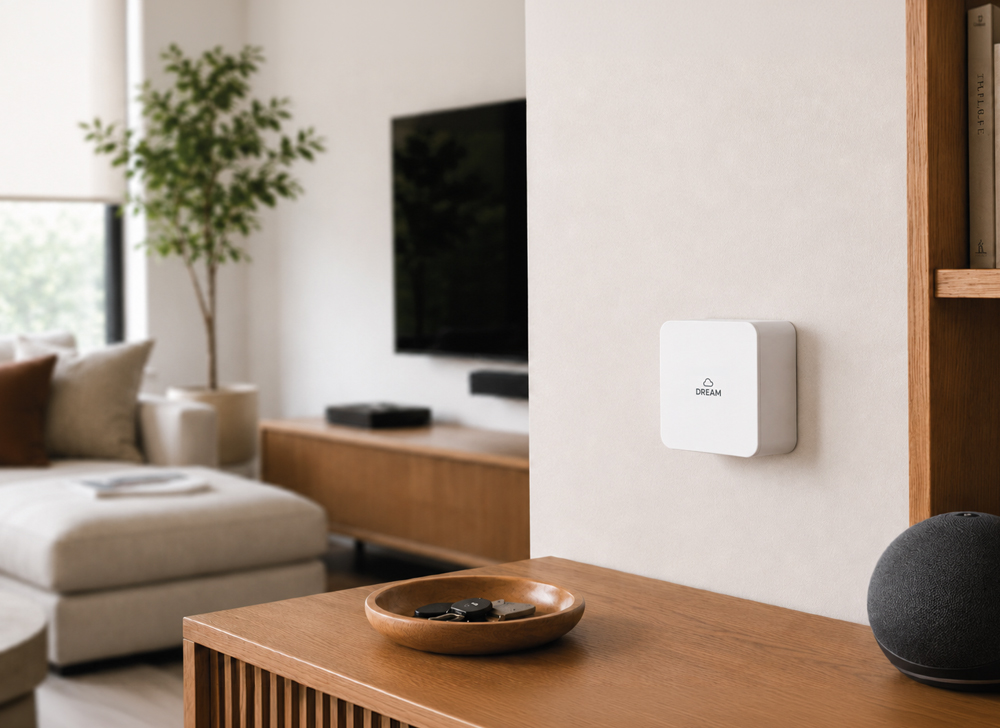

Seamless smart home integration with Dream Hub
Dream Motors
Our range of Dream battery and mains-powered bi-directional motors is designed to suit a wide variety of blind types, enabling you to deliver modern, efficient shading solutions for both residential and commercial spaces.
Note: All made-to-measure blinds will be supplied paired with a remote control and pre-set limits (excluding roman headrails and curtain tracks, for which limits are not set).
For detailed specifications, explore the motors or refer to the Dream User Guide.
Explore Dream Motors Dream User GuideDream Roller Motors
| Motor model | Min. width | Max. width | Max. drop | Lifting capacity | Cable length | Charger |
|---|---|---|---|---|---|---|

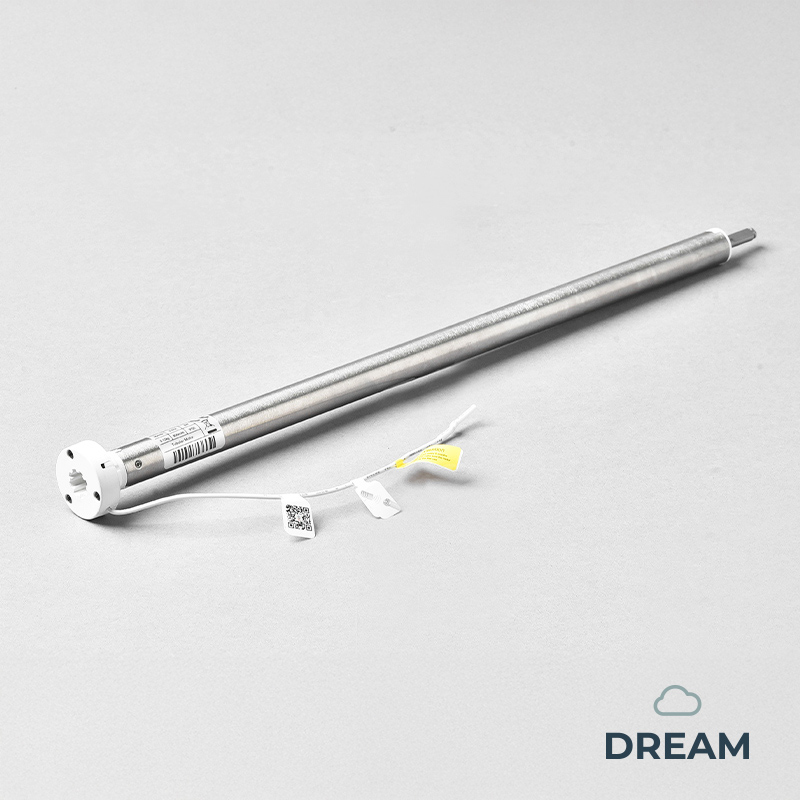

| ROLLER 15mm BATTERY MOTOR | 430mm | 2000mm | 3000mm | 3kg | - | USB-C |

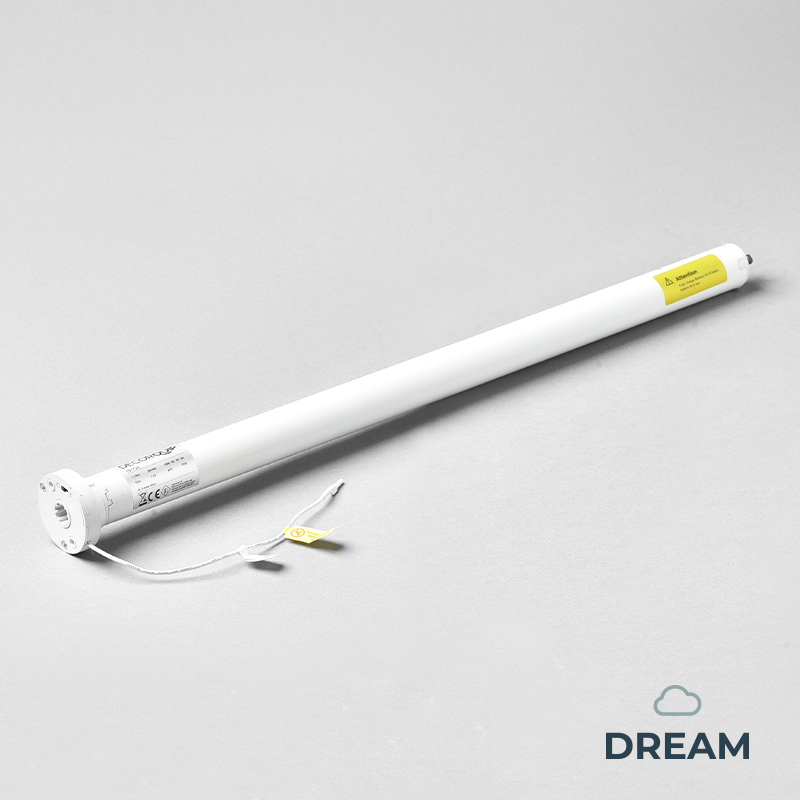

| ROLLER 38mm BATTERY MOTOR | 540mm | 2250mm | 3300mm | 5.8kg | - | USB-C |

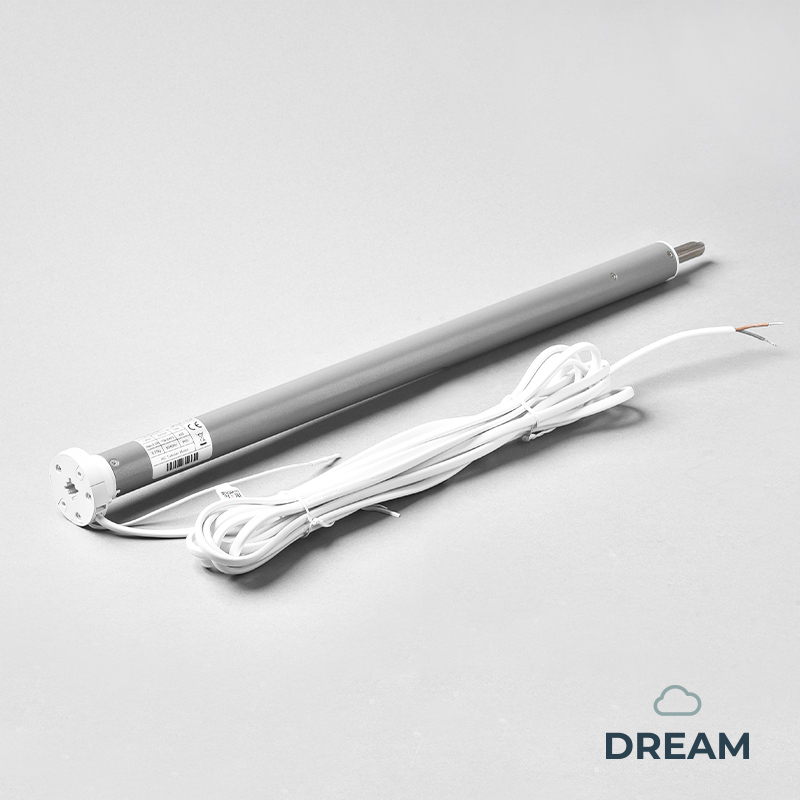

| ROLLER 38mm MAINS MOTOR | 545mm | 2250mm | 3300mm | 5.8kg | 5m | - |

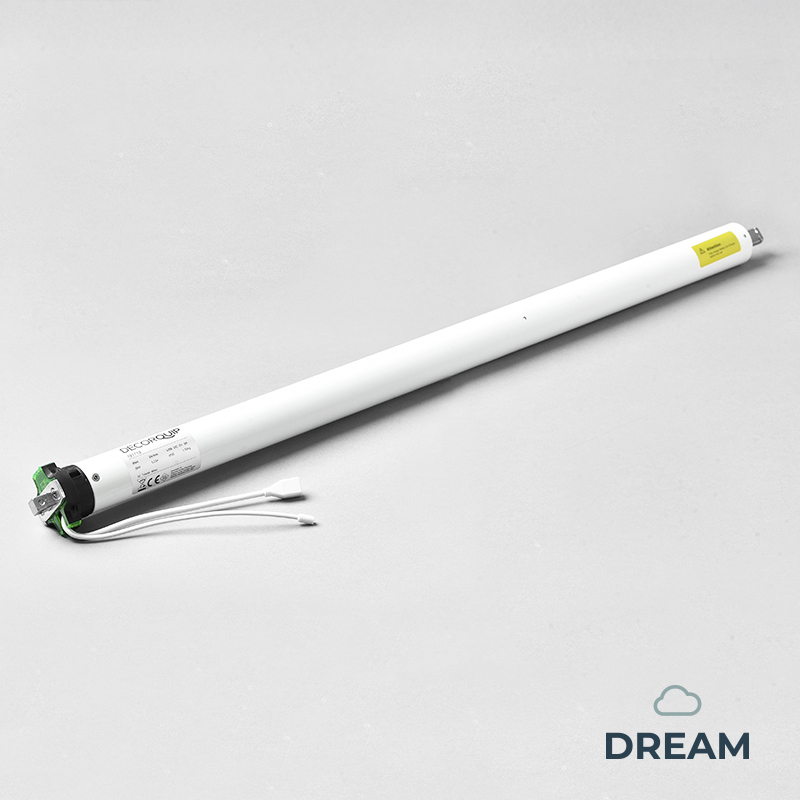

| ROLLER 45mm BATTERY MOTOR | 750mm | 2850mm* | 3300mm* | 13.3kg | - | USB-C |

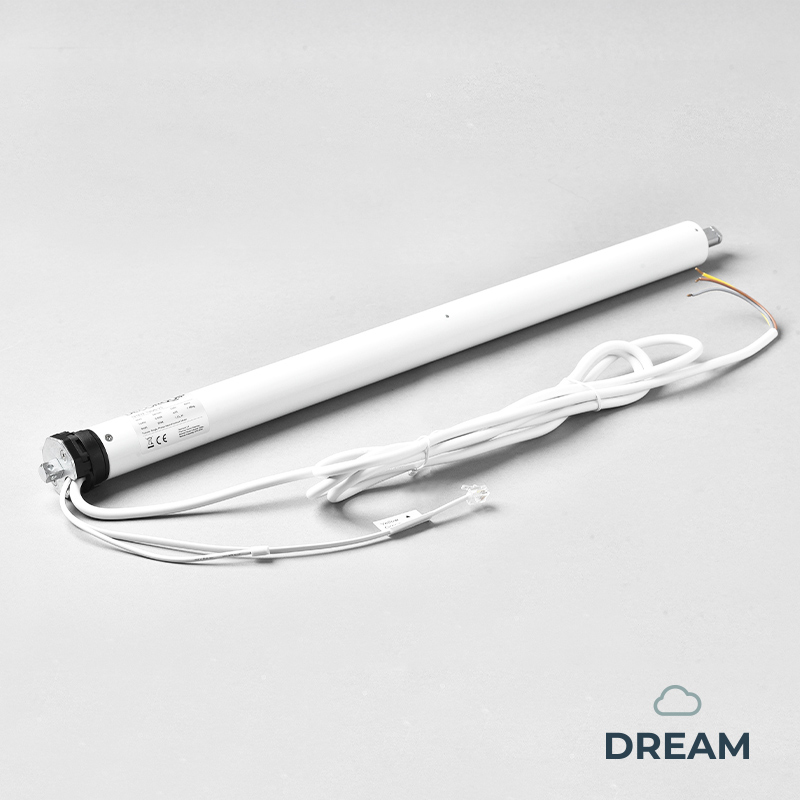

| ROLLER 45mm MAINS MOTOR | RJ12 | 640mm | 2850mm* | 3300mm* | 26.7kg | 2.5m | - |

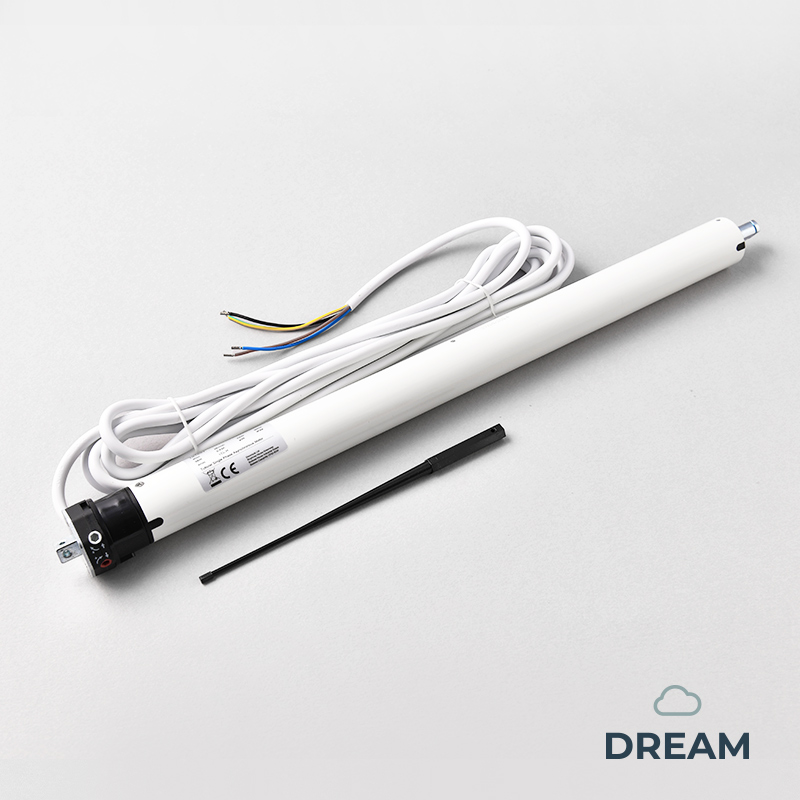

| ROLLER 45mm WIRED MOTOR | 570mm | 2850mm* | 3300mm* | 26.7kg | 3m | - |

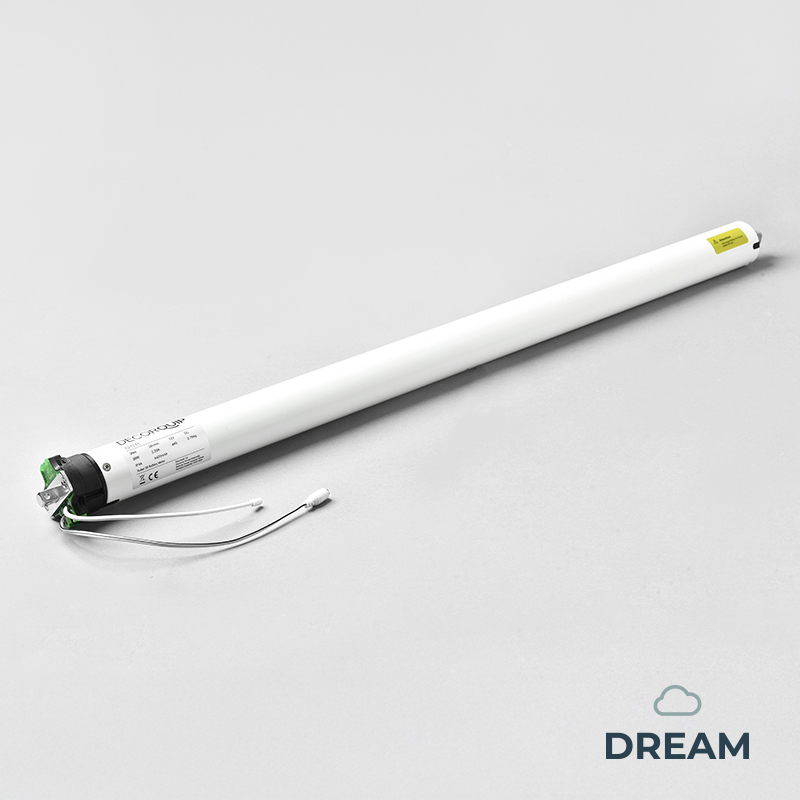

| ROLLER 55mm BATTERY MOTOR | 575mm | 3450mm* | 3900mm* | 10.9kg | - | DIN |

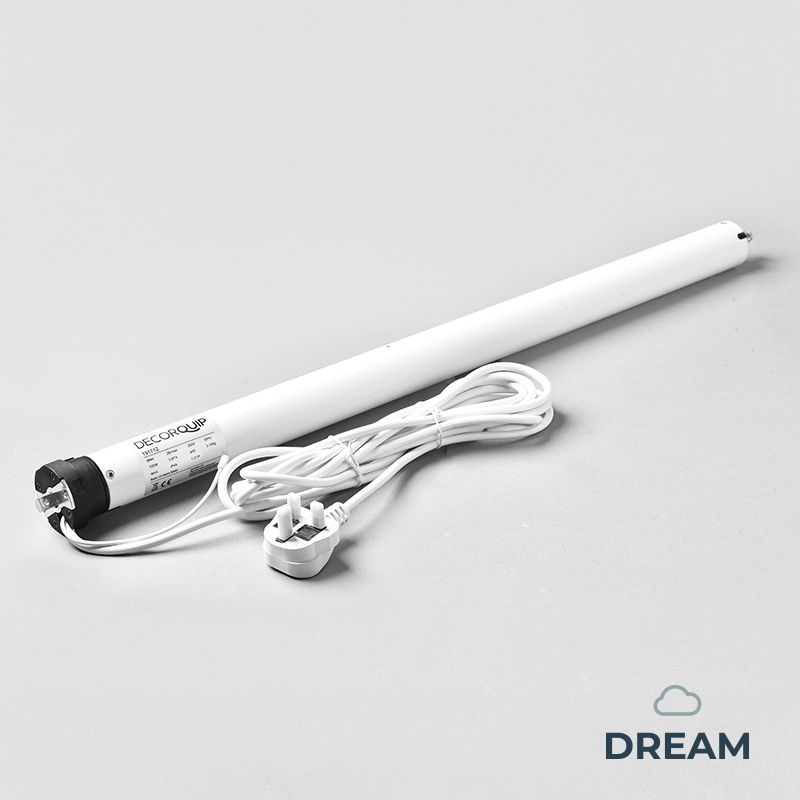

| ROLLER 55mm MAINS MOTOR | 820mm | 3450mm* | 3900mm* | 21.8kg | 5m | - |
* For blinds exceeding the maximum width and drop listed, please contact us to discuss custom options.
Dream Cassetted Roller Motors
| Motor model | Min. width | Max. width | Max. drop | Lifting capacity | Cable length | Charger |
|---|---|---|---|---|---|---|
| ROLLER 38mm BATTERY MOTOR | 545mm | 2100mm | 2100mm | 5.8kg | - | USB-C |
| ROLLER 38mm MAINS MOTOR | 550mm | 2100mm | 3100mm | 5.8kg | 5m | - |
| ROLLER 45mm BATTERY MOTOR | 755mm | 3450mm | 3450mm | 13.3kg | - | USB-C |
| ROLLER 45mm MAINS MOTOR | RJ12 | 645mm | 3450mm | 3450mm | 26.7kg | 2.5m | - |
| ROLLER 45mm WIRED MOTOR | 575mm | 2345mm | 3450mm | 26.7kg | 3m | - |
Dream Day & Night Motors
| Motor model | Min. width | Max. width | Max. drop | Lifting capacity | Cable length | Charger |
|---|---|---|---|---|---|---|
| ROLLER 38mm BATTERY MOTOR | 540mm | 2250mm | 2250mm | 5.8kg | - | USB-C |
| ROLLER 38mm MAINS MOTOR | 545mm | 2250mm | 2250mm | 5.8kg | 5m | - |
| ROLLER 45mm BATTERY MOTOR | 750mm | 2400mm | 2800mm | 13.3kg | - | USB-C |
| ROLLER 45mm MAINS MOTOR | RJ12 | 640mm | 2400mm | 2800mm | 26.7kg | 2.5m | - |
| ROLLER 45mm WIRED MOTOR | 570mm | 2400mm | 2800mm | 26.7kg | 3m | - |

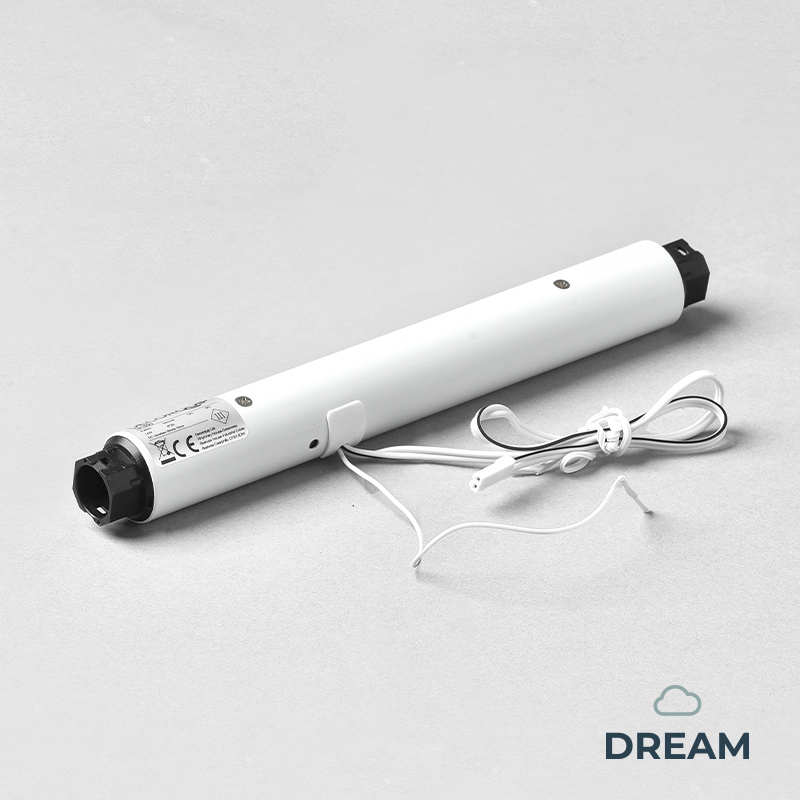

Dream Roman Motors | Headrail Only
| Motor model | Min. width | Max. width | Lifting capacity | Charger |
|---|---|---|---|---|
| ROMAN LV MOTOR* | 365mm | 3000mm | 8kg | USB-C |
Dream Curtain Track Motors
| Motor model | Max. width | Max. load | Cable length | Charger |
|---|---|---|---|---|

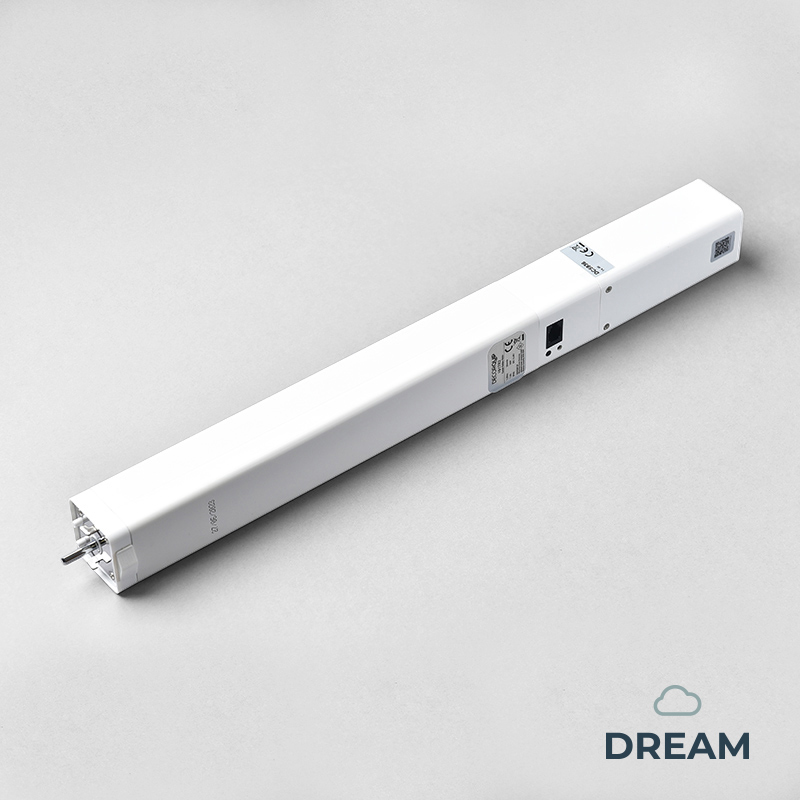

| CURTAIN BATTERY MOTOR | 10000mm | 50kg | - | USB-C |

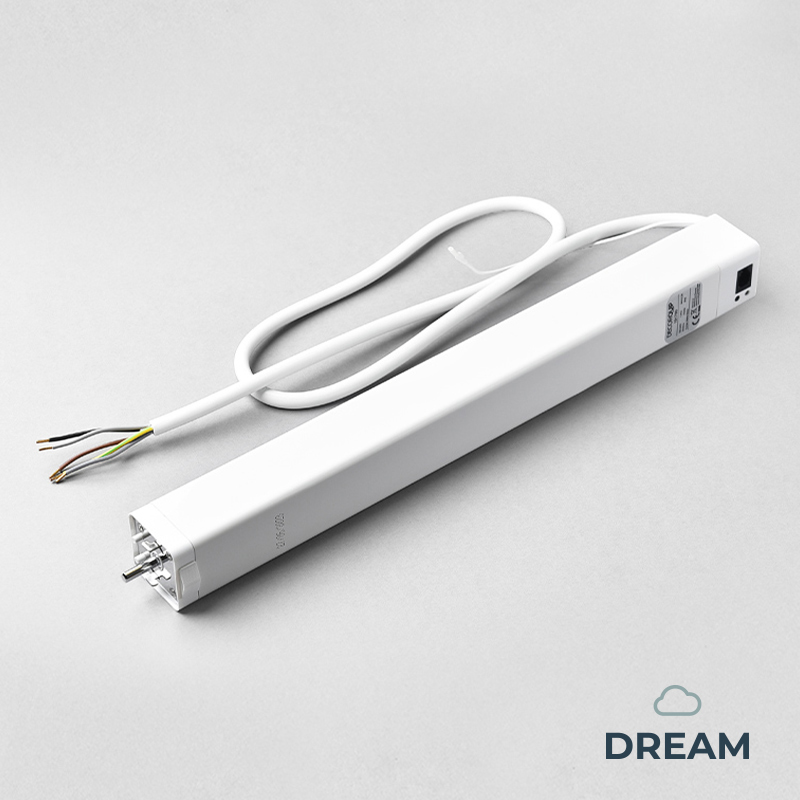

| CURTAIN MAINS MOTOR | 10000mm | 50kg | 1m | - |
Dream Roman Motors | Headrail Only
| Motor model | Min. width | Max. width | Lifting capacity | Charger |
|---|---|---|---|---|
| PLEATED LV MOTOR* | 360mm | 2400mm | 8kg | USB-C |
Dream Controls and Power Options
From classic remotes to smartphones and home automation, our range of Dream control and power options makes it easy to provide convenient and cutting-edge shading solutions.
Control Options

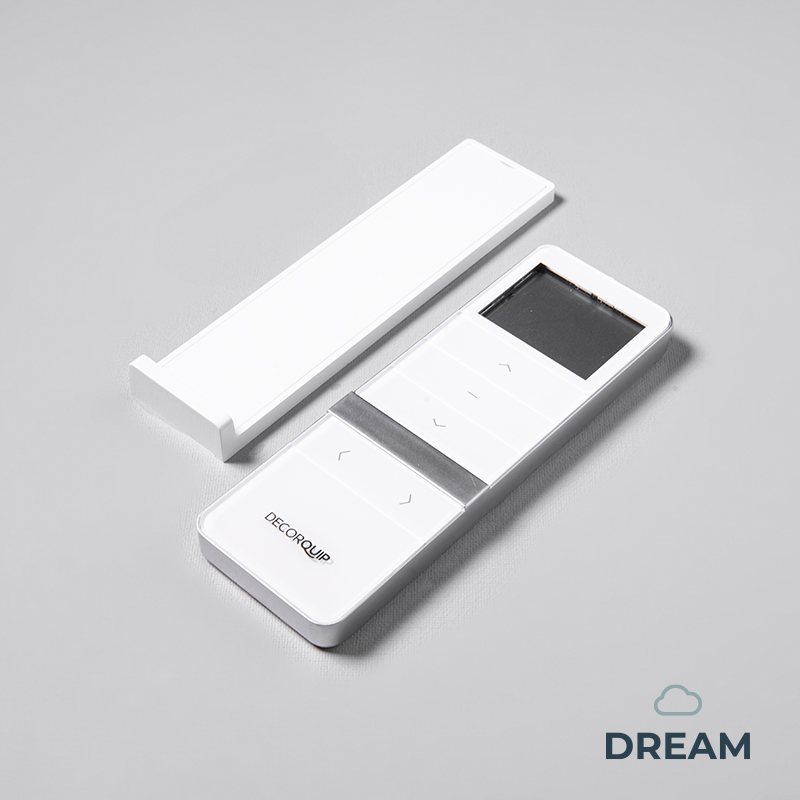

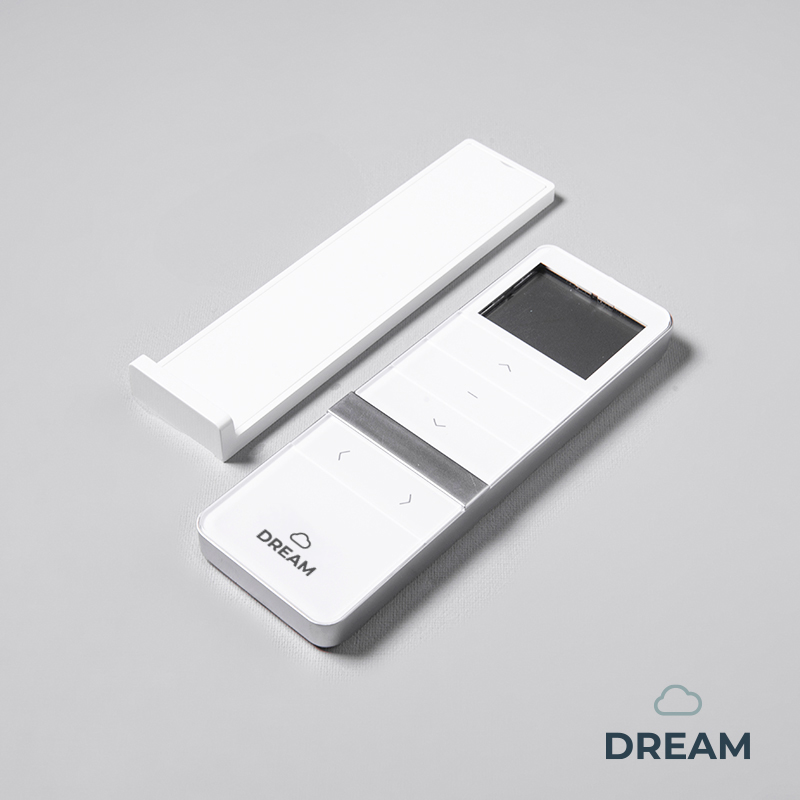

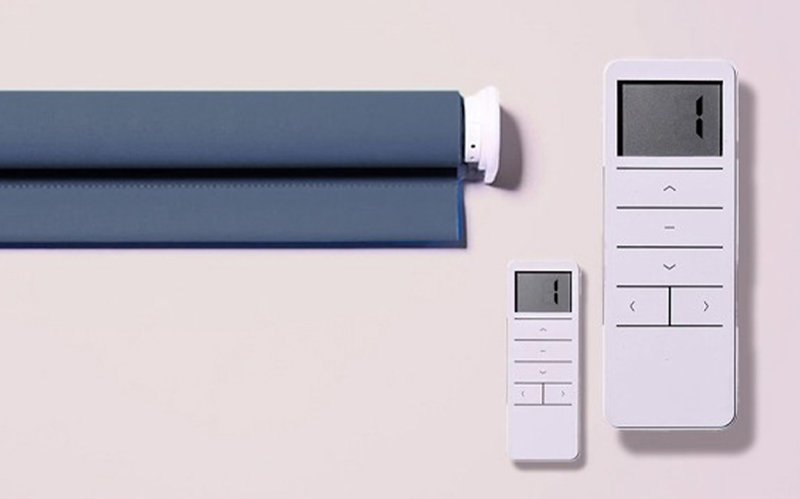

15 Channel Remote

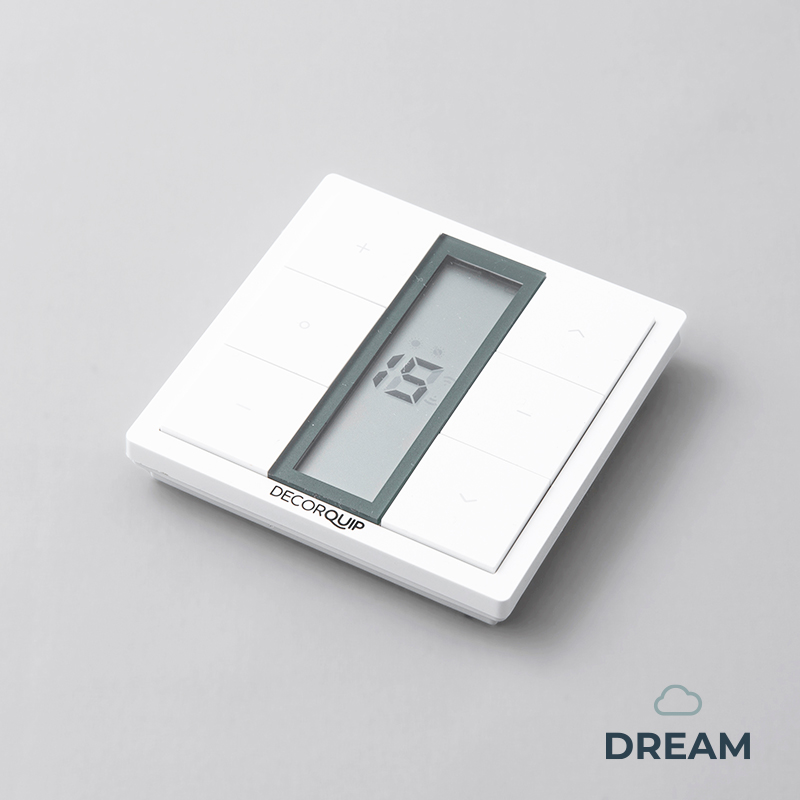

15 Channel Wall Switch

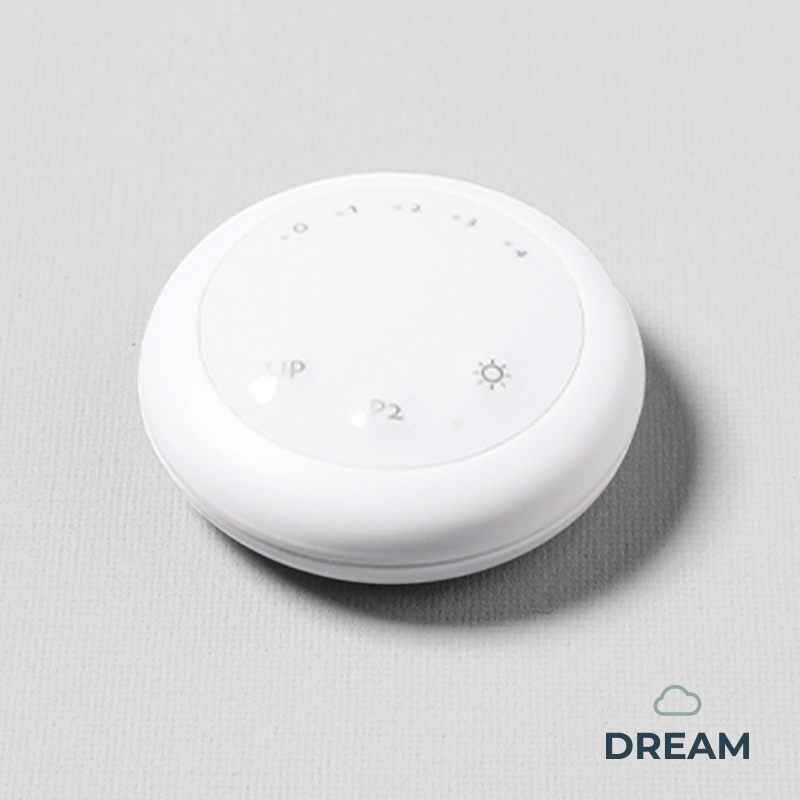

Sun Sensor

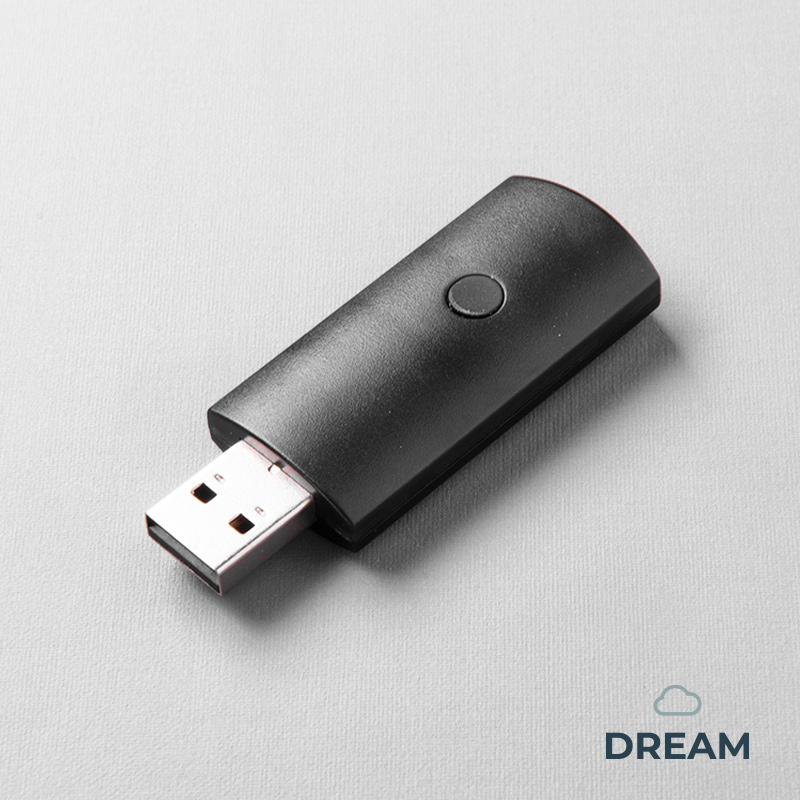

200m Signal Booster
Smart Control Options
Both the DreamHub Pro and Mini enable seamless control of up to 30 blinds via smartphone or voice assistant. They are fully compatible with Amazon Alexa, Google Home, Samsung SmartThings, and Siri Shortcuts, and are supplied with a USB mains adaptor. Additionally, drivers are available for integration with leading home automation systems, including Control4, Crestron, and Elan.

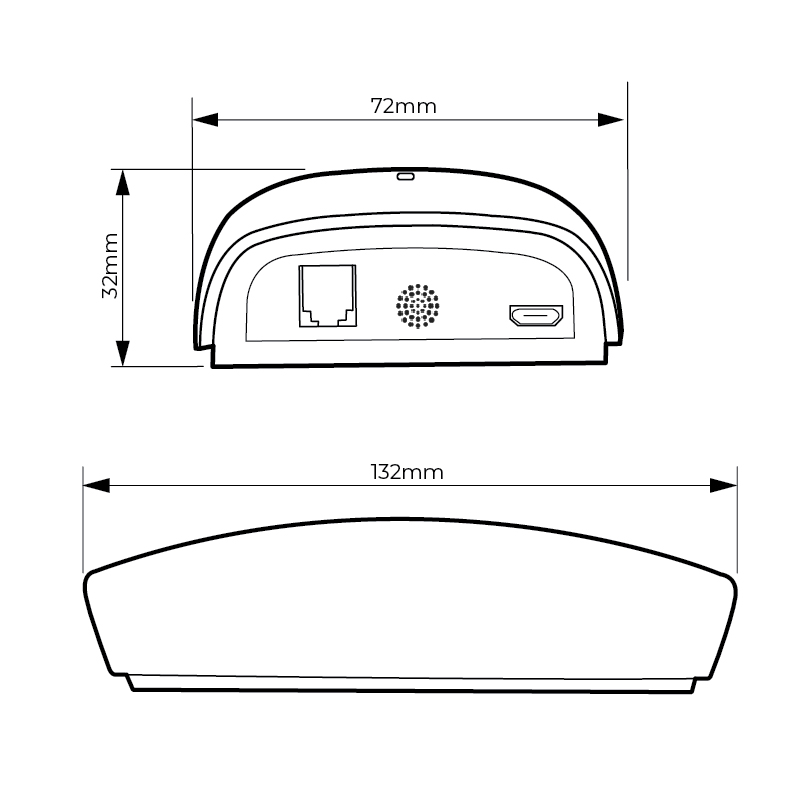

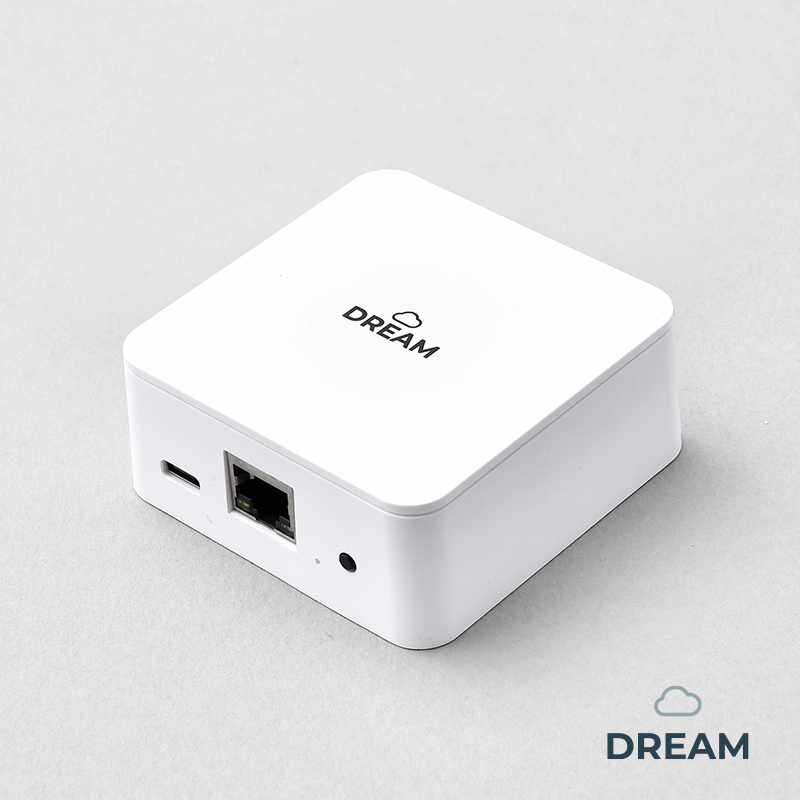

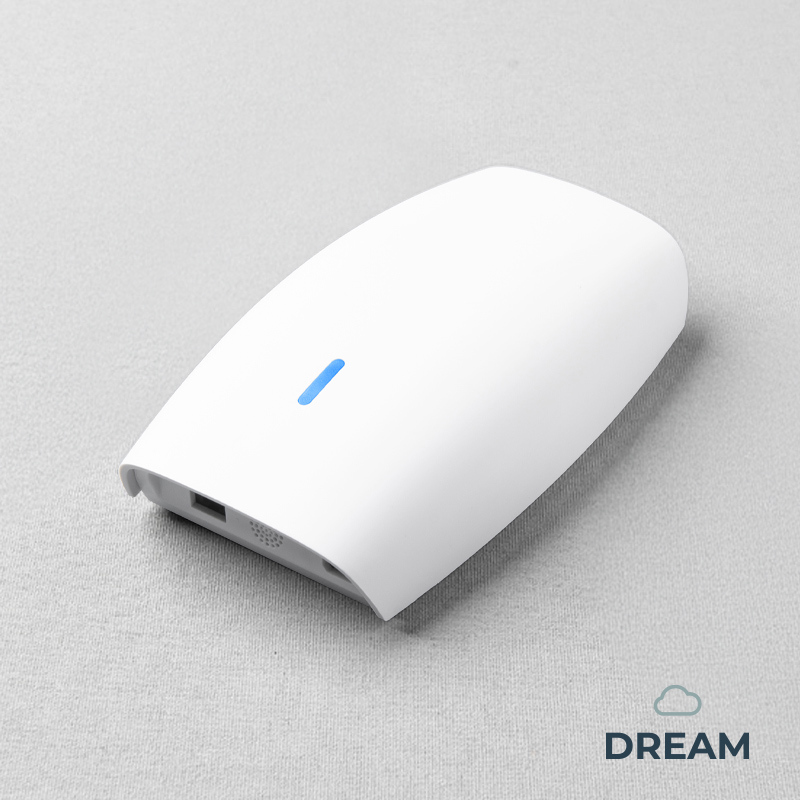

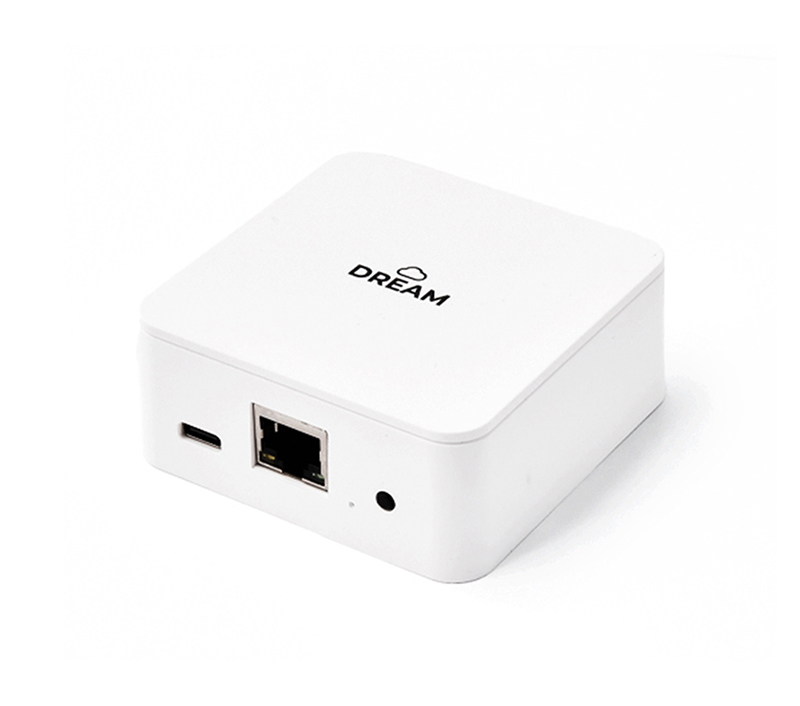

Dream Home Automation GuideDreamHub Pro

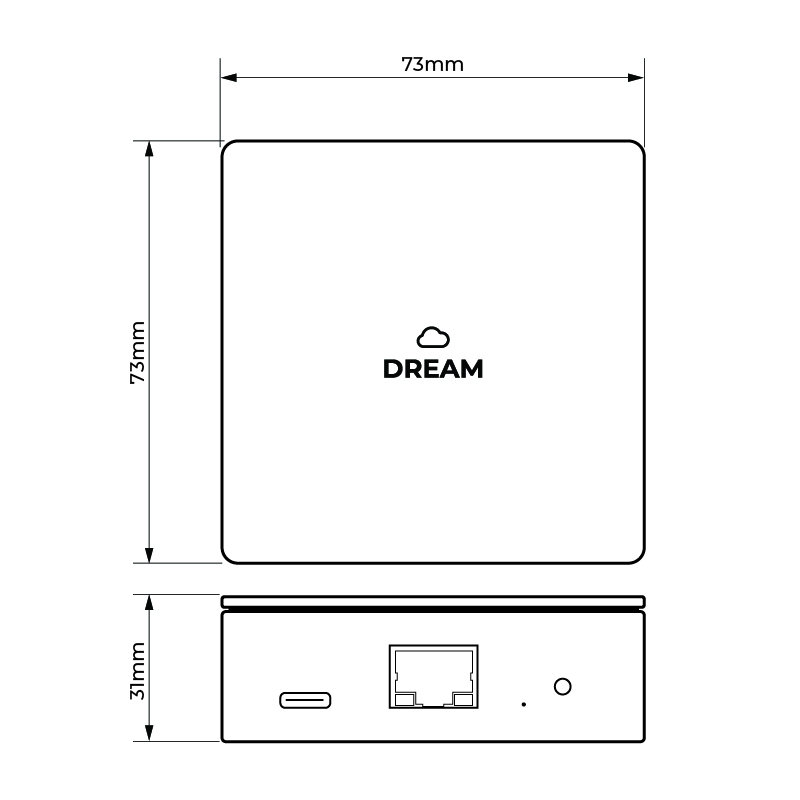

Dimensions

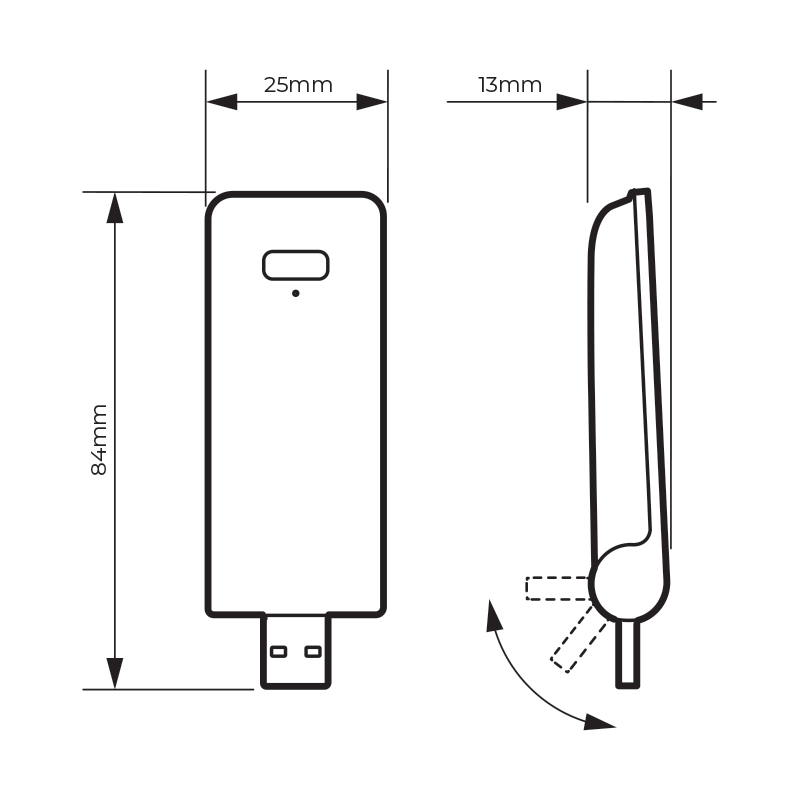

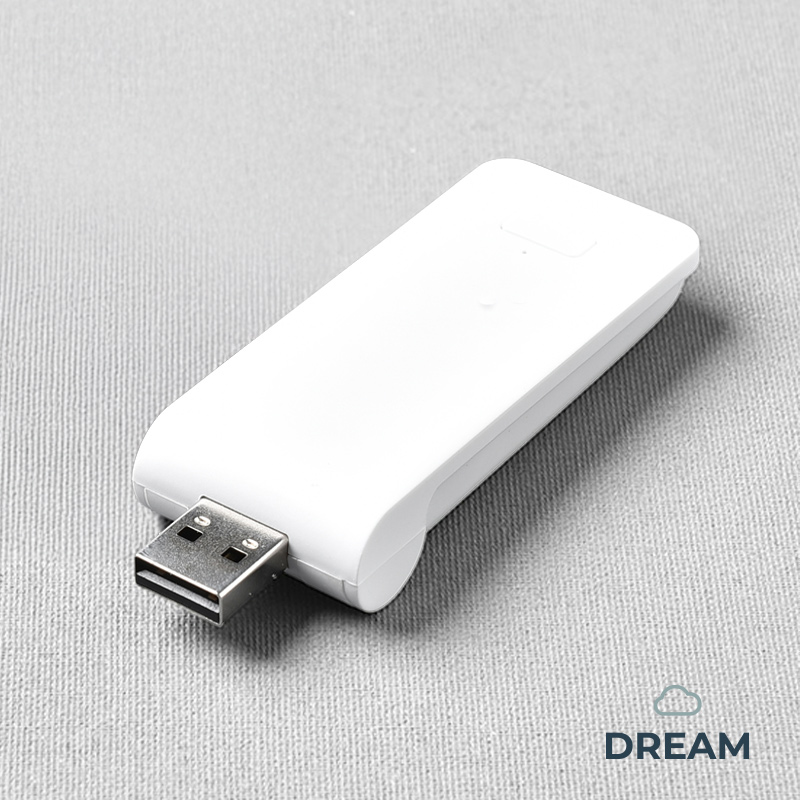

DreamHub Mini
Dimensions

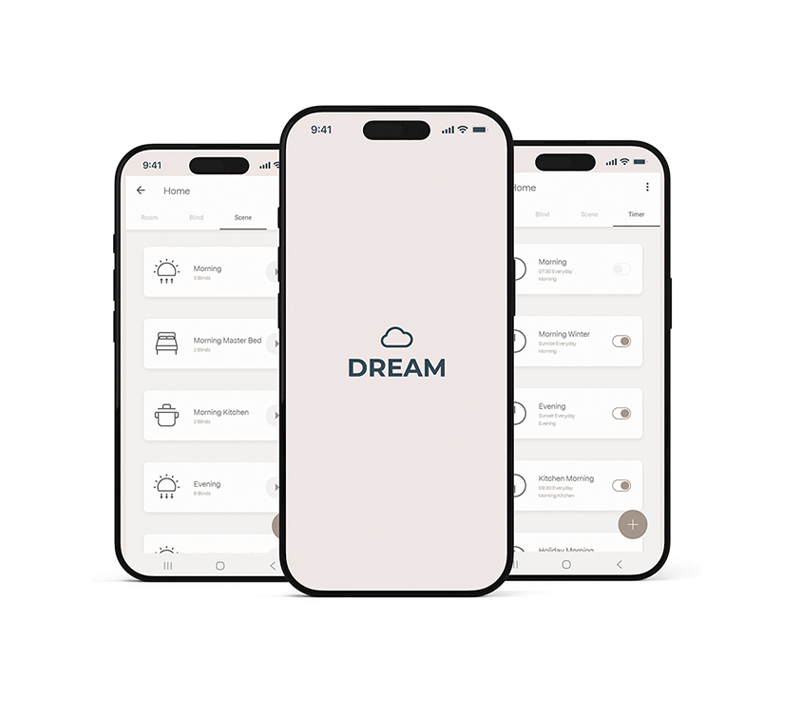

Connector App
The DreamHub acts as a bridge, seamlessly integrating your blinds into your smart home system. All control settings and automation options are managed via the Connector app, available as a free download from the Google Play and App Store.
Power Options

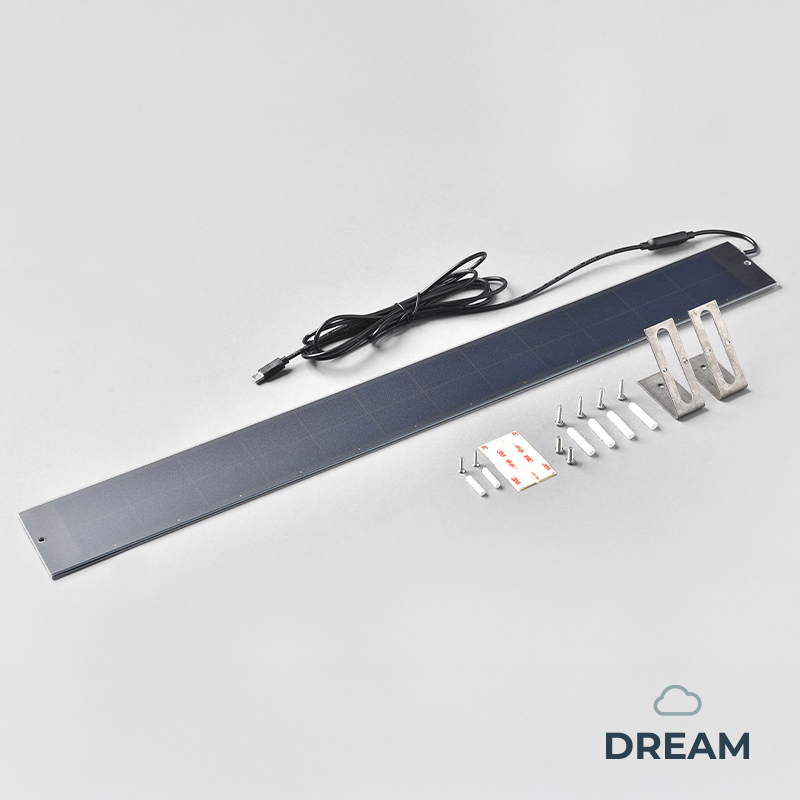

USB-C Solar Panel

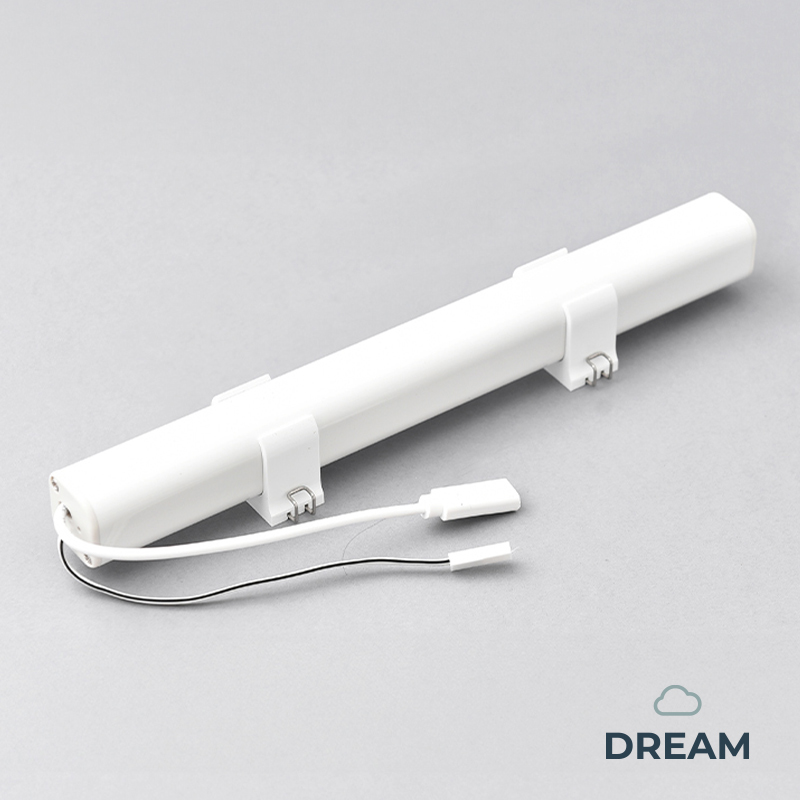

USB-C Li-ion Roman/Pleated Motor Battery

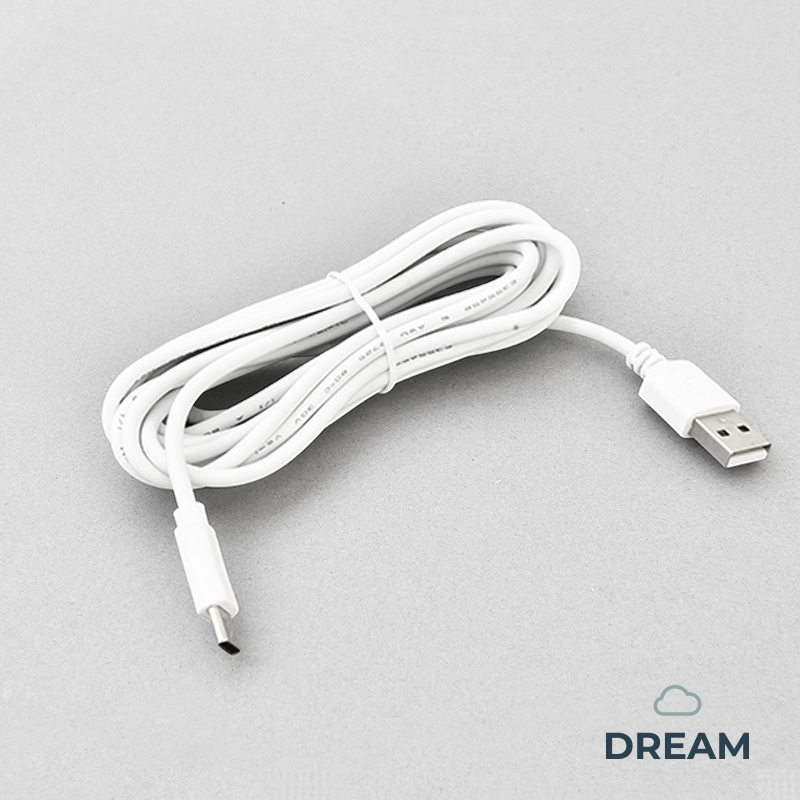

3m USB-C Cable

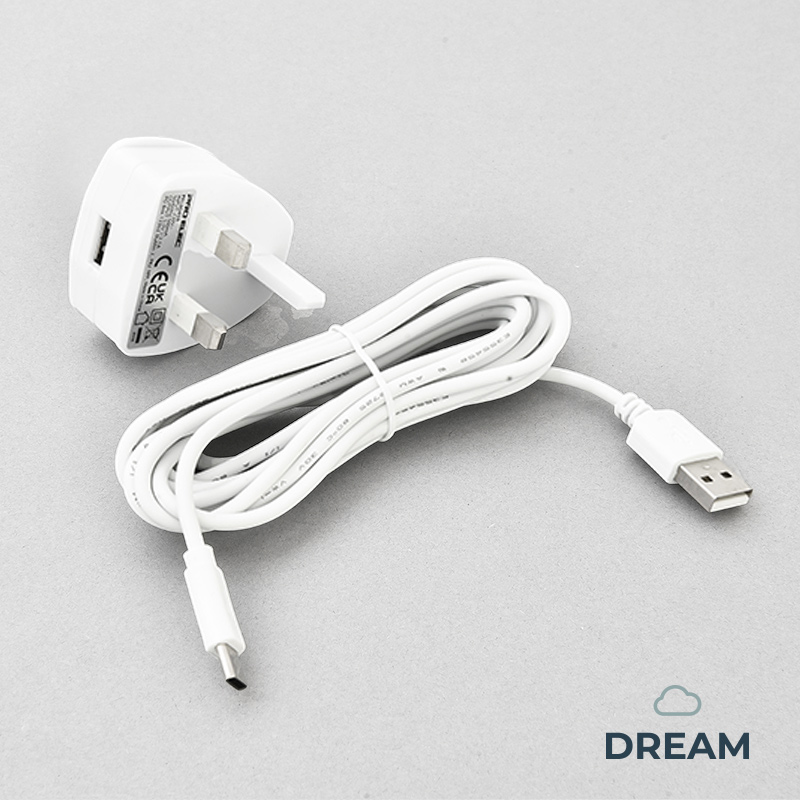

3m USB-C Cable & Adapter

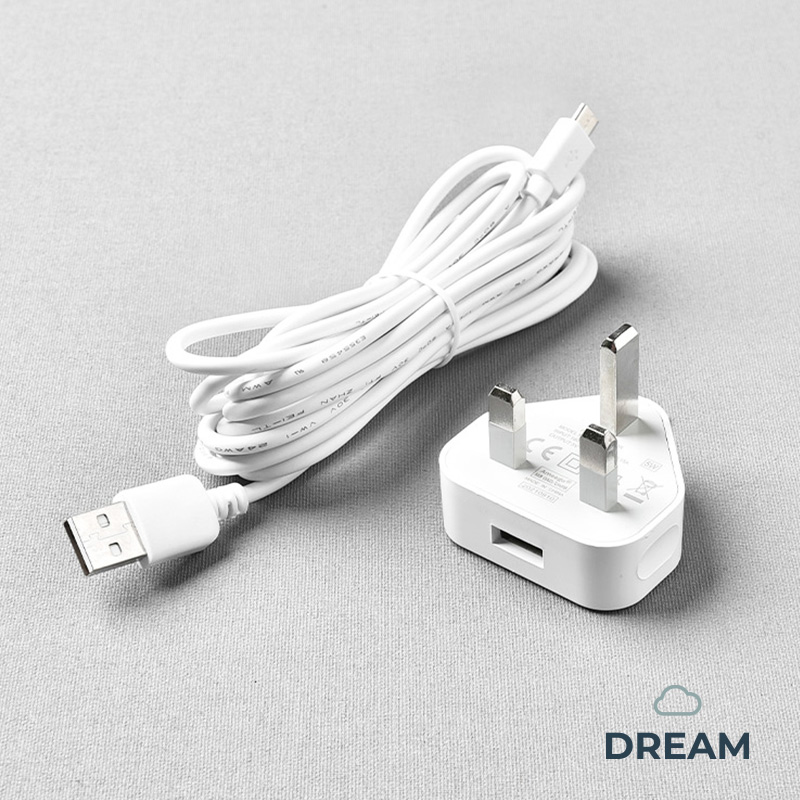

Micro USB Lead and Mains Adaptor

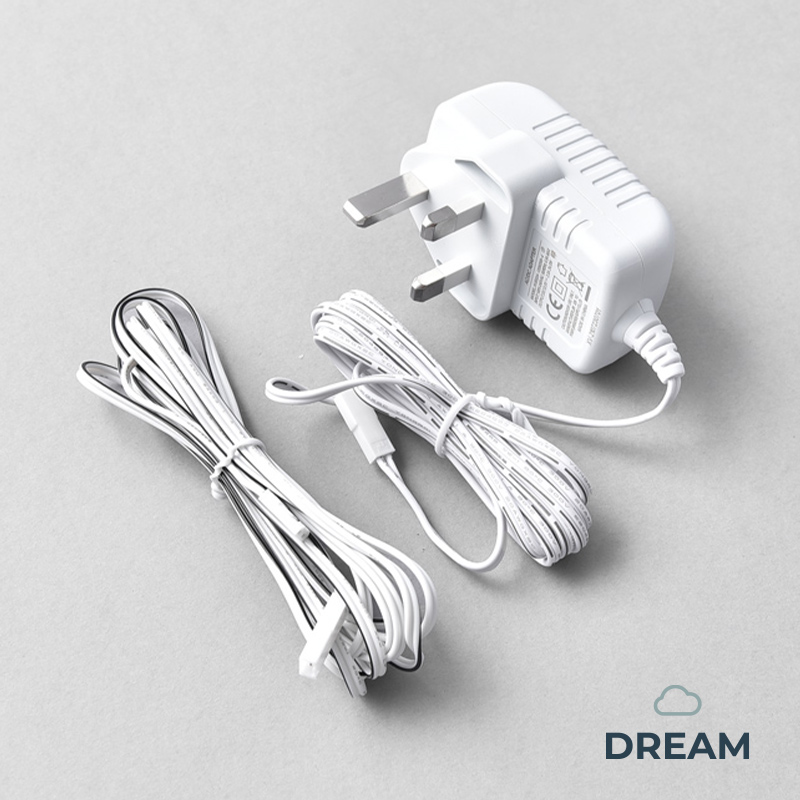

Power Adaptor & Extension Cable

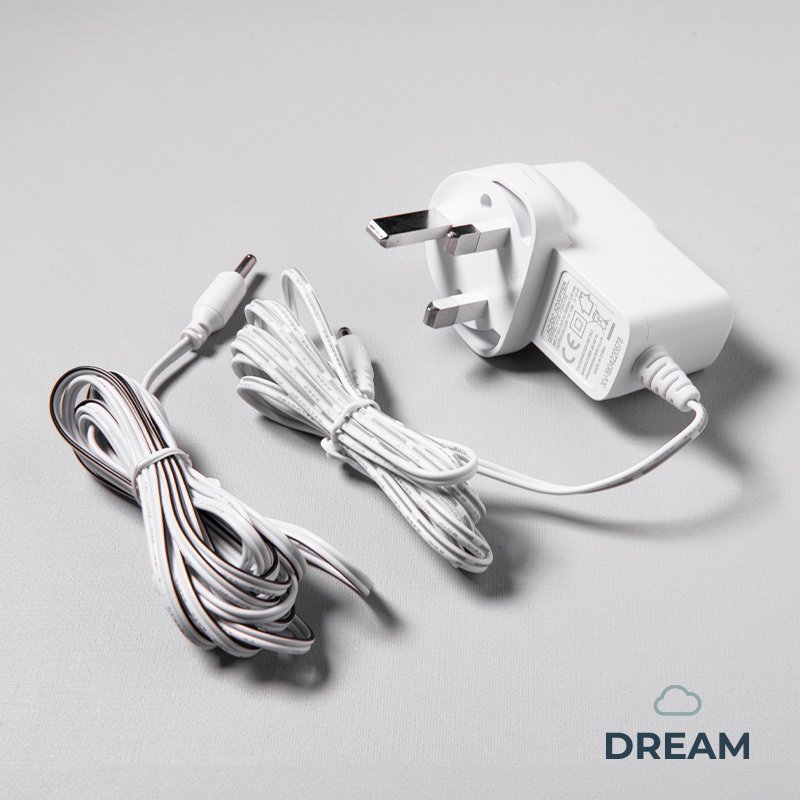

Din Charger and 3m Extension Lead
Will my mains powered motorised blind cable come fitted with a plug and fuse?
Plugs are typically pre-fitted to portable appliances and devices (e.g. lamps, kettles, toasters etc) whereas a blind, once installed, remains in situ and is not portable. For this reason, the power cable of the mains powered blind motor that we supply does not come fitted with a plug or fuses. When planning for the installation of mains powered blinds, it is normal to connect the blind cable directly to a switched fused spur. Installation of the fused spur and connection of the blind to the fused spur would normally be carried out by an electrician.
Technical Support
Crown and Drive Guide
| Motor | 32mm Roller | 38mm Roller | 45mm Roller | 55mm Roller | XL Roman |
|---|---|---|---|---|---|
| Dream 15 | Crown & Drive: 950104 (Includes Bracket Adaptor) |
Crown: 950104 (Includes Bracket Adaptor) Drive: 191685 |
- | - | - |
| Dream 38 | - | Crown: 191596 Drive: 191658 |
Crown & Drive: 950124 | - | - |
| Dream 45 | - | - | Crown: 191596 Drive: 191599 |
Crown: 950166 Drive: 191597 |
Crown: 191601 Drive: 191602 |
| Dream 55 | - | - | - | Crown: 191598 Drive: 191597 |
- |
Bracket Adaptor Guide
| Bracket Adaptor | Code | Motor Compatibility |
|---|---|---|
| Roller 32mm & 38mm Bracket Adaptor | White | 191595 | Dream 15 Motor | Dream 38 Motor |
| Roller 32mm & 38mm Bracket Adaptor | Black | 191604 | |
| Roller 45mm & 55mm Bracket Adaptor | White | 191594 | Dream 45 Motor | Dream 55 Motor |
| Roller 45mm & 55mm Bracket Adaptor | Black | 191603 | |
| XL Roman Bracket Adaptor | White | 950134 |
Technical Support
Our dedicated team is committed to providing personalised assistance and guidance to ensure the successful setup of your motorised blinds and the implementation of Dream motorisation into your product lineup.
In addition, we provide a comprehensive suite of support materials - including detailed programming instructions, product specifications, and instructional YouTube videos - equipping you with the knowledge and resources needed whenever and wherever you need it.
Dream User Guide
It is our comprehensive compendium of Dream Motorisation, featuring detailed specifications for all Dream products, along with complete setup and programming instructions.
Explore User GuideDream Home Automation Guide
Provides clear explanations and guidance on how Dream Motors integrate with smart home systems.
Explore Home Automation GuideSupport Videos

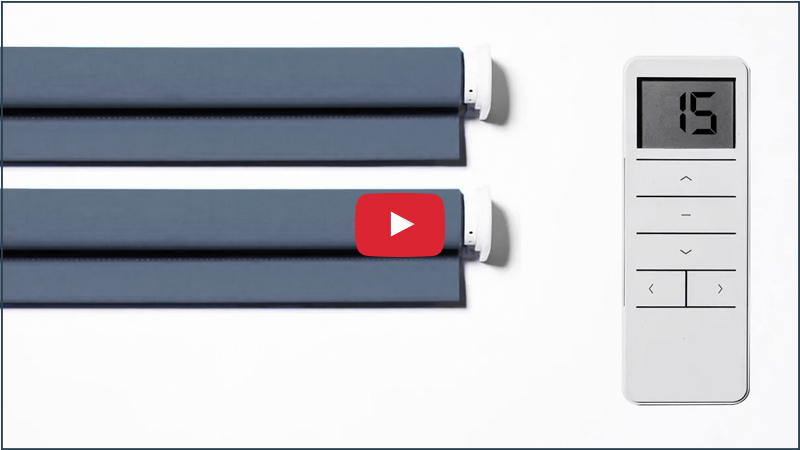

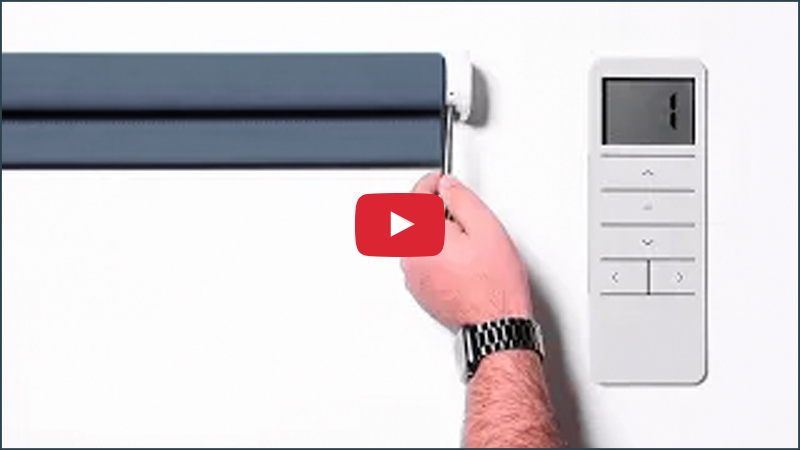

Dream Range Video Programming Instructions

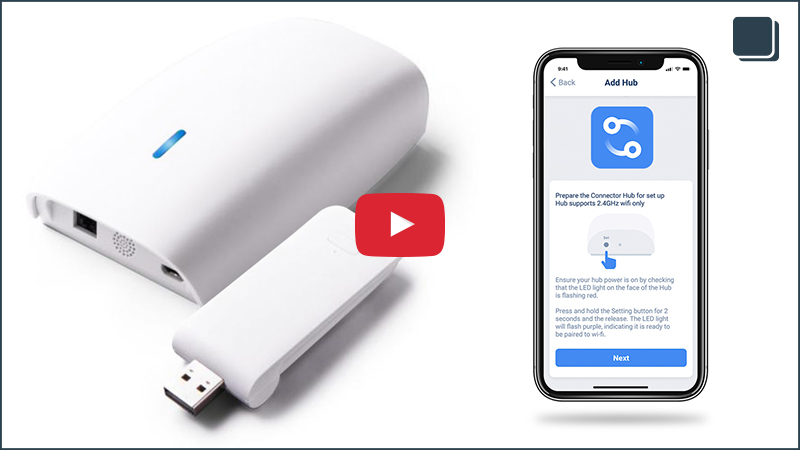

DreamHub Setup Video Instructions
