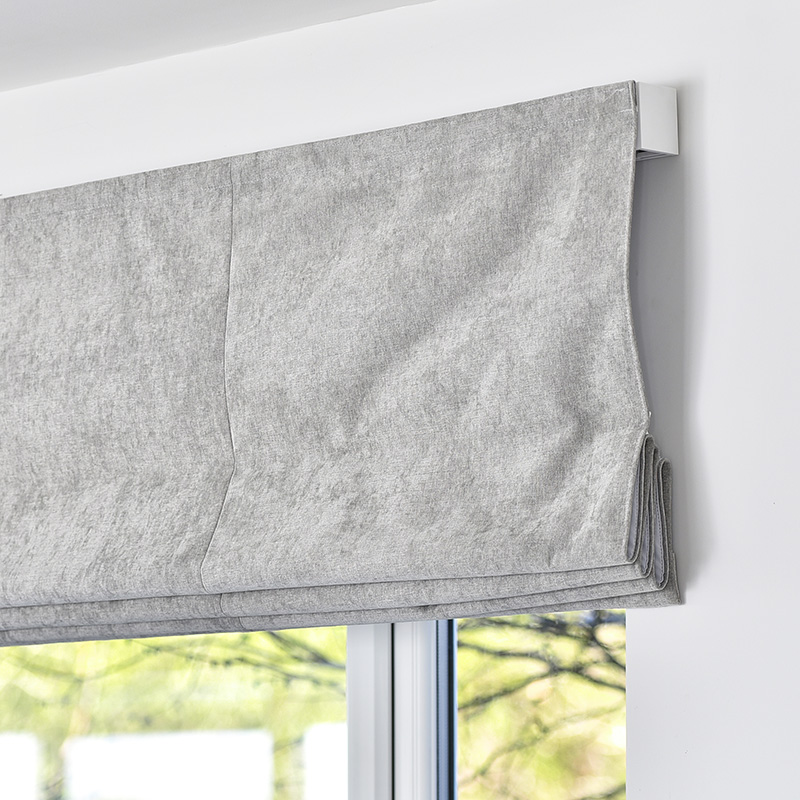

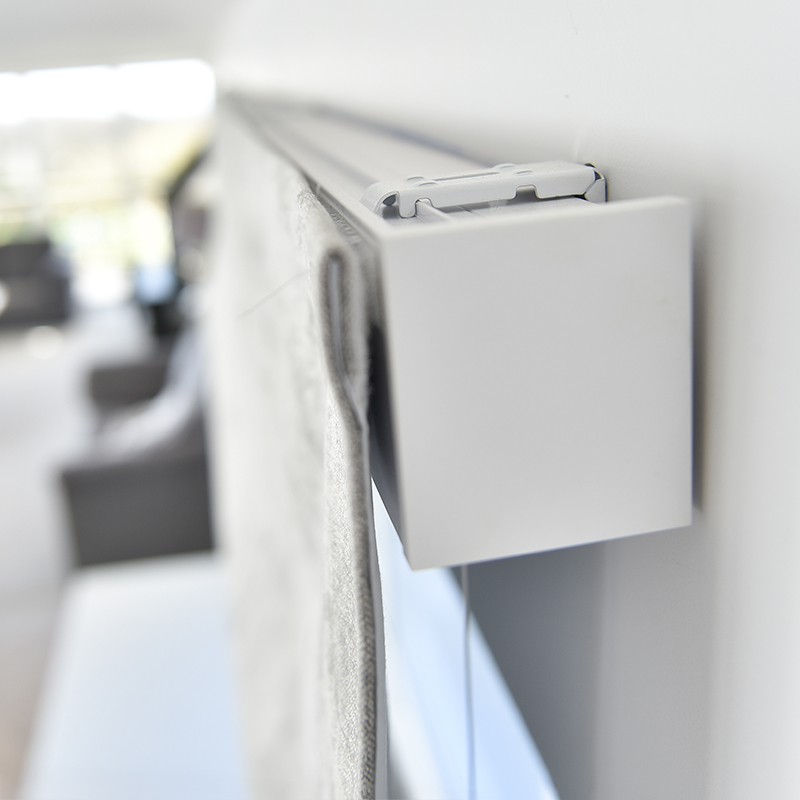

XL Roman Blind Headrail
The XL Roman Headrail is motorised as standard and designed to accommodate much larger Roman blinds than traditional systems. With support for smart home-compatible motors, the it’s the ideal choice for covering large windows while combining style, performance, and modern convenience.
Handheld remote, smartphone, and voice control
Robust headrail construction, perfect for large windows
Works well with Capital Fascia
Headrail & Control Options

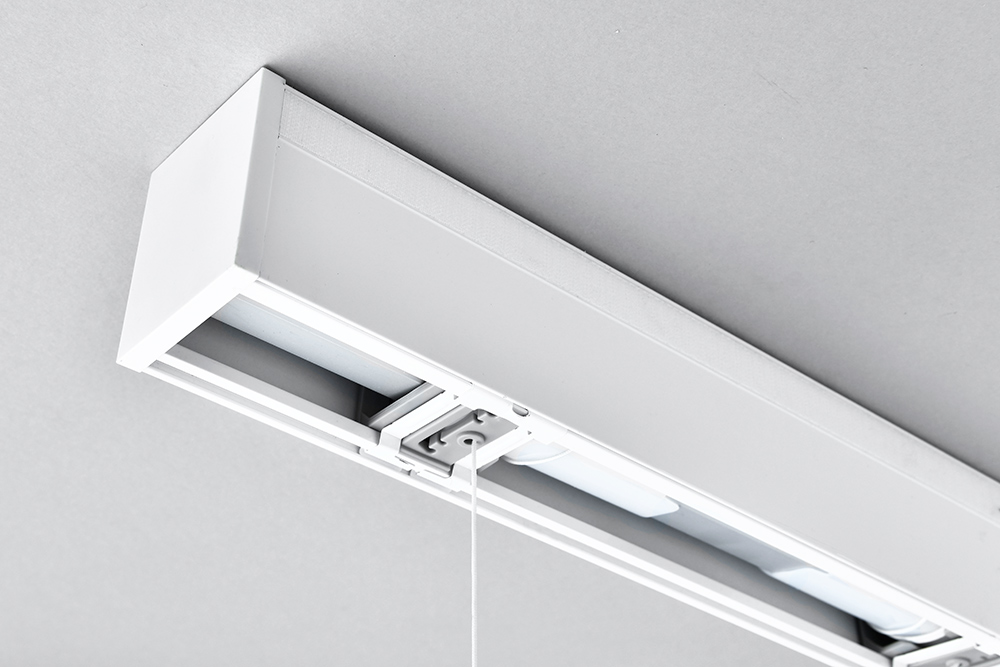

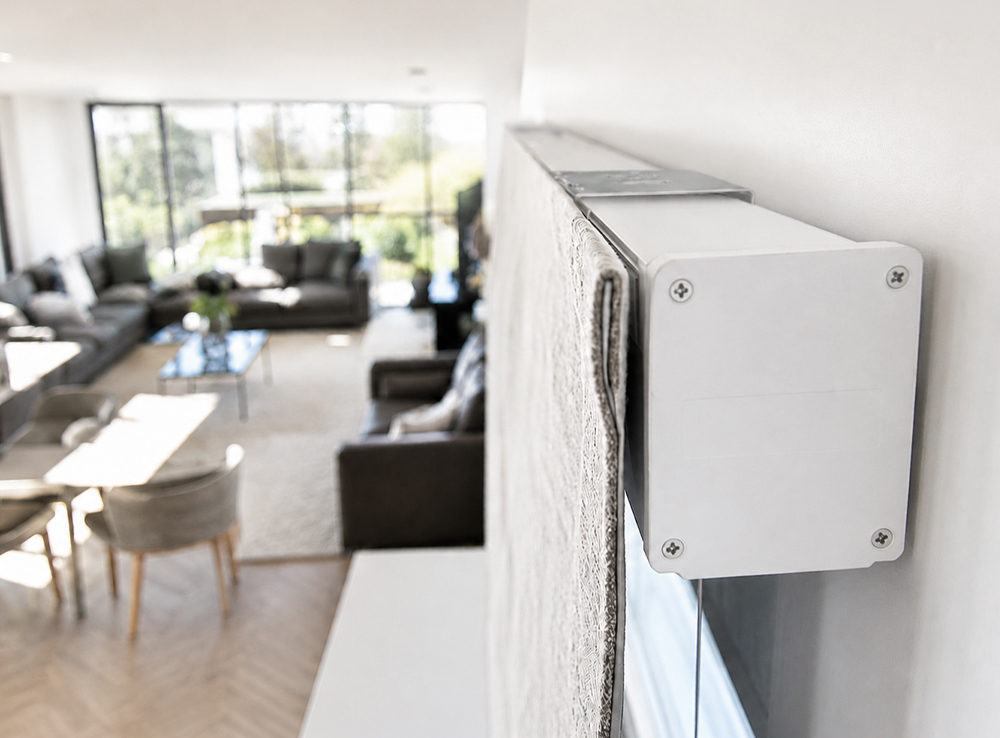

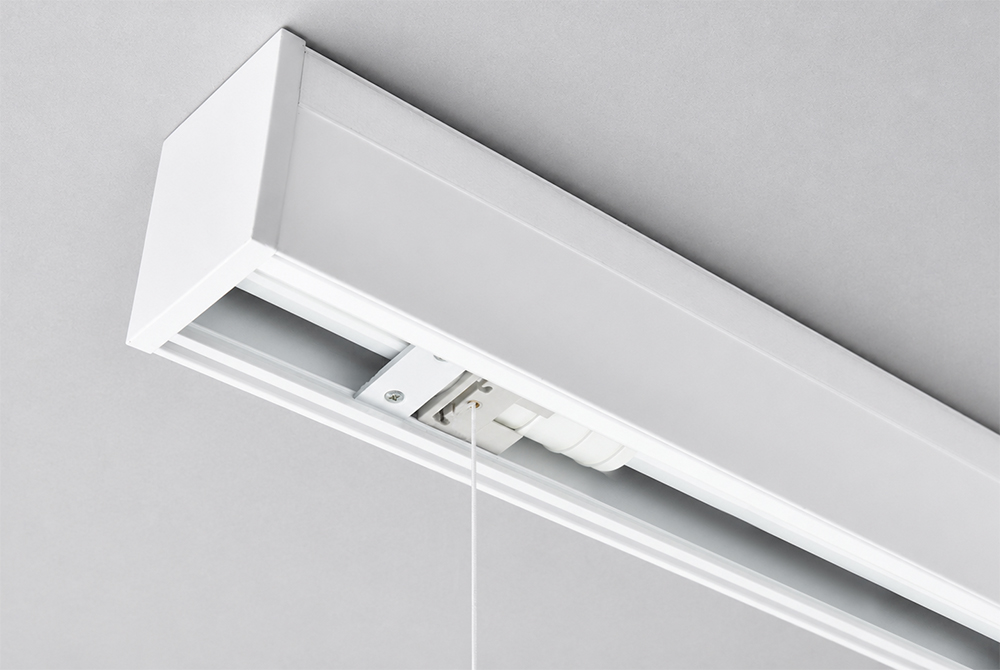

XL Roman Headrail
XL Roman Headrail: Assembled Motorised Headrail, Uni Brackets.
XL Roman Headrail Complete Kit: Assembled Motorised Headrail, Uni Brackets, 5x Fibreglass Rods, White Aluminium Bottom Bar, Clear Sew-on Safety Cord Adjusters.
Accommodates much larger Roman Blinds than standard headrailsRobust headrail construction with innovative designCord spooled on a hexagonal tube for strength and smooth operationCrimped in hook tapeSuitable for covering the largest of windowsCompatible with motors for smart home integrationLifting capacity: 15kg (subject to the specifications of the motor in use)Control Options
From classic remotes to smartphones and full home automation, our motorisation options make it easy to offer convenient and modern control for your XL Roman Blinds. With Dream, MotionBlinds, and Somfy systems available, you can provide reliable solutions to suit every budget and level of smart integration.

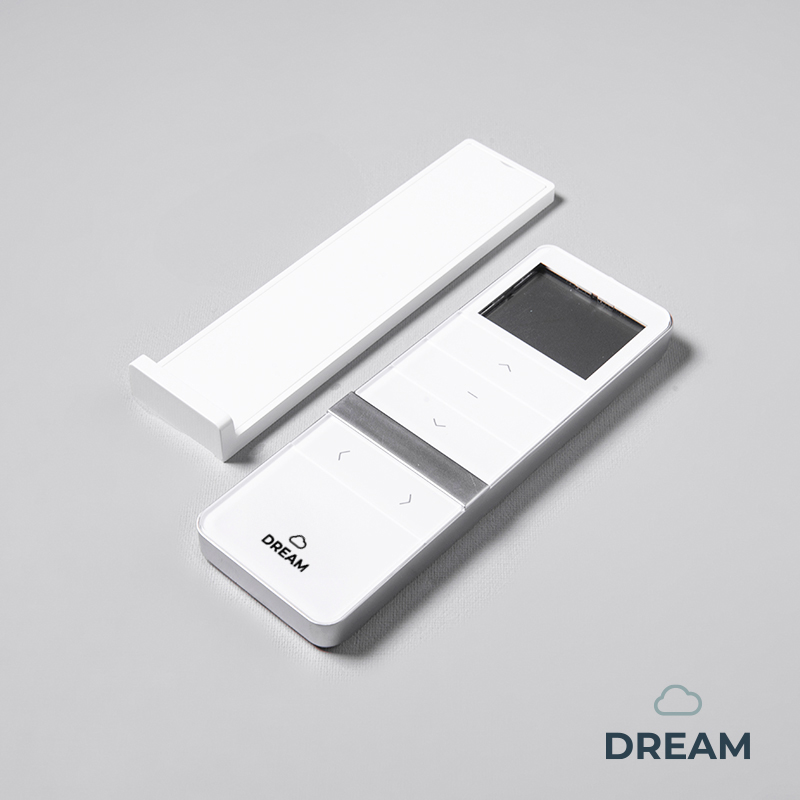

Dream 15 Channel Remote

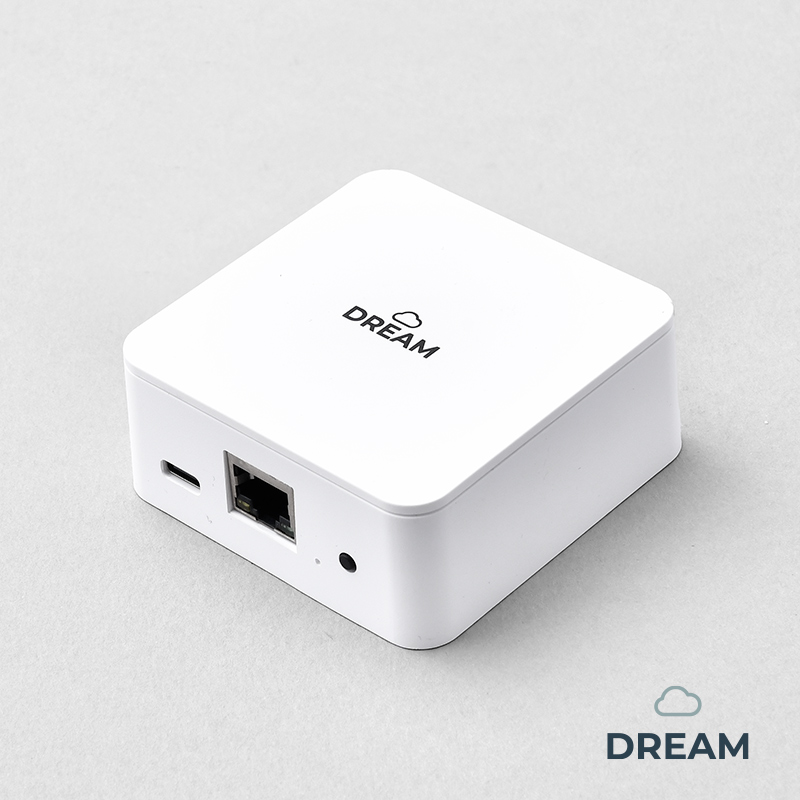

DreamHub Pro
Safety Devices
Rear Cord Safety Devices
The rear cords on Roman Blinds can pose a challenge for child safety, so it’s essential to reduce risks with effective safety devices. That’s why we provide the Sew-on Safety Cord Adjuster as standard. Choose the option that best suits your needs.

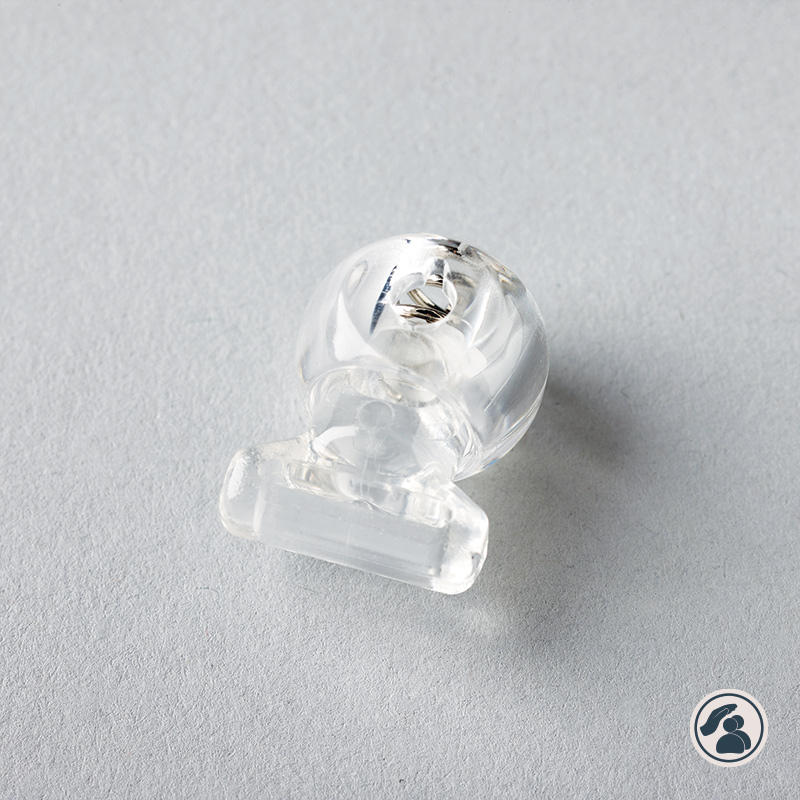

Sew-on Safety Cord Adjuster

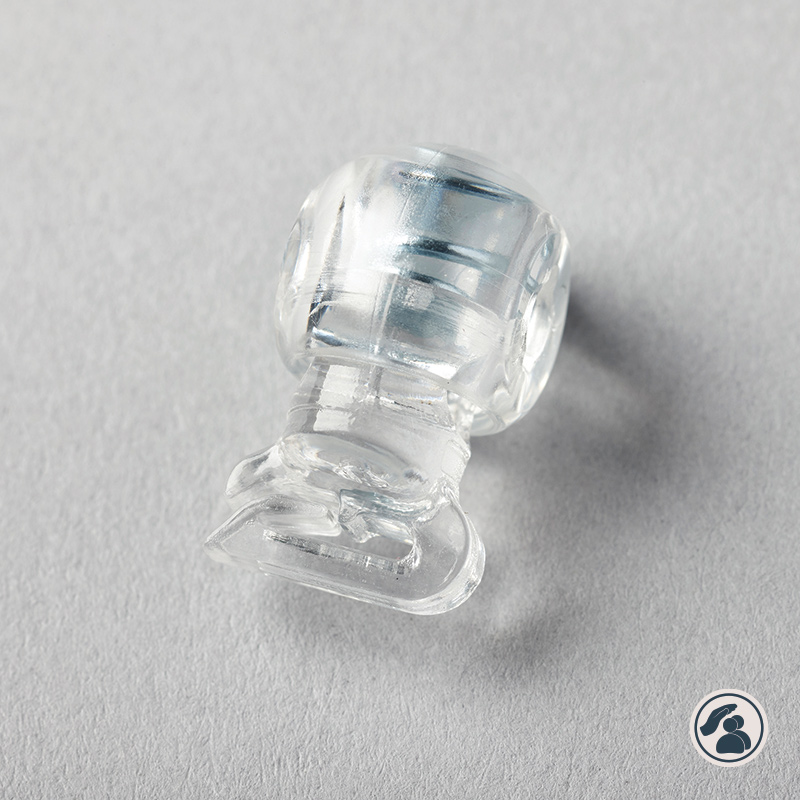

Clip-on Safety Cord Adjuster for Tapes

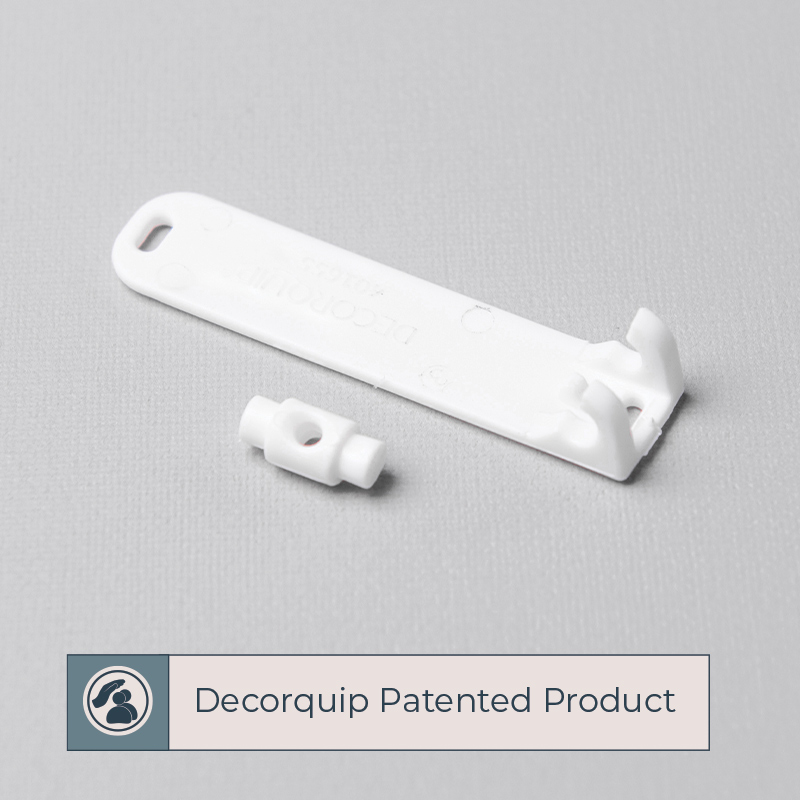

Rear Cord Barrel & Claw Safety Device
Brackets & Installation
Roman XL Uni Bracket

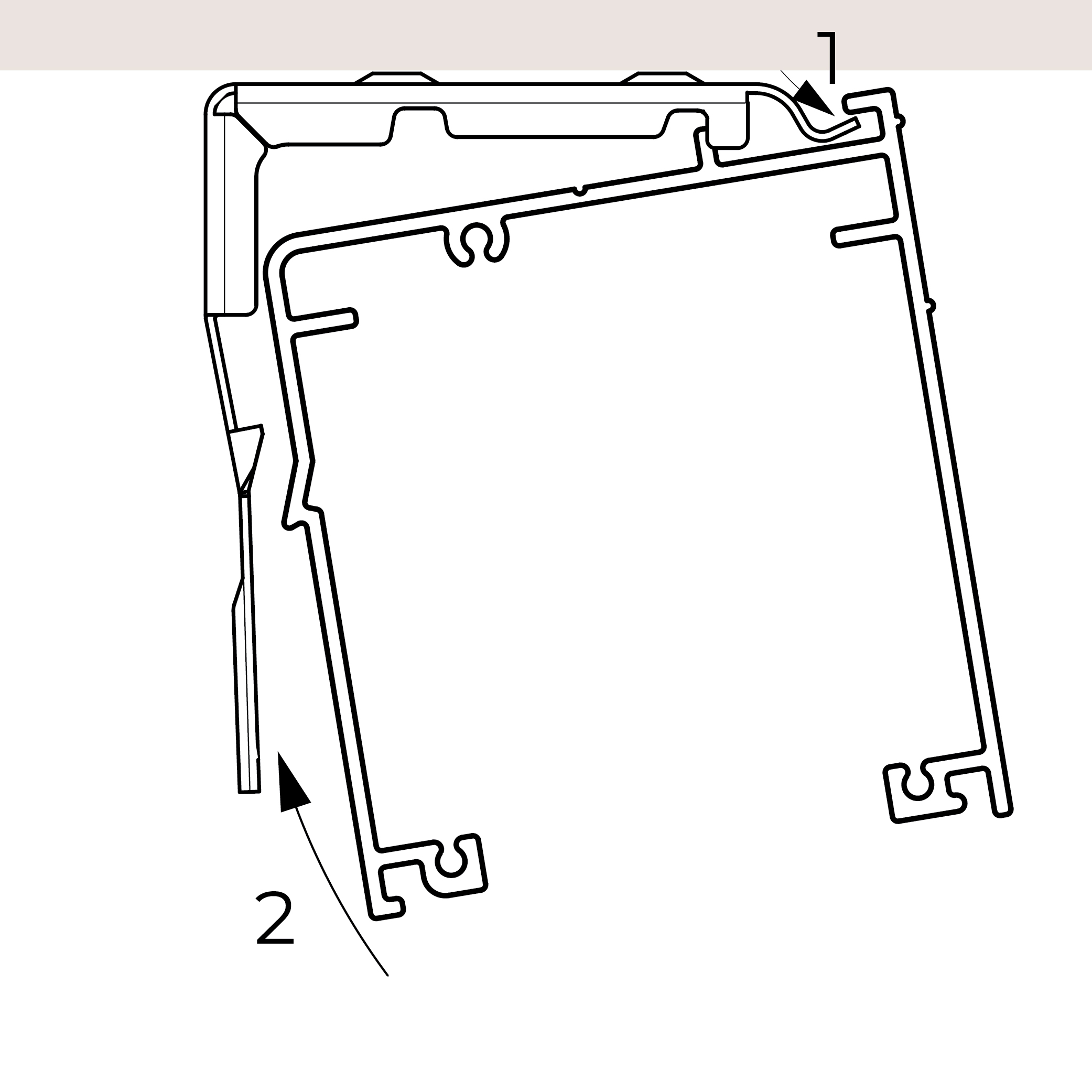

Top-fix Installation

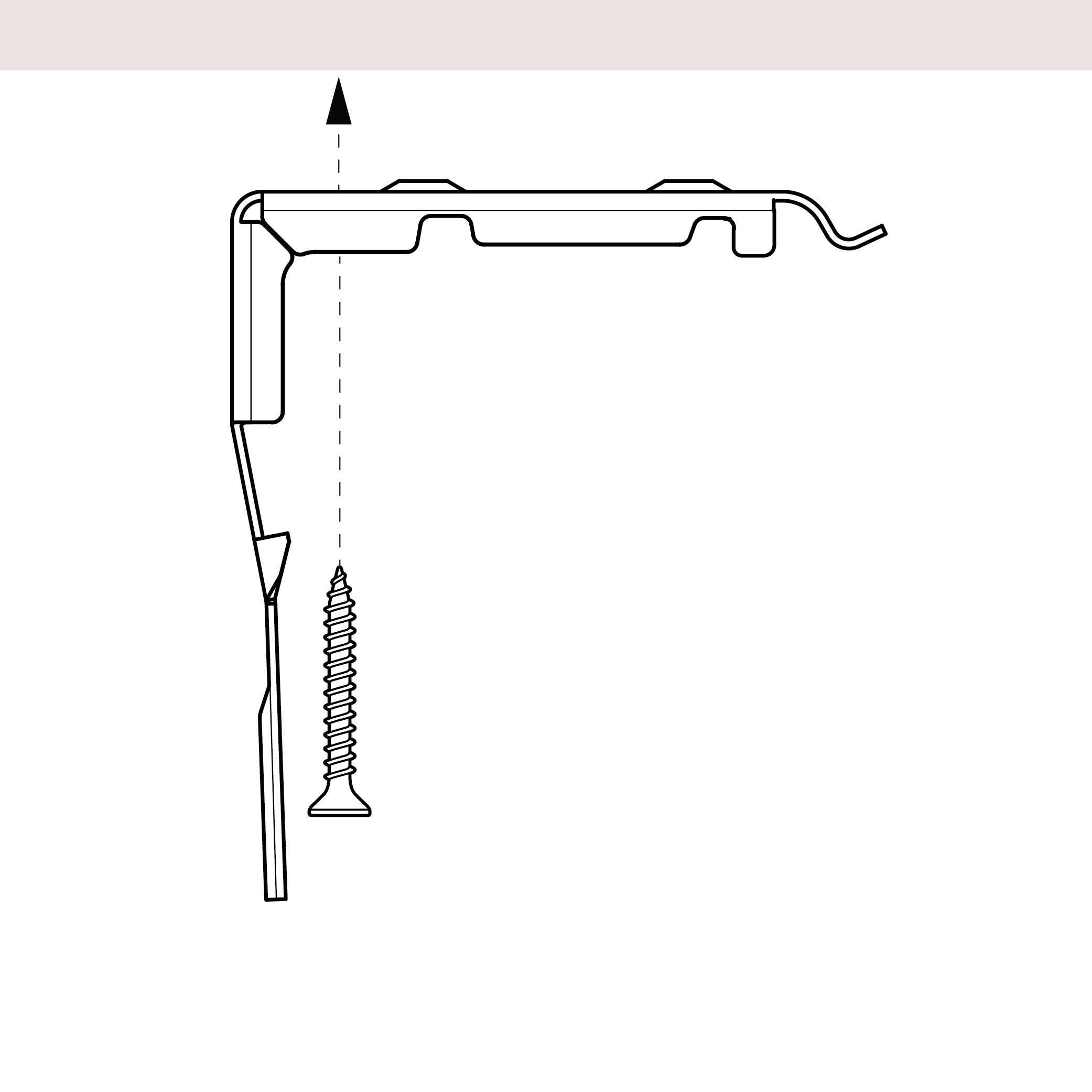

Fix the Uni Bracket onto the ceiling or top of the recess with a screw
Clip XL Roman Headrail into the Uni Bracket

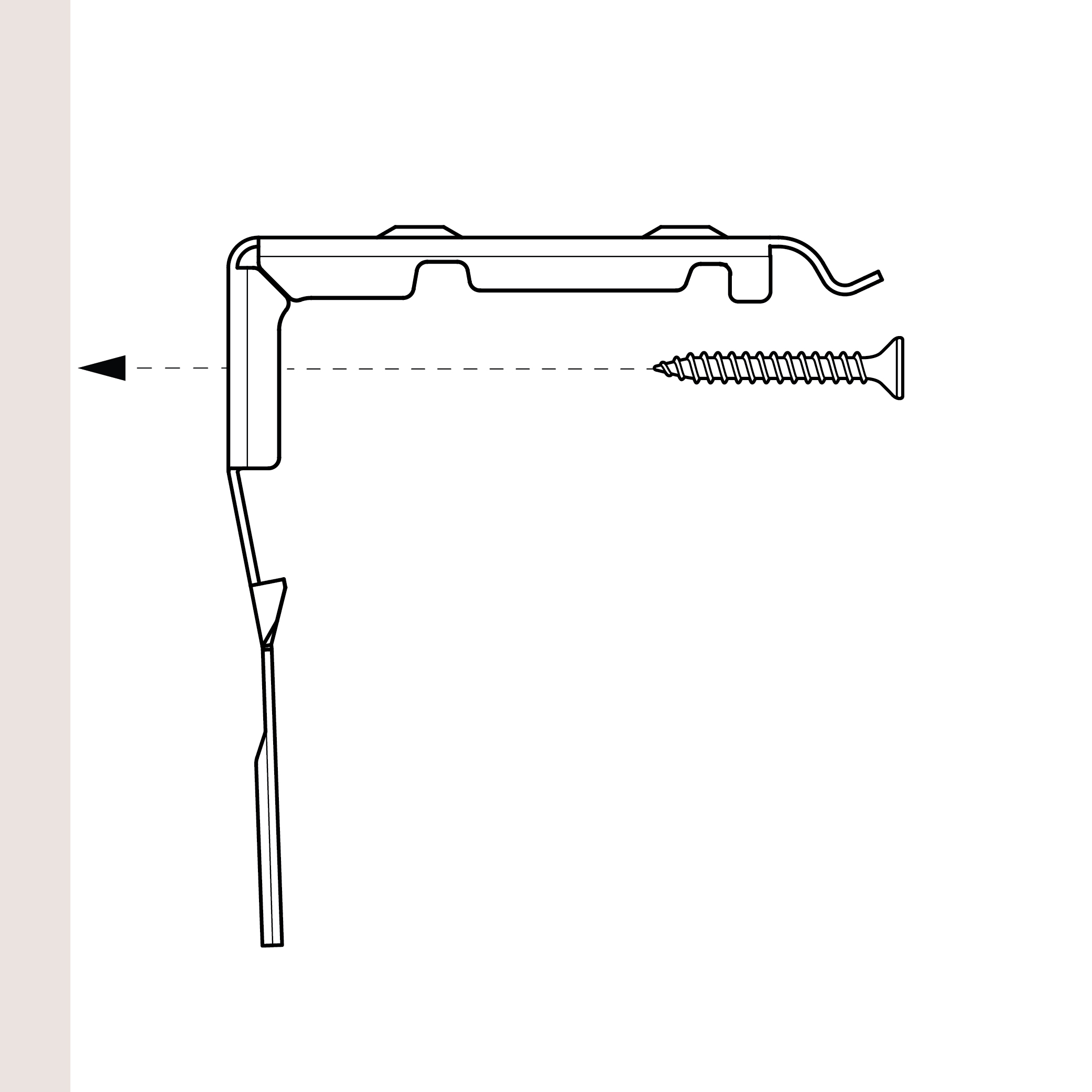

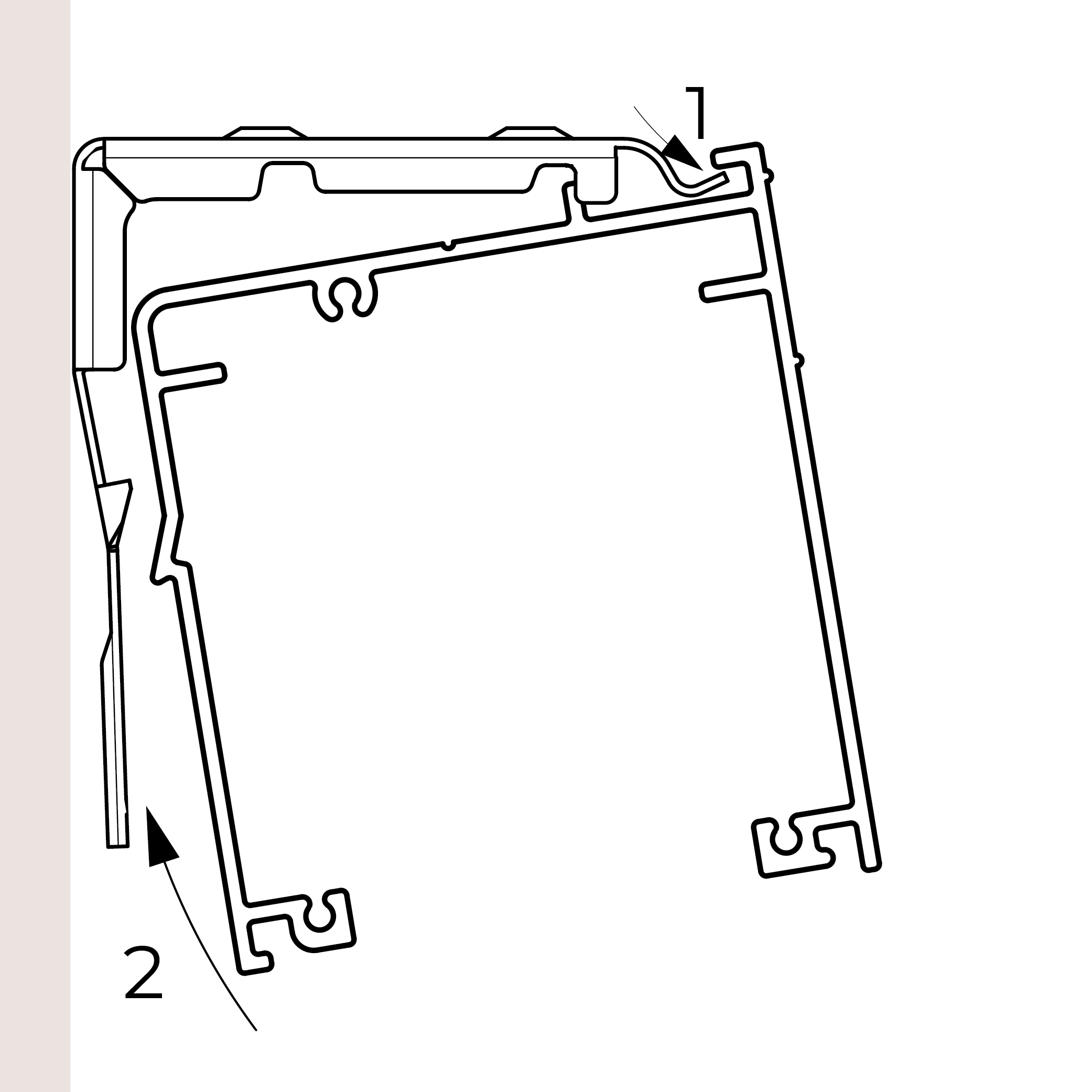

Face-fix Installation
Fix the Uni Bracket onto the wall with a screw
Clip XL Roman Headrail into the Uni Bracket

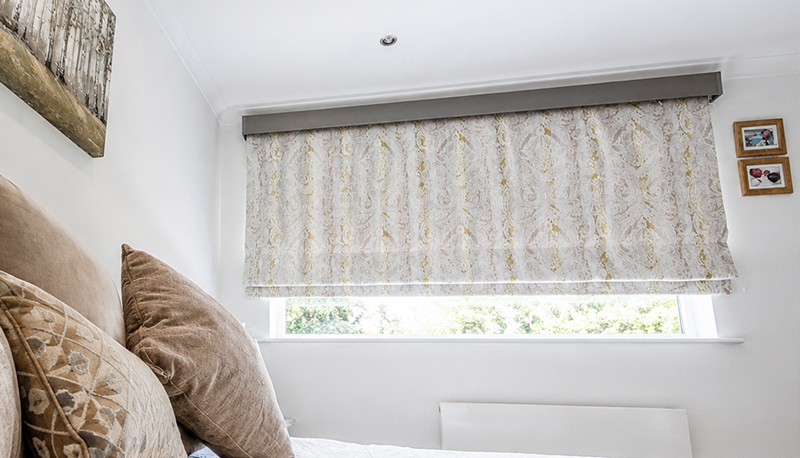

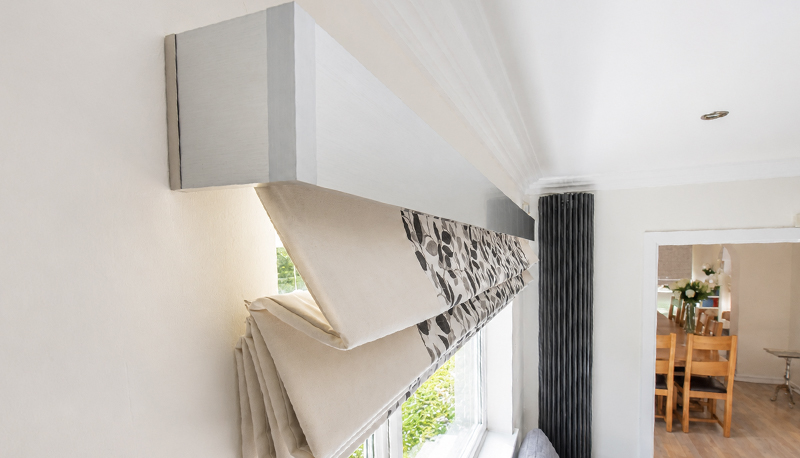

Capital Fascia
Capital Fascia
Built with sleek, premium materials, the modular components of our Capital Fascia provide a contemporary appearance with unique functionality to any blind or blinds from top to bottom, enhancing décor in both classic and modern environments. Available in 90mm and 120mm heights, and with matching bottom bars and side profiles.
White
RAL9010
90mm | 120mm
Brushed Silver
90mm | 120mm
Cream
RAL9013
120mm
Champagne
120mm
Anthracite
RAL7016
90mm | 120mm
Black
RAL9005
90mm | 120mm
Technical Specifications
Number of cord drums on Standard, Elite and Motorised Roman Headrails
| Roller Blind | Motor | Min. width | Max. width |
|---|---|---|
| ROLLER 45mm BATTERY MOTOR | 750mm | 3550mm |
| ROLLER 45mm MAINS MOTOR | RJ12 | 640mm | 3350mm |
| ROLLER 45mm WIRED MOTOR | 570mm | 3350mm |
| SOMFY - SONESSE 40 3/30 RTS | 580mm | 3350mm |
| SOMFY - SONESSE 40 6/20 RTS | 611mm | 3350mm |
| SOMFY - SONESSE 40 3/30 WT | 538mm | 3350mm |
| SOMFY - SONESSE 40 6/20 WT | 570mm | 3350mm |
| SOMFY - SONESSE 40 WF RTS | 710mm | 3350mm |
| EVE MOTIONBLINDS 45mm BATTERY MOTOR | 385mm | 3350mm |

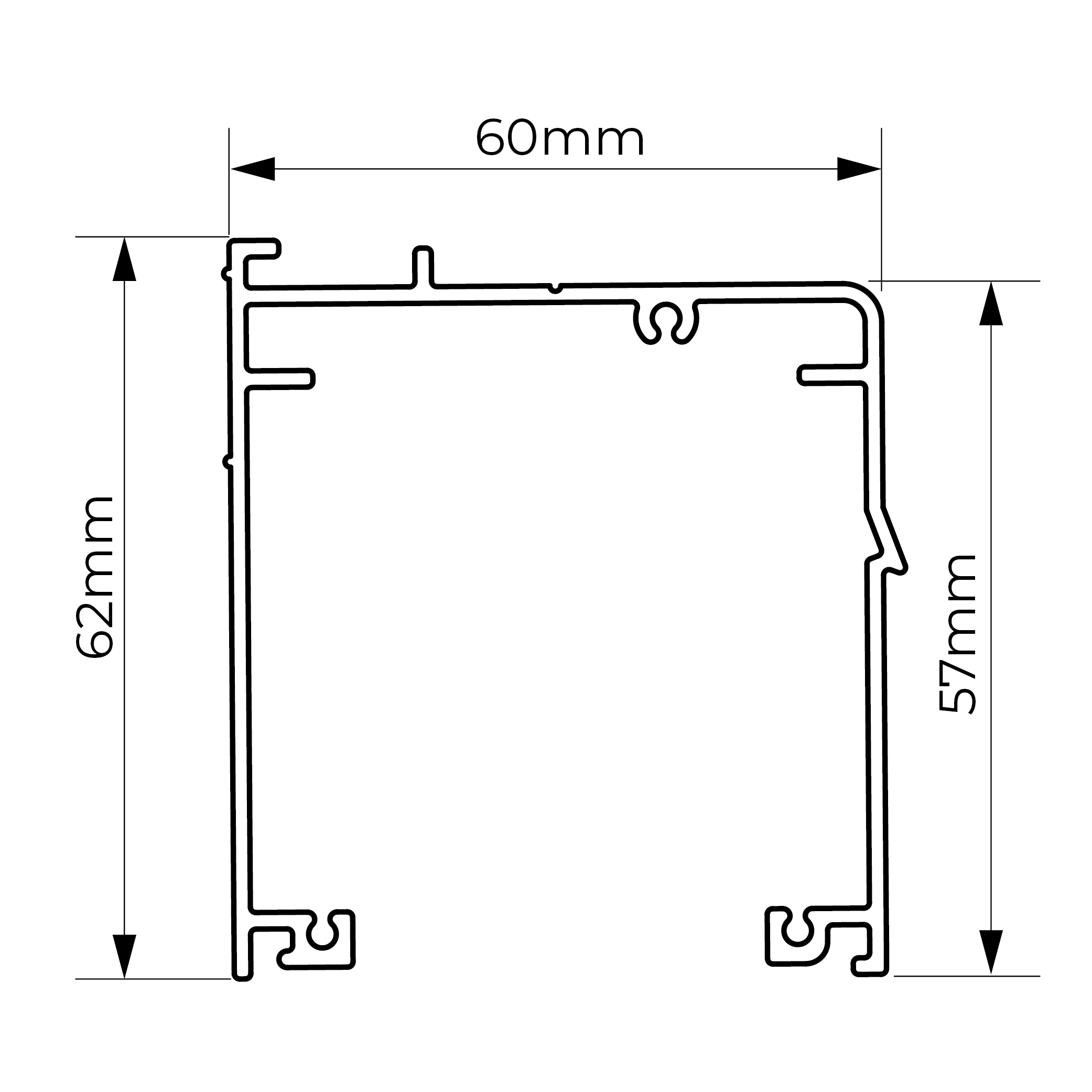

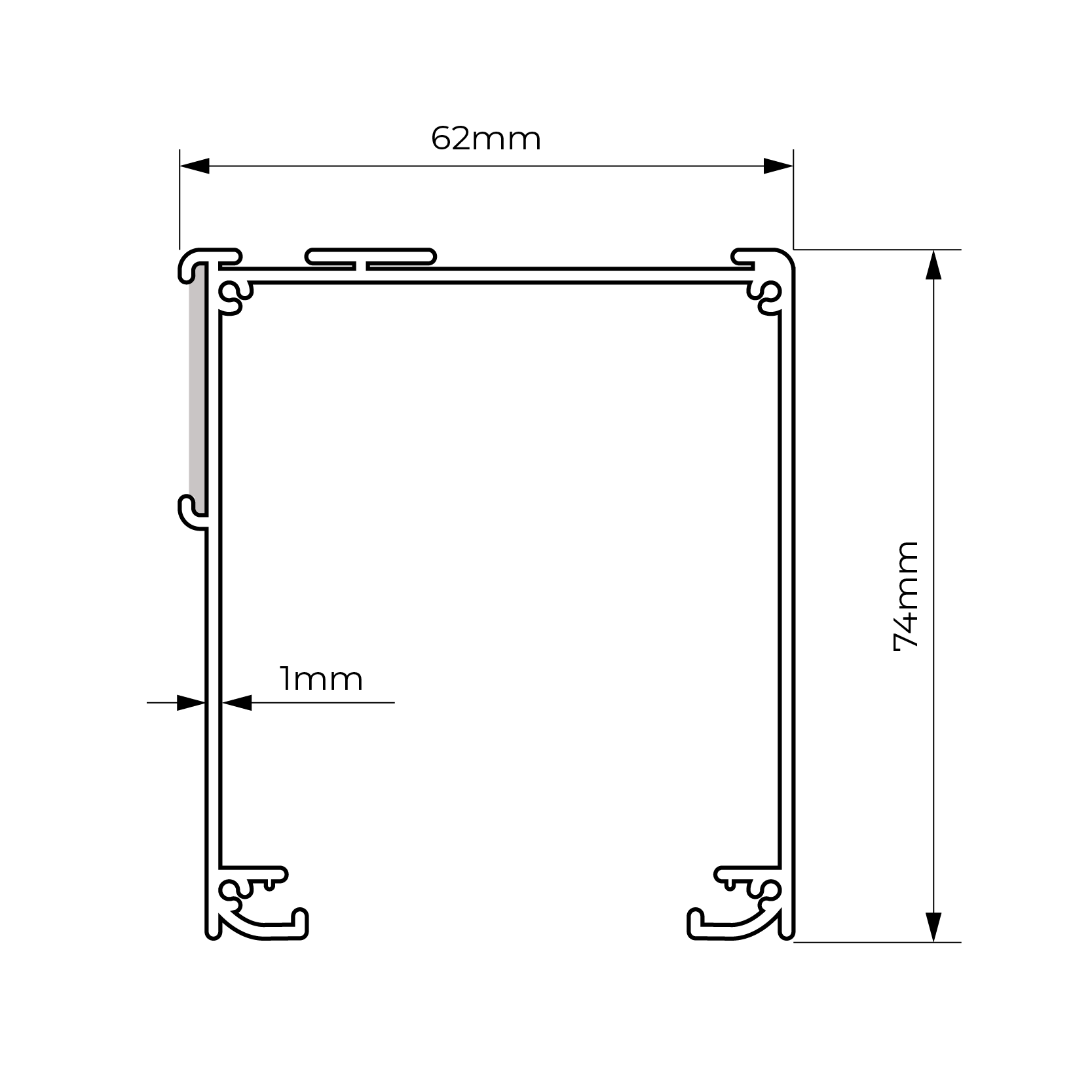

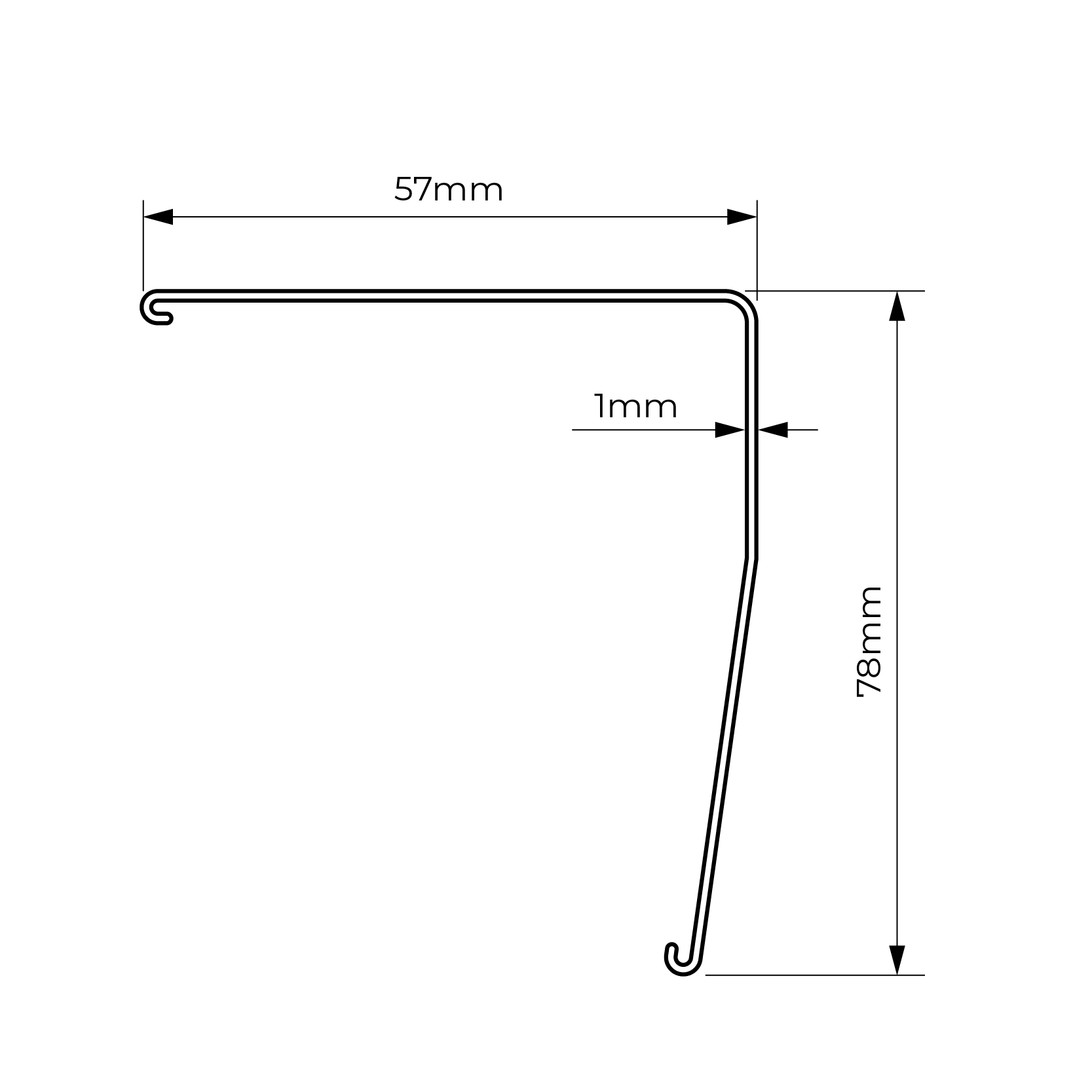

Dimensions (cross section)
XL Roman Headrail

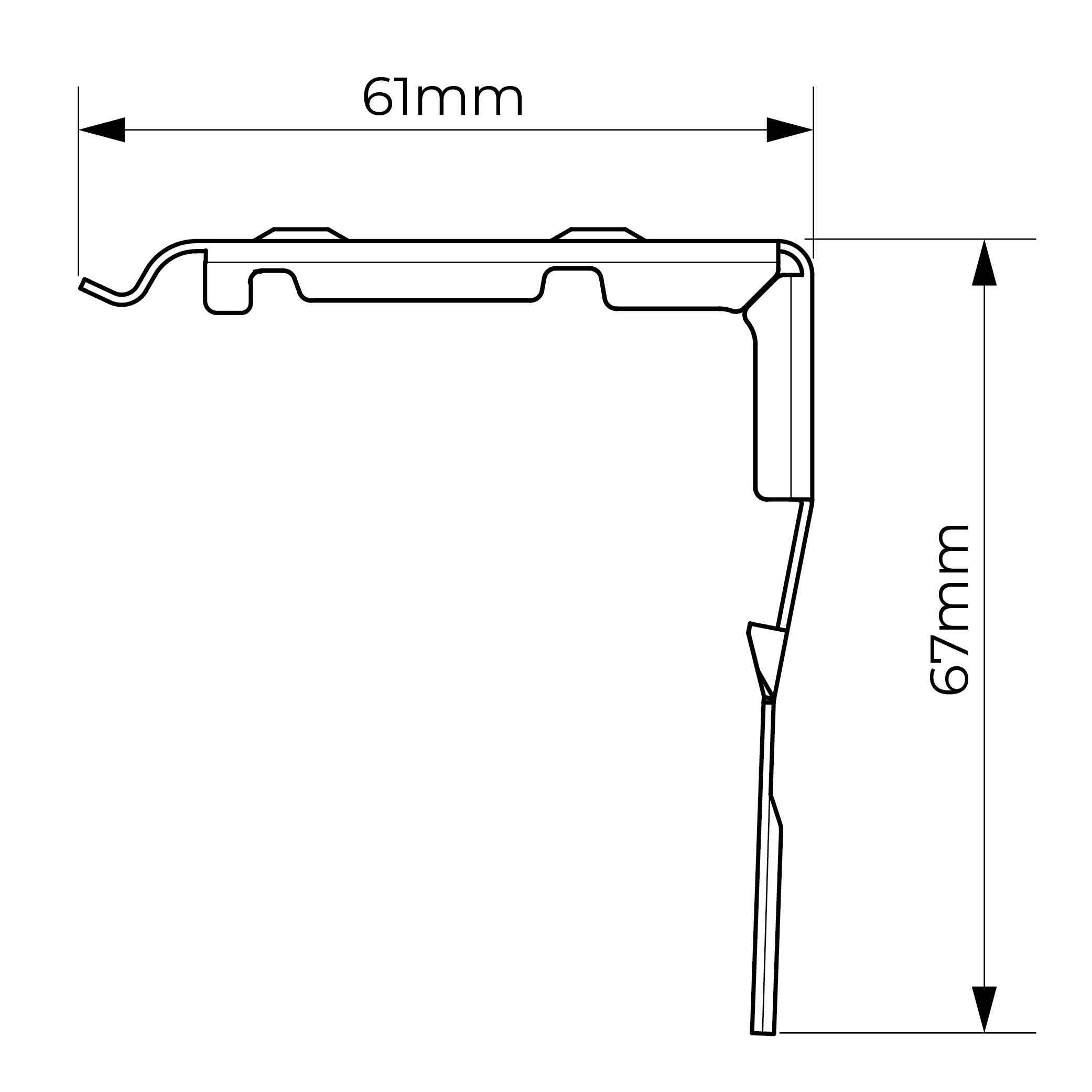

XL Universal Bracket
Measuring Guide

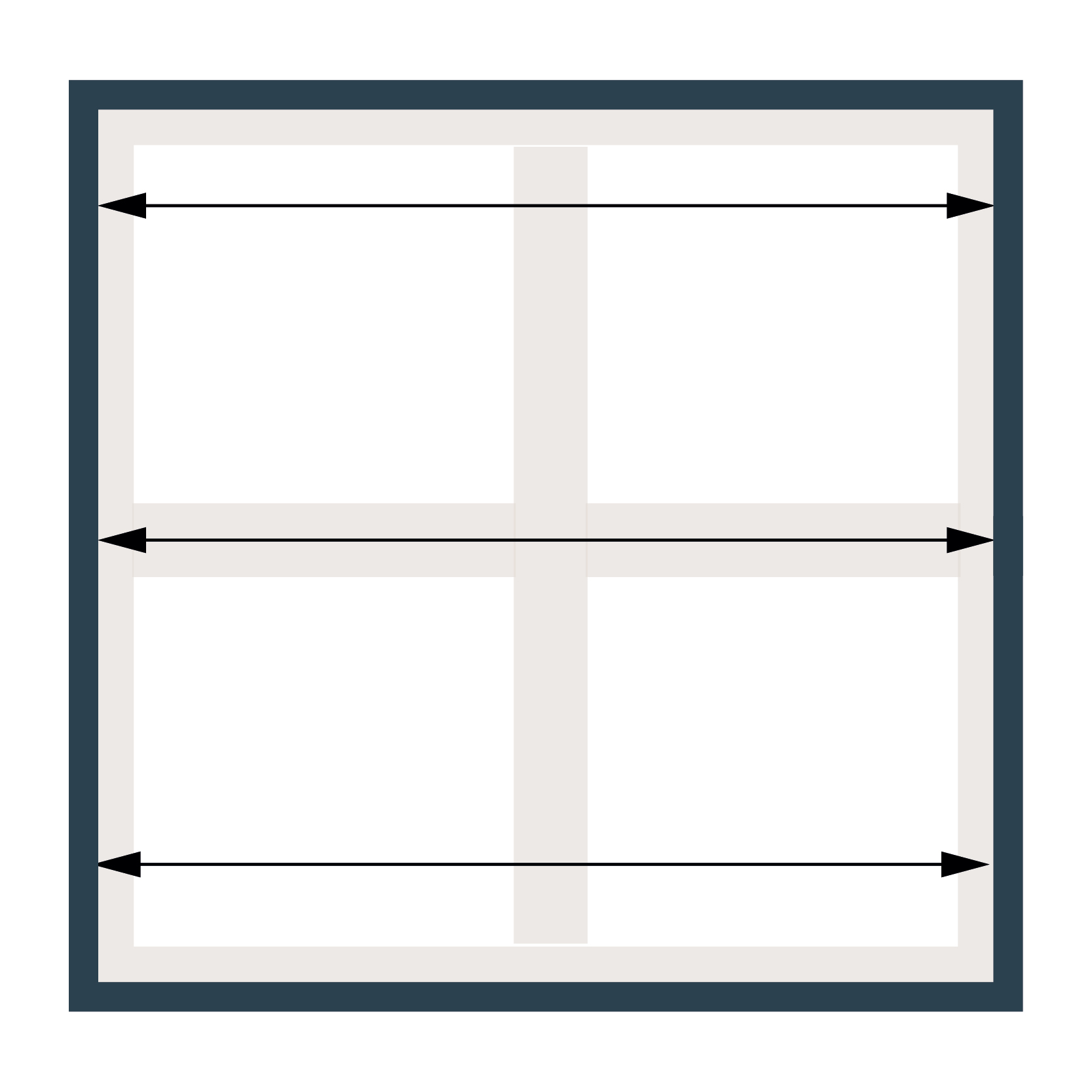

Inside Recess Installation
Measure the width of the recess at the top, middle, and bottom. Use the smallest measurement.

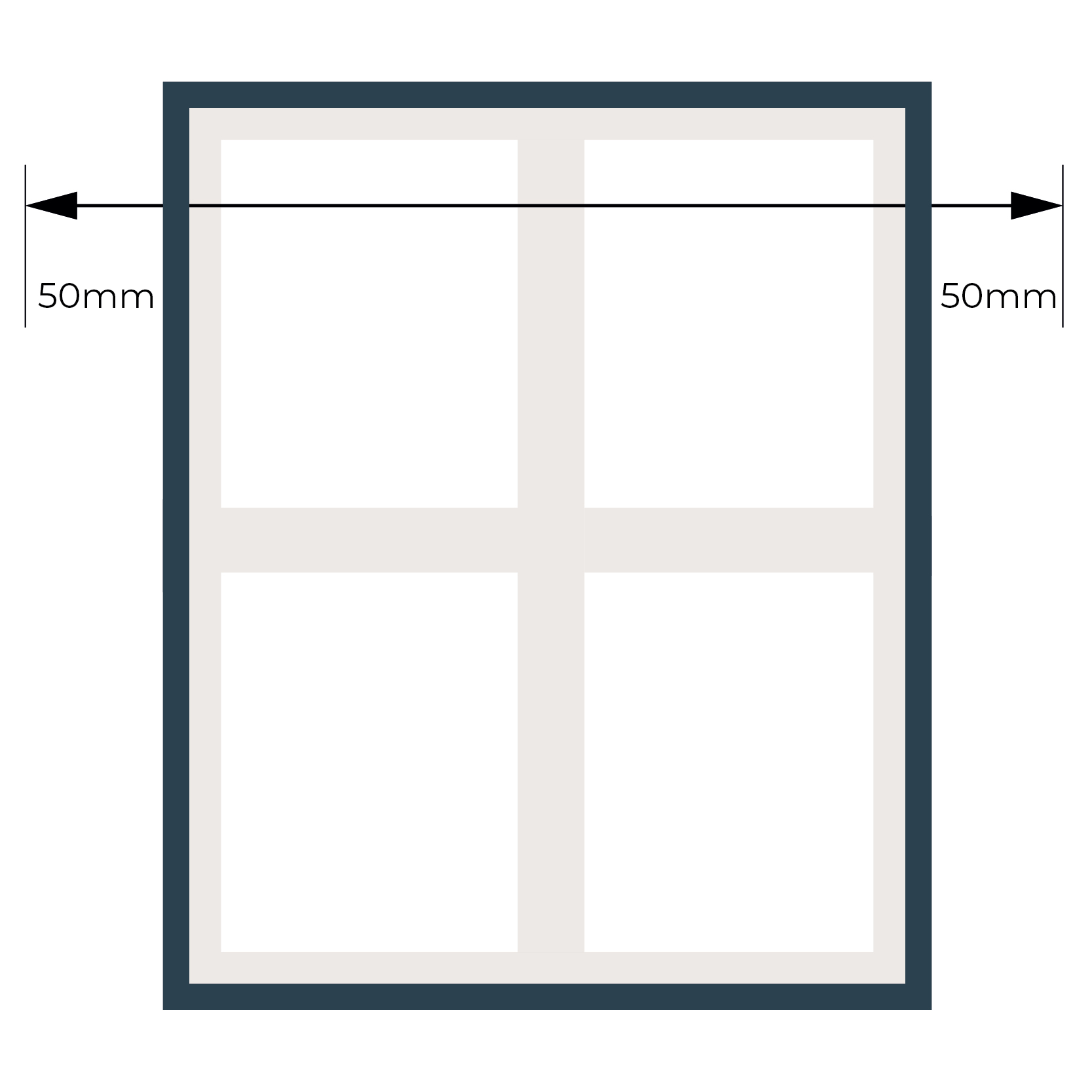

Outside Recess Installation
Measure the width of the area you want the blind to cover, adding at least 50mm on each side.
