Tensioned & Roof Pleated Blinds

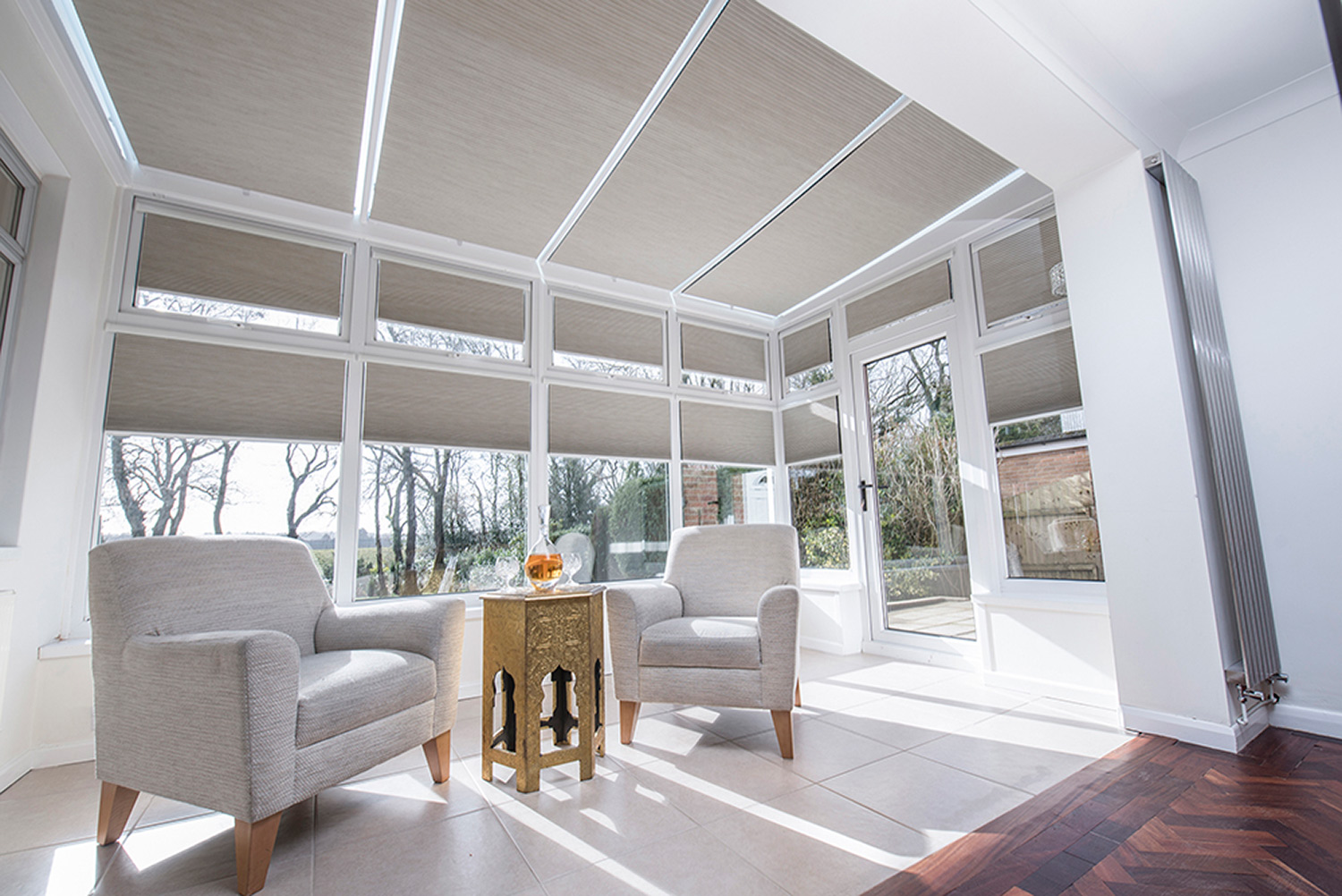

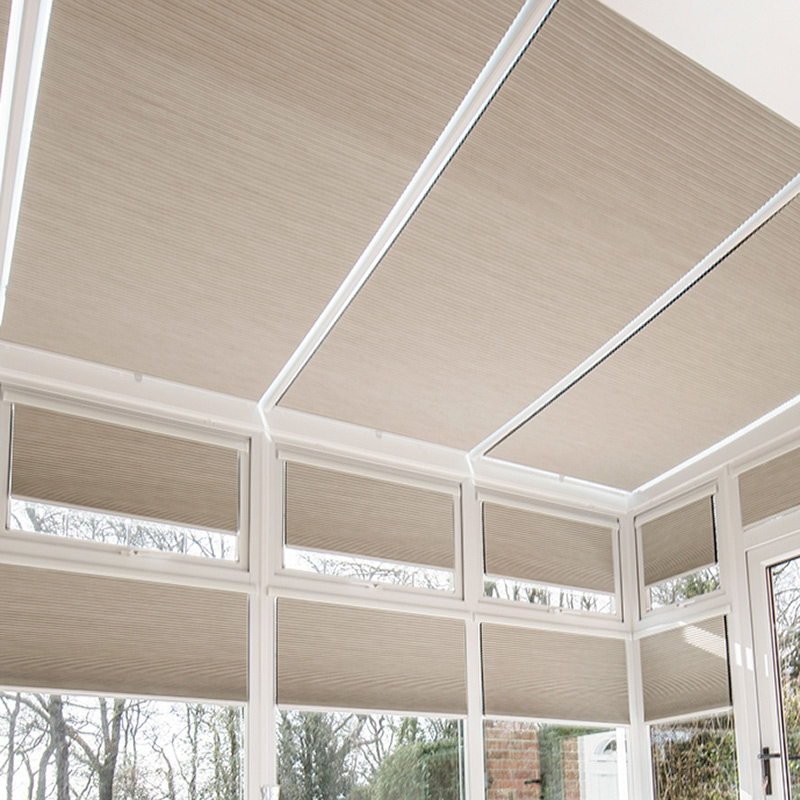

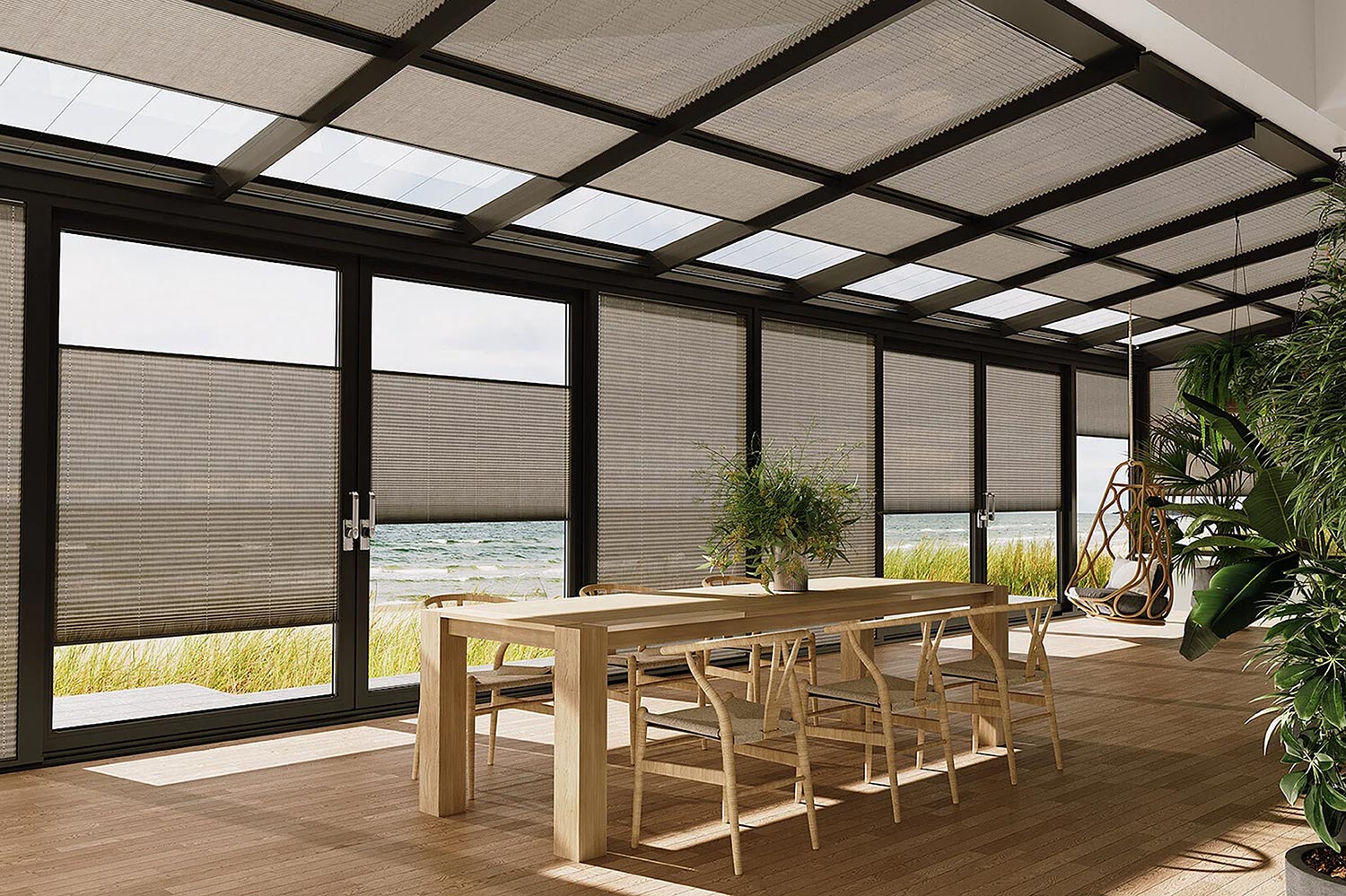

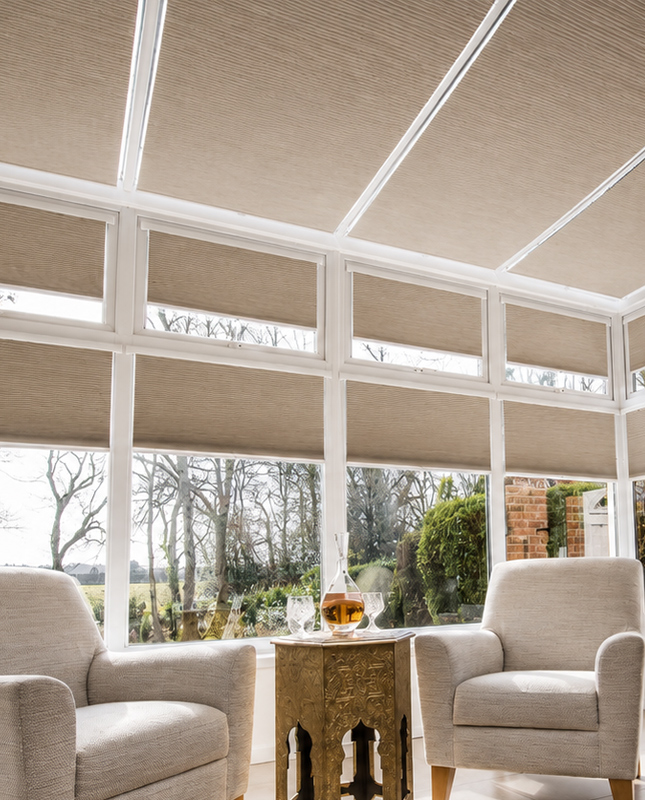

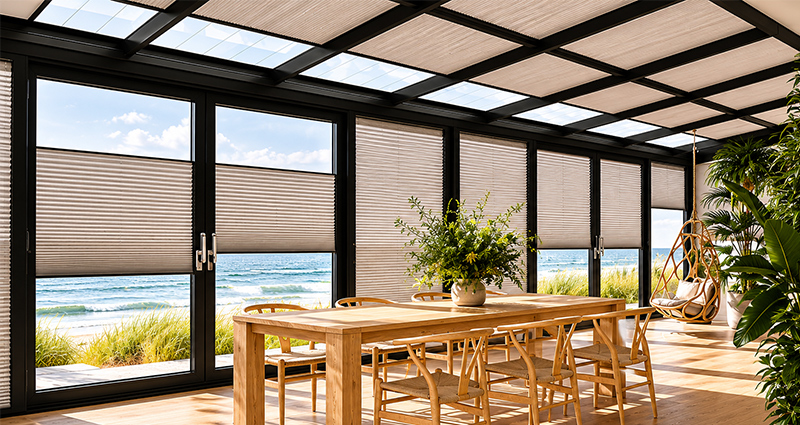

Tensioned pleated blinds are ideal for standard windows, roof windows, and conservatories, maintaining consistent fabric tension for a sleek finish and smooth operation. Choose from manual or motorised smart control and a wide range of fabrics, including energy-efficient cellular collection.
Manual or motorised control
White, black or anthracite hardware available
Wide range of Pleated and Cellular fabrics
Models

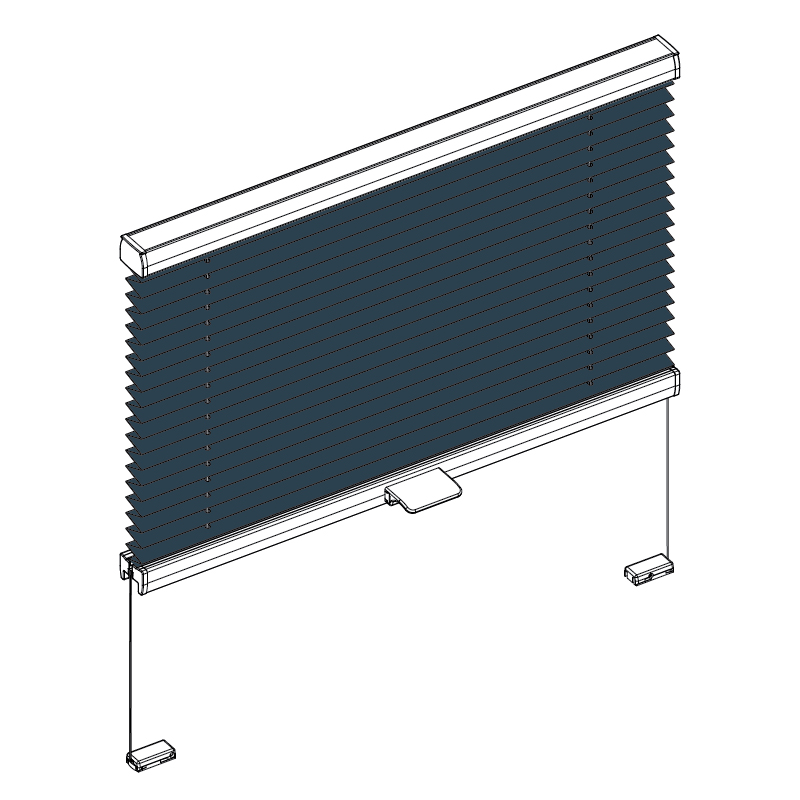

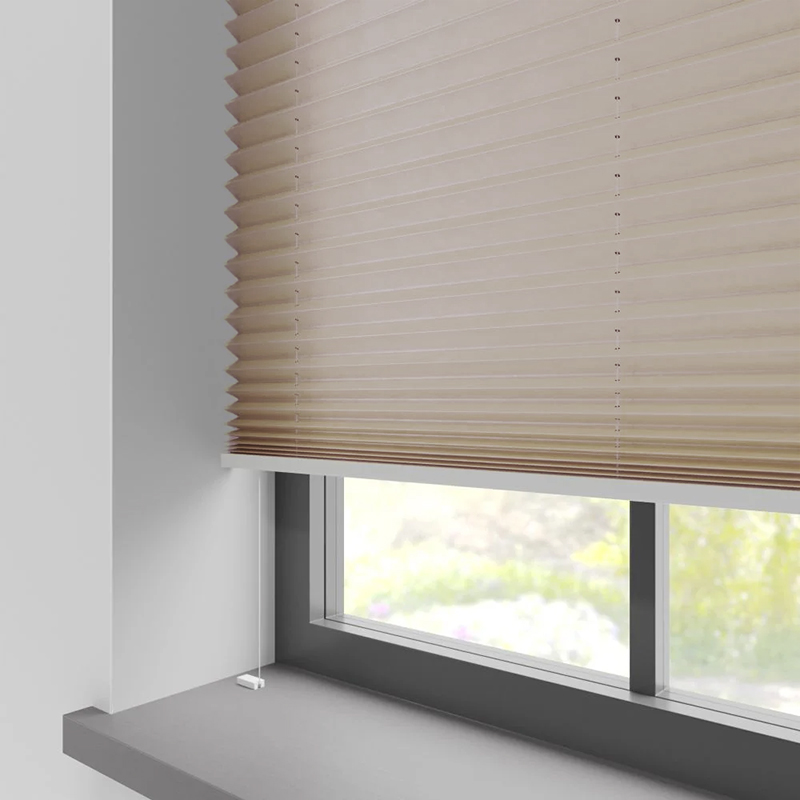

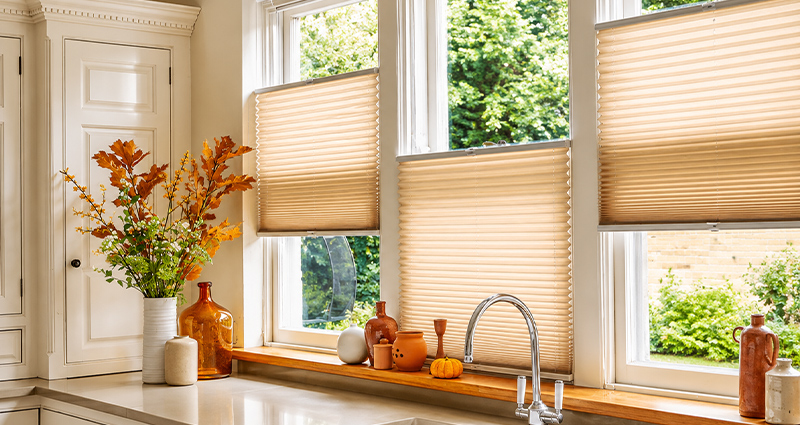

Window Tensioned with Bottom Feet
Window Tensioned with Bottom Bar

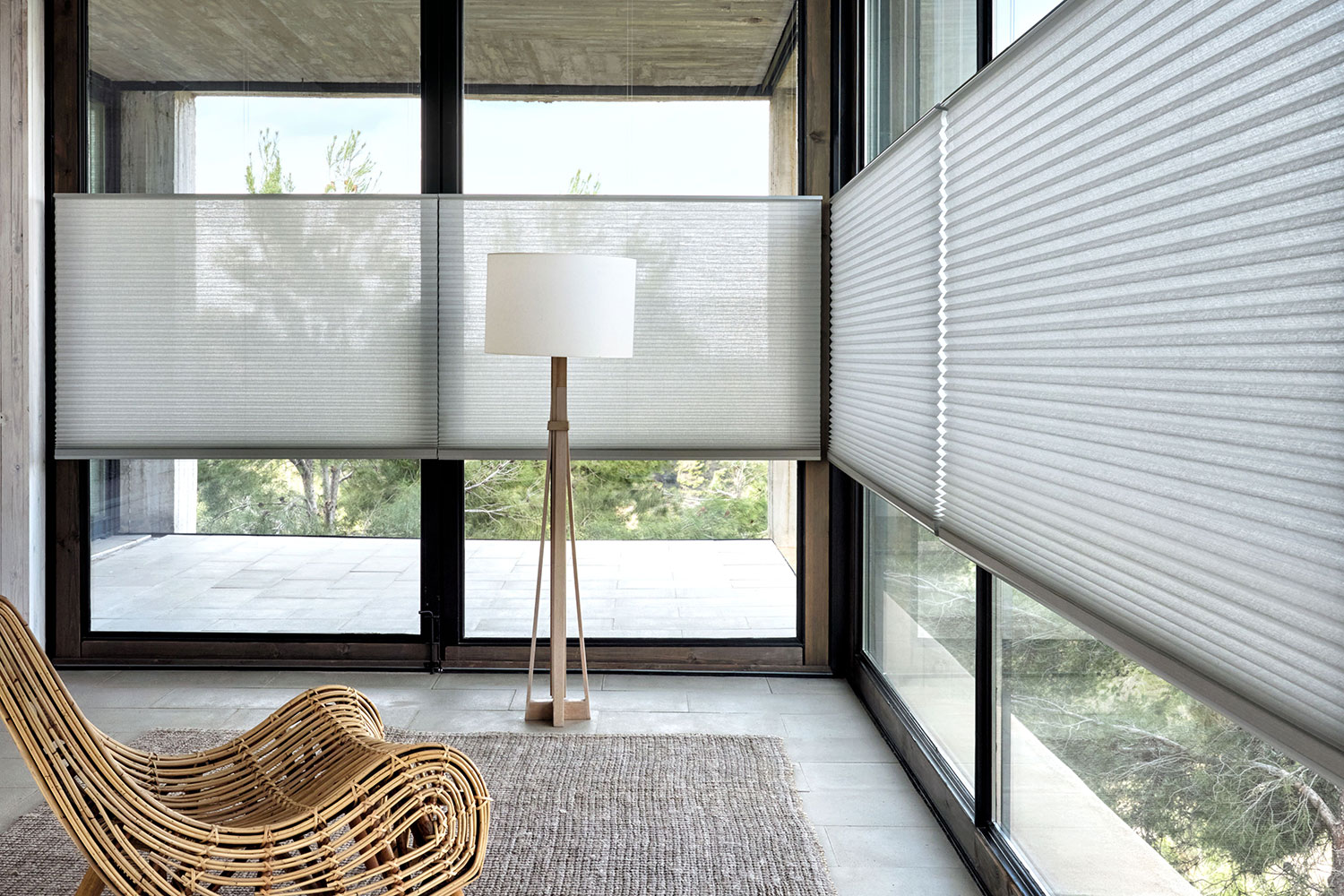

Multi-zone

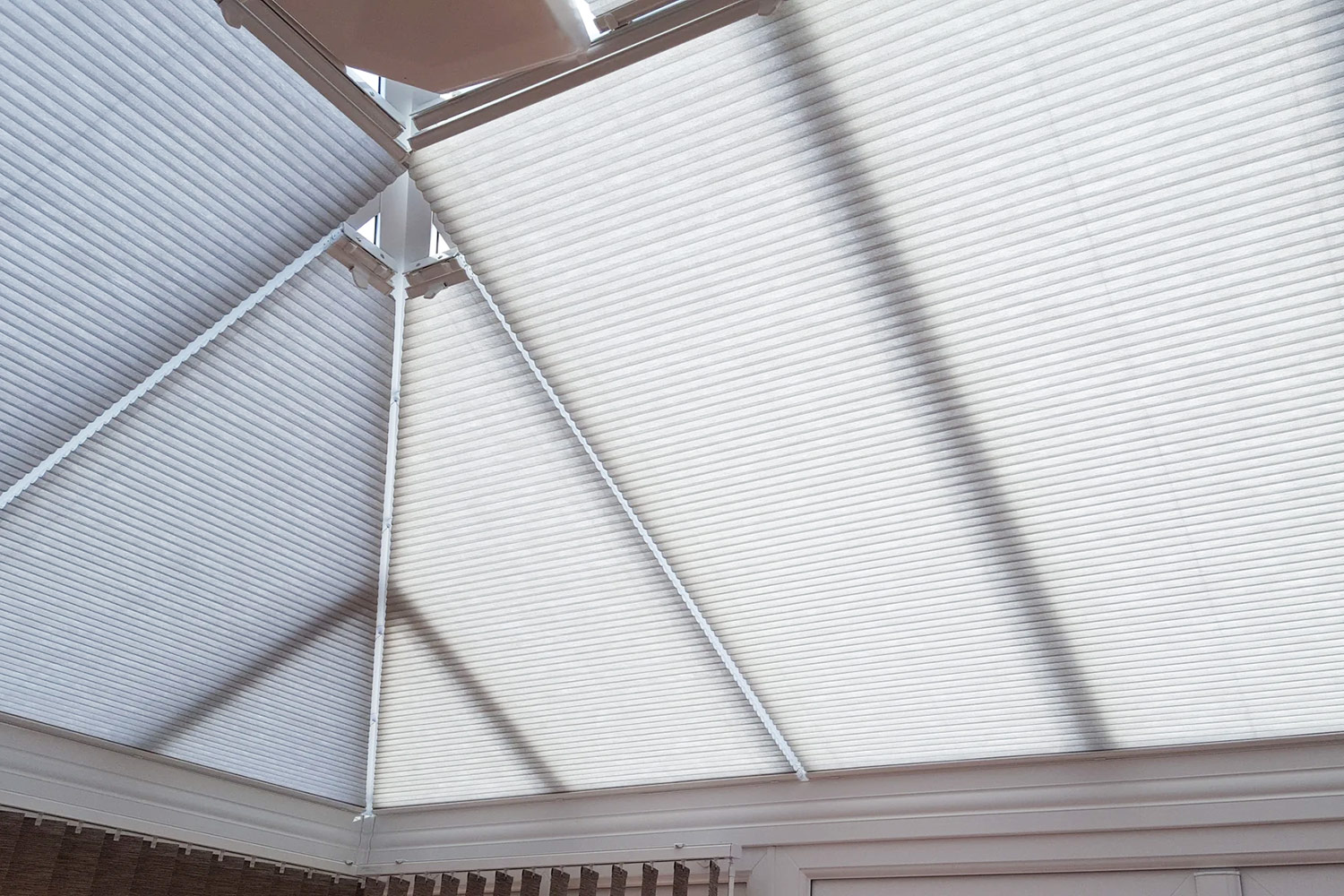

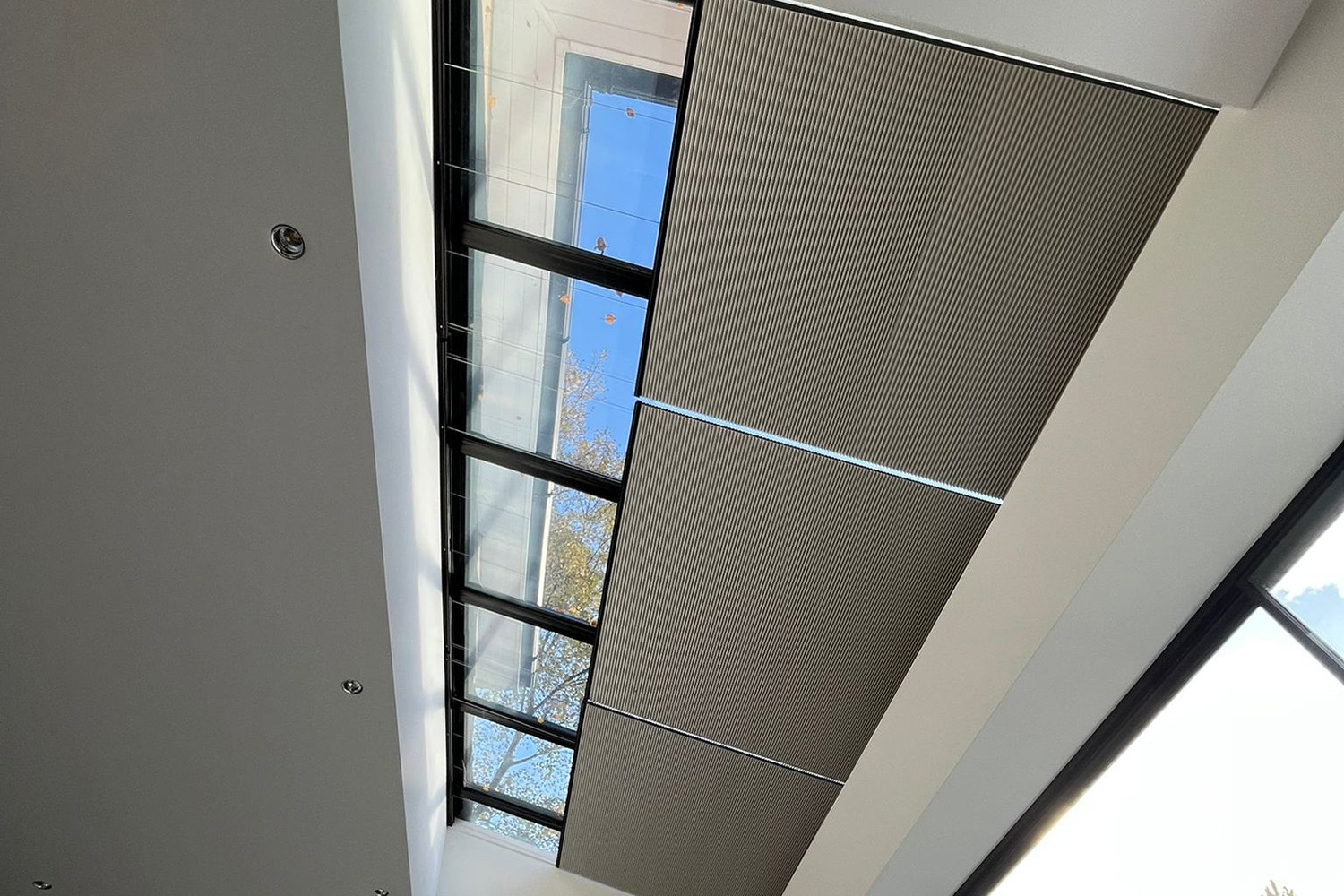

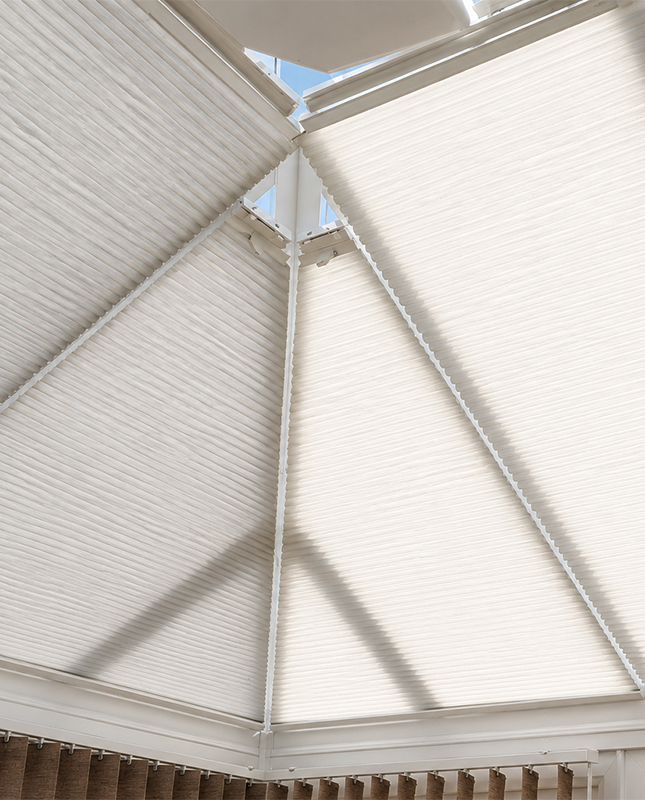

Shaped Roof Tensioned
Single Pleat Fabric Only

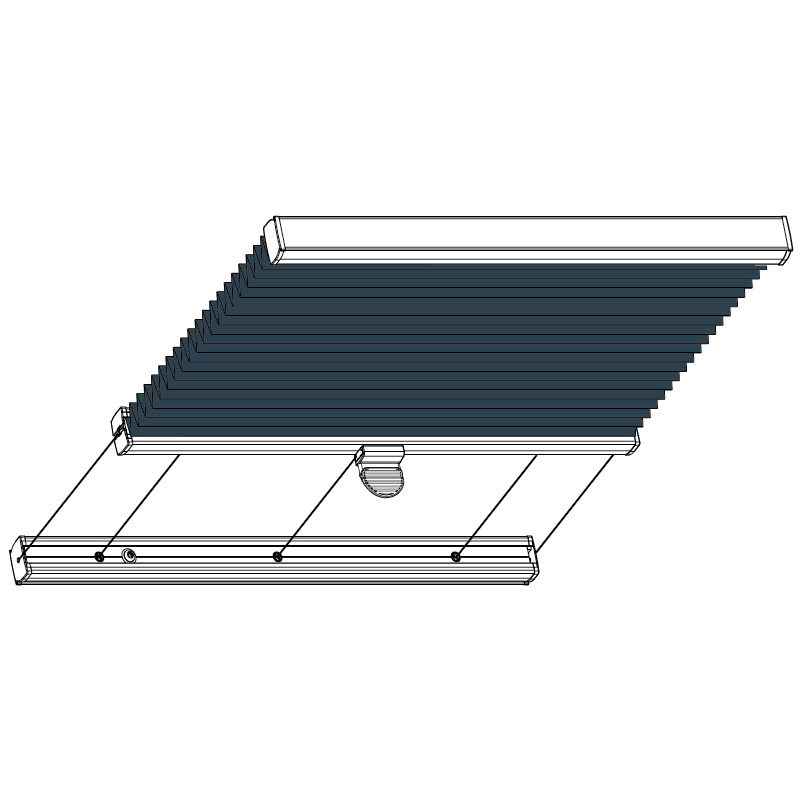

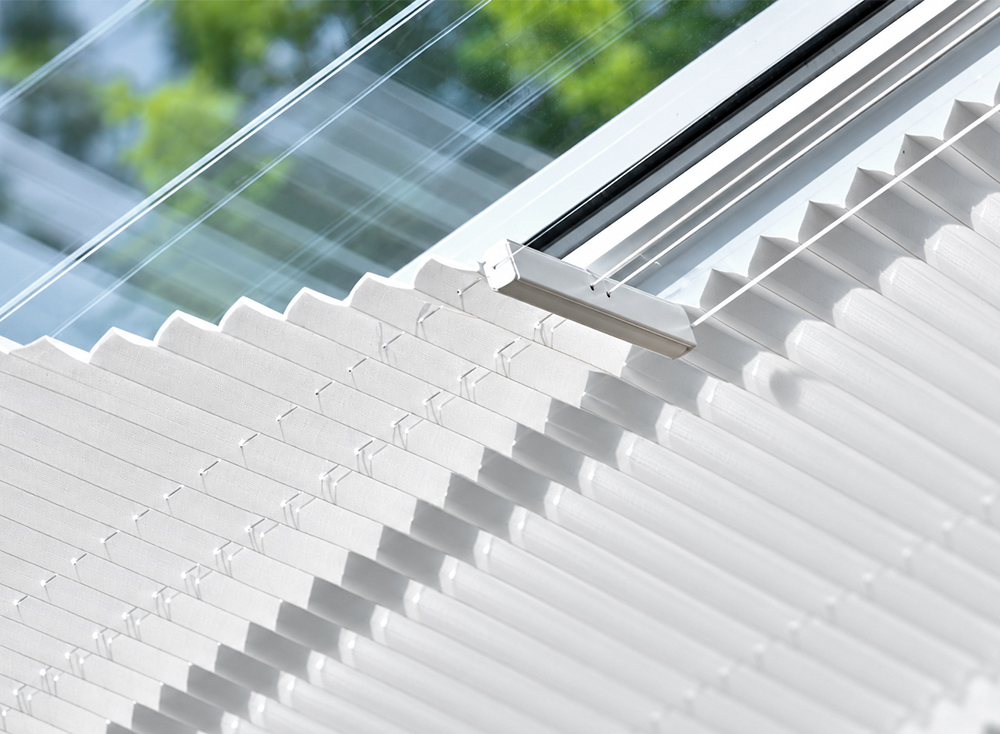

Manual Roof Tensioned

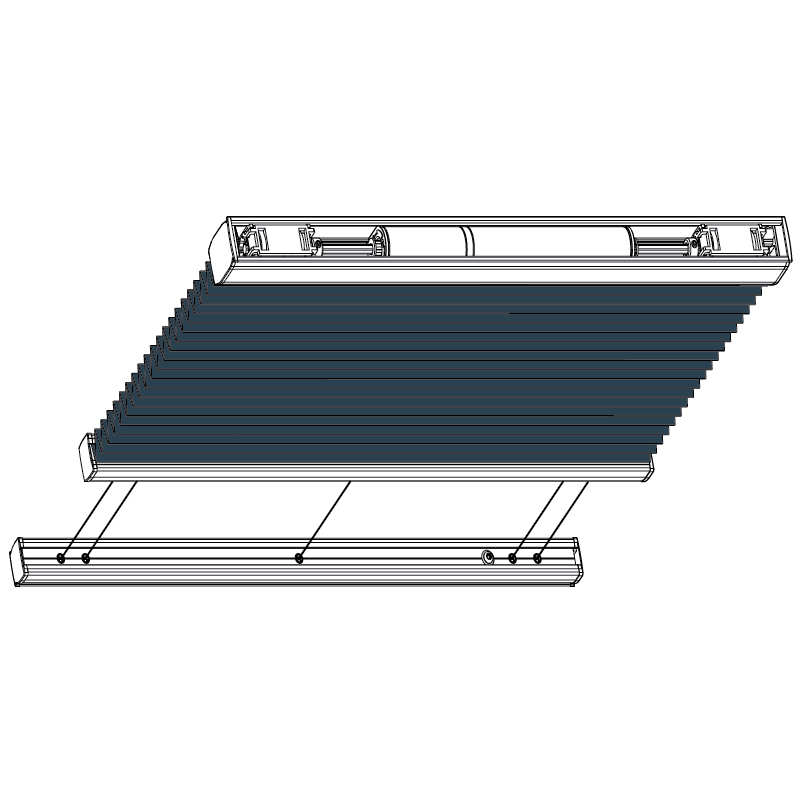

Motorised Roof Tensioned
Control Options
Motorisation
From classic remotes to smartphones and full home automation, our motorisation options make it easy to offer convenient and modern control for your Pleated Blinds. With both Dream and Somfy systems available, you can provide reliable solutions to suit every budget and level of smart integration.

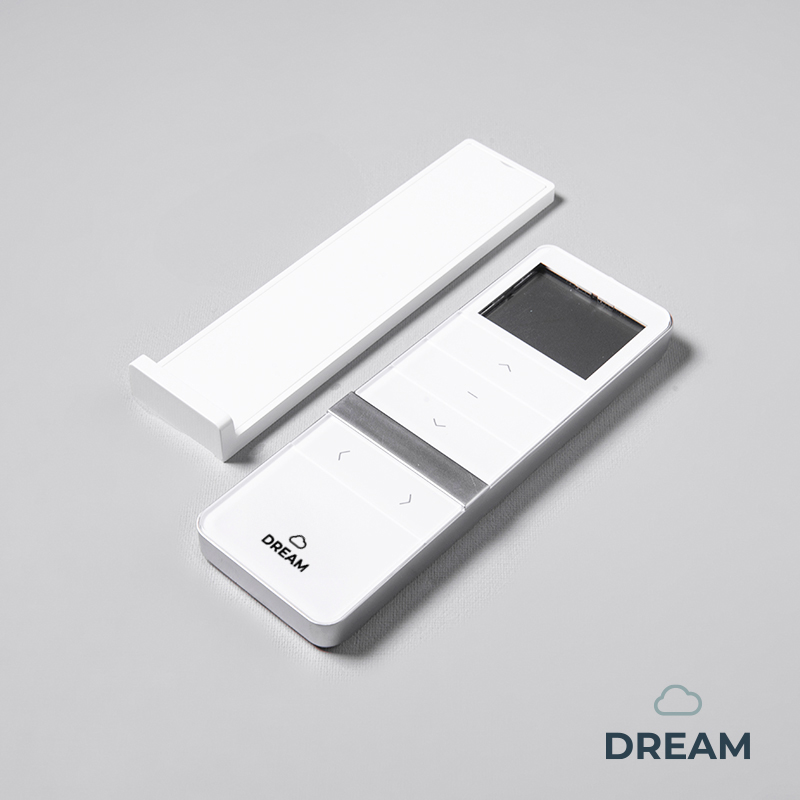

Dream 15 Channel Remote
DreamHub Pro
Manual Control
Standard Tensioned Pleated Blinds are operated manually with a bottom bar handle. For blinds installed at height, we recommend using an operating rod – available in four sizes.
1000mm | 1500mm
2000mm | 3000mm
Hardware Colours
Manual Control Hardware Colours
The hardware colour of manually controlled and motorised tensioned window and roof pleated blinds is available in three matching options for the headrail, bottom bar, and end caps.
White
Anthracite
Black

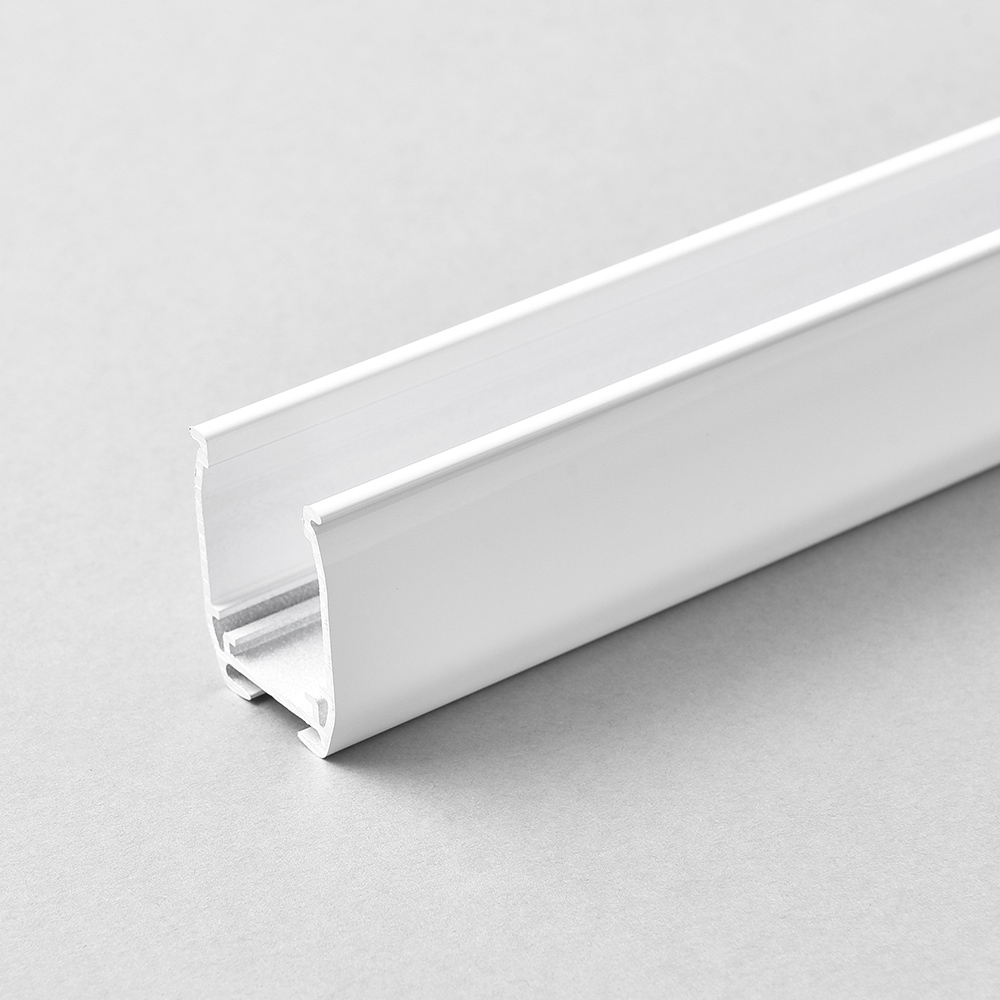

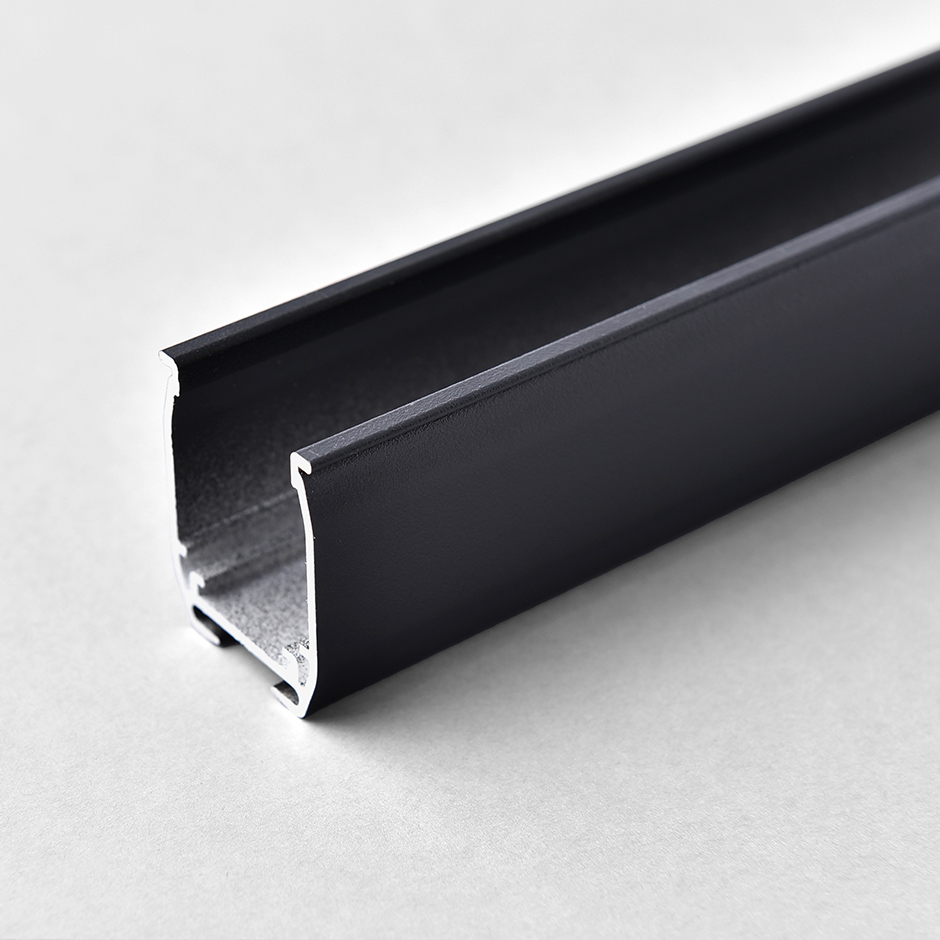

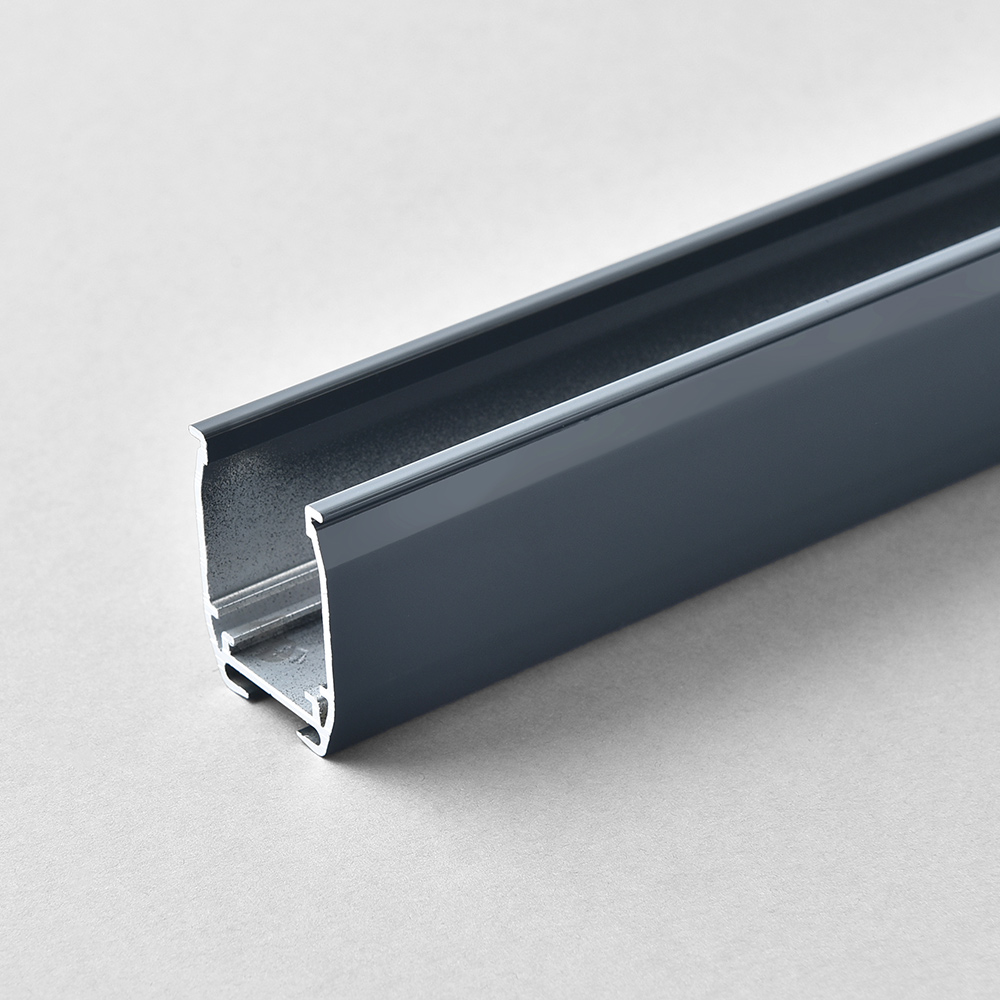

Motorised Hardware Colours
White
Anthracite
Black

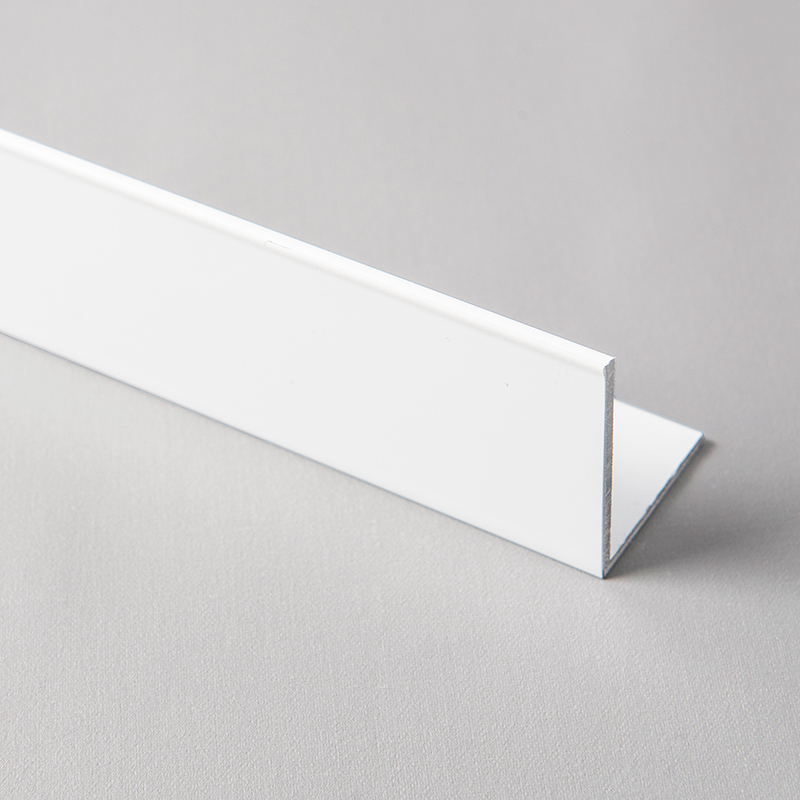

Side Profiles
Side Profiles are available in three coordinating colours to perfectly match the headrail and bottom bar, ensuring a cohesive and polished finish. Designed to eliminate side gaps between the fabric and the wall, they provide enhanced privacy and improved light control. For roof blinds, they’re an ideal solution to prevent the fabric from sagging. In fact, we recommend using them for all roof blinds with a drop of over 2m.
White

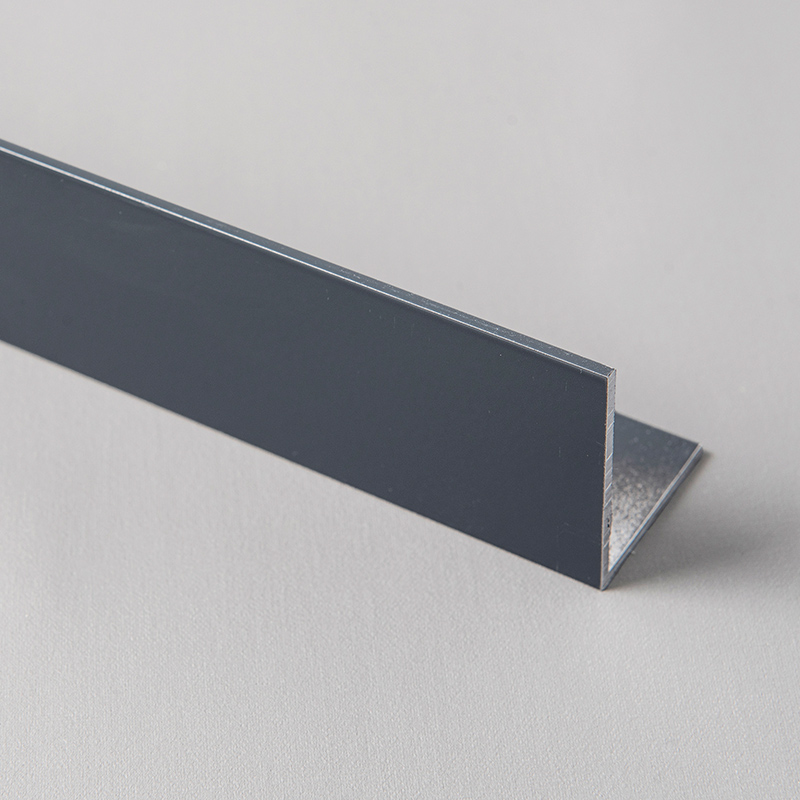

Anthracite

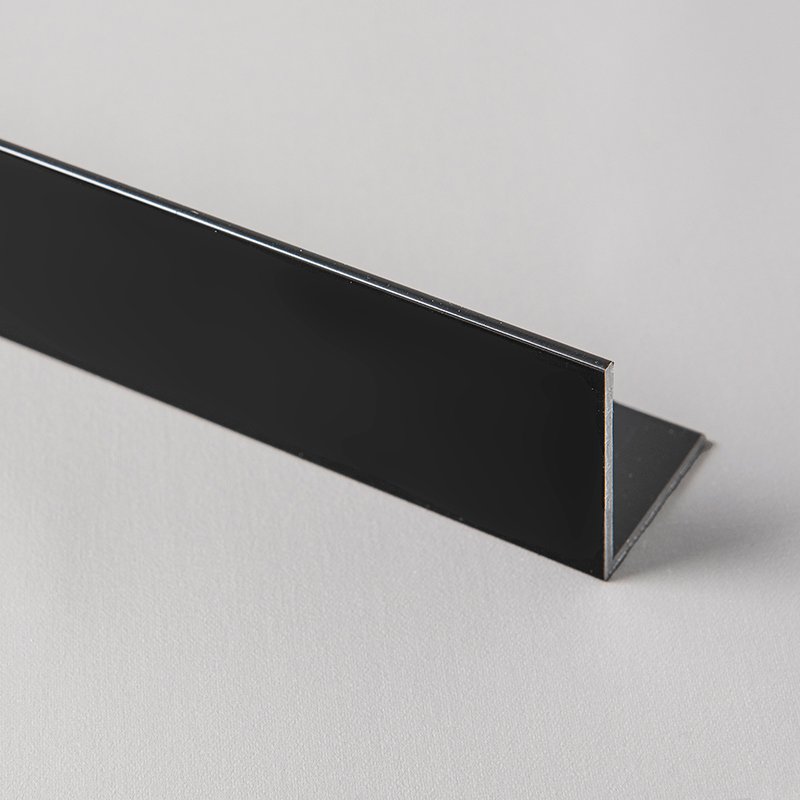

Black
Brackets & Installation
Brackets

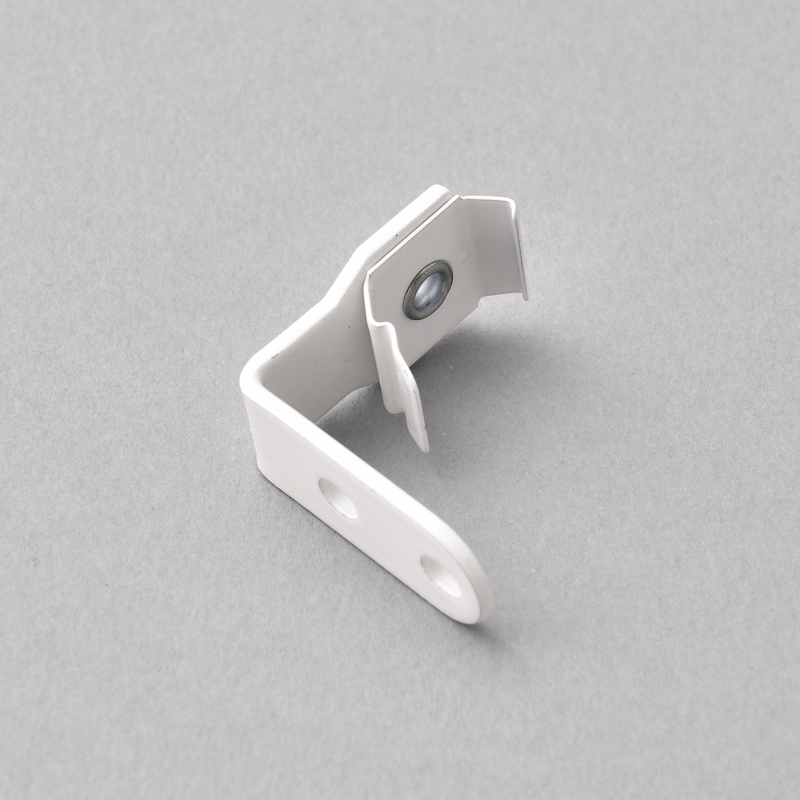

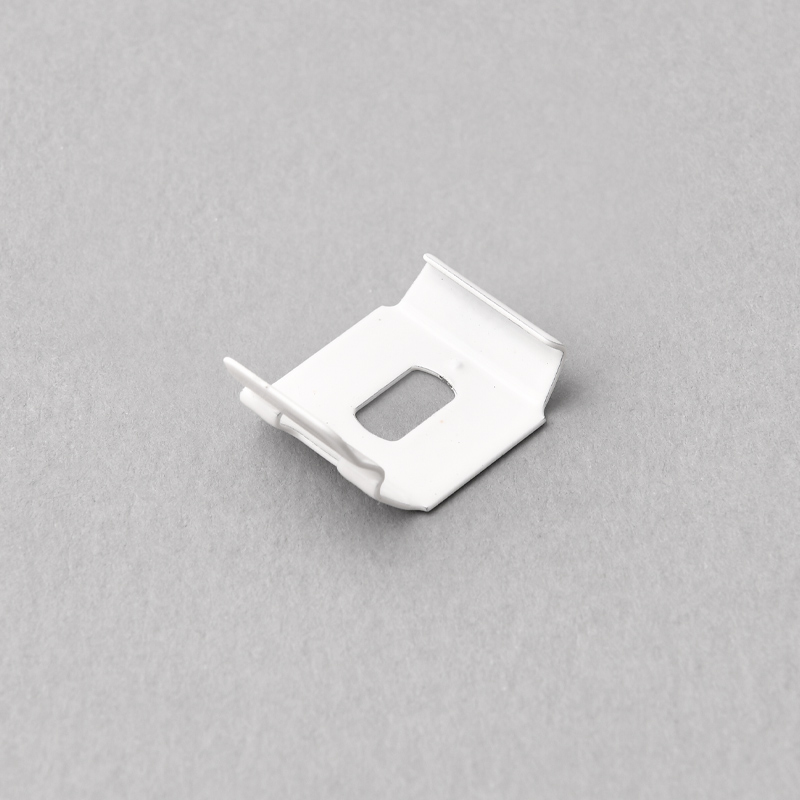

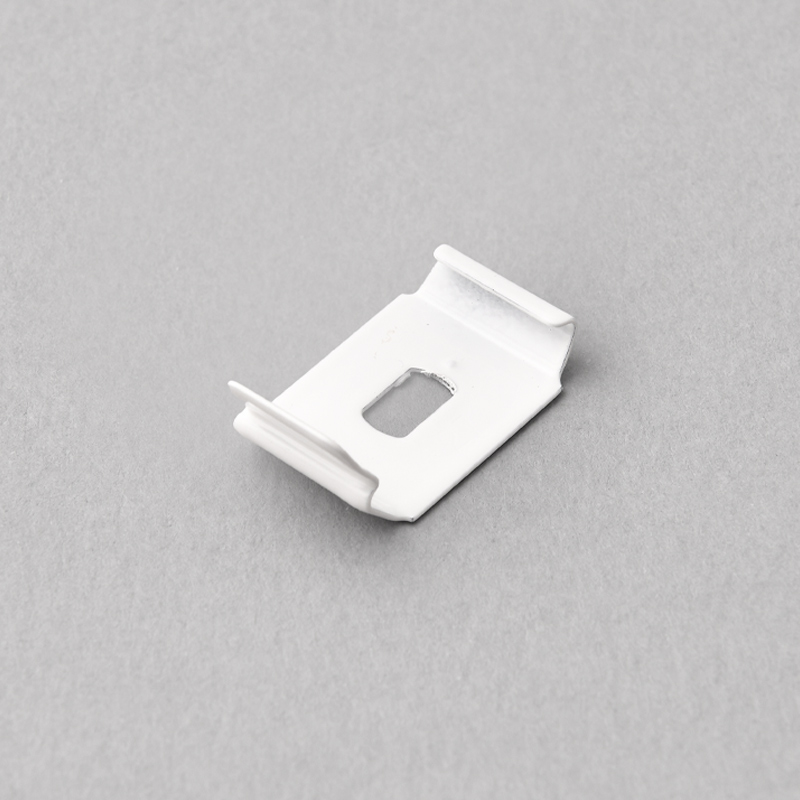

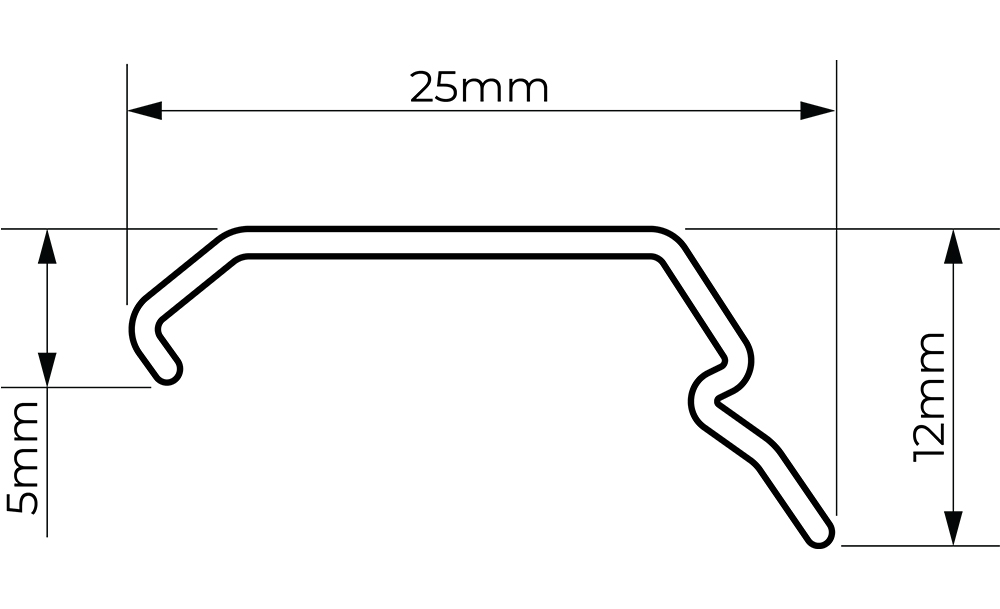

Top-fix Bracket

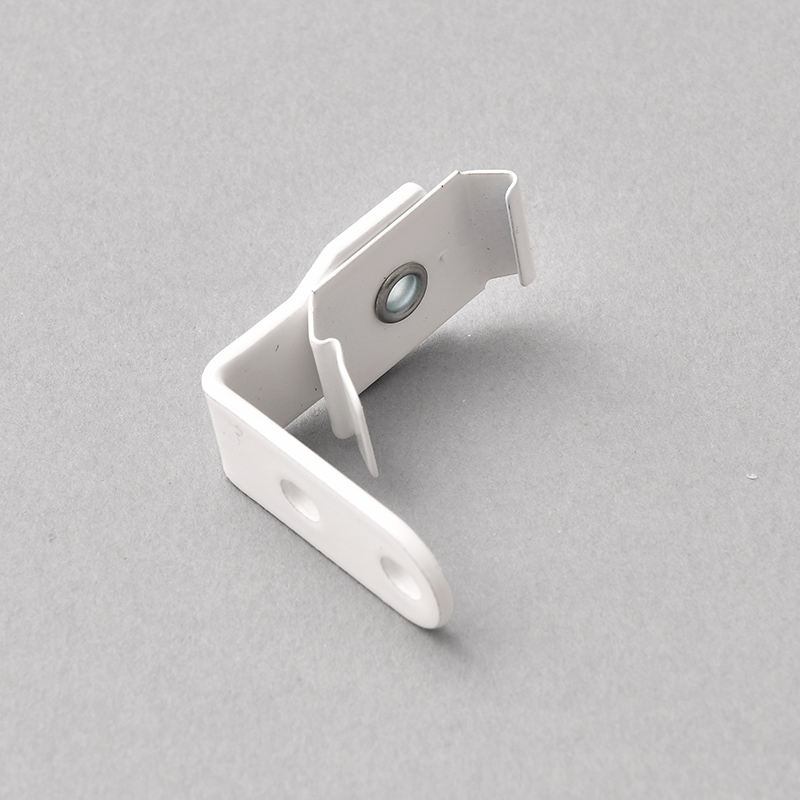

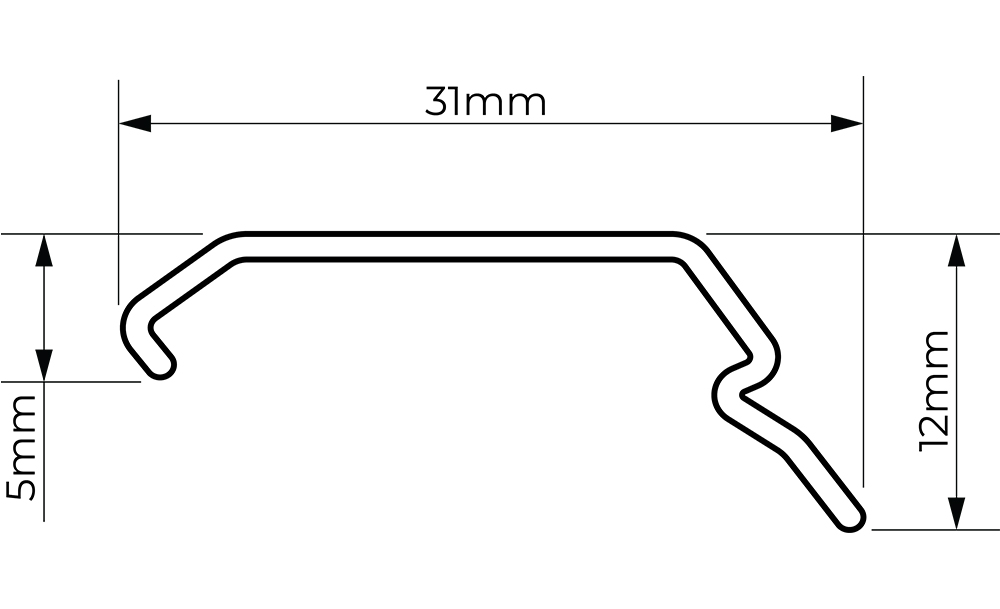

Motorised Headrail Top-fix Bracket

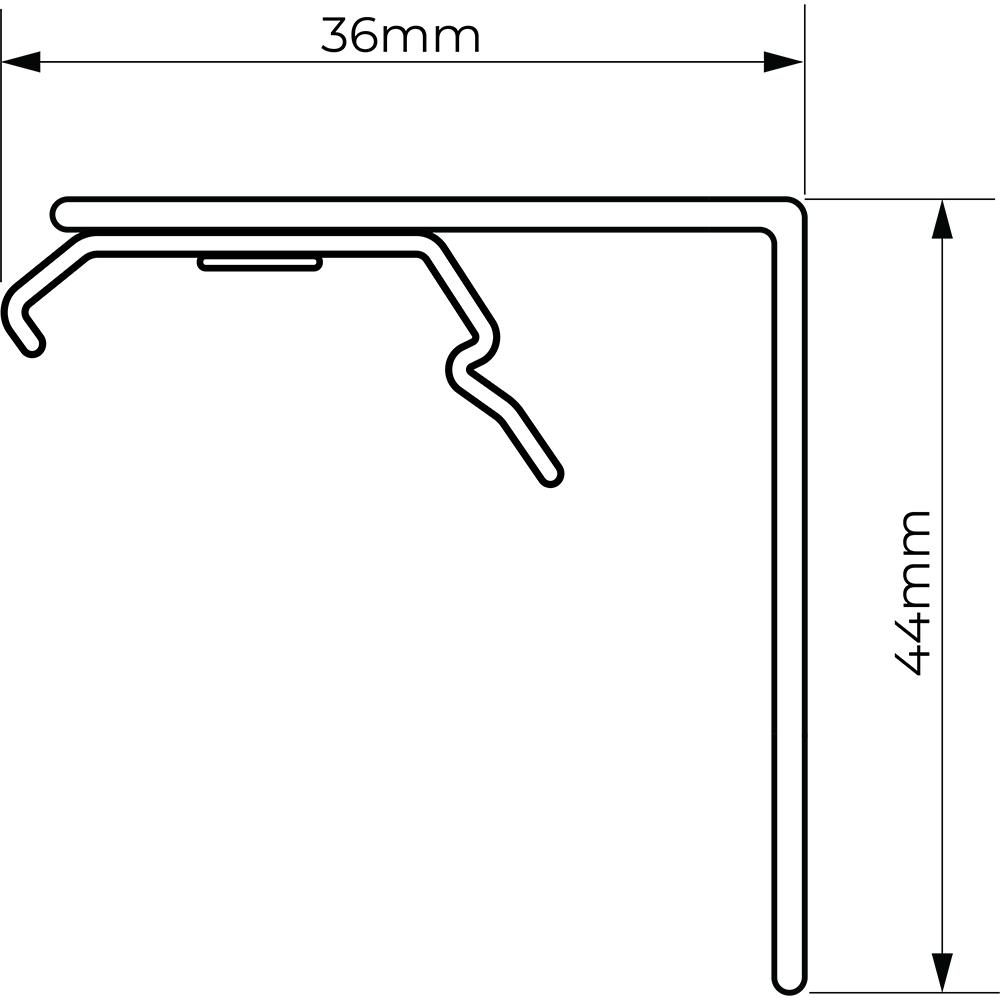

Face-fix Bracket

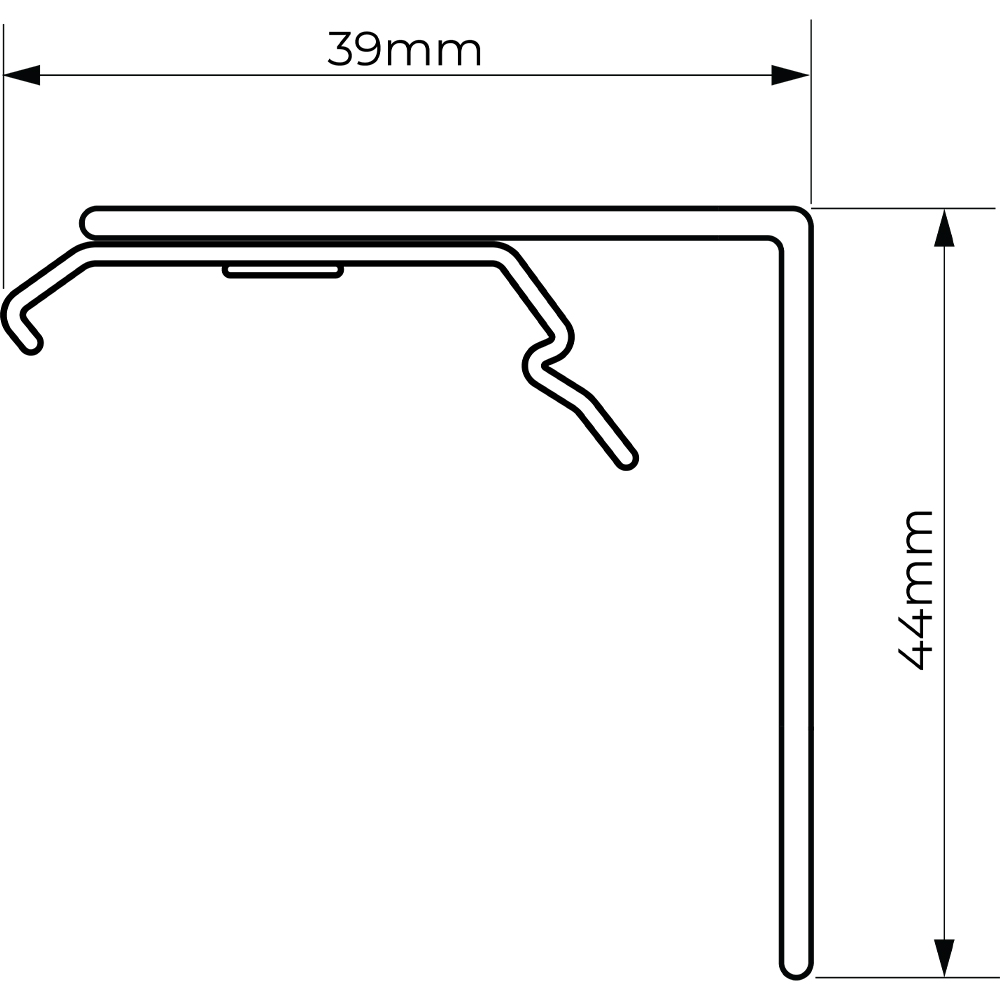

Motorised Headrail Face-fix Bracket

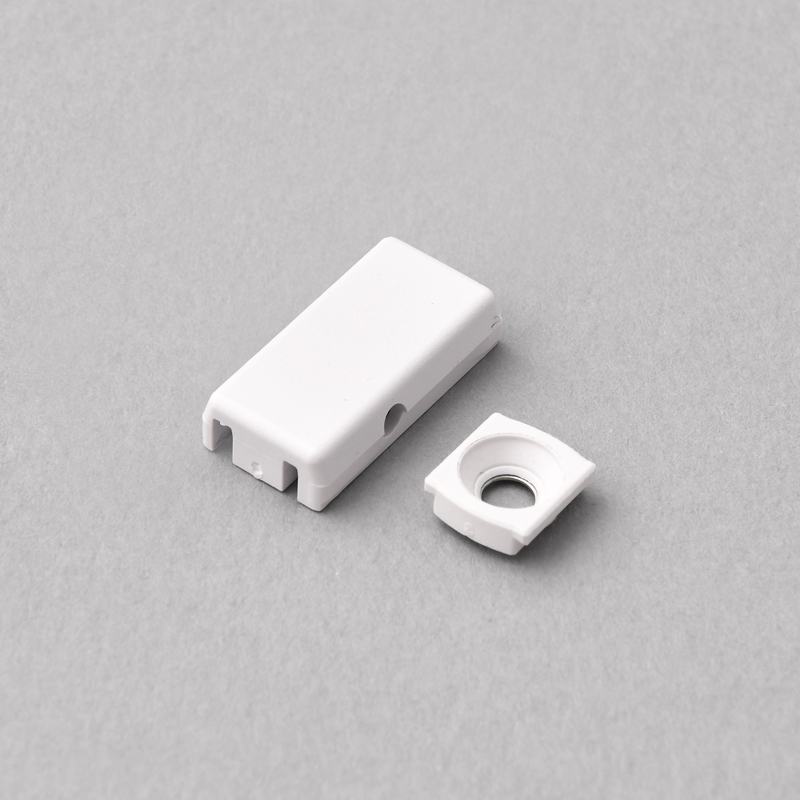

Tensioning Cord Feet
Recess Installation | Window Tensioned with Bottom Bar, Shaped Roof Tensioned, Manual Roof Tensioned

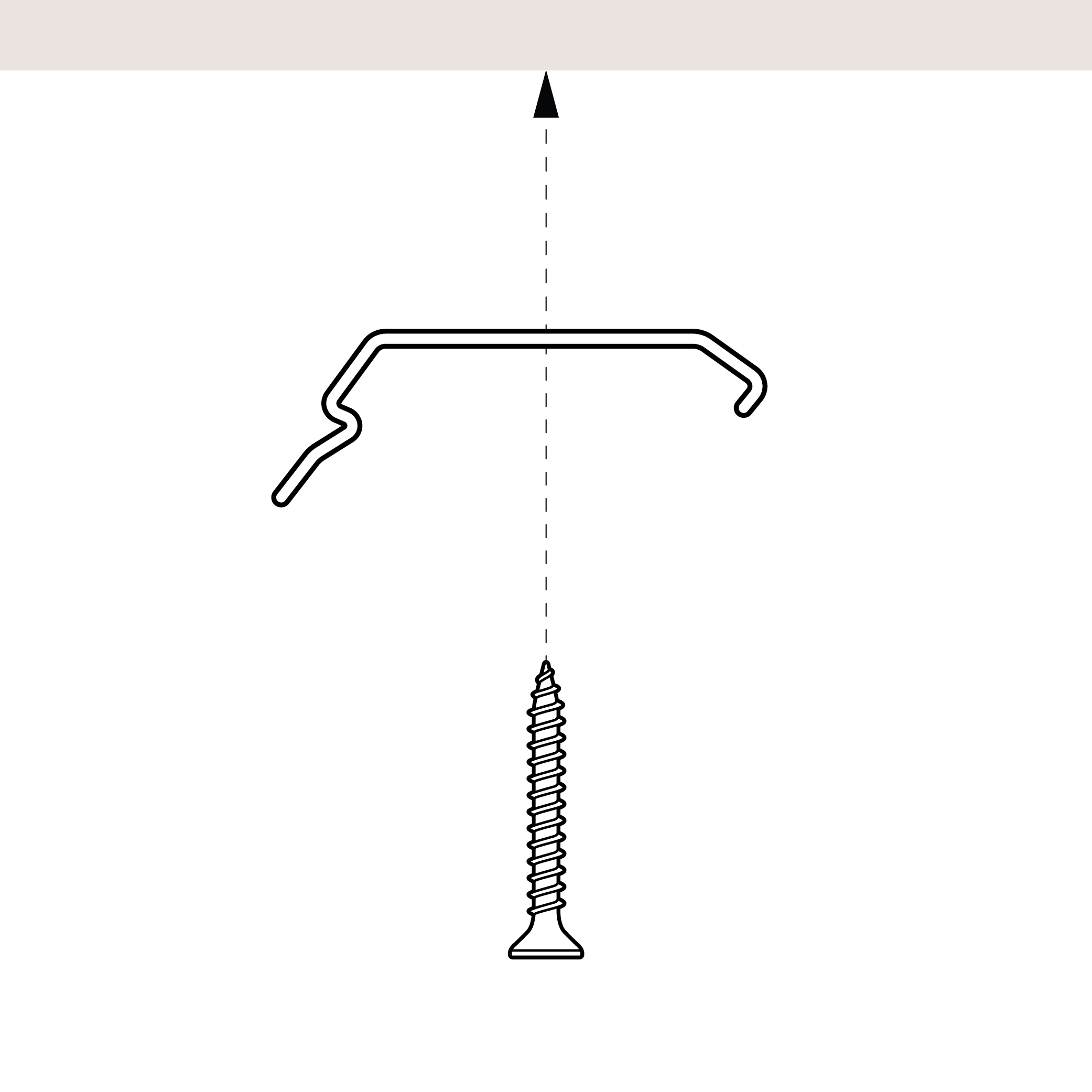

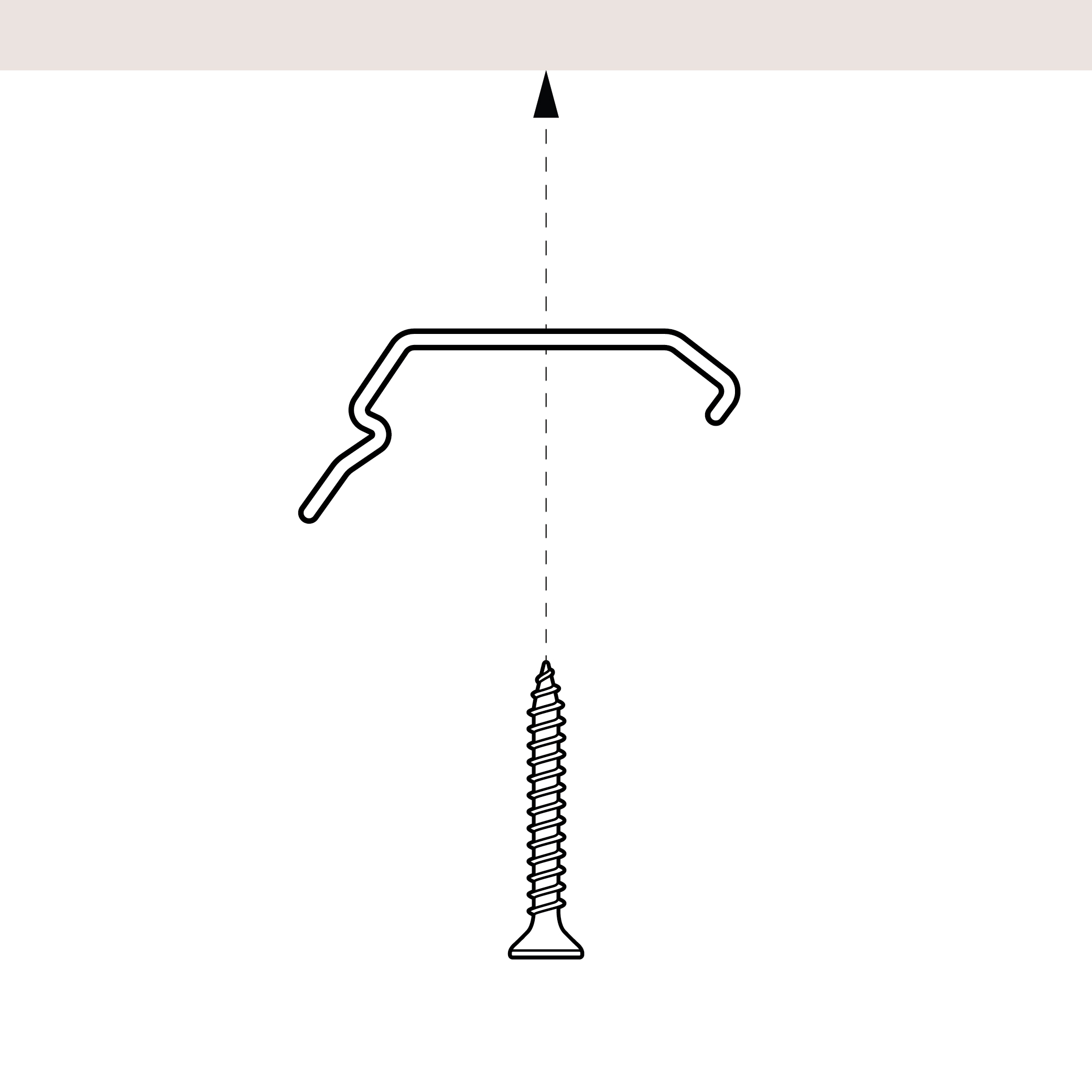

Screw the Top-fix Bracket to the top of the recess/window frame.

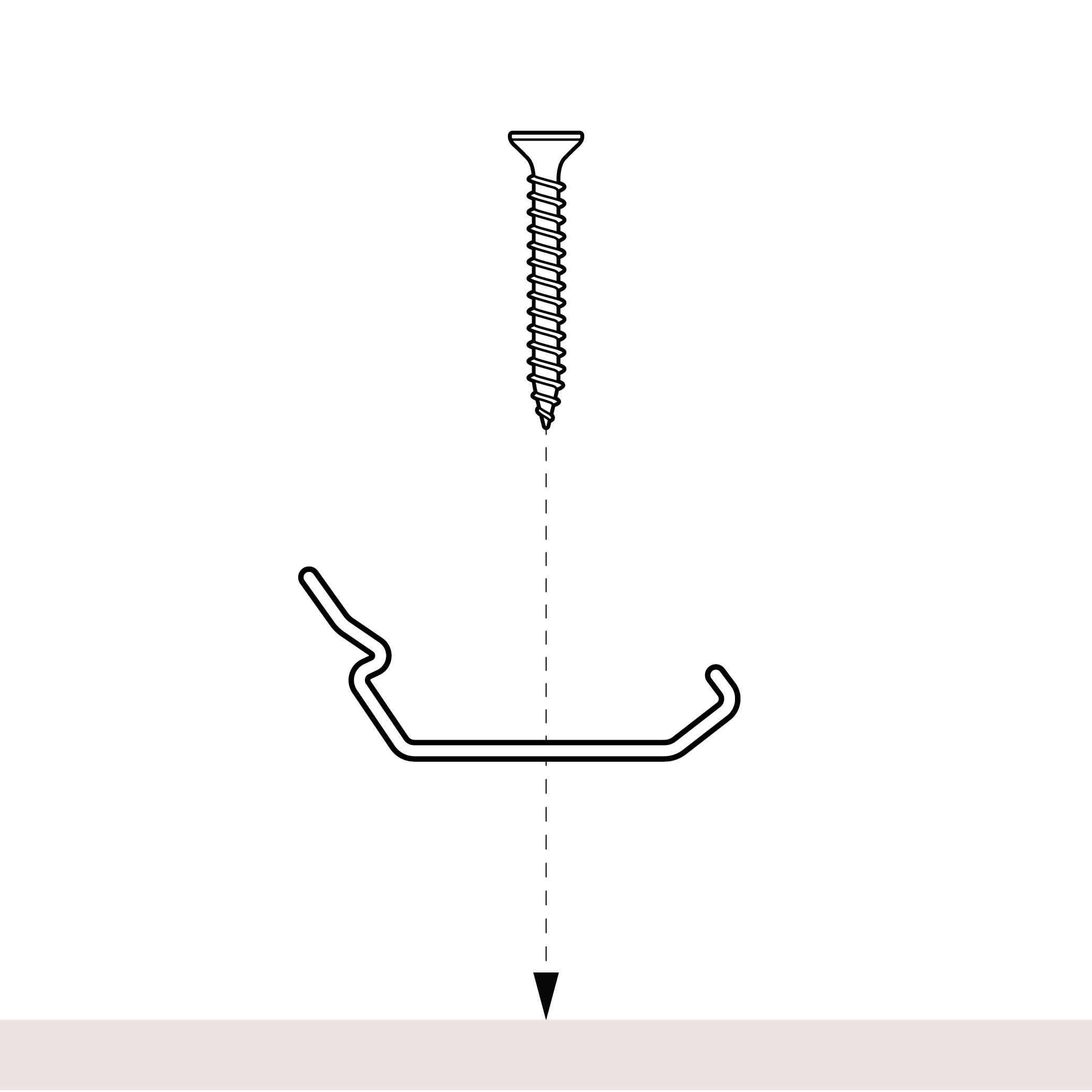

Screw the Top-fix Bracket to the cill/bottom of the window frame, ensuring it is aligned with the brackets fitted above.

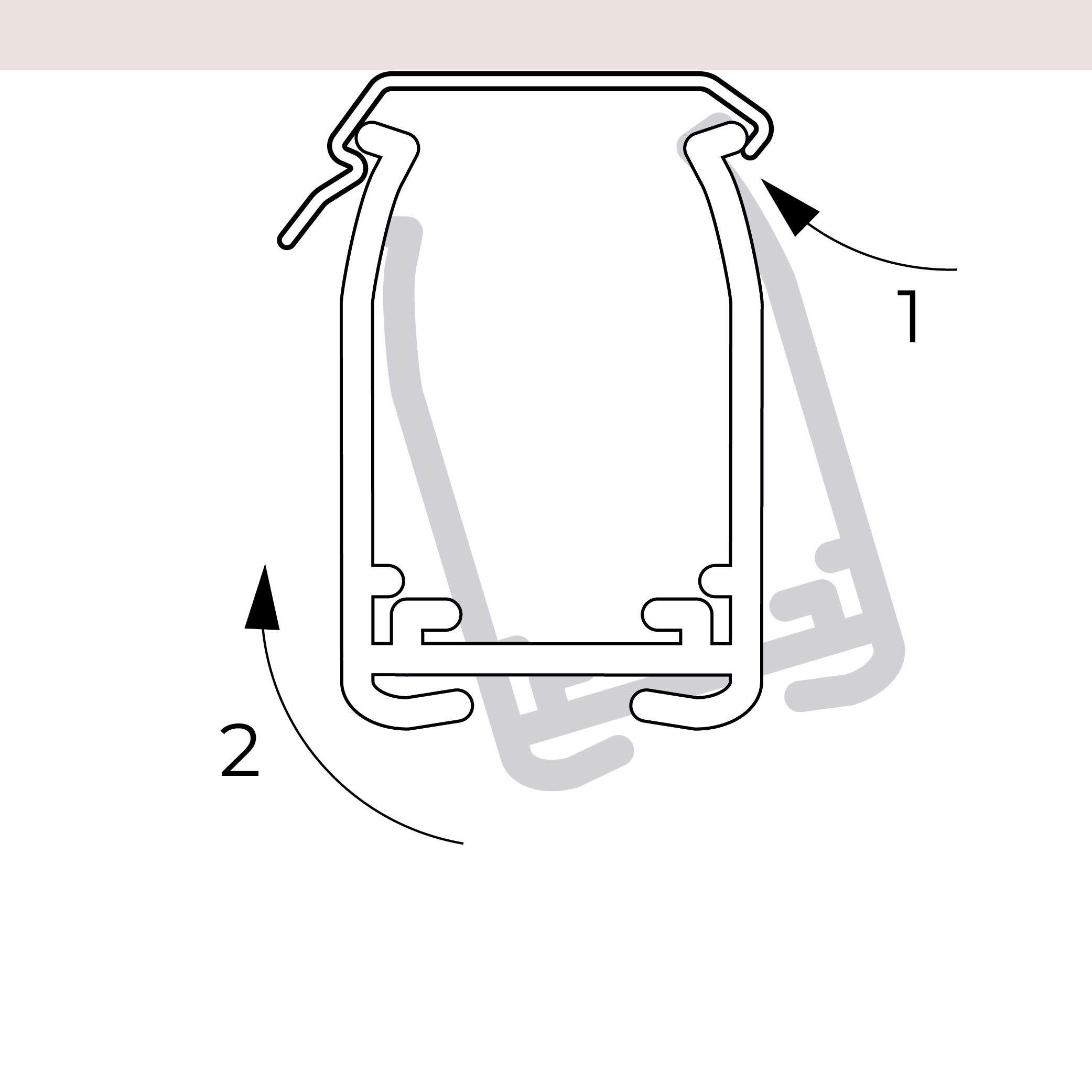

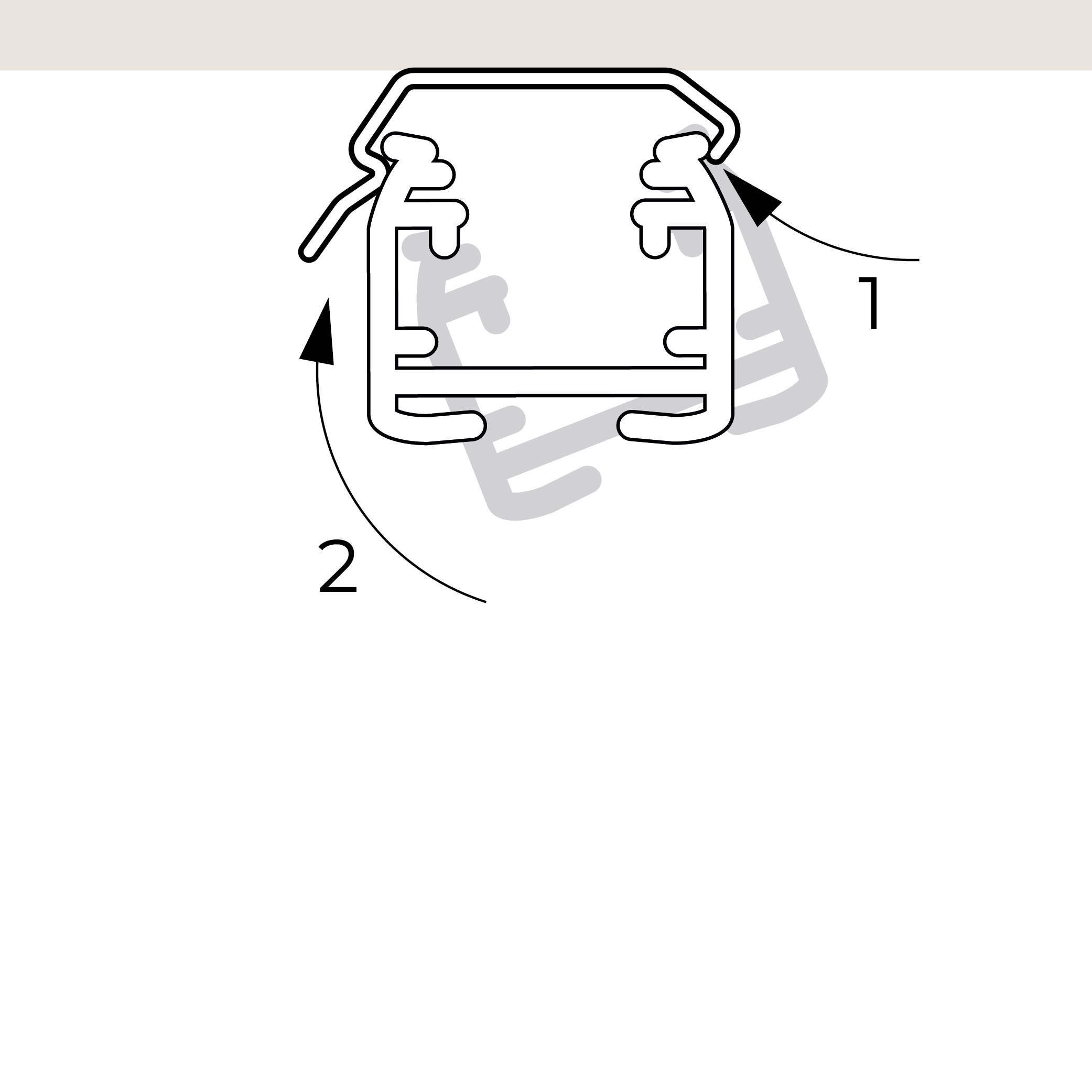

Attach the blind headrail by clipping it securely into the Top-fix Bracket.

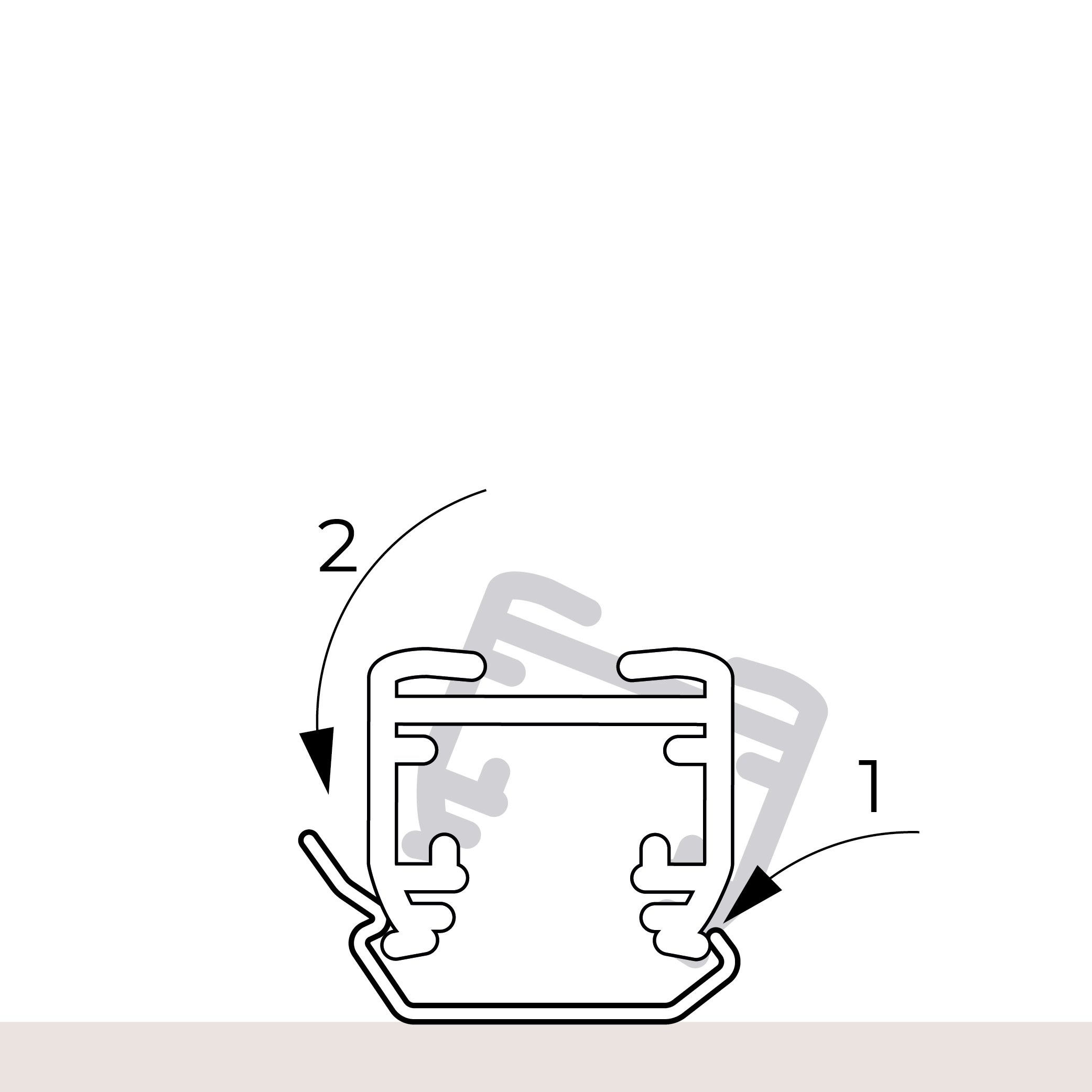

Attach the blind bottom bar by clipping it securely into the Top-fix Bracket.
Face-fix Installation | Window Tensioned with Bottom Bar, Shaped Roof Tensioned, Manual Roof Tensioned

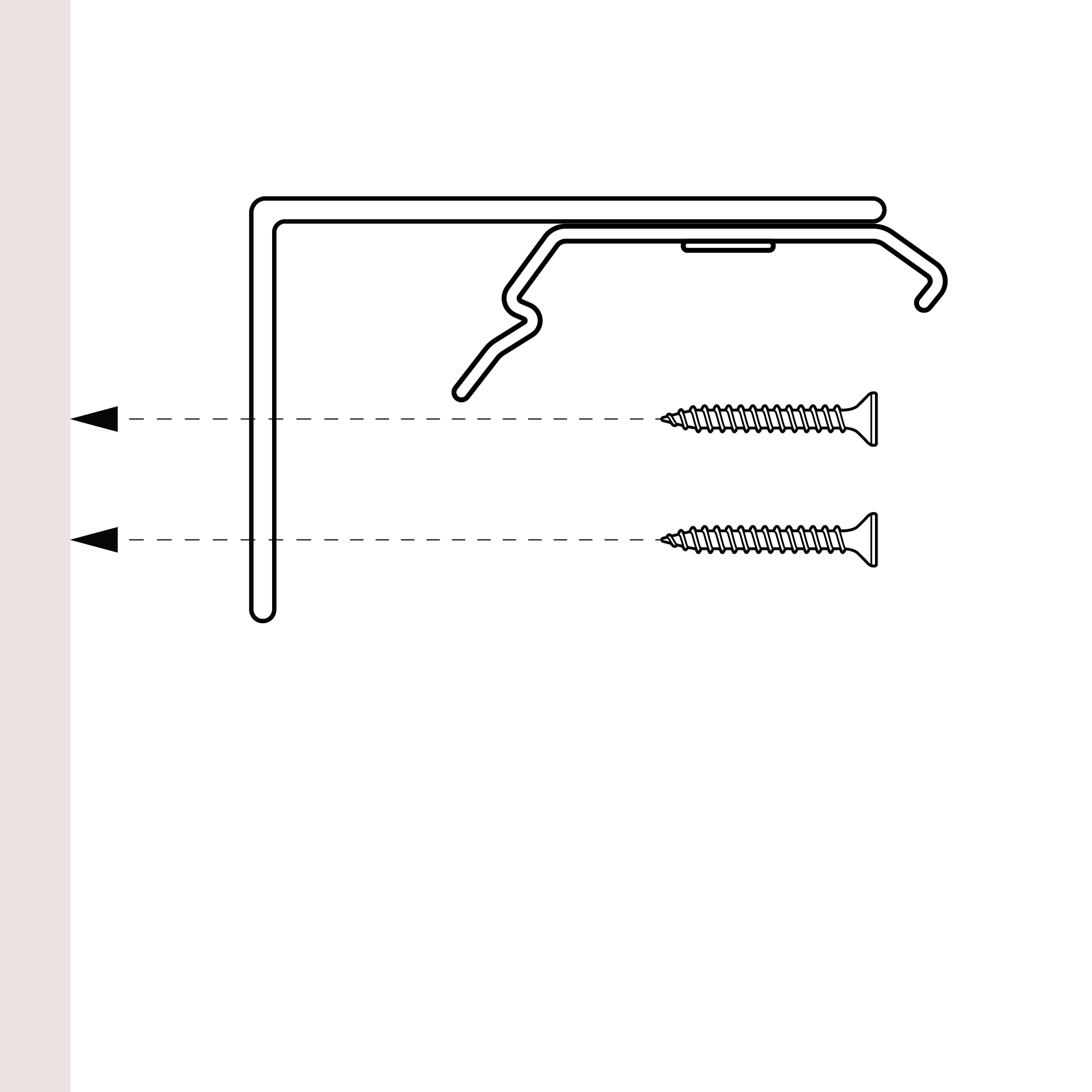

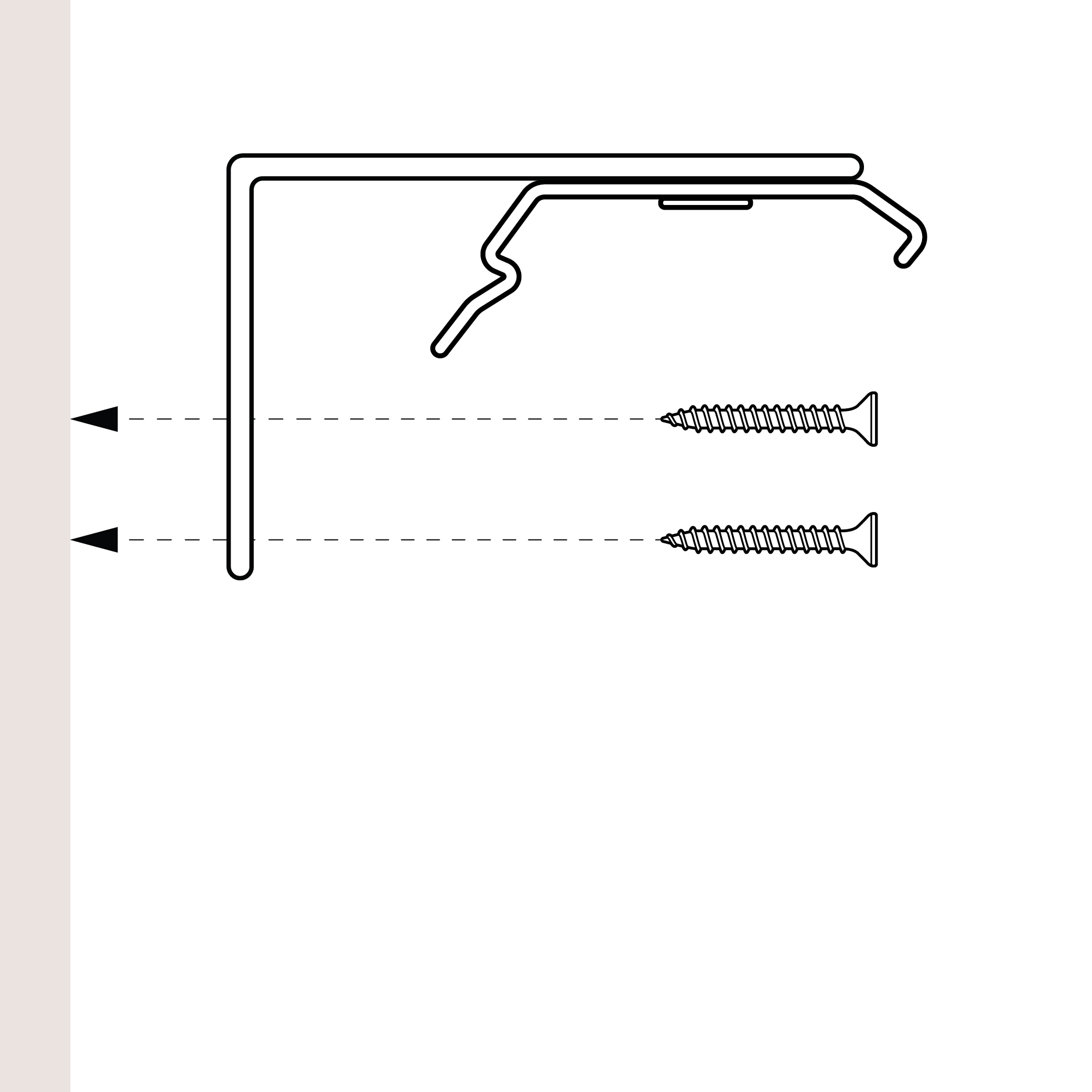

Screw the Face-fix Bracket to the wall/window frame in the desired position above the window.

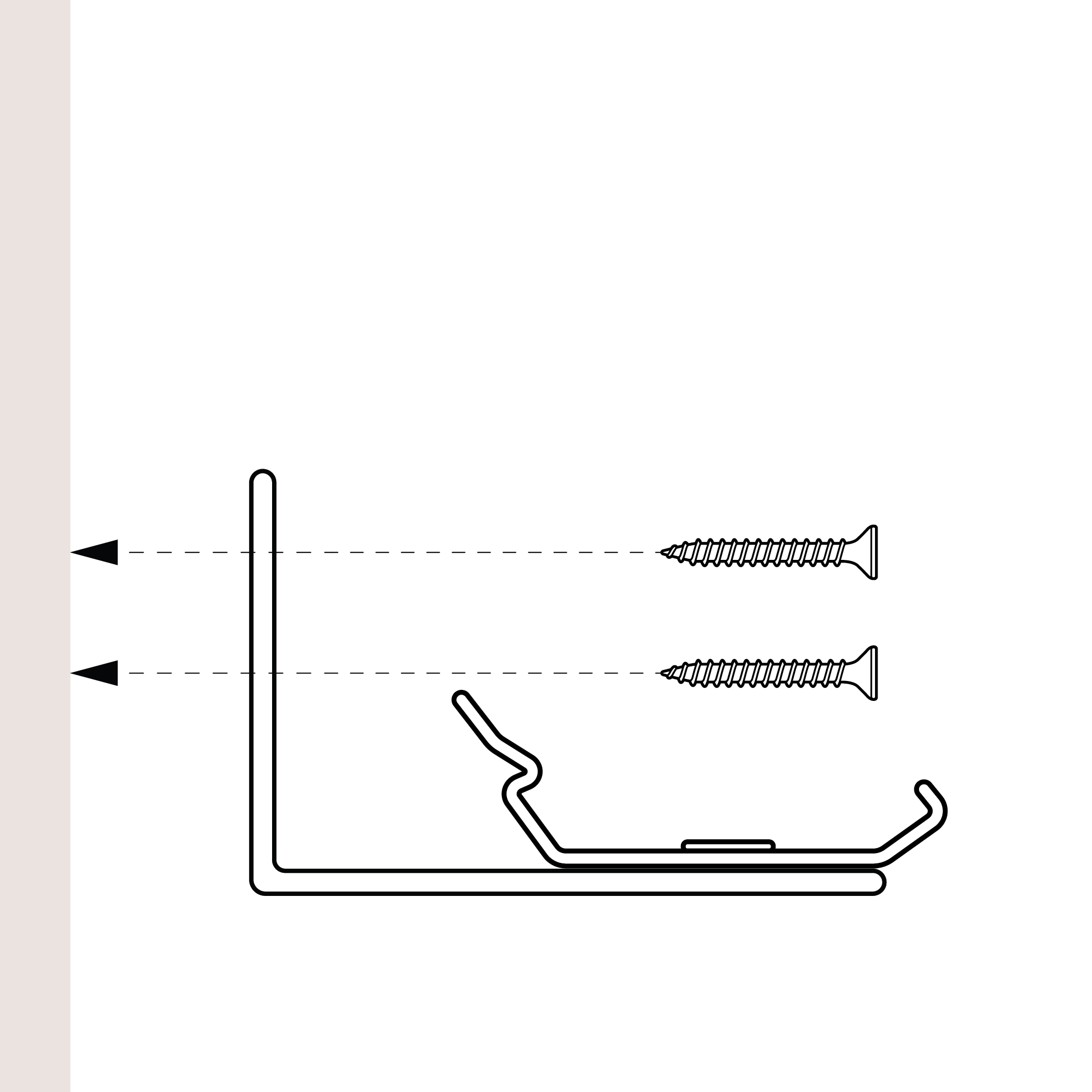

Screw the Face-fix Bracket to the wall/window frame in the desired position below the window.

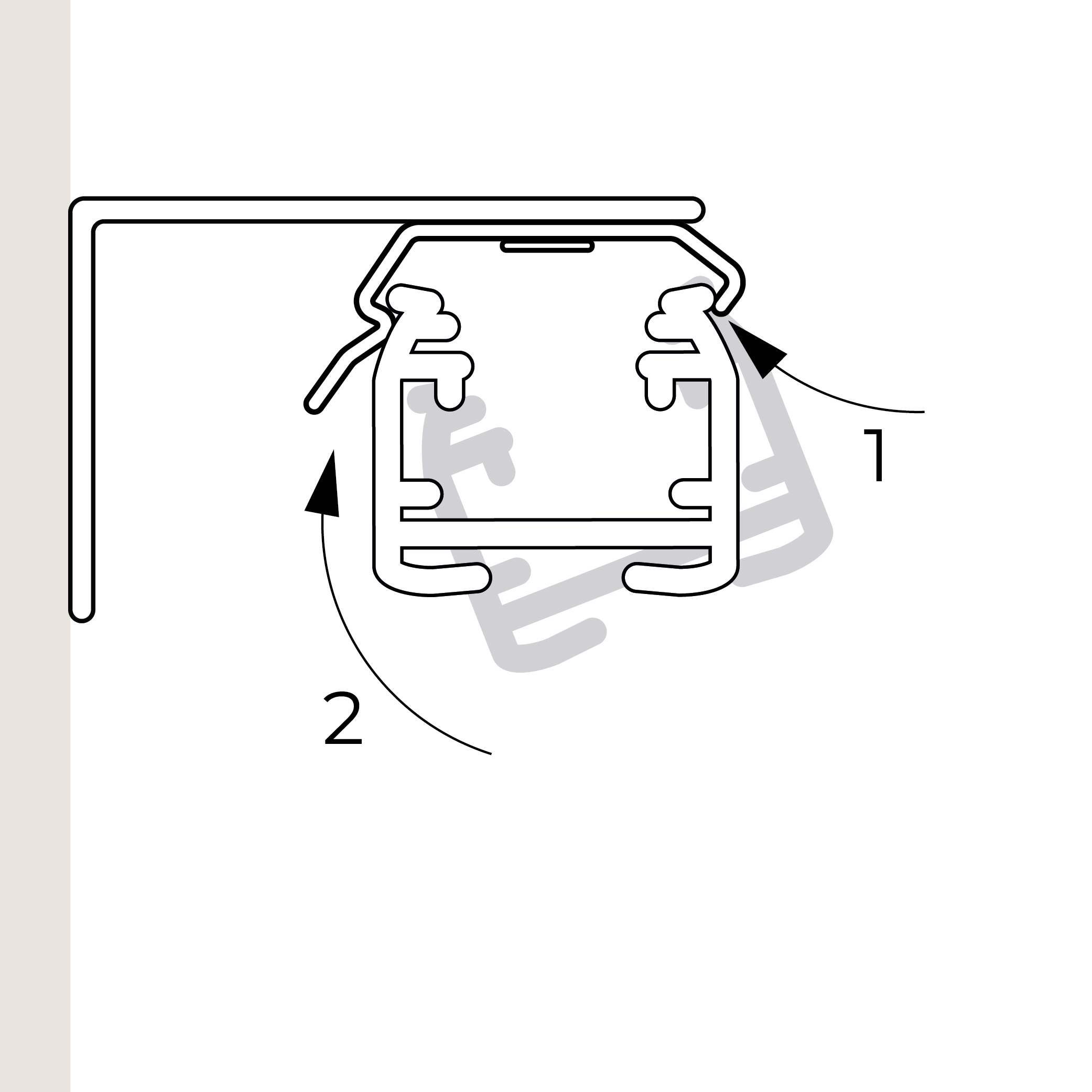

Attach the blind headrail by clipping it securely into the Face-fix Bracket.

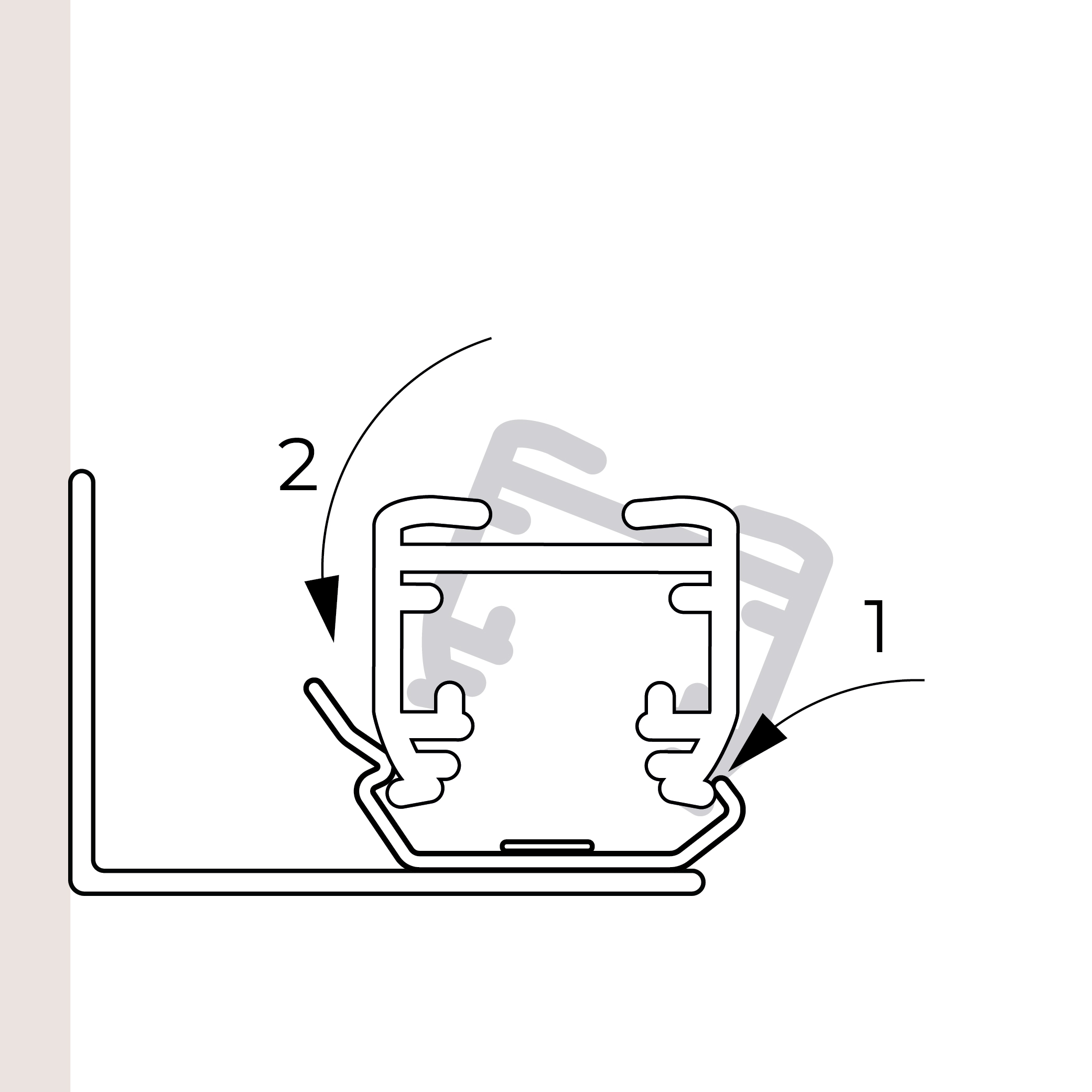

Attach the blind bottom bar by clipping it securely into the Face-fix Bracket.
Recess Installation | Motorised Roof Tensioned
Screw the Motorised Headrail Top-fix Bracket to the top of the recess/window frame.
Screw the Top-fix Bracket to the cill/bottom of the window frame, ensuring it is aligned with the brackets fitted above.
Attach the blind headrail by clipping it securely into the Motorised Headrail Top-fix Bracket.
Attach the blind bottom bar by clipping it securely into the Face-fix Bracket.
Face-fix Installation | Motorised Roof Tensioned
Screw the Motorised Headrail Face-fix Bracket to the wall/window frame in the desired position above the window.
Screw the Face-fix Bracket to the wall/window frame in the desired position below the window.

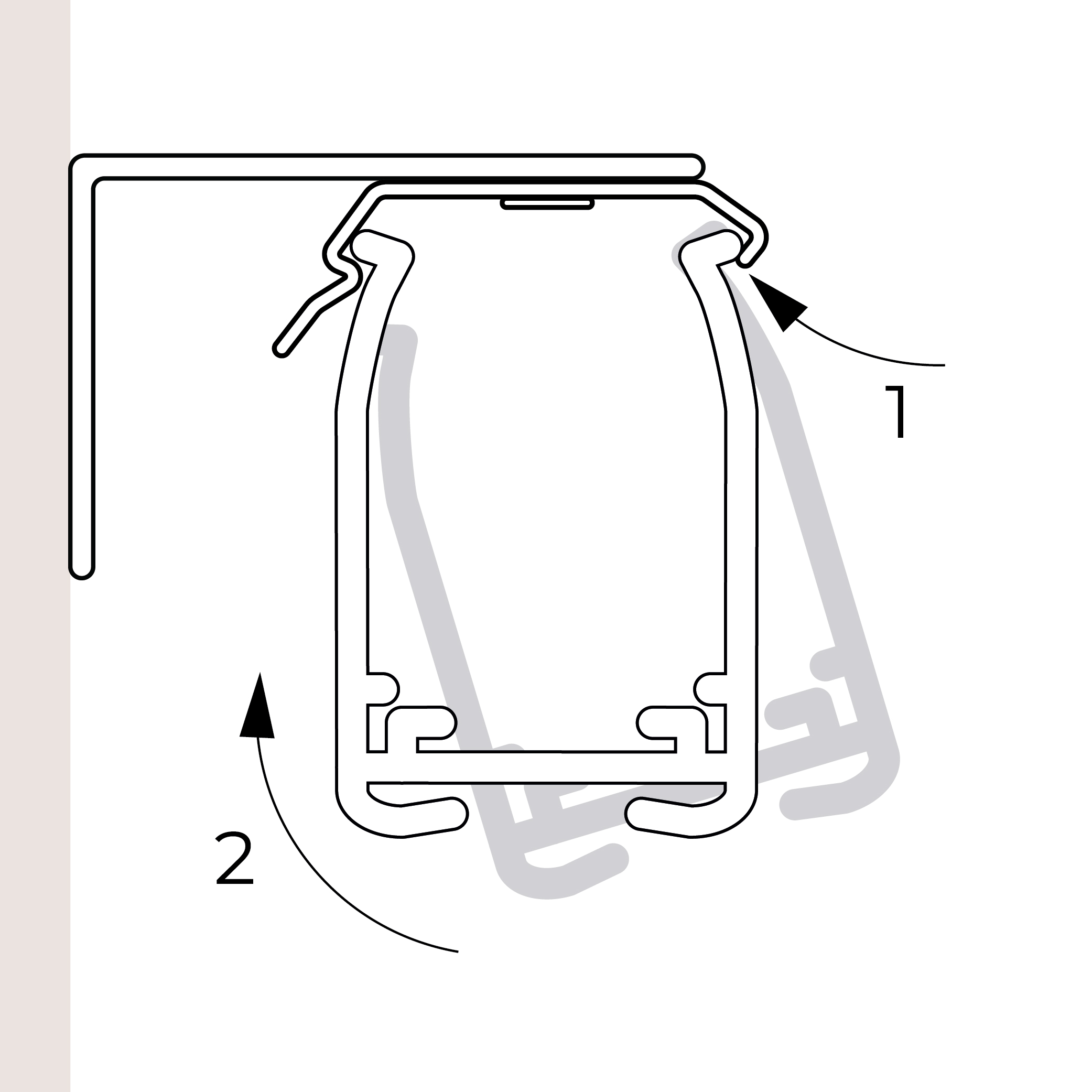

Attach the blind headrail by clipping it securely into the Motorised Headrail Face-fix Bracket.
Attach the blind bottom bar by clipping it securely into the Face-fix Bracket.
Recess Installation | Window Tensioned with Bottom Feet
Screw the Top-fix Bracket to the top of the recess/window frame.
Attach the blind headrail by clipping it securely into the Top-fix Bracket.
Screw the Tensioning Cord Feet Attachment to the window cill on both sides, ensuring they are aligned with the blind edges for smooth operation.
Secure the Cord Tensioning Feet on either side by sliding them onto the attachment, then adjust the cord tension to ensure smooth operation.

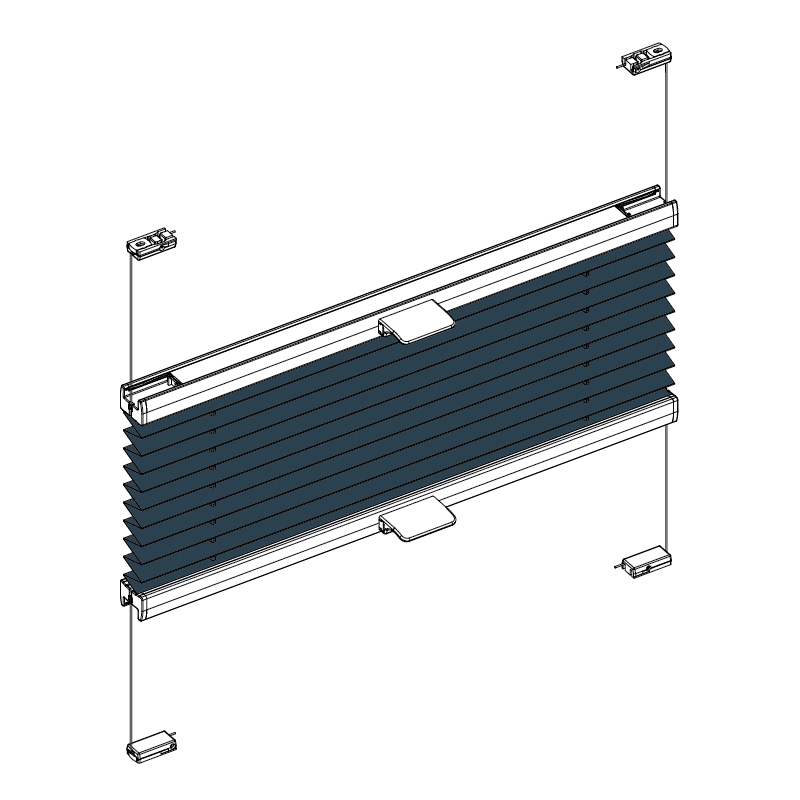

Recess Installation | Multi-zone

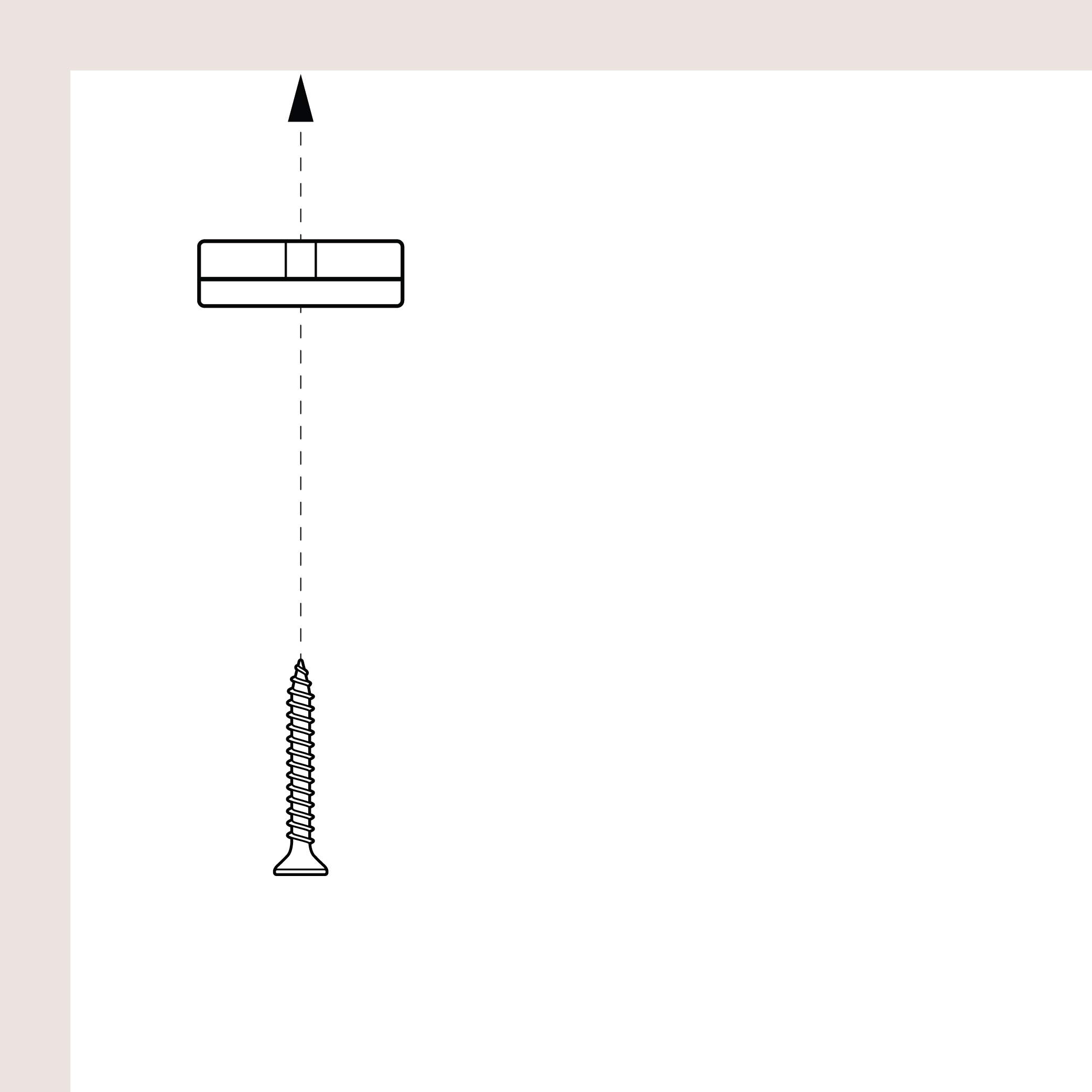

Screw the Tensioning Cord Feet Attachment to the top of the recess on both sides, ensuring they are aligned with the blind edges for smooth operation.

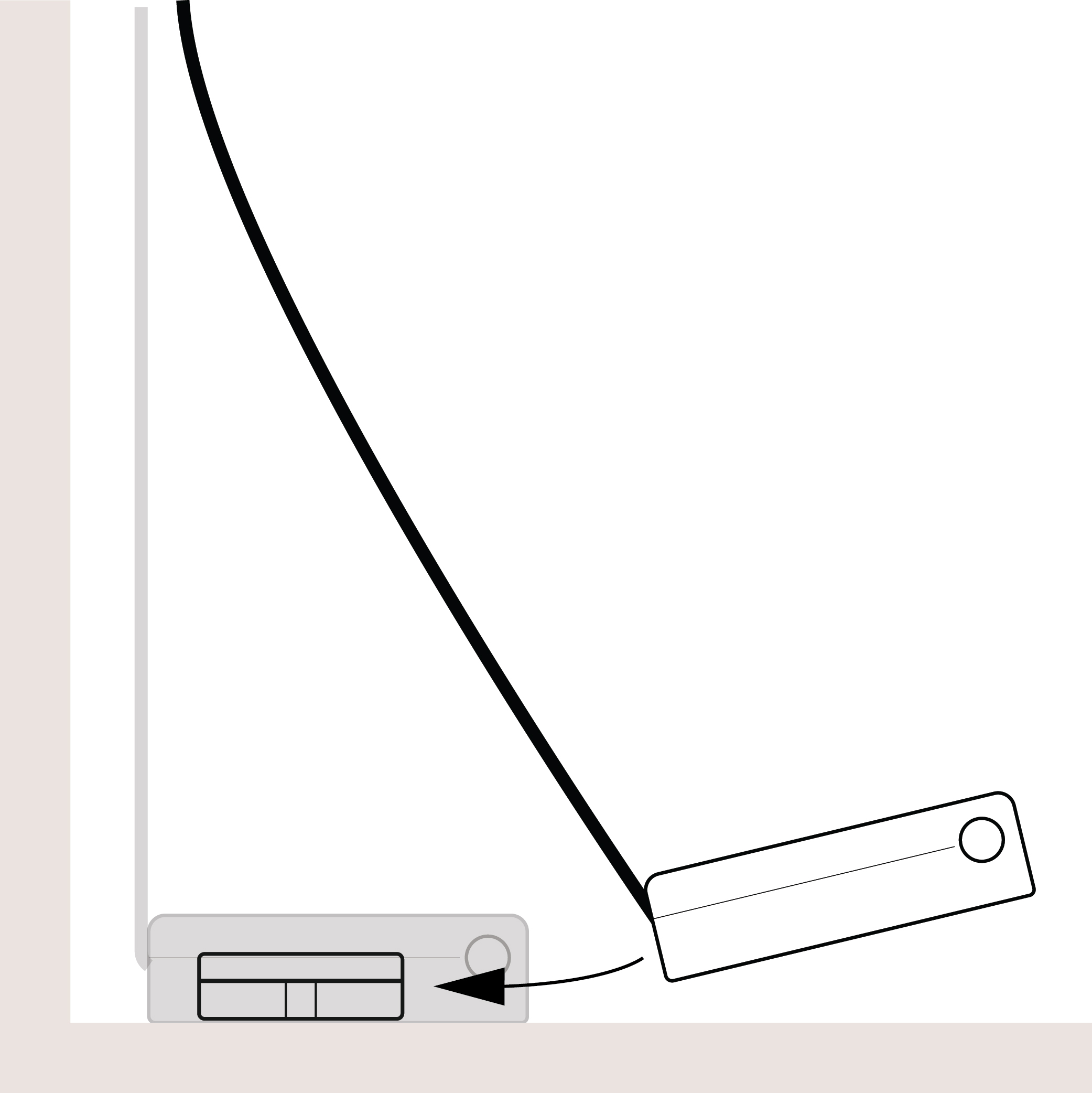

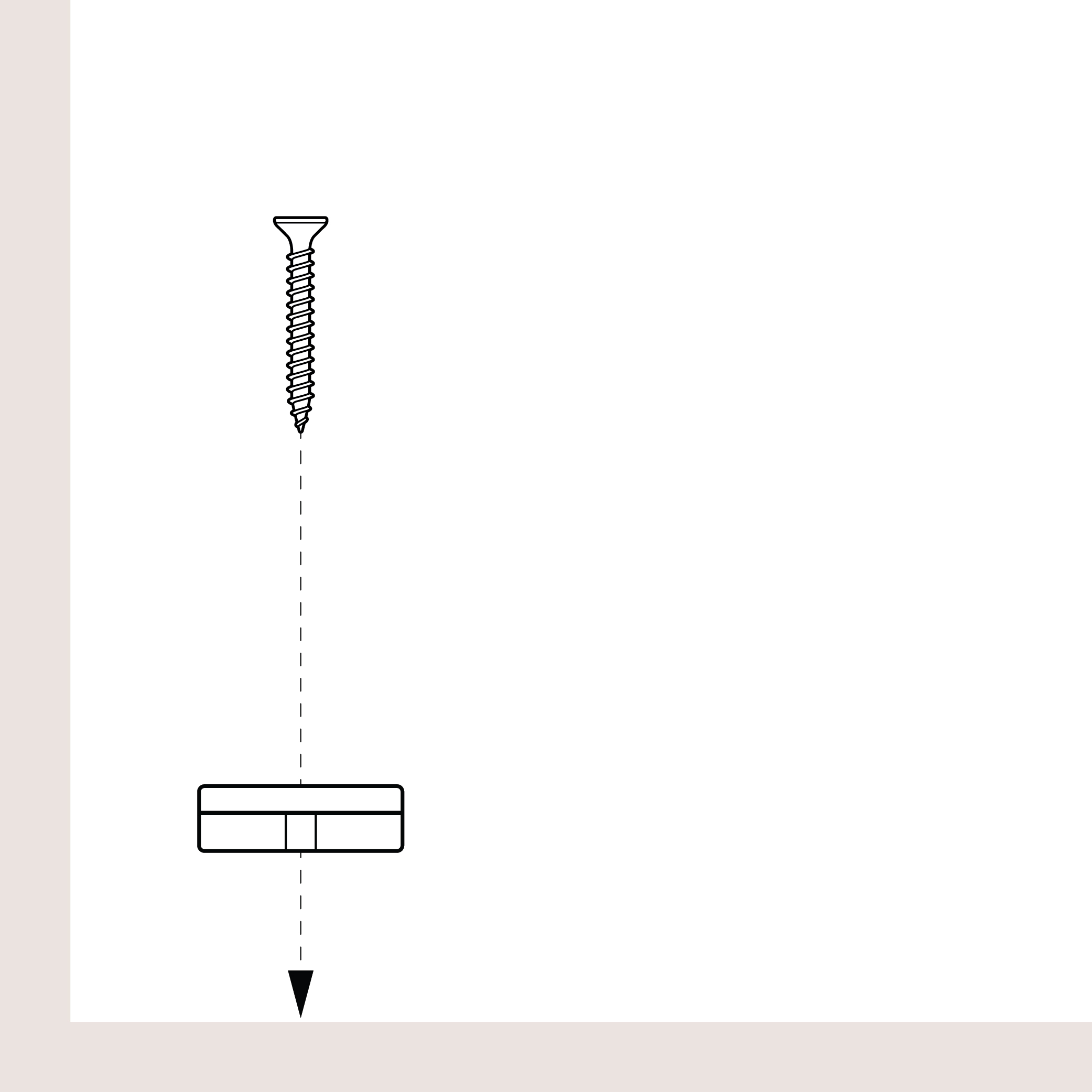

Screw the Tensioning Cord Feet Attachment to the window cill on both sides, ensuring they are aligned with the blind edges for smooth operation.

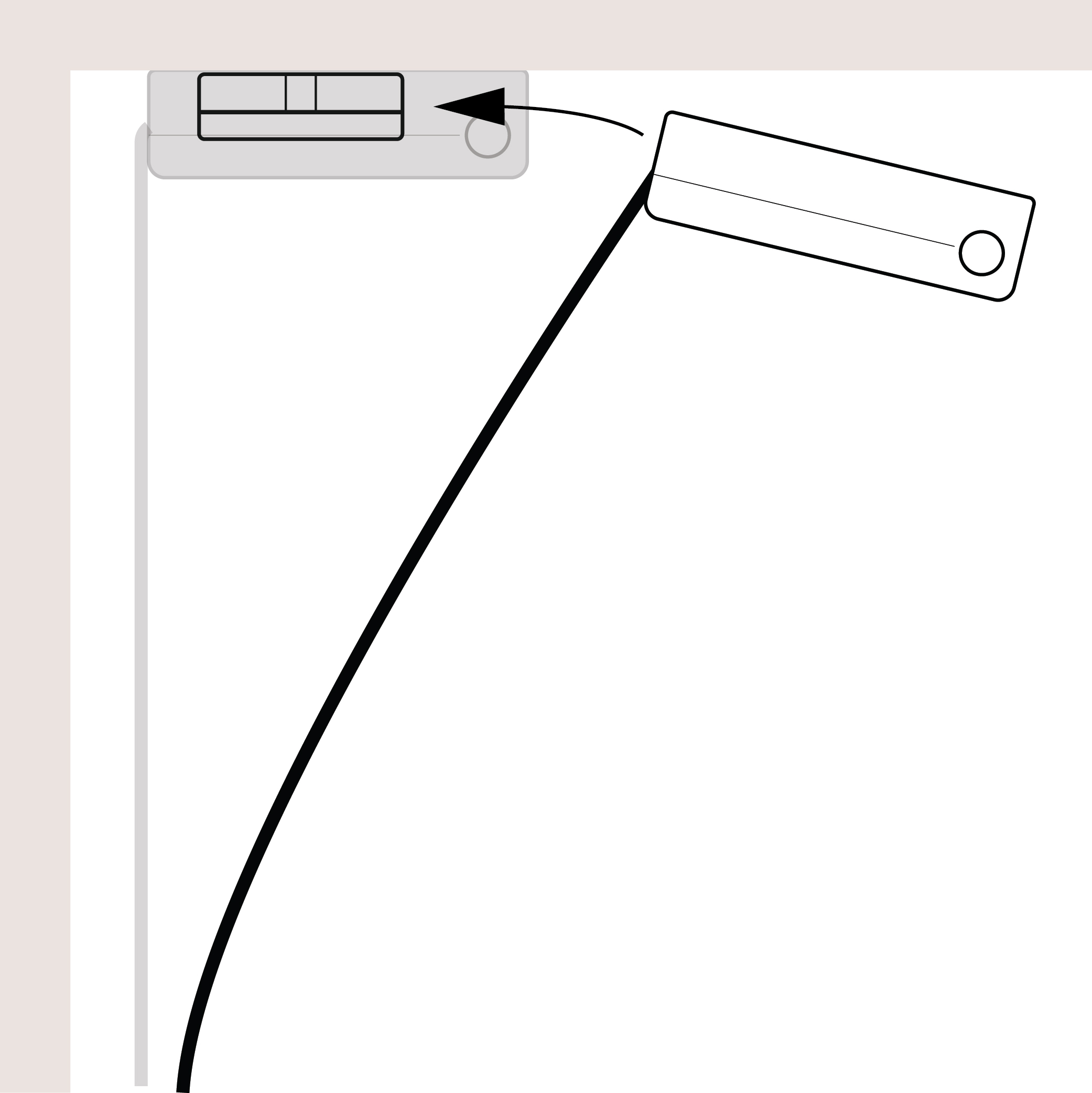

Secure the top Cord Tensioning Feet on both sides on by sliding them onto the attachment.
Secure the bottom Cord Tensioning Feet on either side by sliding them onto the attachment, then adjust the cord tension to ensure smooth operation.
Fabrics
Our Cellular Fabric Collection offers a stylish and highly functional solution for pleated blinds, combining elegant design with outstanding performance. In addition to our own collection, we also offer a curated selection of pleated fabrics from trusted suppliers like Eclipse and Honeycell.
Cellular Fabric Collection
Athens
Brussels BO
Lisbon FR BO
Madrid FR
Paris
Technical Specifications
Min & Max Sizes
| Control Type | Min. width | Max. width | Max. drop |
|---|---|---|---|
| Tensioned Window Pleated Blind | – | 1500mm | 4000mm |
| Motorised Tensioned Roof Pleated Blinds | Drop below 2m | 520mm Drop above 2m | 685mm |
1500mm | 4000mm |
For Shaped Roof Pleated Blinds, the minimum and maximum sizes vary depending on the window shape. Please contact us for tailored guidance and measurement limits.
Measuring Guide
Tensioned Window & Motorised
Tensioned Roof Pleated Blinds

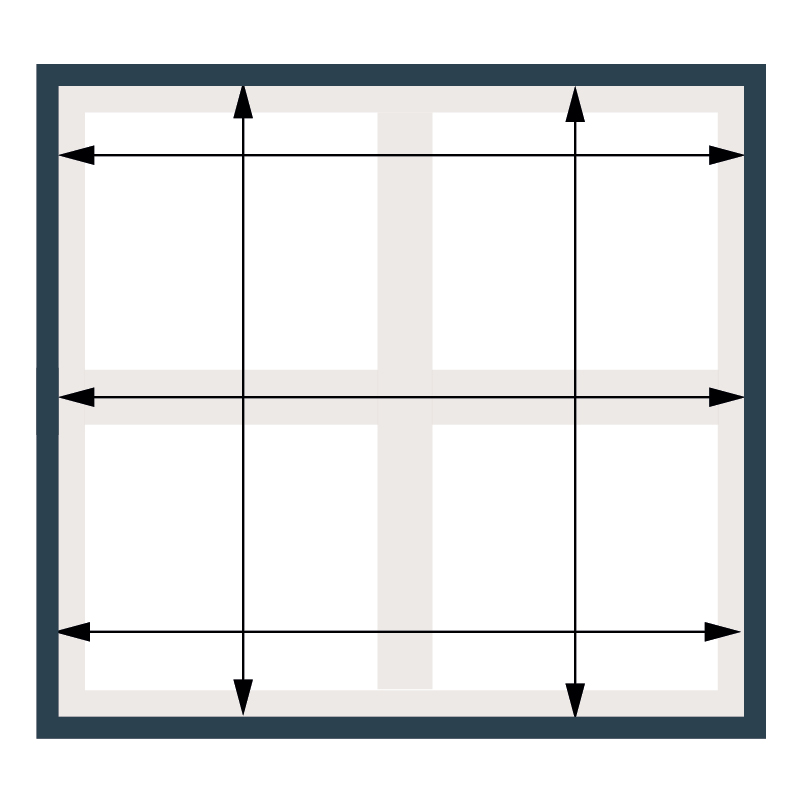

When measuring for Tensioned Roof Pleated Blinds, please provide three width and two drop measurements - even if they are just a millimetre or two different.
This will allow to tension the blind accurately in our workshop, leaving you to do nothing but fit the blind.

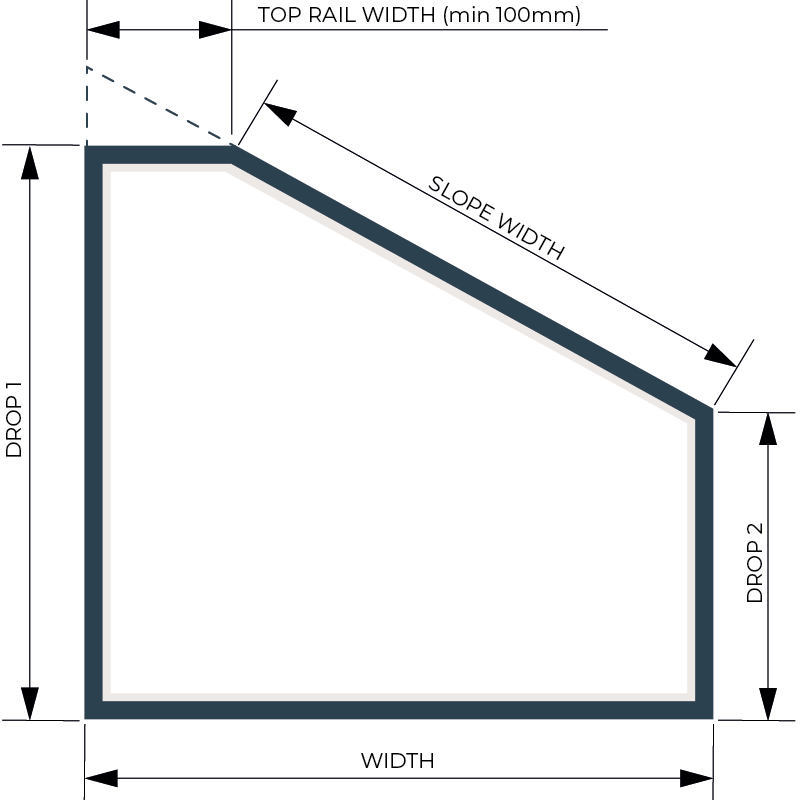

Shaped Roof Pleated Blinds
When measuring for shaped Roof Pleated Blinds, it is very important to note that the top rail has a minimum width of 100mm, and allowances must be made on site when measuring.
All drawings must be ‘worm’s eye’ perspective.
Headrail Dimensions

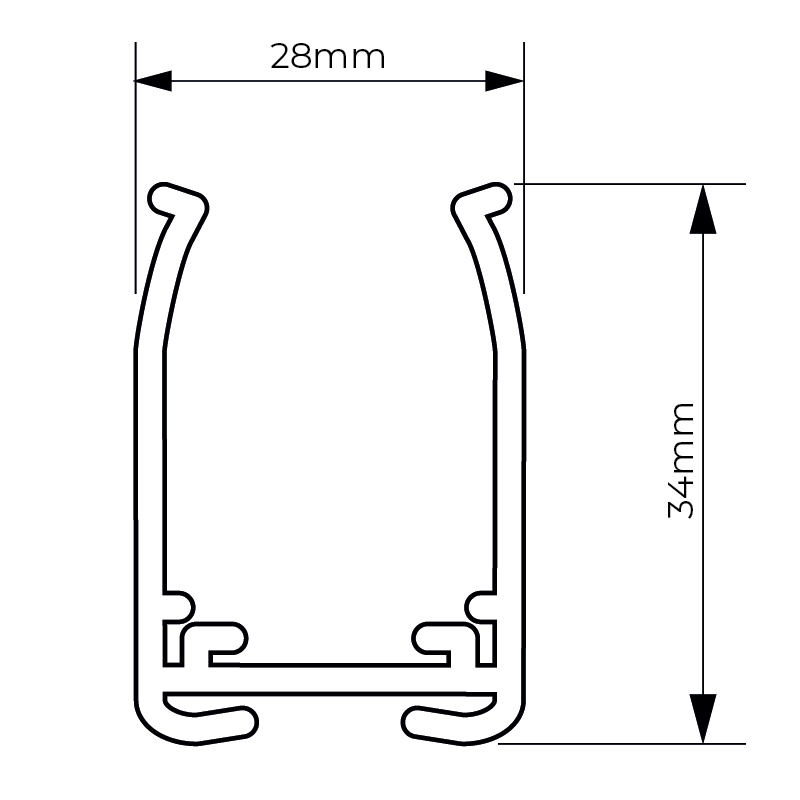

Motorised Headrail
(cross section)

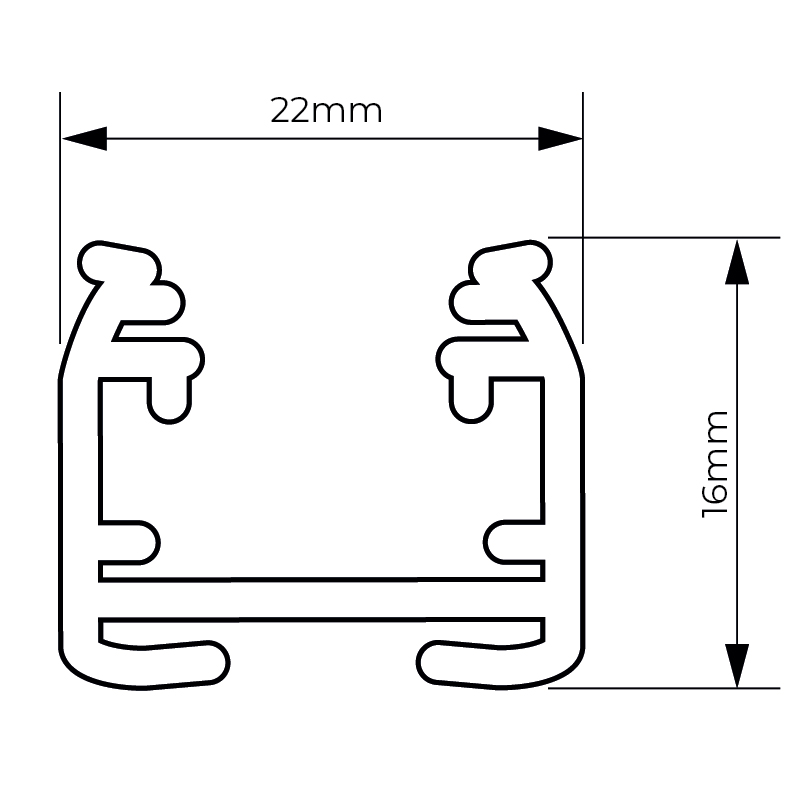

Standard/Manual Headrail
(cross section)
